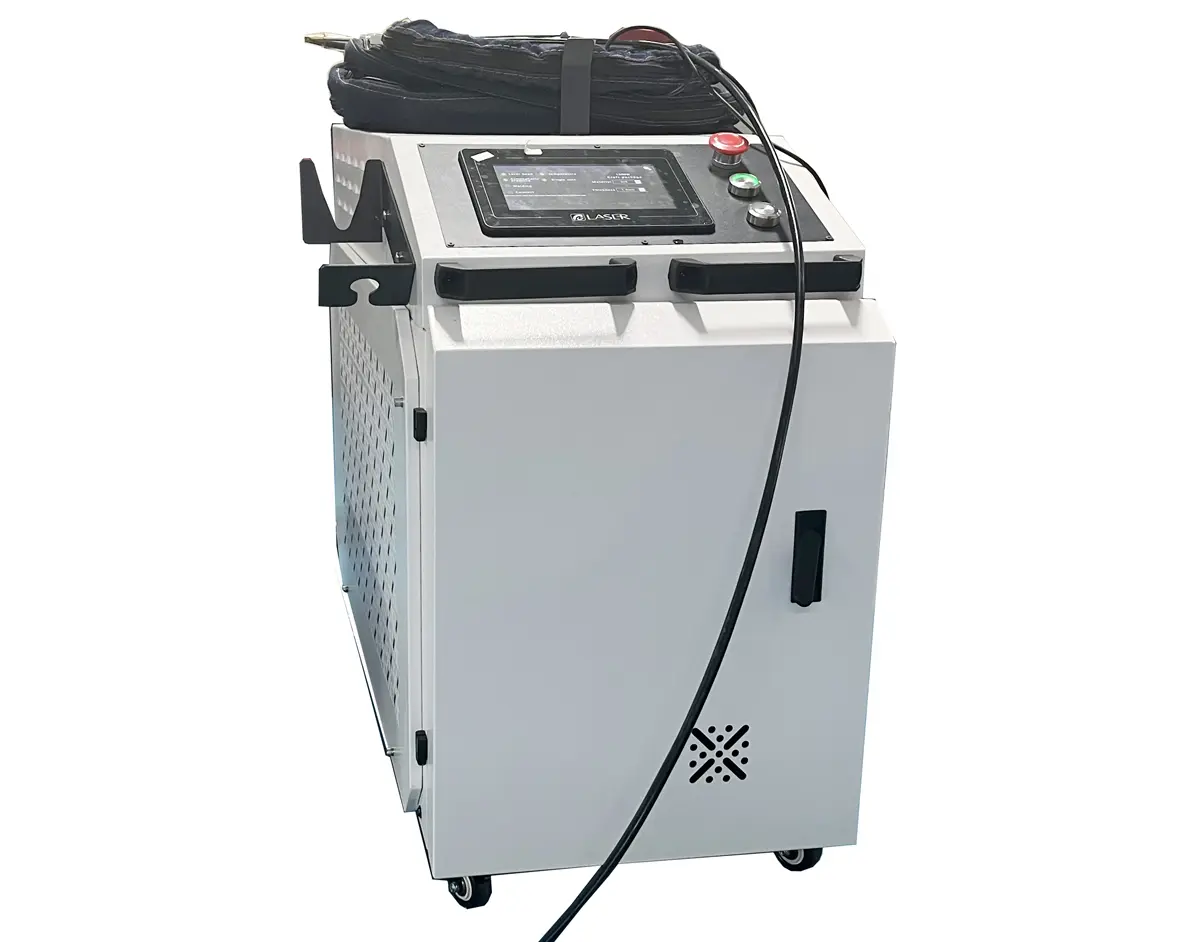

| Configuration List |
|---|
| 1. A set of laser source |
| 2. A set of cleaning systems |
| 3. LCD display systm |
| 4. One set of host cabinet |
| 5. A set of laser fiber |
| Material | Aluminium | Stainless steel | Carbon steel | Galvanized sheet |
|---|---|---|---|---|
| 1000W | 1.0mm | 1.5mm | 1.5mm | 1.2mm |
| 1500W | 1.5mm | 2.0mm | 3.0mm | 2.5mm |
| 2000W | 2.0mm | 2.5mm | 4.0mm | 3.0mm |
| 3000W | 3.0mm | 3.5mm | 5.5mm | 4.5mm |

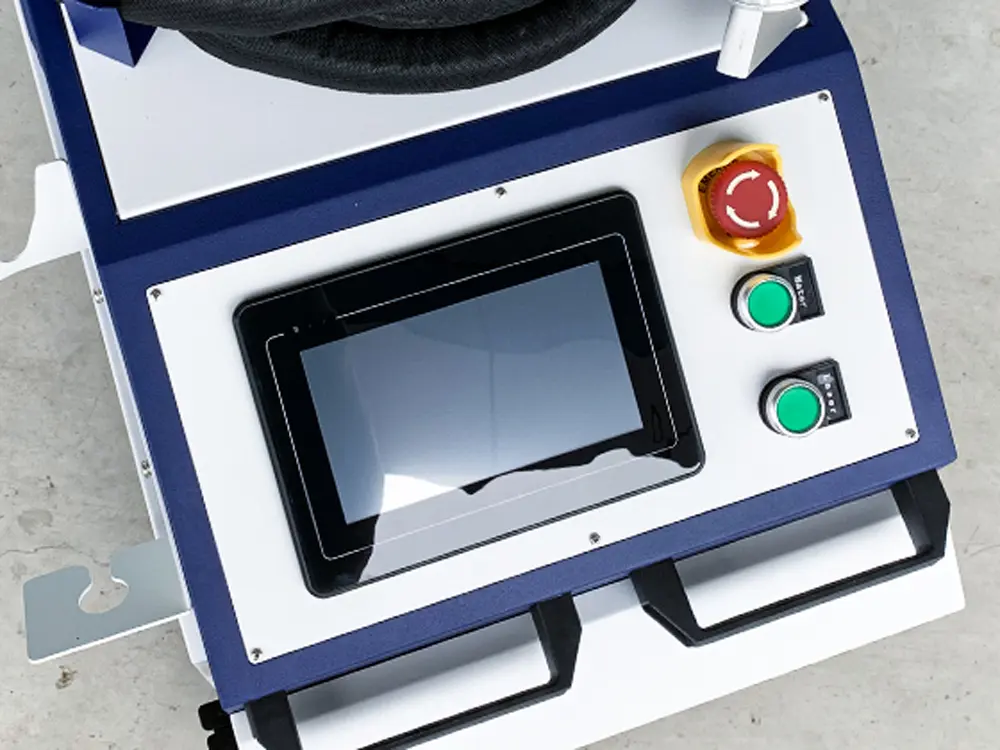

Relfar Control system, easy to operate. Intelligent protection system, mobileterminal APP and PC monitoring, real-time feedback of working status
With intelligent protection system mobile terminal APP and Pc terminalmonitoring and real-time feedback; Multiple safety lock, high safety performance.The
World brand laser source, stable and high cost-effective. Raycus, Max, RECbrand, Popular in the world. Adopt modular design, the system is highly integratedfree from maintenance, high reliability.

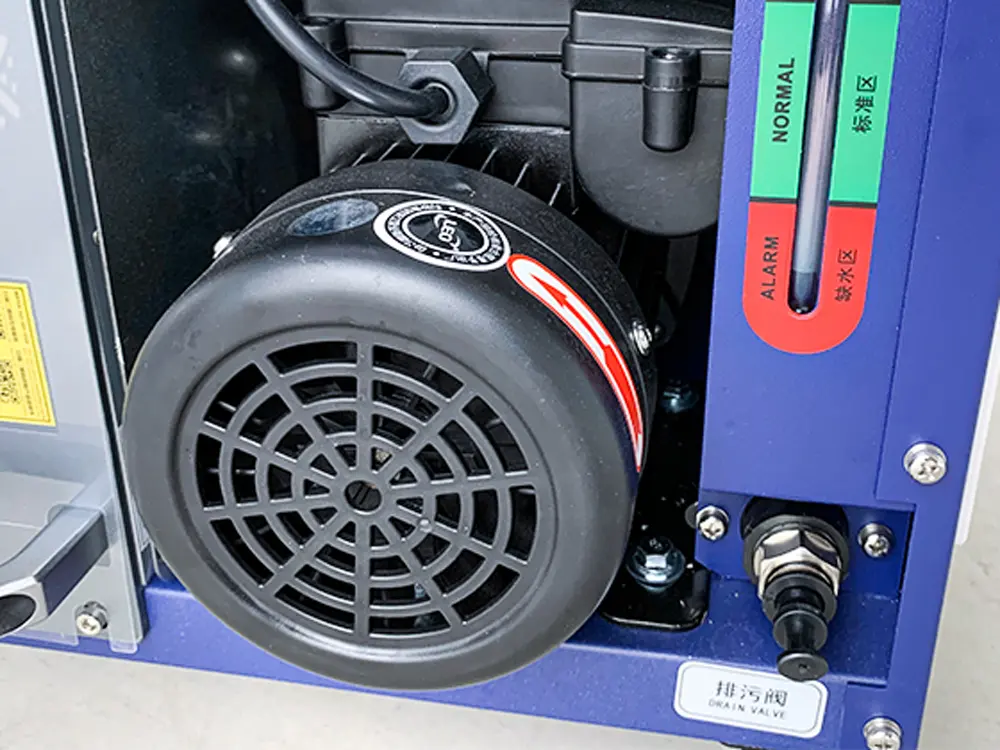

Water cooling more stable
| No. | ITEM | DATE |
|---|---|---|
| 1 | Product Name | Laser Cleaning Machine |
| 2 | Laser power | 1000W / 1500W / 2000W / 3000w |
| 3 | Wavelength type | continuous |
| 4 | Power stability | better than 5% |
| 5 | Power adjustment range(%) | 10-100 (gradient adjustable) |
| 6 | Repetition frequency(KHz) | 20-200 (gradient adjustable) |
| 7 | Fiber length | 5-10m |
| 8 | Cooling method | Water-cooling |
| 9 | Scanning range | 5mm ~ 120mm , Continuously adjustable |
| 10 | Focal length of field lens ( mm ) | 160mm (Optional 160mm-500mm ) |
| 11 | Depth of focus | max 10mm |
| 12 | Overall size | about 1055mmx620mmx1090mm |
| 13 | Total Weight | about 190KG |
| 14 | cleaning head weight | about 1.9kg |
| 15 | voltage | 220V / 380V, 50 / 60HZ |
| 16 | working temperature | 5℃~ 40℃ |
Fiber optic continuous laser cleaning machine is an efficient, environmentally friendly, and non-contact modern industrial cleaning solution, replacing traditional chemical and sandblasting processes and contributing to the upgrading of intelligent manufacturing.
The continuous fiber laser cleaning machine emits high-intensity laser energy that is absorbed by surface contaminants such as rust, paint, oxides, or grease. These impurities instantly vaporize or peel off without harming the underlying substrate.

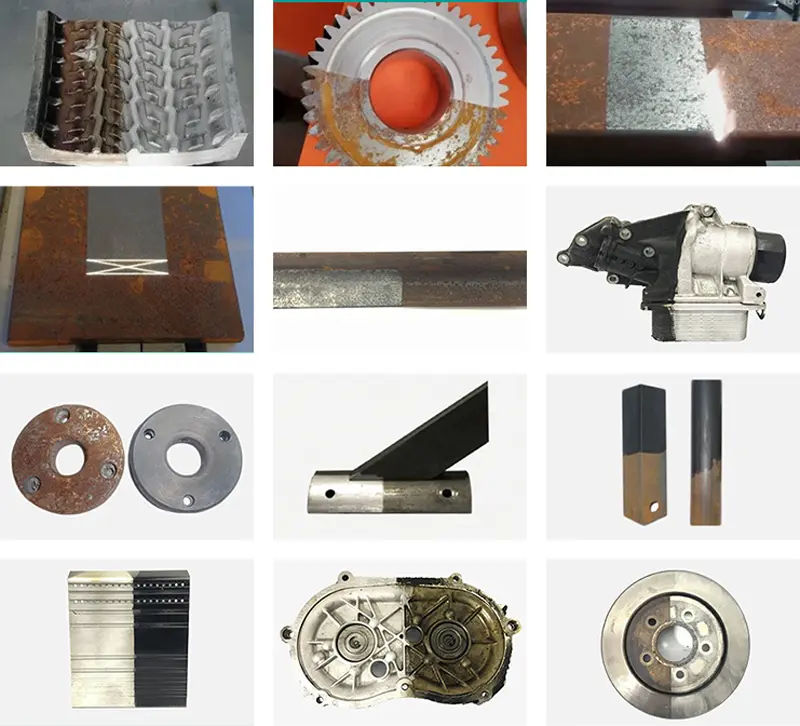

It works efficiently on a broad range of industrial metals including carbon steel, stainless steel, aluminum, galvanized sheet, copper, and various tooling molds.
No. Laser cleaning is a non-contact, thermal ablation process. By setting appropriate laser parameters, the laser only reacts with the surface layer of oxide or contaminant, leaving the metal substrate structurally intact.
1000W–1500W systems are ideal for thin rust, light oxide films, and precision parts. 2000W–3000W systems deliver higher energy density and faster line speed, making them suited for heavy scale, thick paint layers, and large structural components.
Laser cleaning eliminates consumable media, hazardous chemicals, and abrasive dust waste. It produces lower operating costs, ensures better operator safety, and complies with modern green manufacturing standards.
The fiber laser source is virtually maintenance-free. Primary routine care includes keeping the protective lens on the cleaning head clean and ensuring distilled water in the cooling chiller is replaced periodically.
