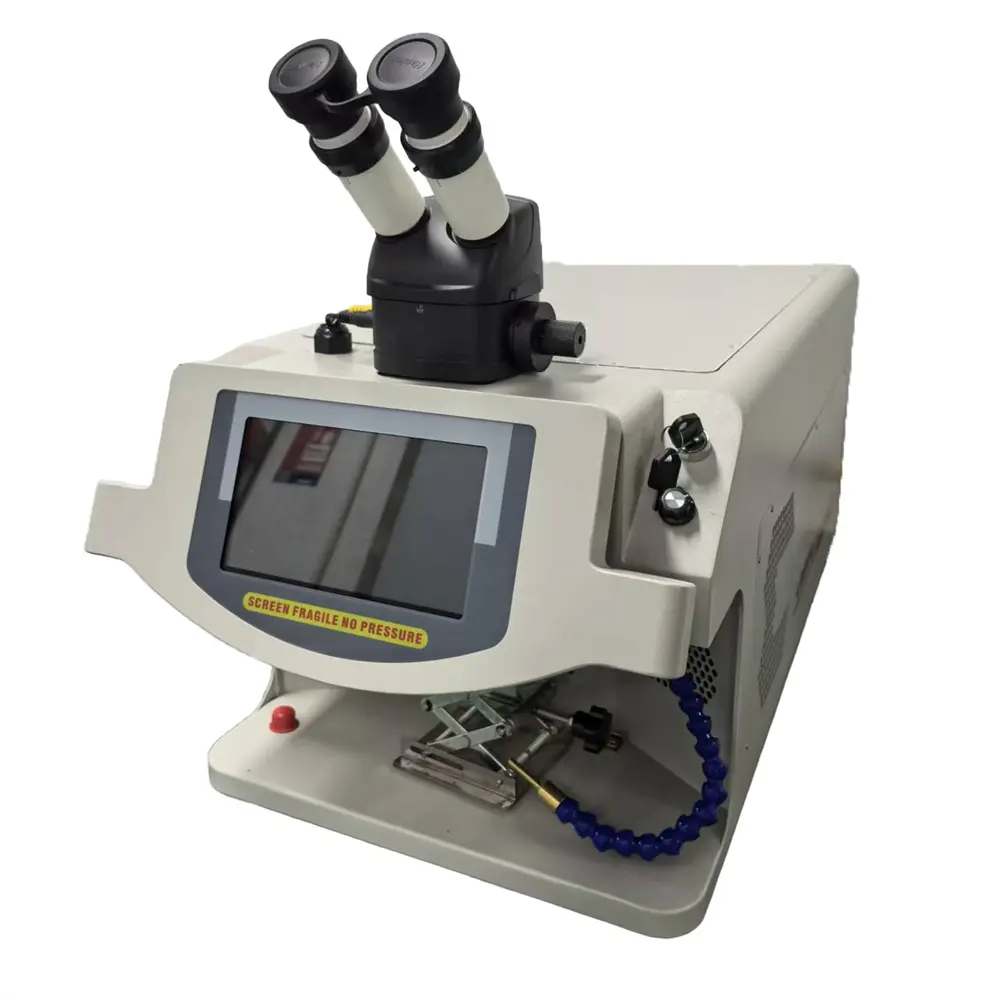

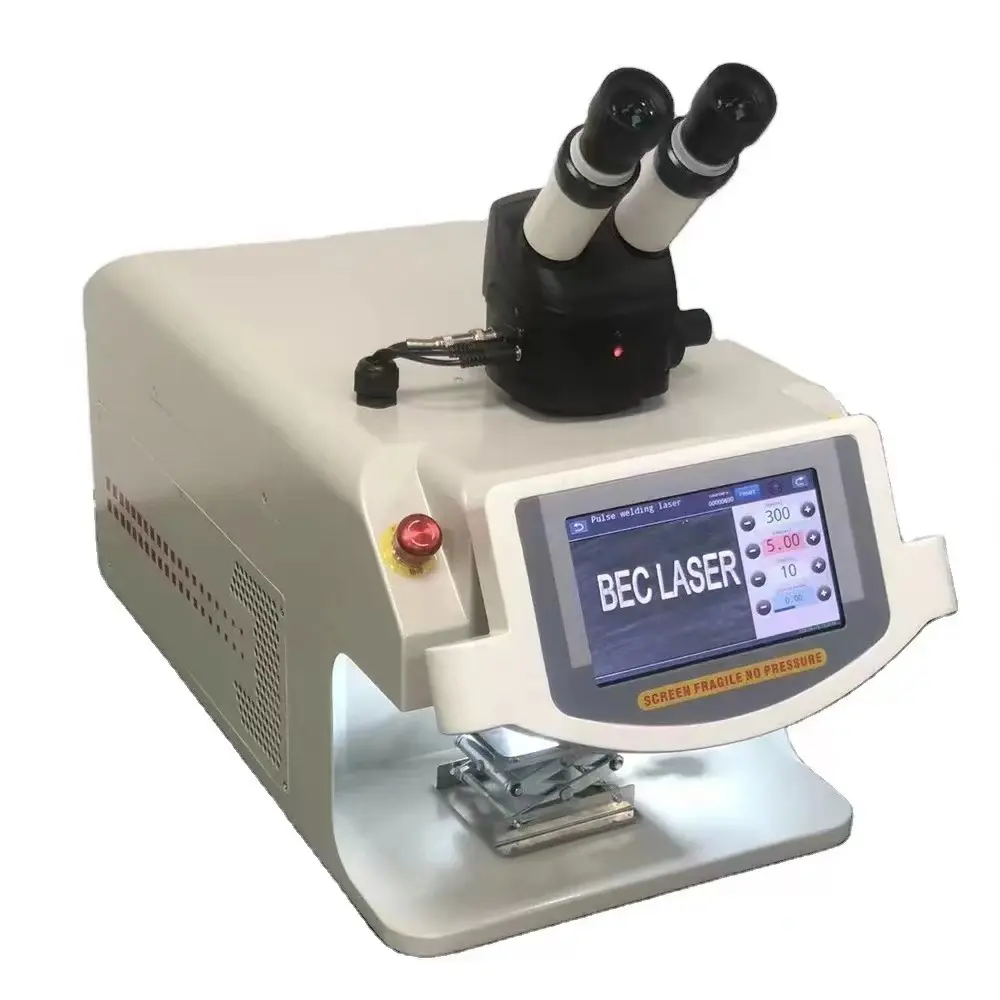

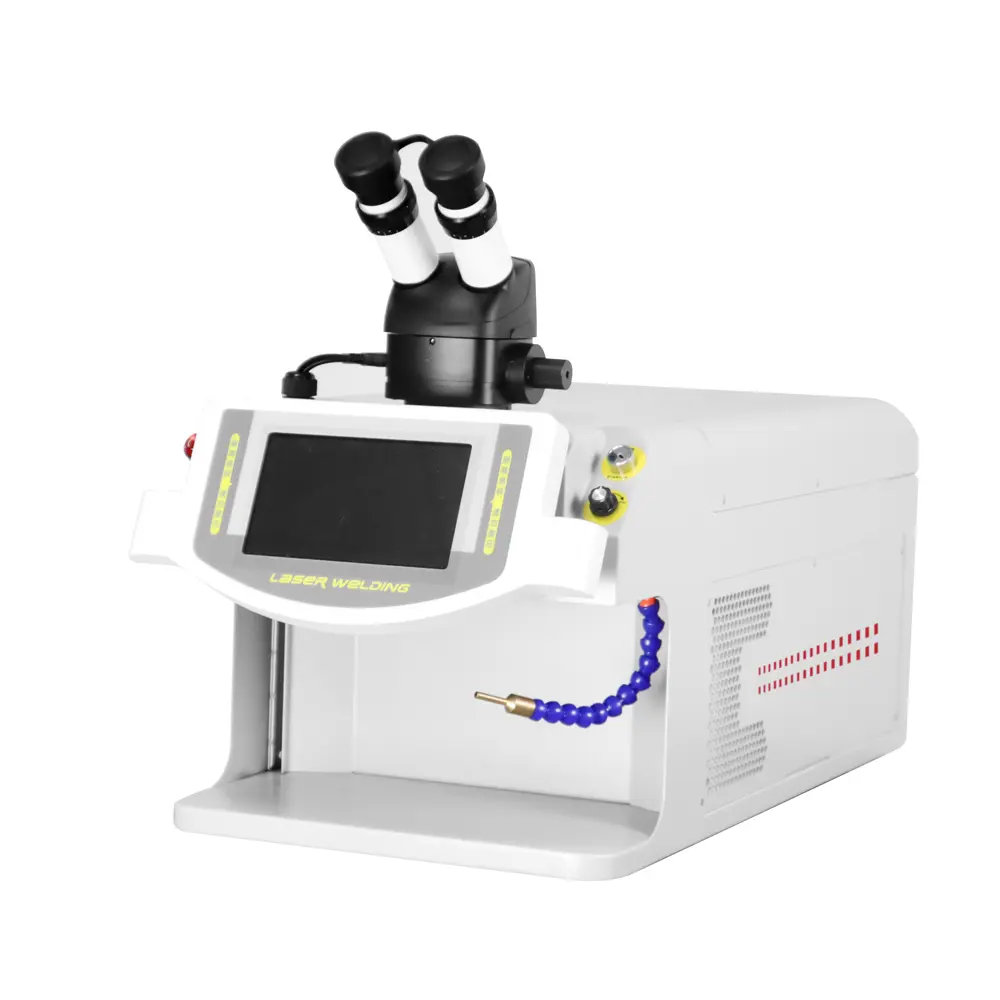

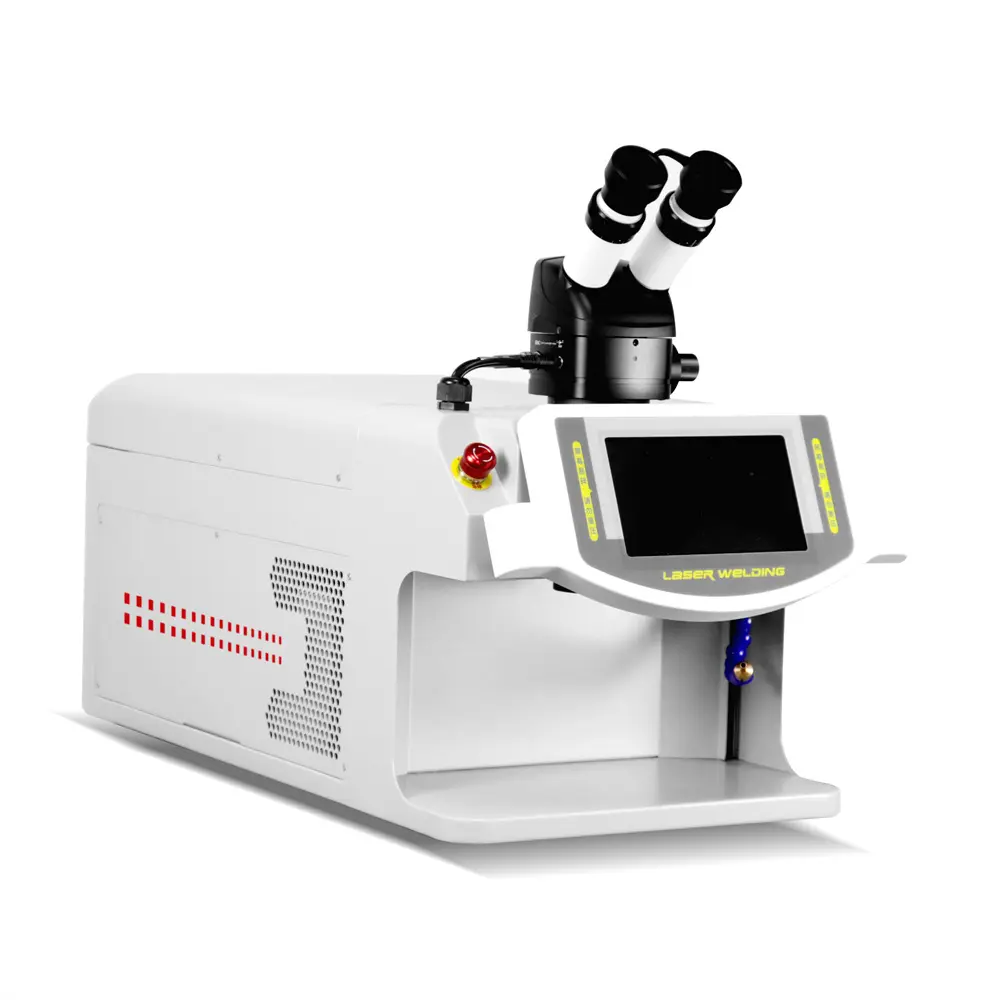

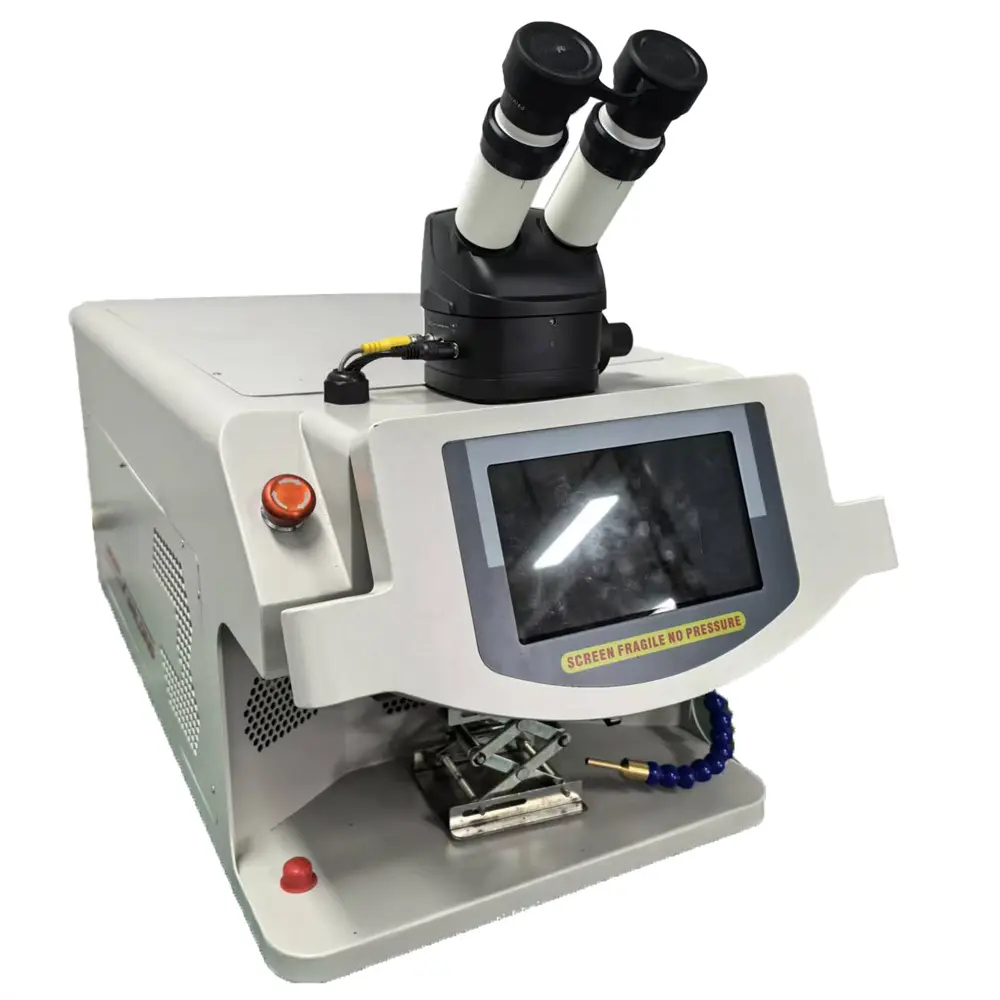

Custom QCW-Jewelry Laser Welding Machine Manufacturer, Factories

1 / 5

Custom QCW-Jewelry Laser Welding Machine Manufacturer, Factories

1. Small and portable, saving space: Exquisite and compact design, small space occupation, easy to move and flexible placement. Especially suitable for welding operations on work surfaces or in small working environments.

2. High energy output, precise welding: Although small in size, it has powerful pulse energy output to ensure efficient welding effect. It can achieve fine welding and deep melting welding, meeting the high-standard processing requirements of jewelry and small precision devices.

3. Maintenance-free design, easy operation: The air cooling system replaces the traditional water cooling system, greatly reducing maintenance costs and complexity. No need to frequently replace consumables or perform complex maintenance, it is more worry-free to use.

4. Efficient welding and stable quality: QCW laser provides high repetition frequency and stable pulse energy output, which significantly improves welding efficiency. It can achieve uniform and beautiful solder joints, reduce defective rates, and improve production efficiency.

Send Inquiry

Product Description

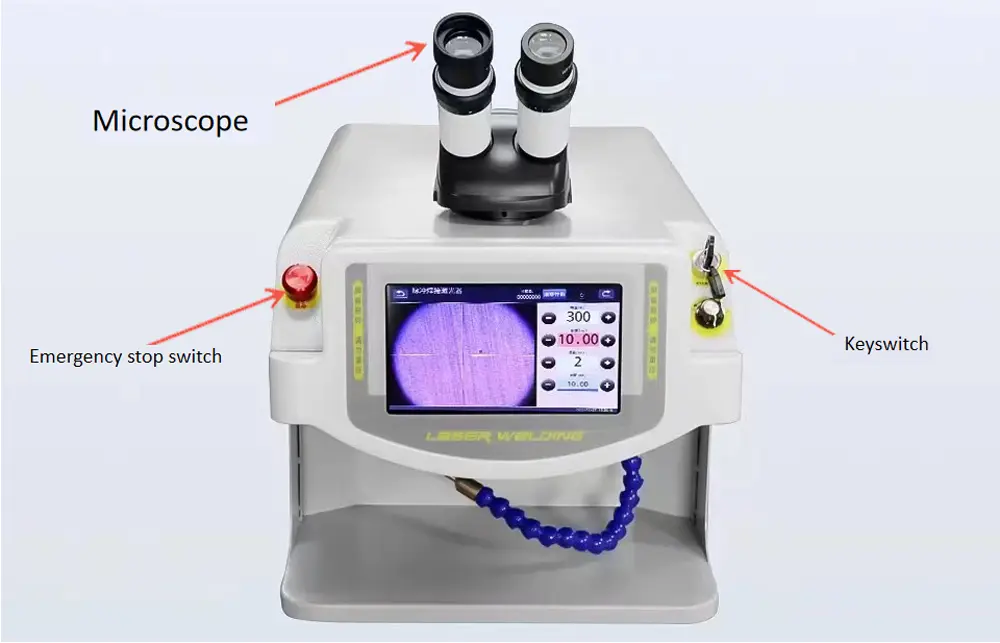

150W Device Configuration

Configuration Checklist
1. A set of QCW lasers
2. A set of optical systems
3. One set of LCD display system
4. One microscope
5. One set of host cabinet

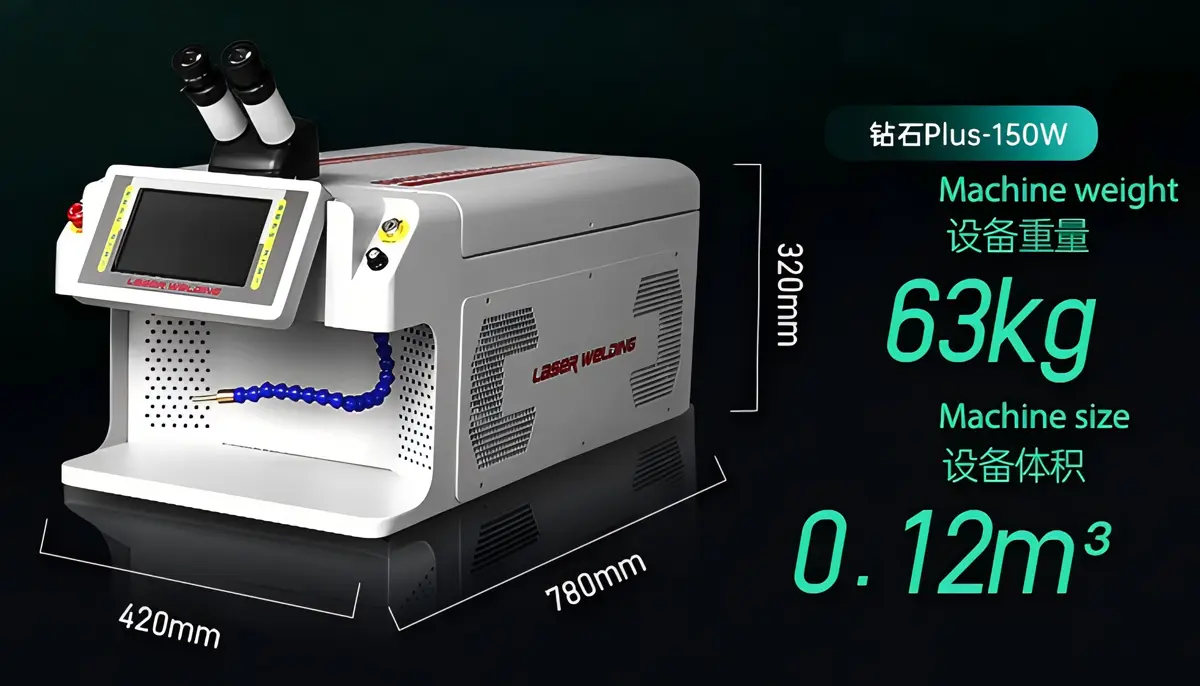

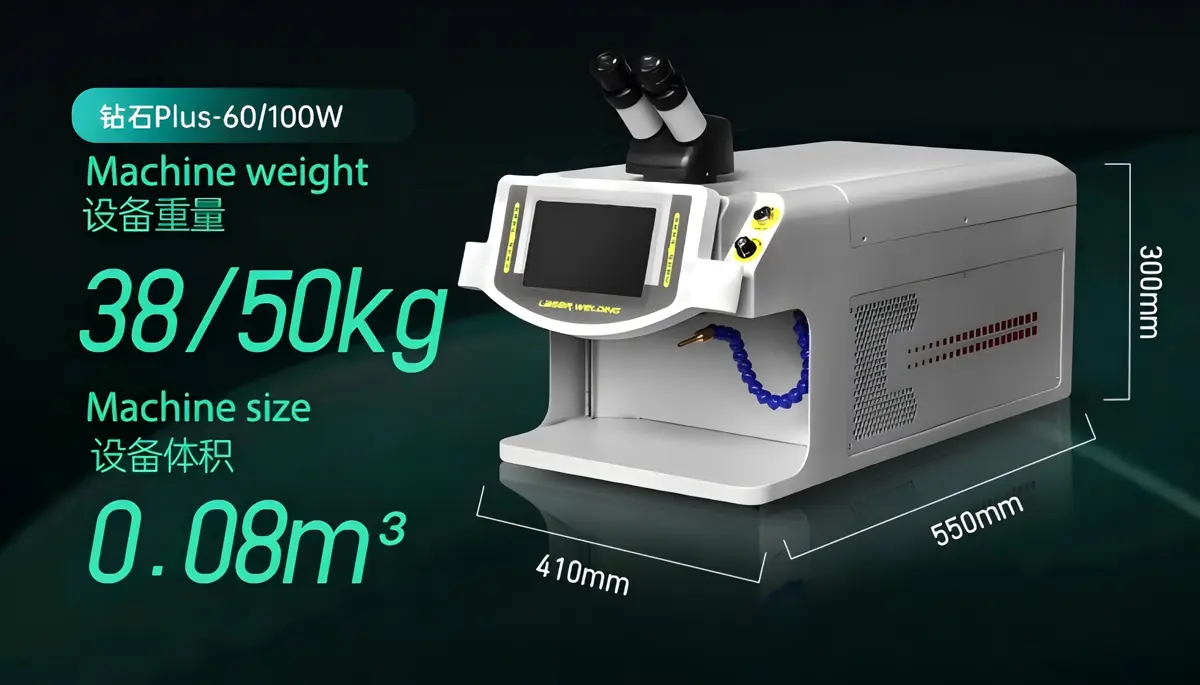

Product Size

YMR-60W / 100W

YMR-150W

Detailed Parameters

Parameter	YMR-60W	YMR-100W	YMR-150W
Laser Type	QCW laser source
Output Power	≥60W	≥100W	≥150W
Max Pulse Energy	6J	10J	15J
Max Peak Power	600W	1000W	1500W
Pulse Width	0.2 - 50ms
Operating Mode	Pulse
Energy Fluctuation	<±1.5%
Flare Size	0.3 - 1.5mm
Number of Outputs	1, QBH
Optical Fiber Core	Automatic
Cooling Mode	Air cooling
Power Consumption	300W	500W	750W
Power Requirements	110V-240V, 50/60Hz
Overall Dimensions	607 × 320 × 295 mm	675 × 350 × 315 mm	675 × 420 × 320 mm
Net Weight	38 Kg	50 Kg	63 Kg
Operating Temperature	10℃ - 45℃

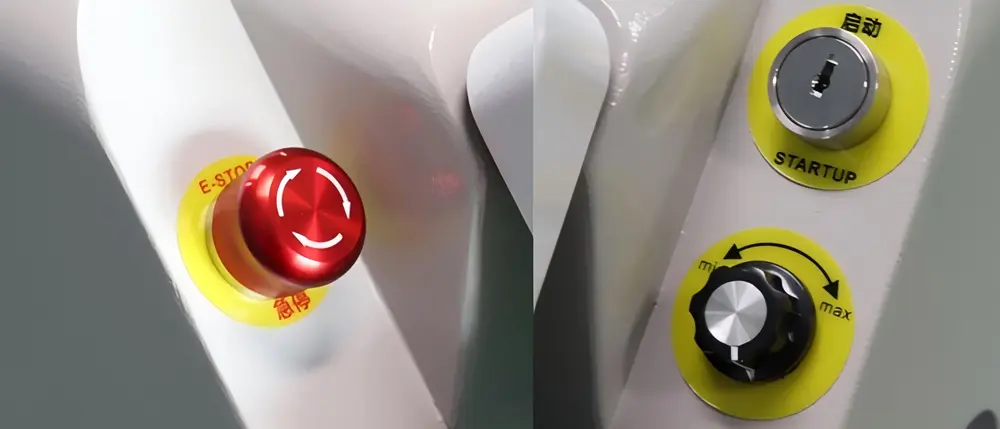

Detail Display

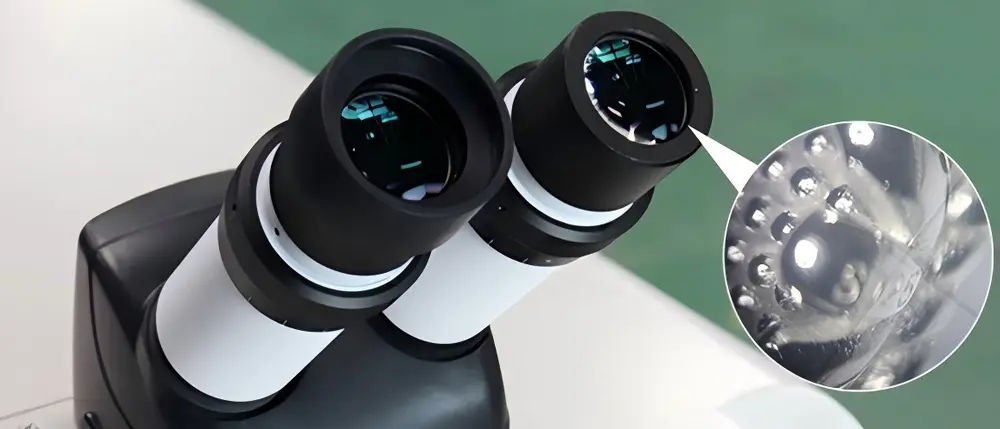

High Definition Microscope

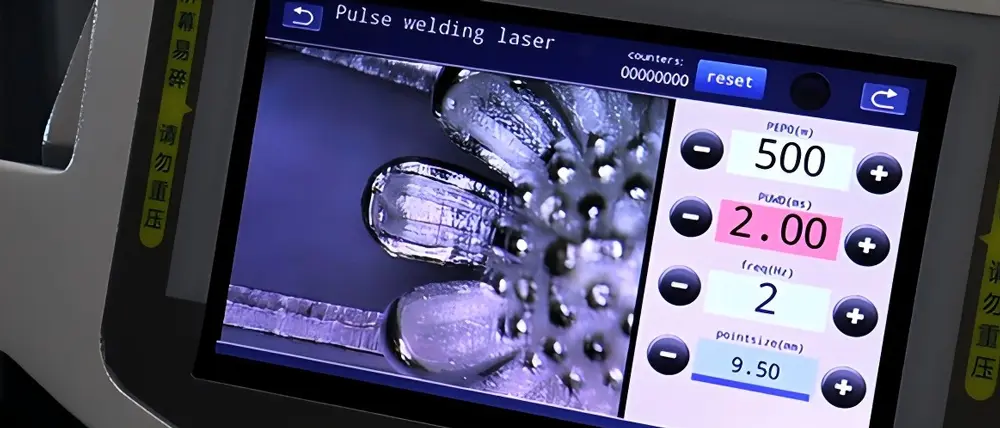

High-definition Touch Screen

High-definition Touch Screen

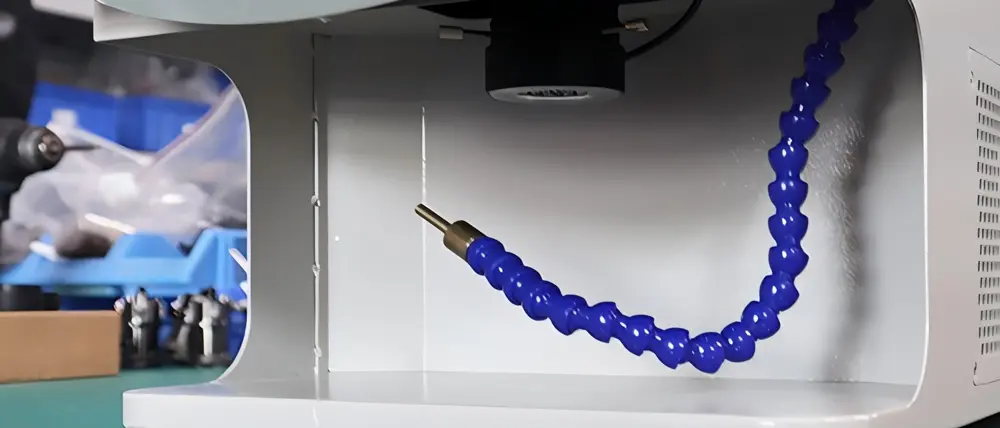

Operating Space

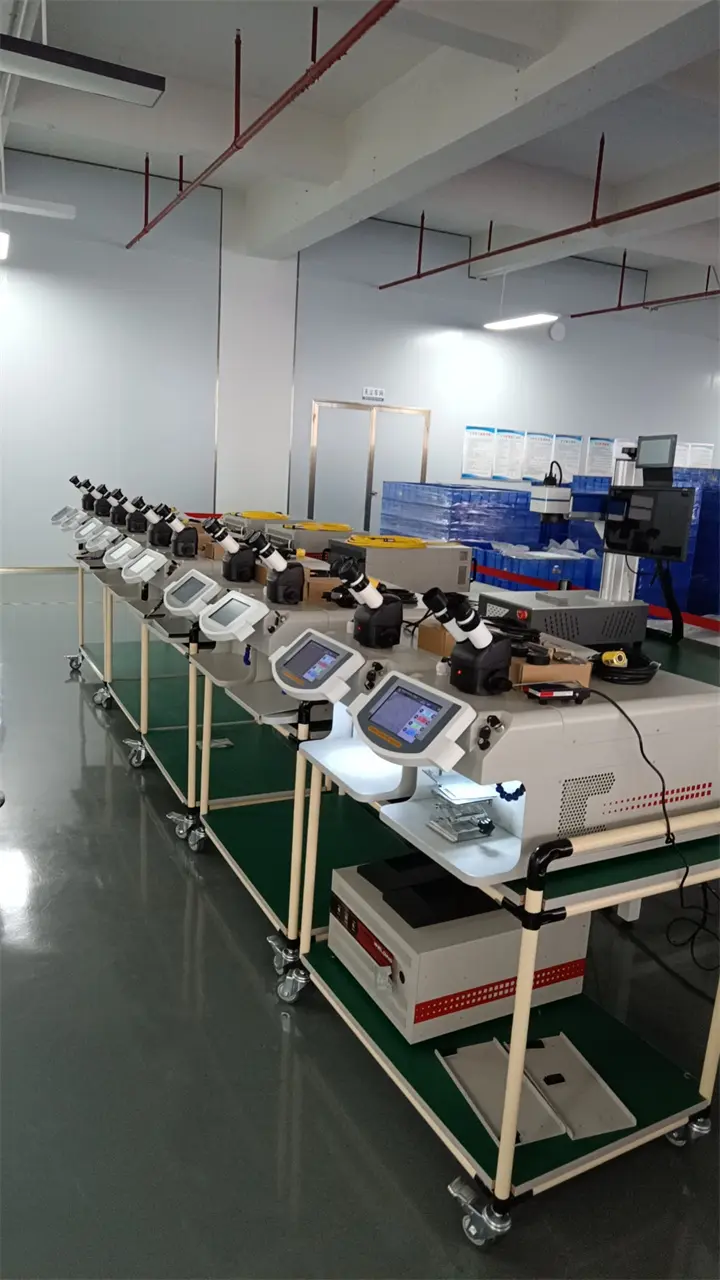

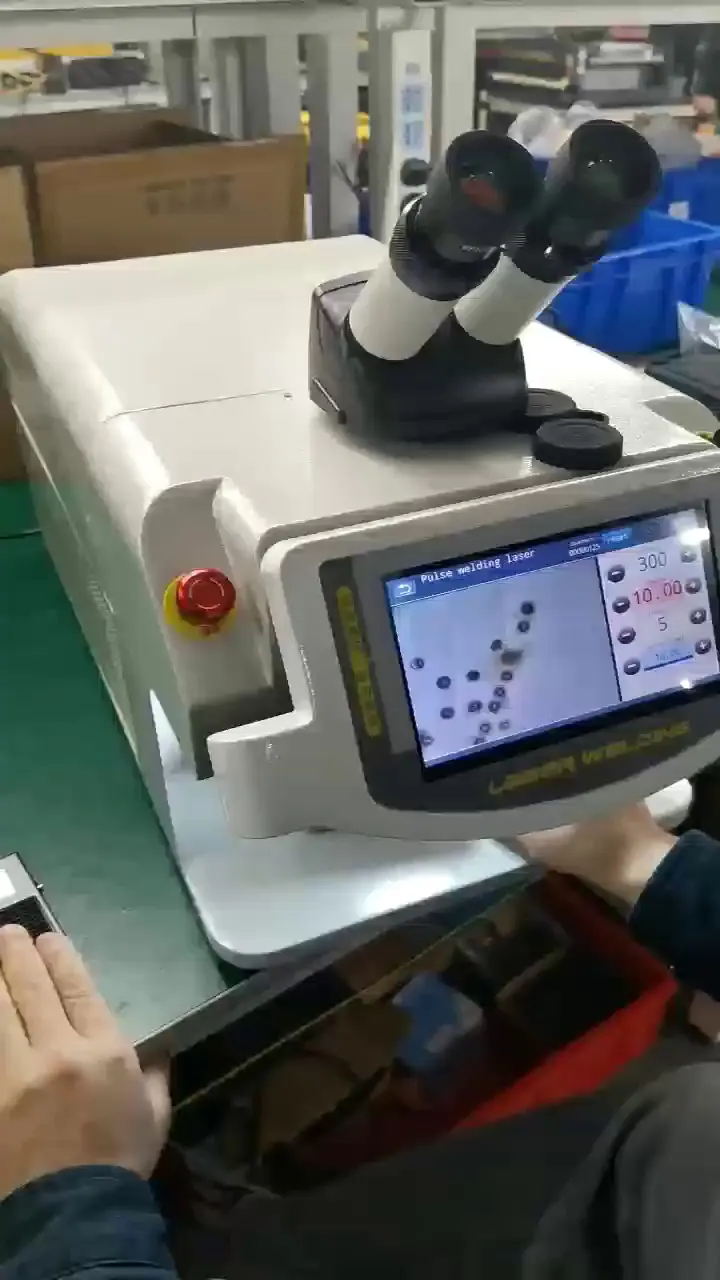

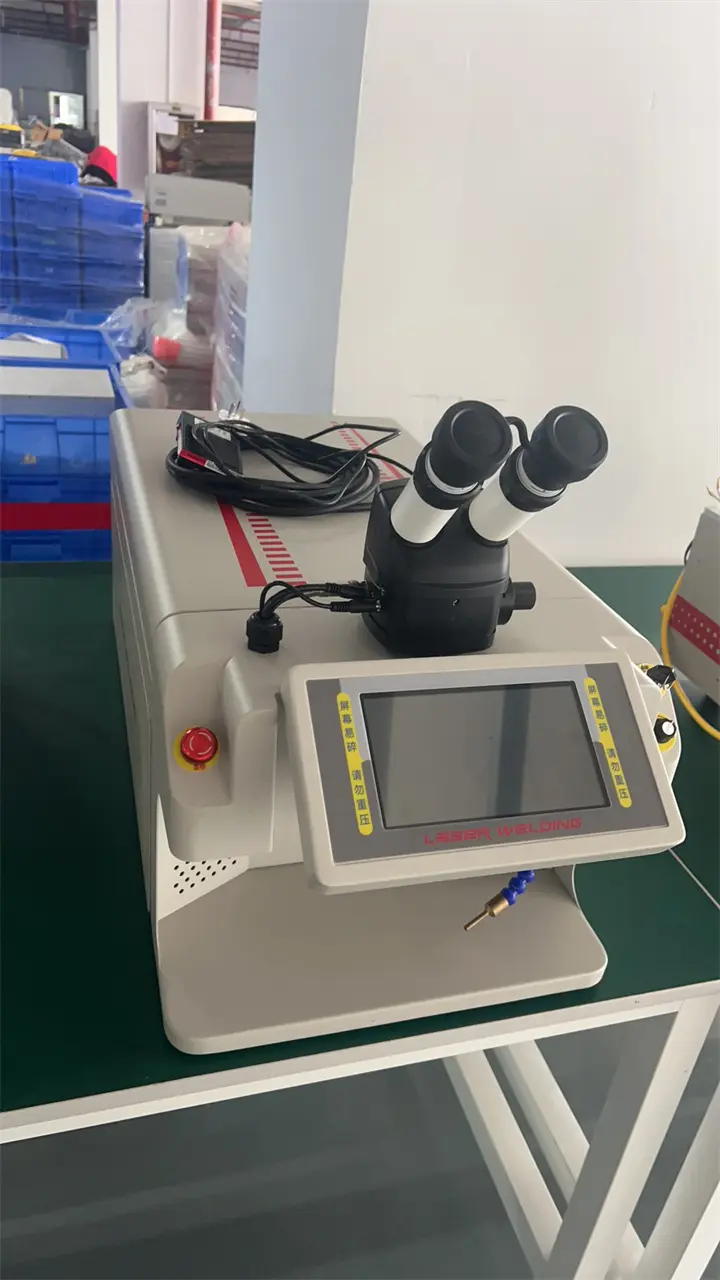

Real Photos Taken

Application Scope

Widely Used and Highly Flexible

✅ Suitable for precision welding of precious metals such as gold, silver, platinum, palladium, and repairing and connecting micro parts.

✅ It can be used in a variety of application scenarios such as jewelry welding, electronic component processing, and precision instrument maintenance.

✅ Versatile Applications: Perfect for welding gold, silver, platinum, palladium, and various small precision parts.

Some sample display

Frequently Asked Questions

Q: What materials can this laser welding machine work with?

A: The machine is specifically optimized for precision welding on precious metals including gold, silver, platinum, and palladium, as well as delicate electronic parts and precision instruments.

Q: What is the primary difference between the 60W, 100W, and 150W models?

A: The main differences lie in output power, maximum pulse energy (6J, 10J, 15J), and peak power capacity (600W, 1000W, 1500W), allowing higher wattage models to handle thicker materials and achieve faster processing speeds.

Q: Does the machine require an external water chiller for cooling?

A: No, all series models utilize an efficient built-in air cooling system, making the machine compact, low-maintenance, and easy to deploy in tight workshop spaces.

Q: Can it be operated under different voltage standards worldwide?

A: Yes, the machine is designed with universal power adaptability supporting 110V to 240V at 50/60Hz, making it plug-and-play compatible across different regions.

Q: What visual assistance is provided for microscopic welding tasks?

A: Each system includes a dedicated high-definition microscope and an LCD touch screen control system, allowing precise targeting, spot size control (0.3-1.5mm), and clear visualization of micro welds.
