Custom Cantilever Laser Welding Machine Pricelist, Factories

1 / 5

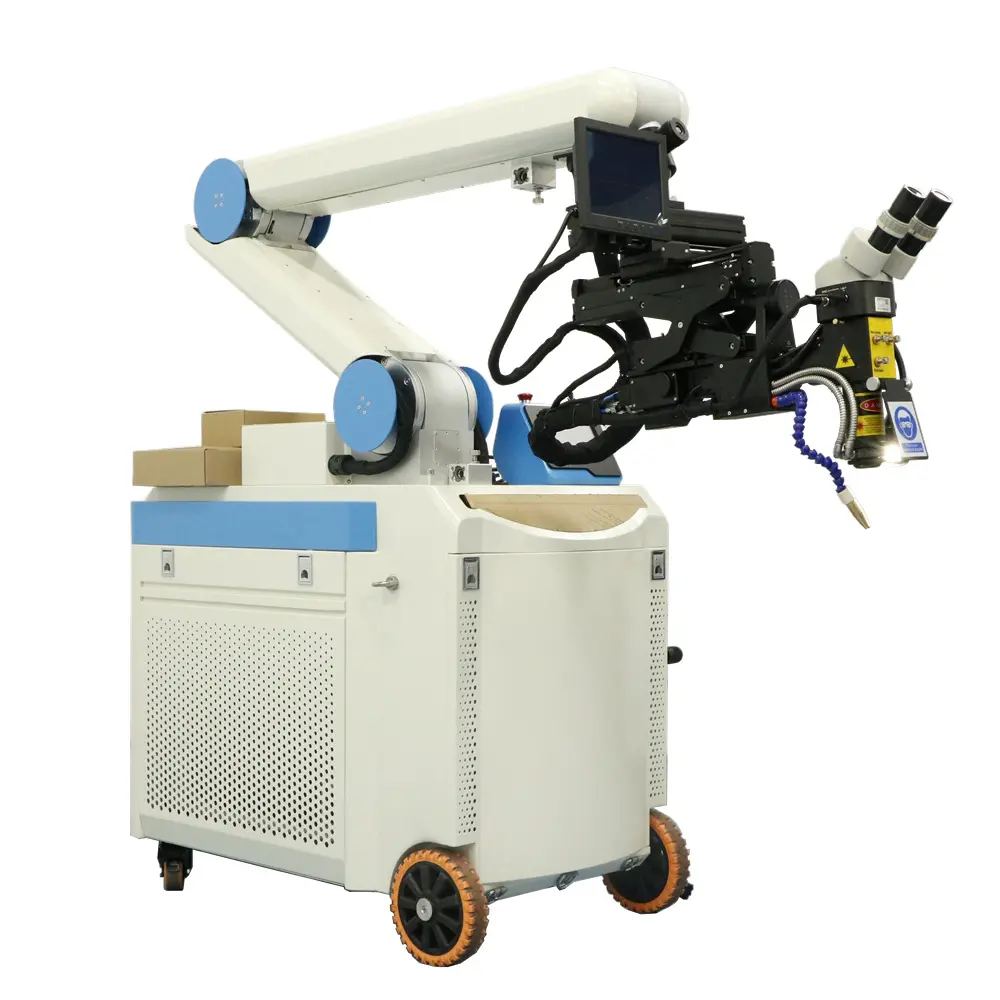

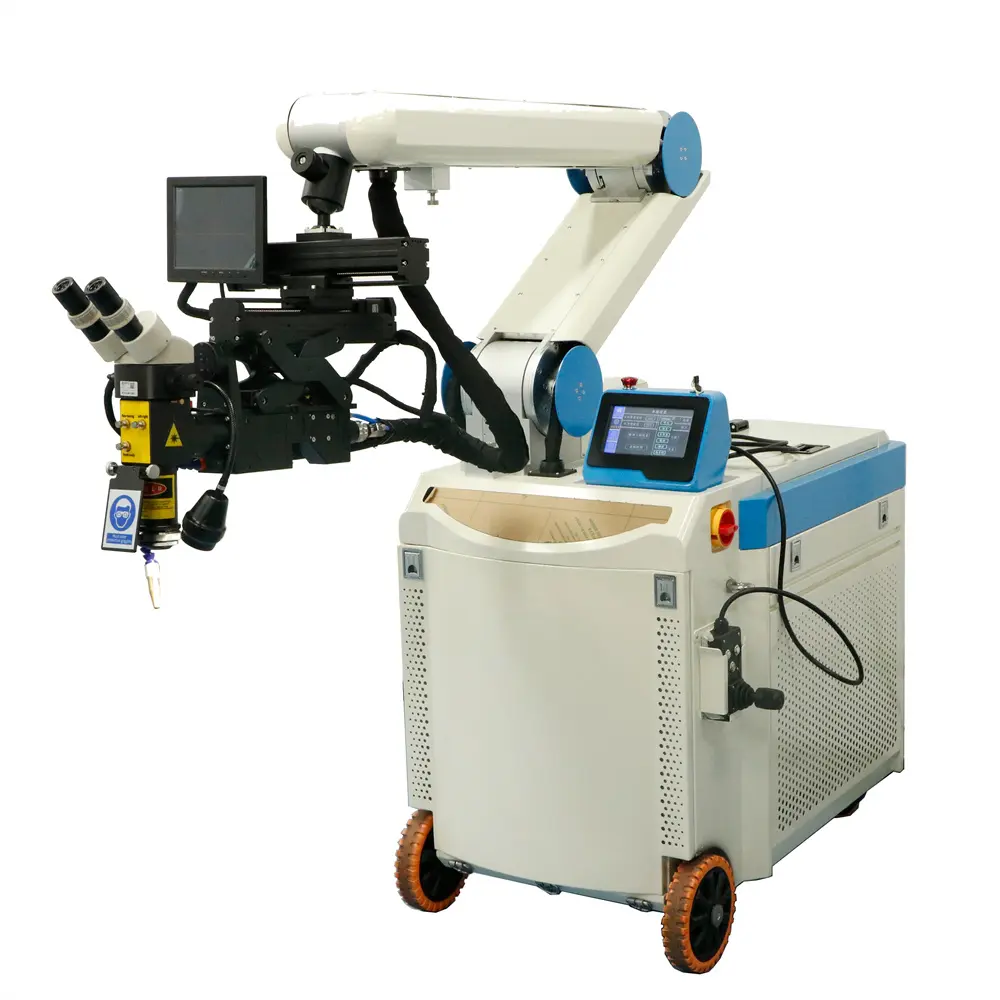

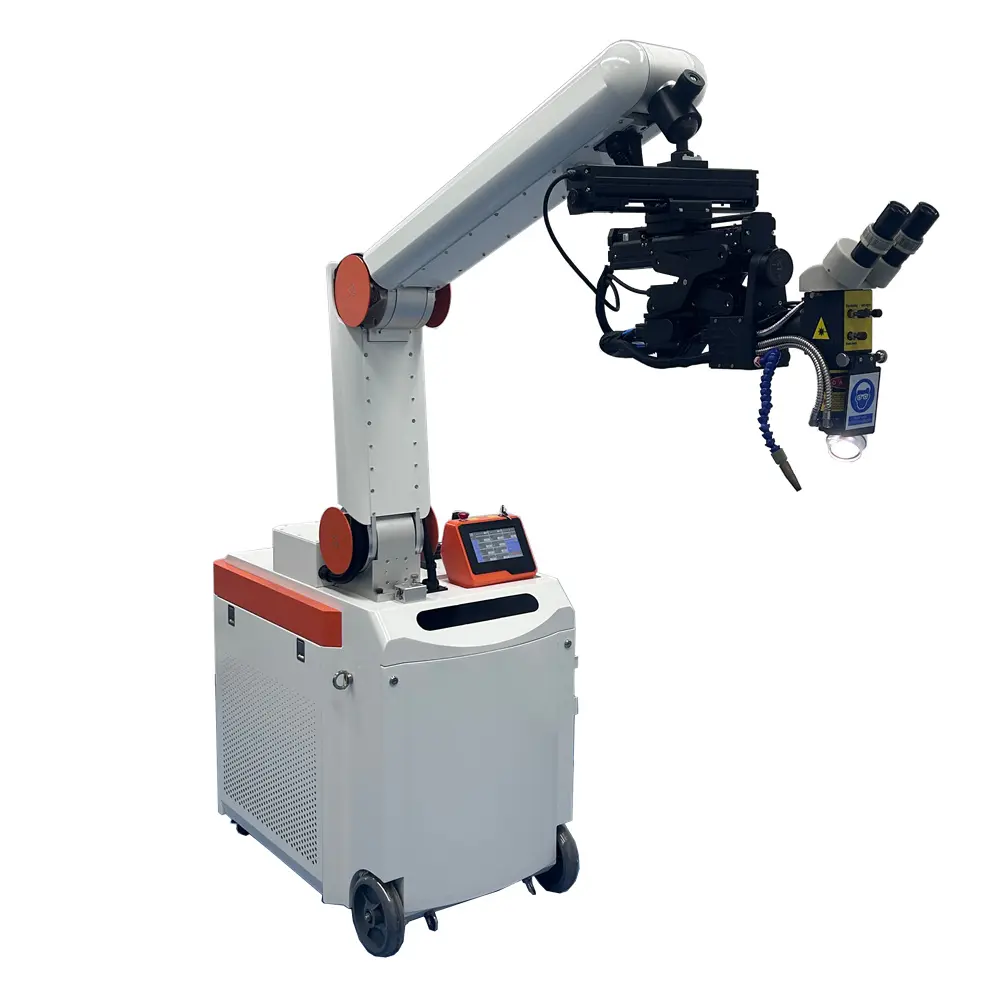

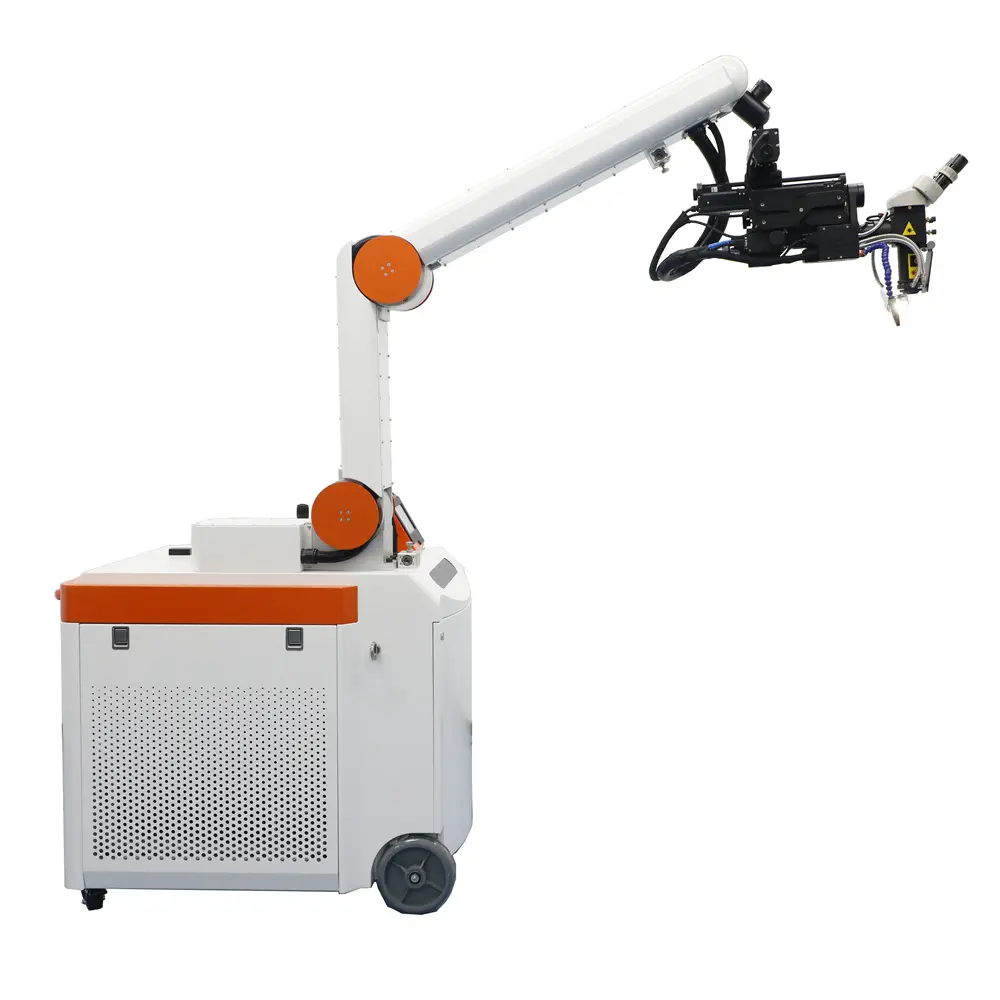

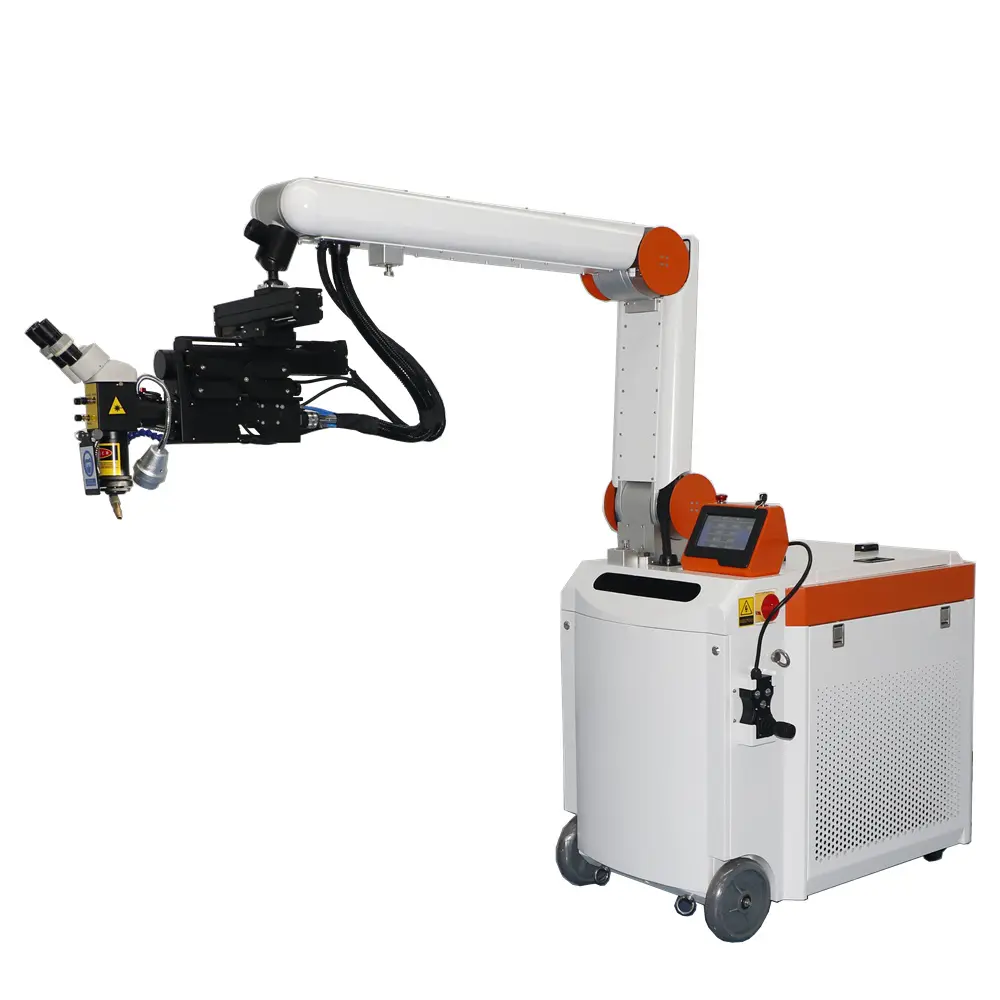

Custom Cantilever Laser Welding Machine Pricelist, Factories

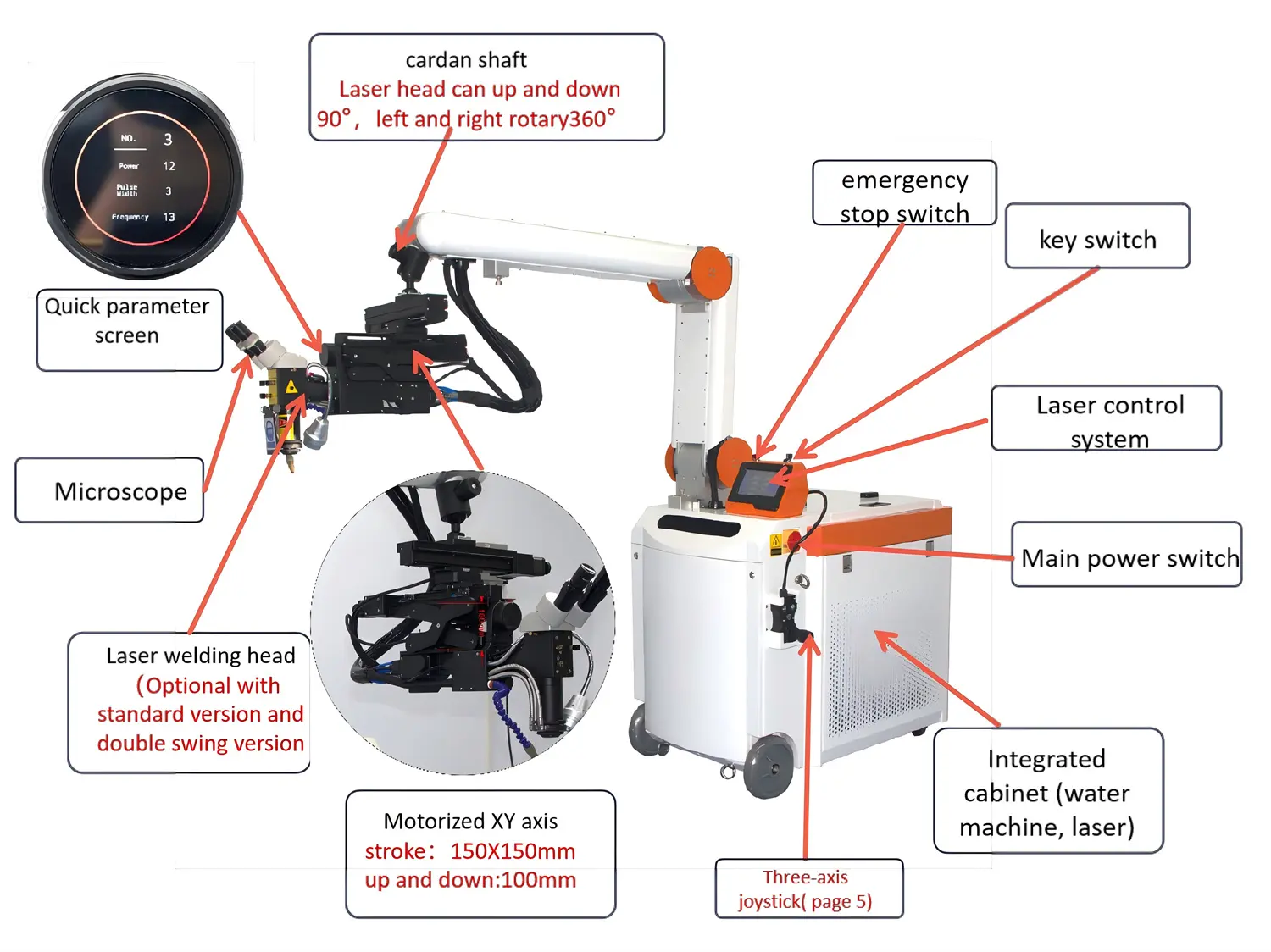

1. The laser source can be QCW and fiber laser source；

2. It is equiped with built-in dedicated chiller, can meet long-term, better stability during welding；

3. The articulated boom design, combined with universal wheels and three-axis rocker, can flexibly swing to any angle;

4. The laser head can be easily rotated 180 degrees to facilitate welding on any side;

5. It is equipped with a quick rotation parameter screen, which can easily adjust parameters;

6. It is equipped with a gas protection system, it effectively protects the product from argon gas during the welding process, maintains the original color of the product and ensures the welding quality.

7.The cardan shaft Laser head can up and down 90°，left and right rotary360°, Motorized XY axis
Stroke canbe 150X150mm up and down:100mm

8.The laser head version is opitonal,we have standard version and double swing version, you can choose the best one according your detail requirements.

9.Integrated cabinet water chiller and laser source, so that it can save space and is easy to move.

Send Inquiry

Product Description

Cantilever Laser Welding Machine

Configuration List
1. A set of laser source
2. A set of optical systems
3. One set of LCD display system
4. A set of refrigeration and water flow and temperature detection system
5. A microscope (CCD optional)
6. One built-in chiller
7. One set of host cabinet
8. Quick parameter screen set

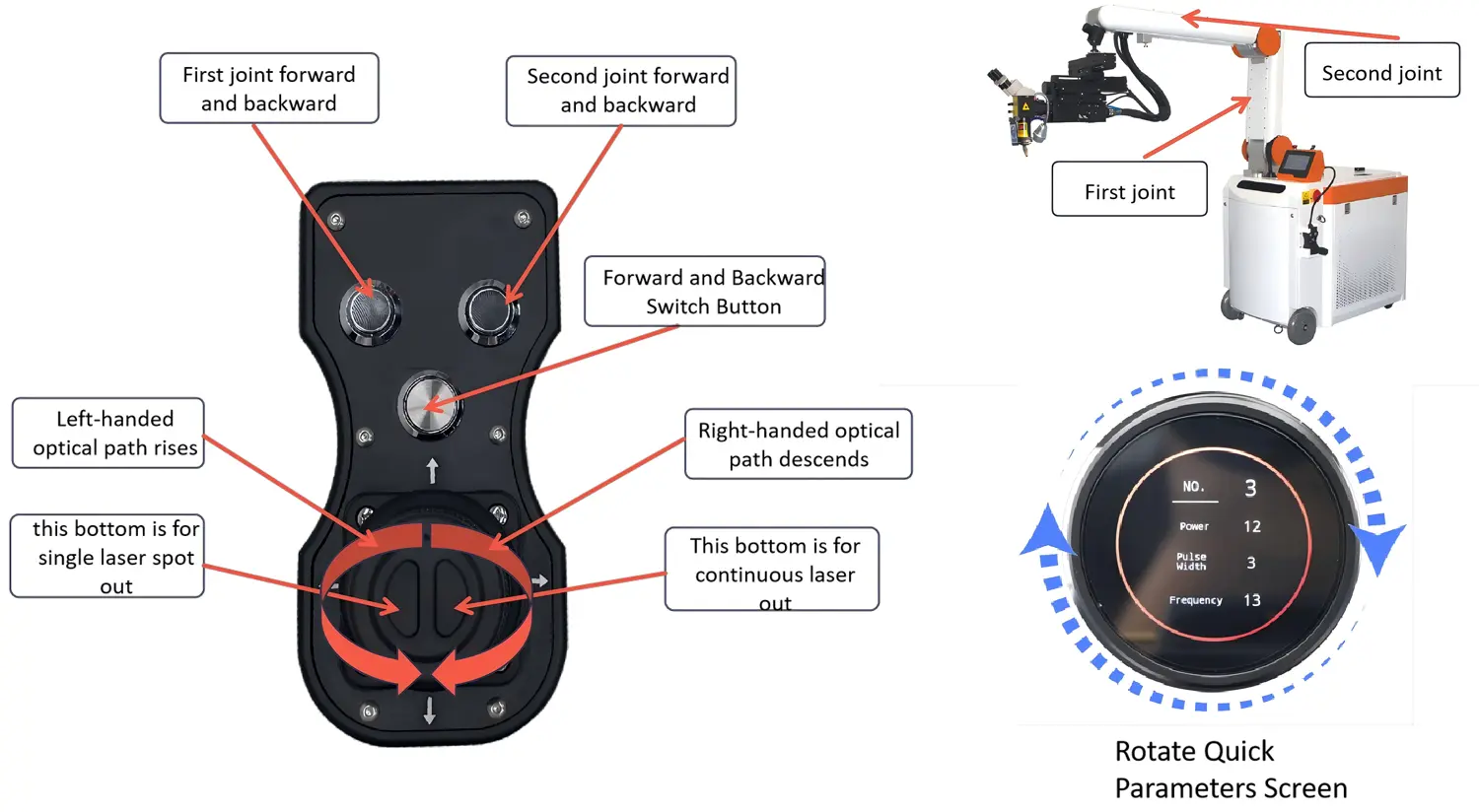

Three-axis Joystick

Machine Size

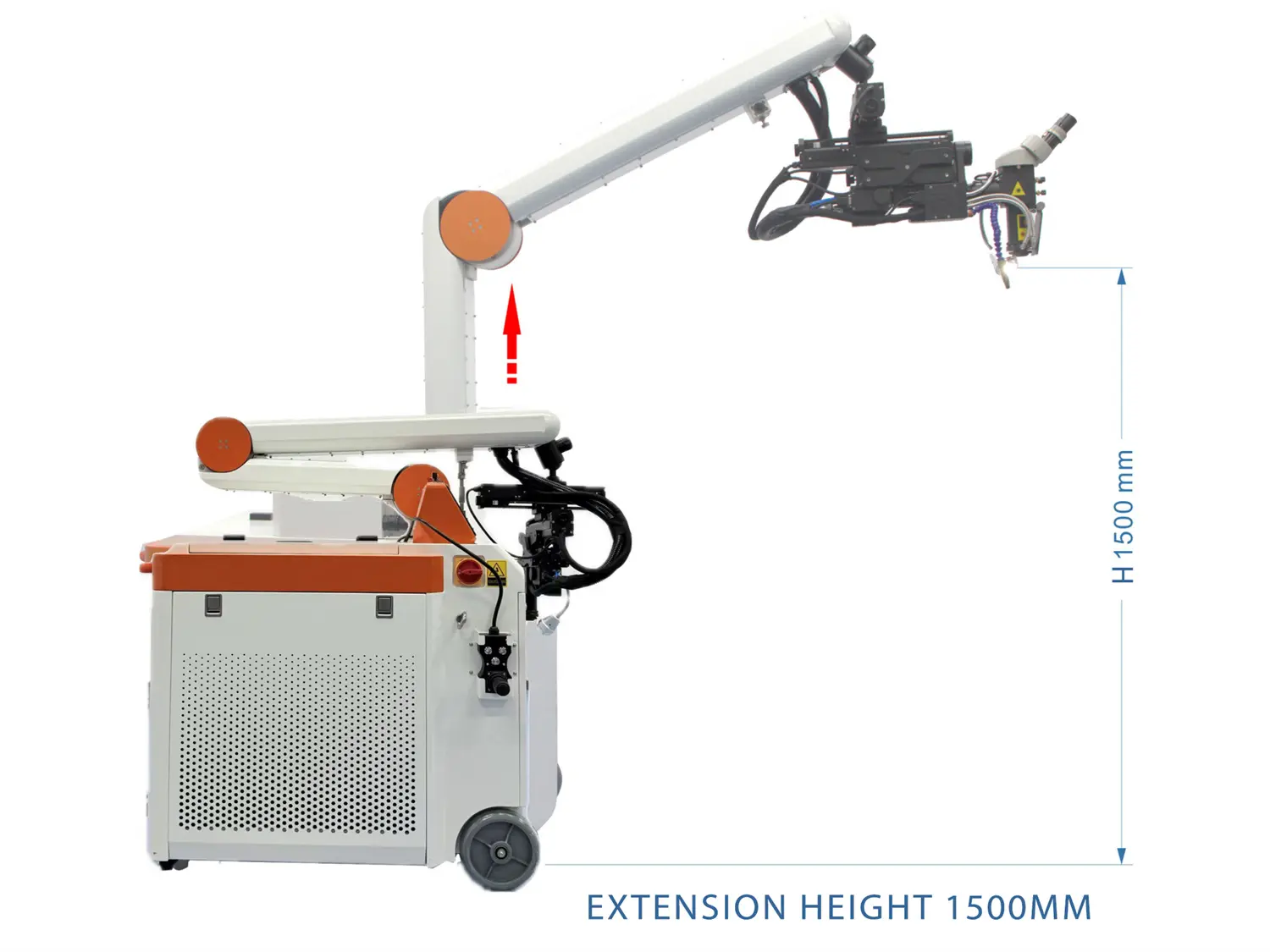

Stretch height: 1500mm

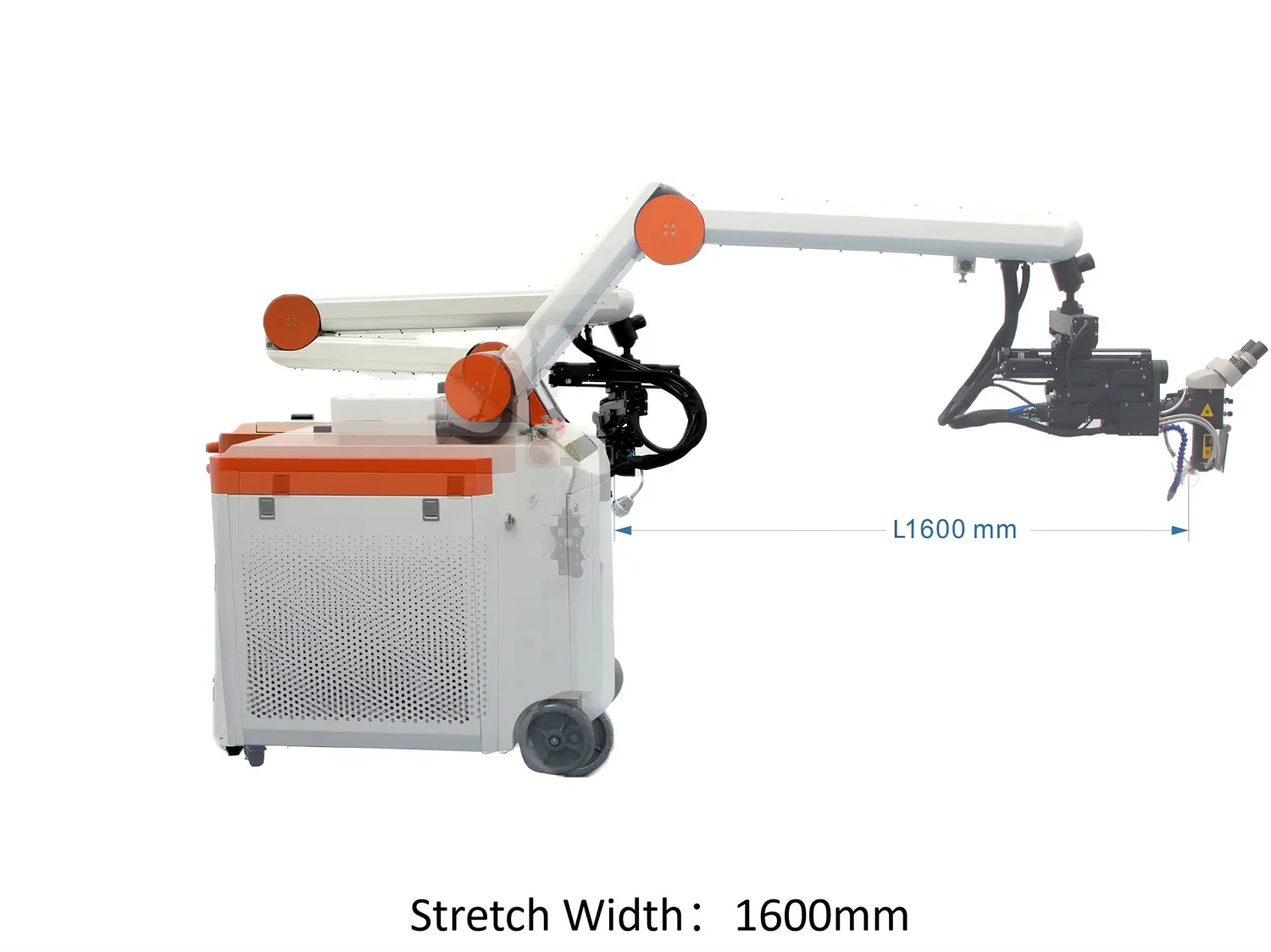

Stretch Width: 1600mm

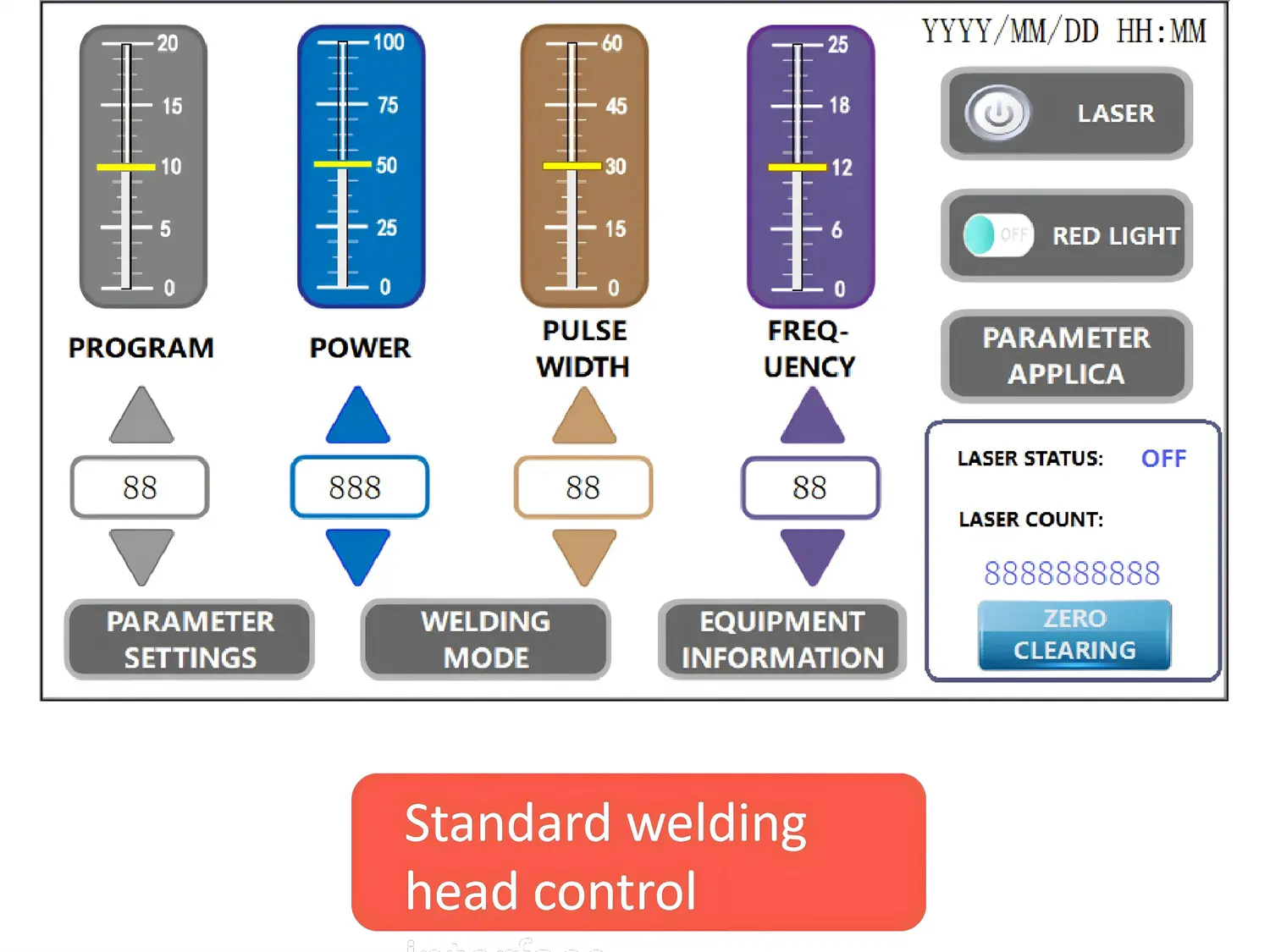

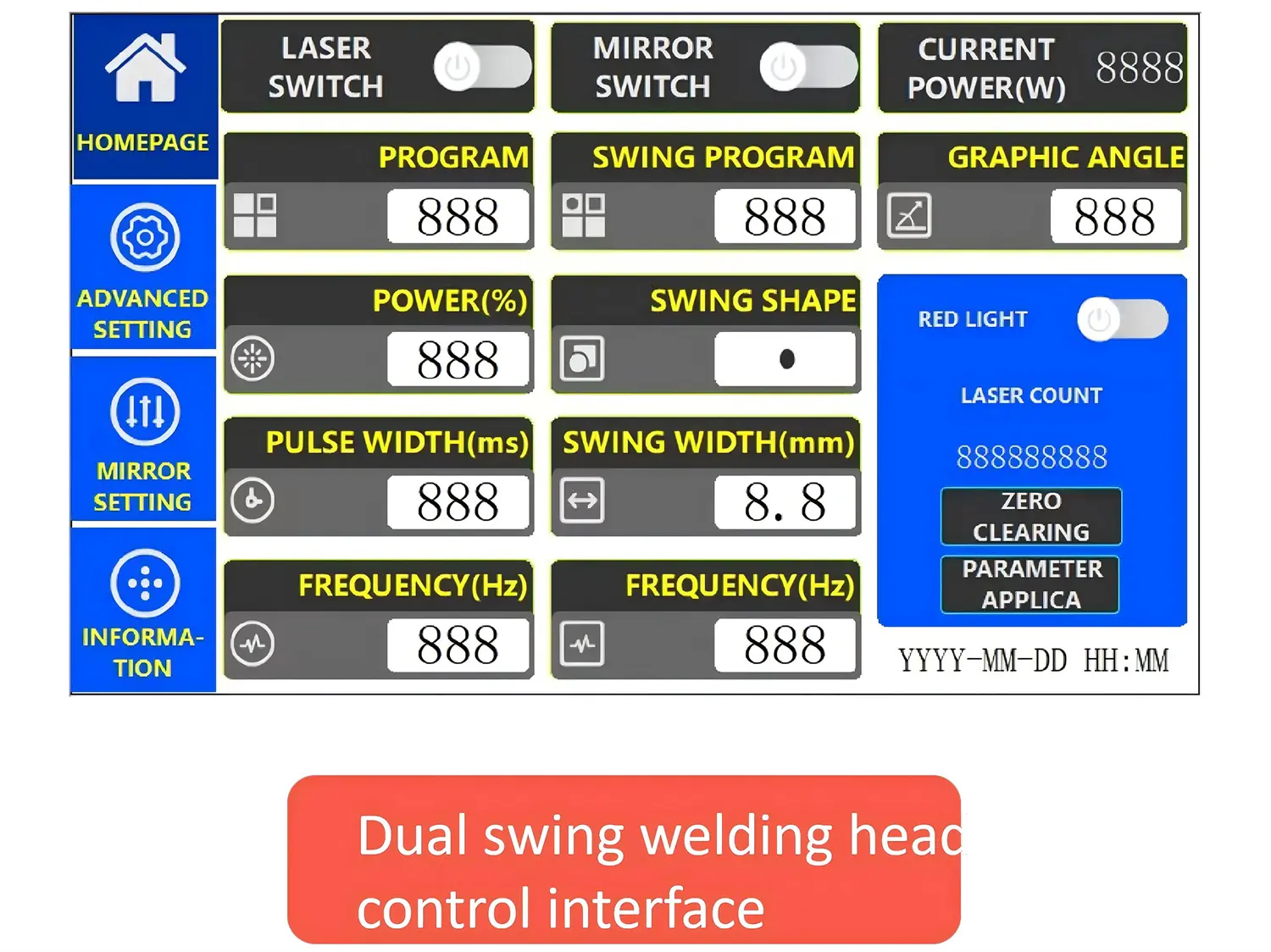

Welding Software Control Interface

Detailed Parameters

Item	QCW-150W-XB	QCW-300W-XB	LX-1500W-XB
Maximum laser power	150W	300W	1500W
Laser wavelength	1080±10nm
Laser frequency	1-30Hz	1-30HZ	1-25HZ
Pulse width	1-20Ms	1-20Ms	1-60MS
Light spot adjustment range	0.2-3mm	0.2-5mm	0.2-5mm
Aiming and positioning	Microscope (optional camera system)
Chiller cooling power	0.6P	0.6P	CW1500
Rated power	2.5KW	3KW	7KW
Power demand	220V±5V 50Hz/60A

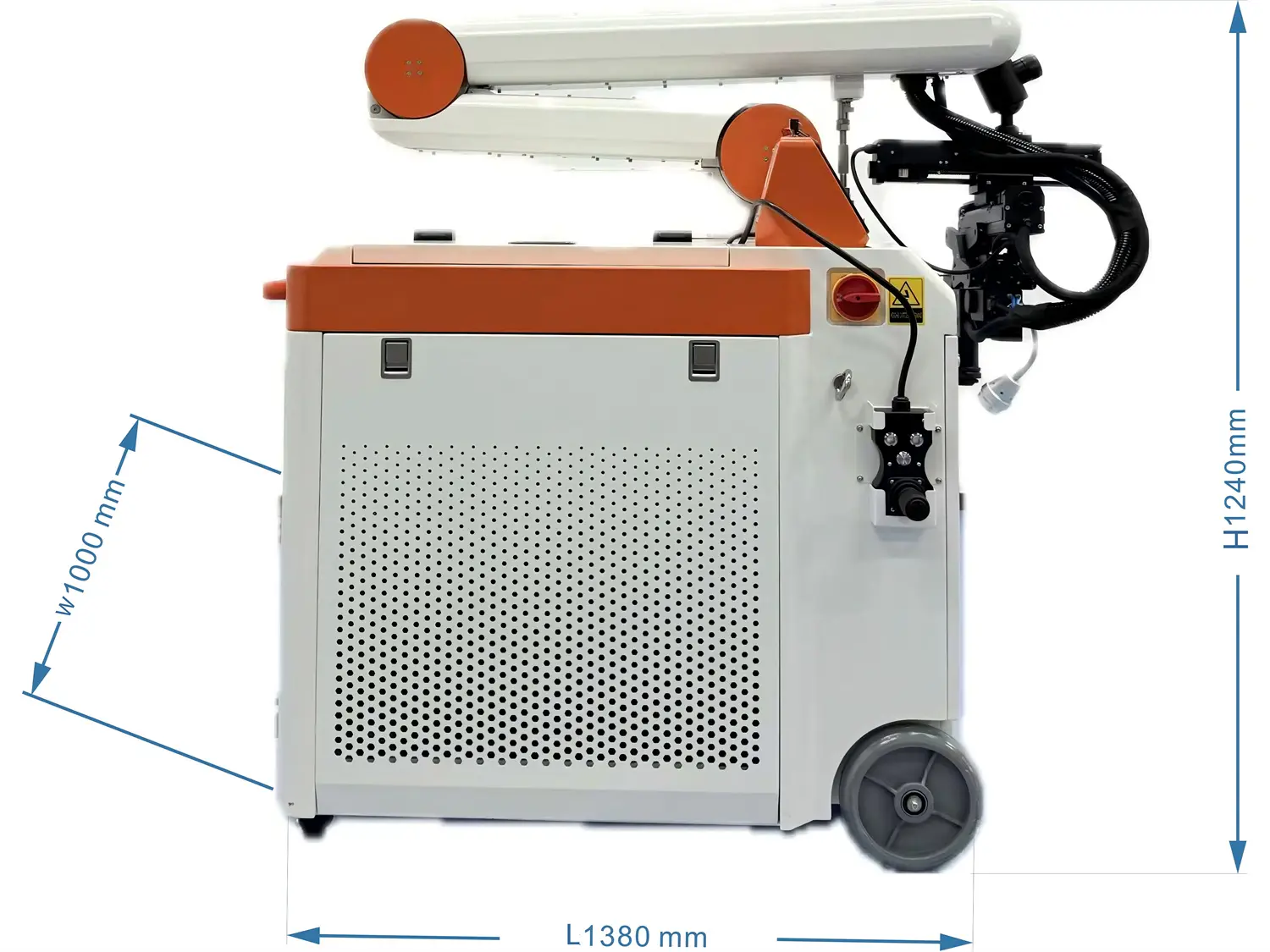

Overall dimensions/net weight	Host：138010001240mm

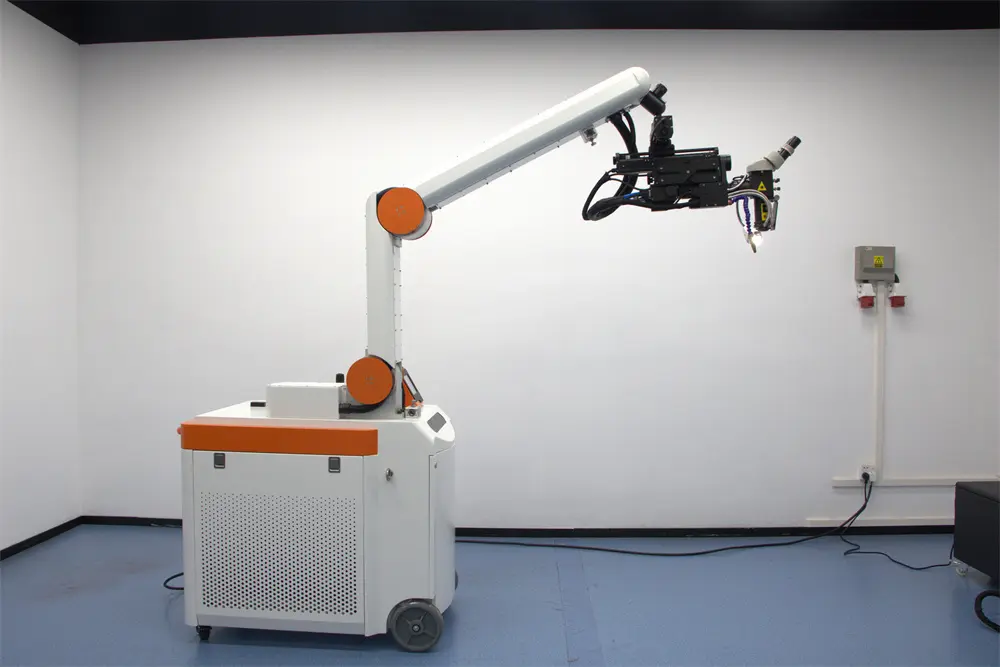

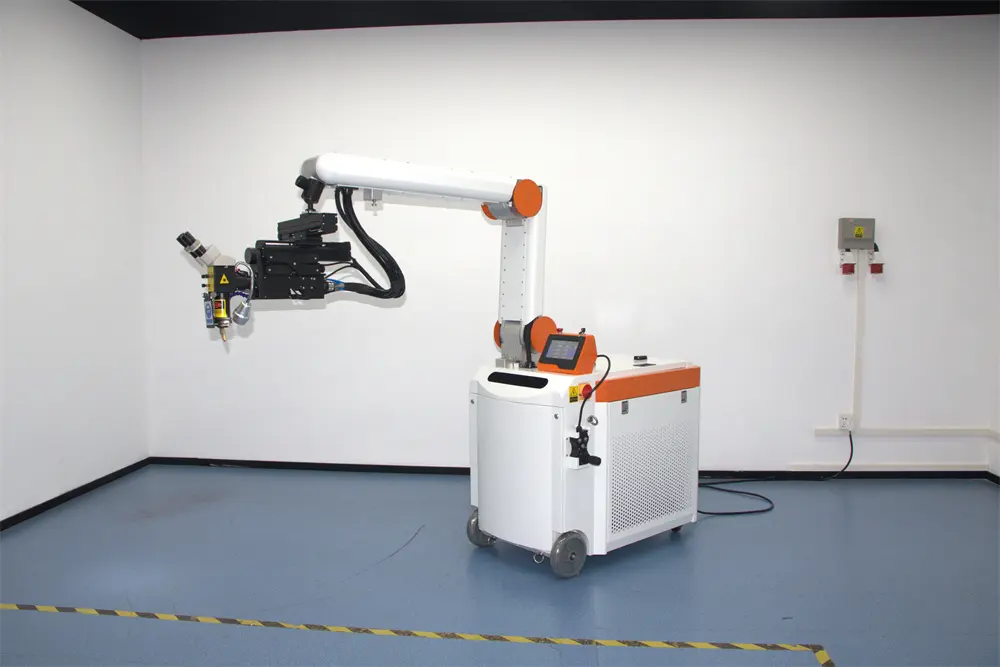

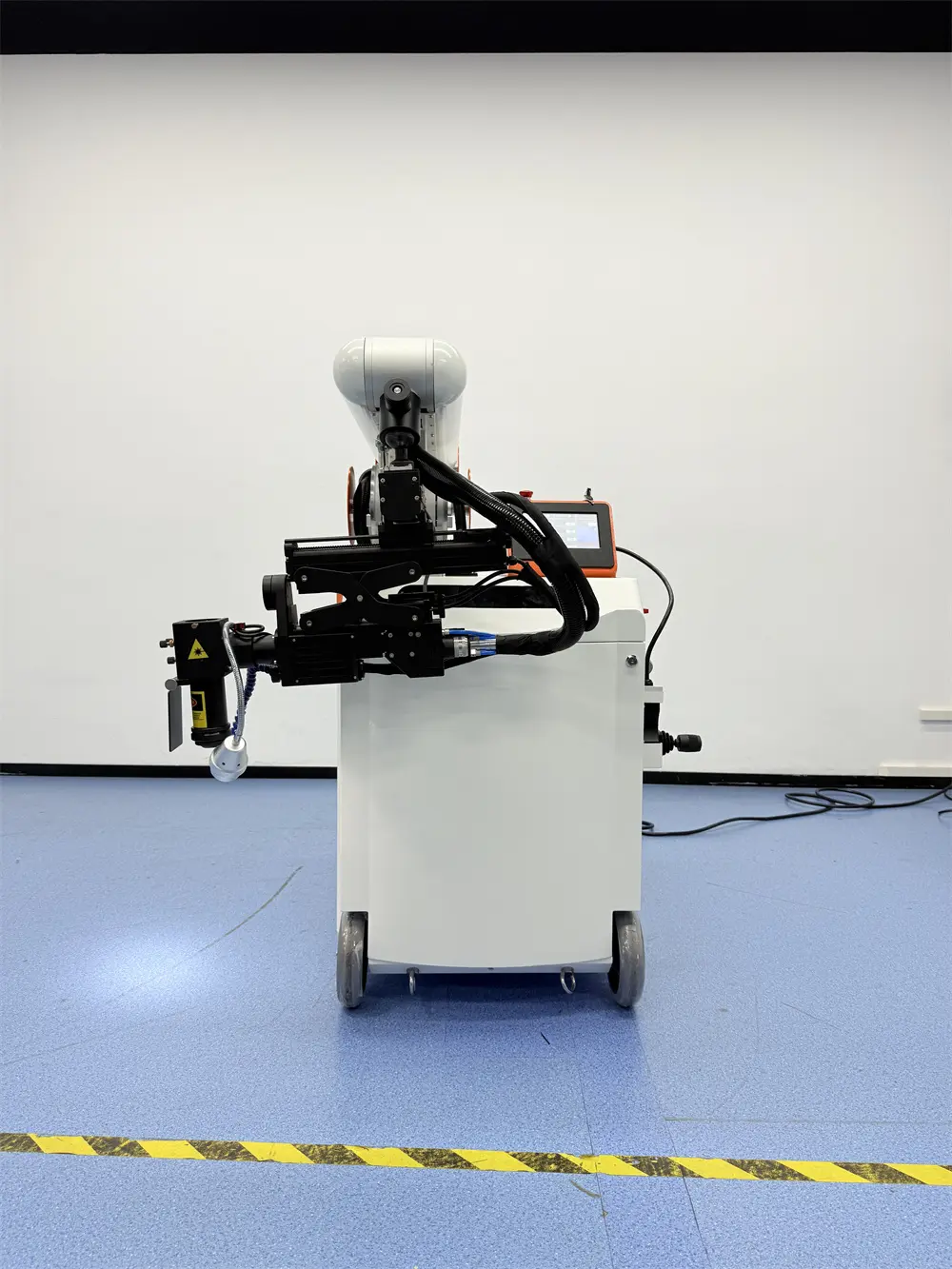

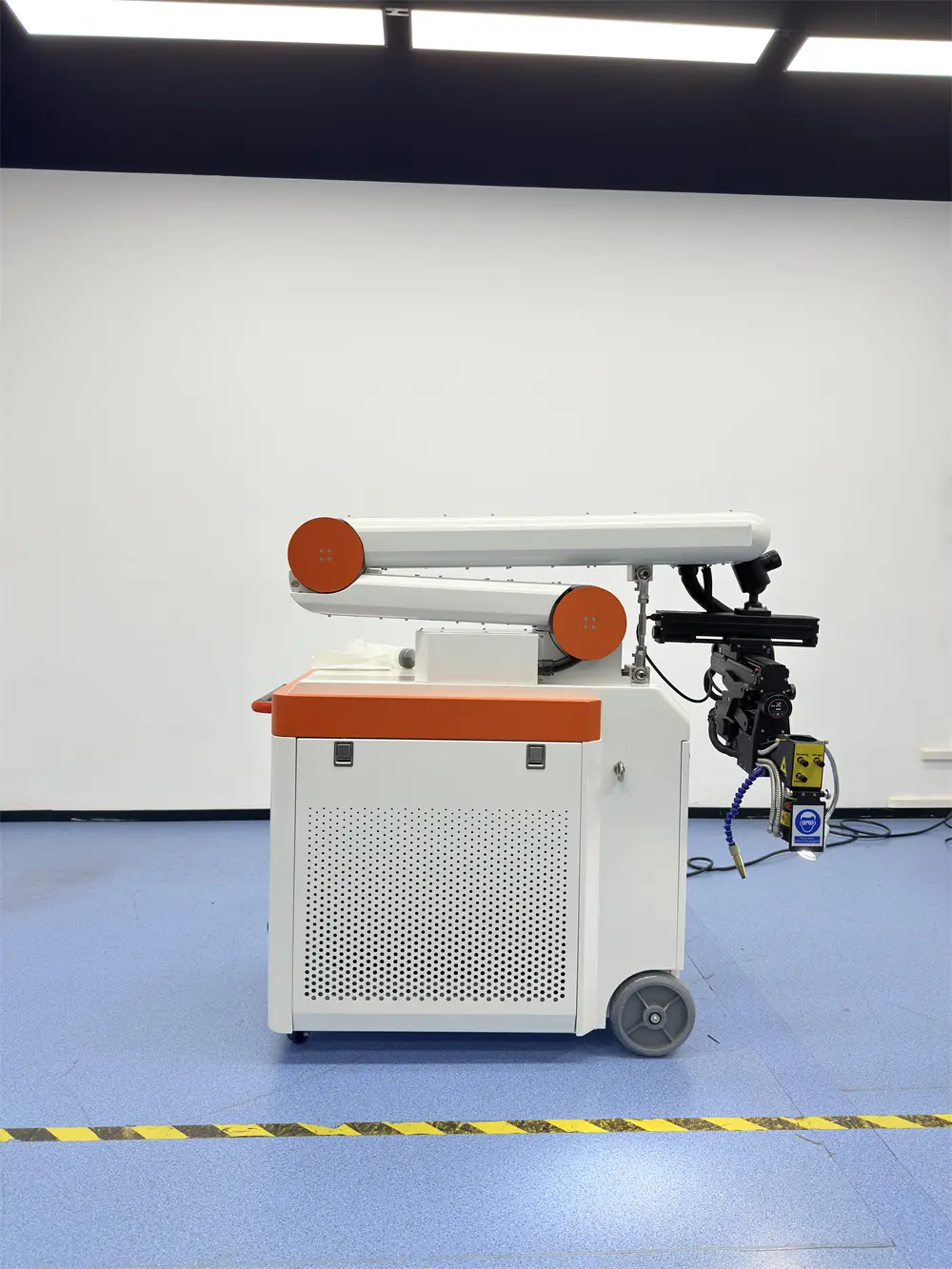

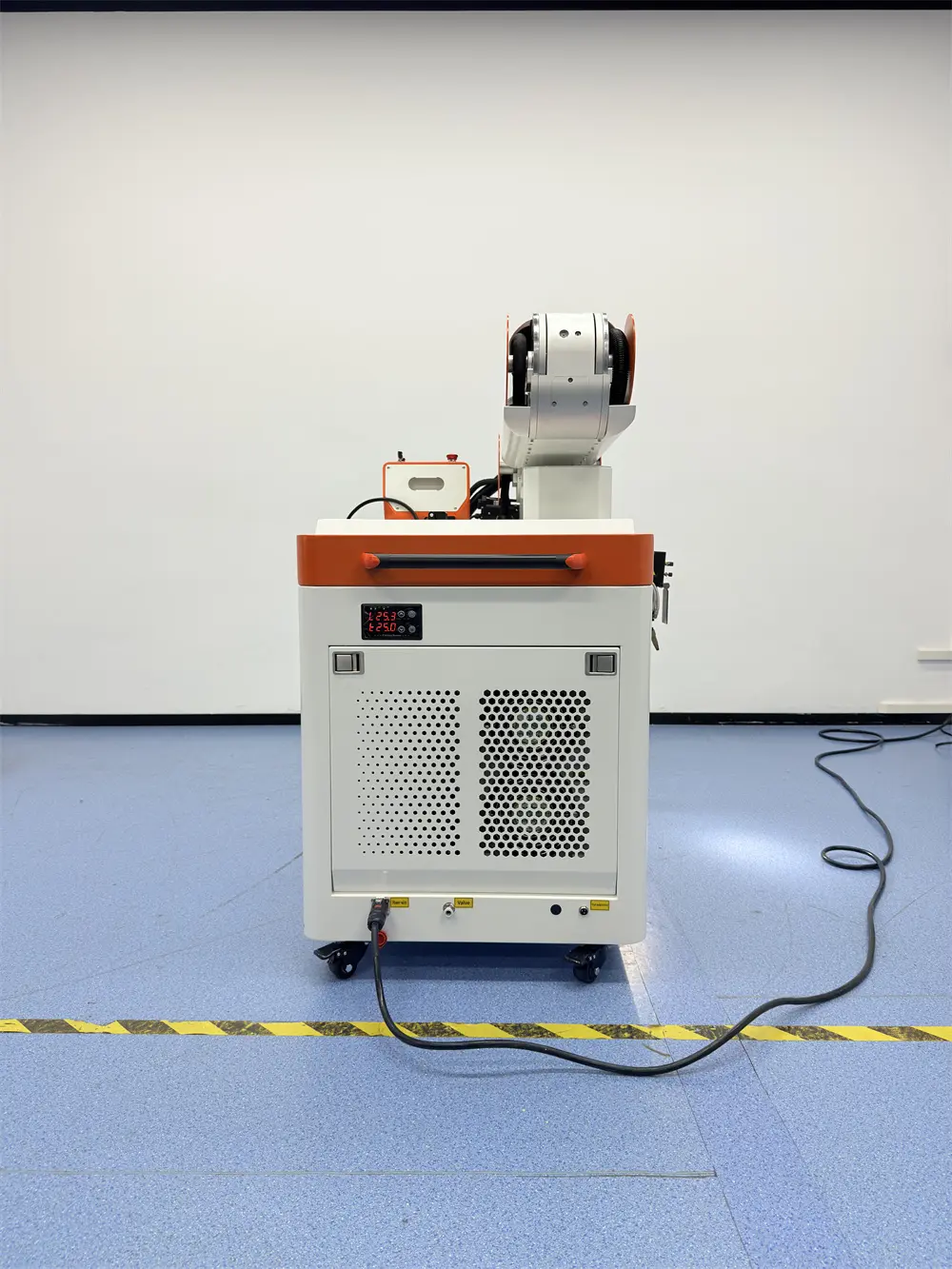

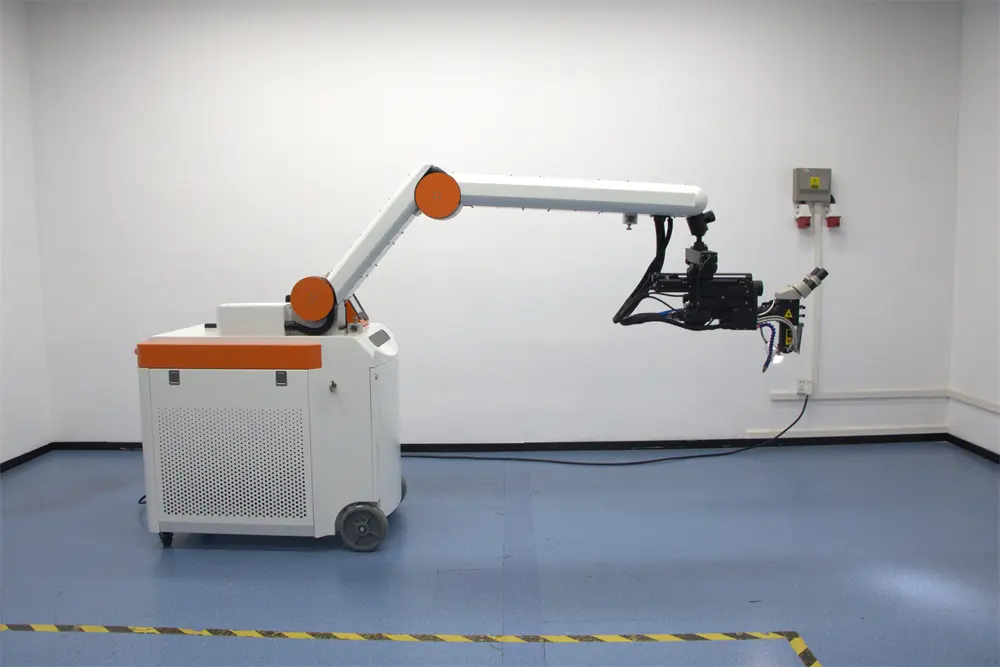

Machine Pictures

Application Scope

The machine is suitable for large mold repair welding, hardware products, precision machinery, auto parts, etc., various metals and alloys.

Some sample display

Frequently Asked Questions

QWhat materials are suitable for cantilever laser welding?

It is ideal for processing mold steels, stainless steel, alloy steels, copper, aluminum, and various high-precision metallic components.

QWhat are the key advantages of a cantilever structure?

The flexible cantilever arm allows extended reach up to 1600mm width and 1500mm height, making it easy to repair oversized and heavy molds directly on the floor or work table without repositioning the workpiece.

QWhat is the function of the three-axis joystick?

The three-axis joystick provides multi-directional, highly precise micro-positioning of the laser head along the X, Y, and Z axes, ensuring smooth handling and accurate welding path execution.

QIs CCD monitoring supported on this machine?

Yes. In addition to the standard optical stereo microscope, an optional high-definition CCD camera monitoring system can be integrated for synchronized real-time display on an external screen.

QHow does the cooling system ensure long-term stability?

The equipment features a built-in dedicated industrial water chiller paired with real-time temperature, pressure, and water-flow sensors to ensure continuous, safe, and stable 24/7 laser emission.

QHow user-friendly is the welding software control system?

The unit comes with an intuitive LCD control interface and quick parameter presets, enabling technicians to adjust pulse width, frequency, and spot diameter swiftly according to welding specifications.
