Custom Integrated Boom Mold Welding Machine Manufacturer, Quotes

1 / 5

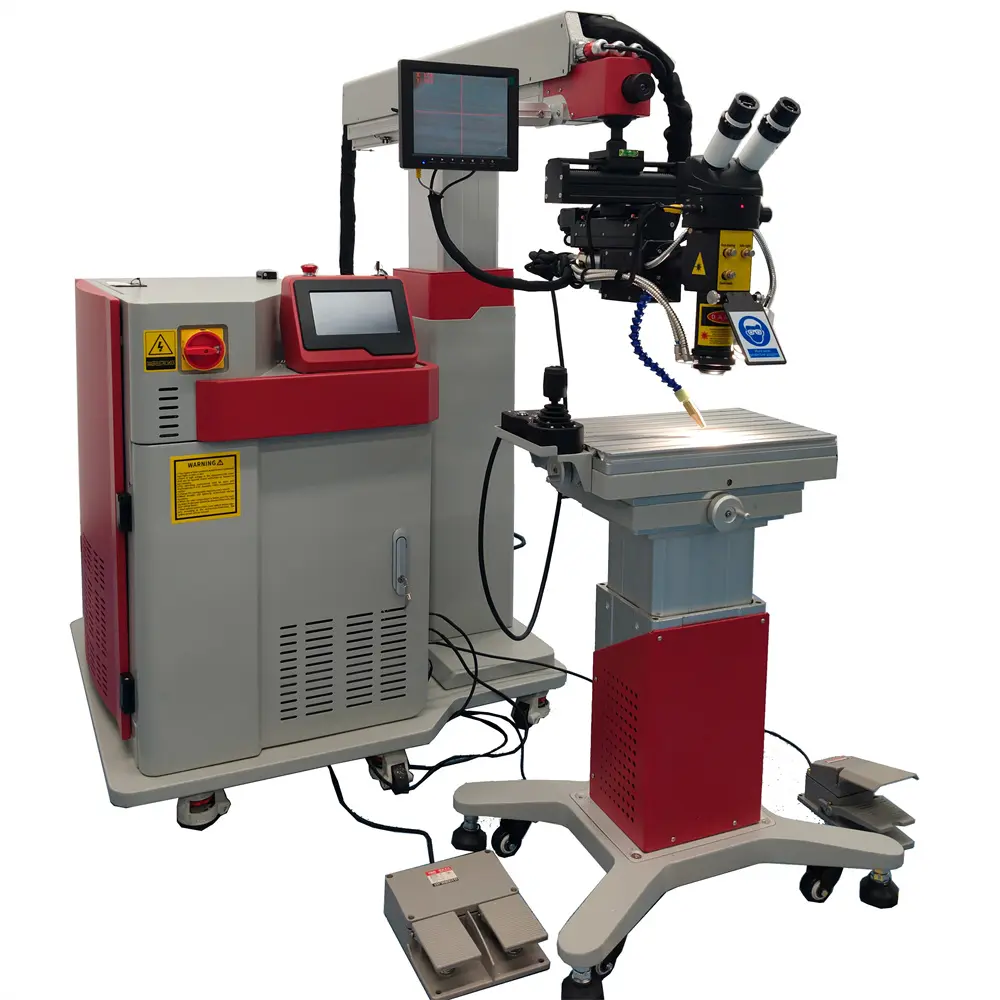

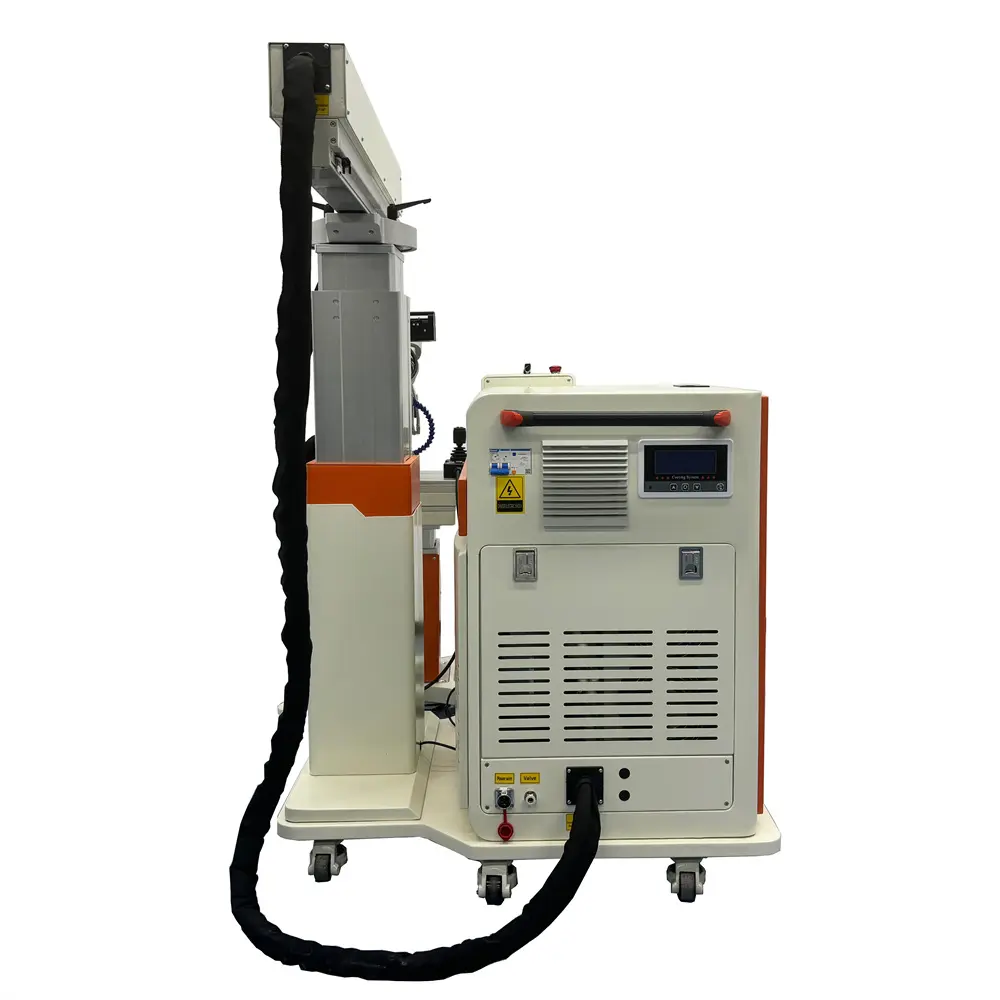

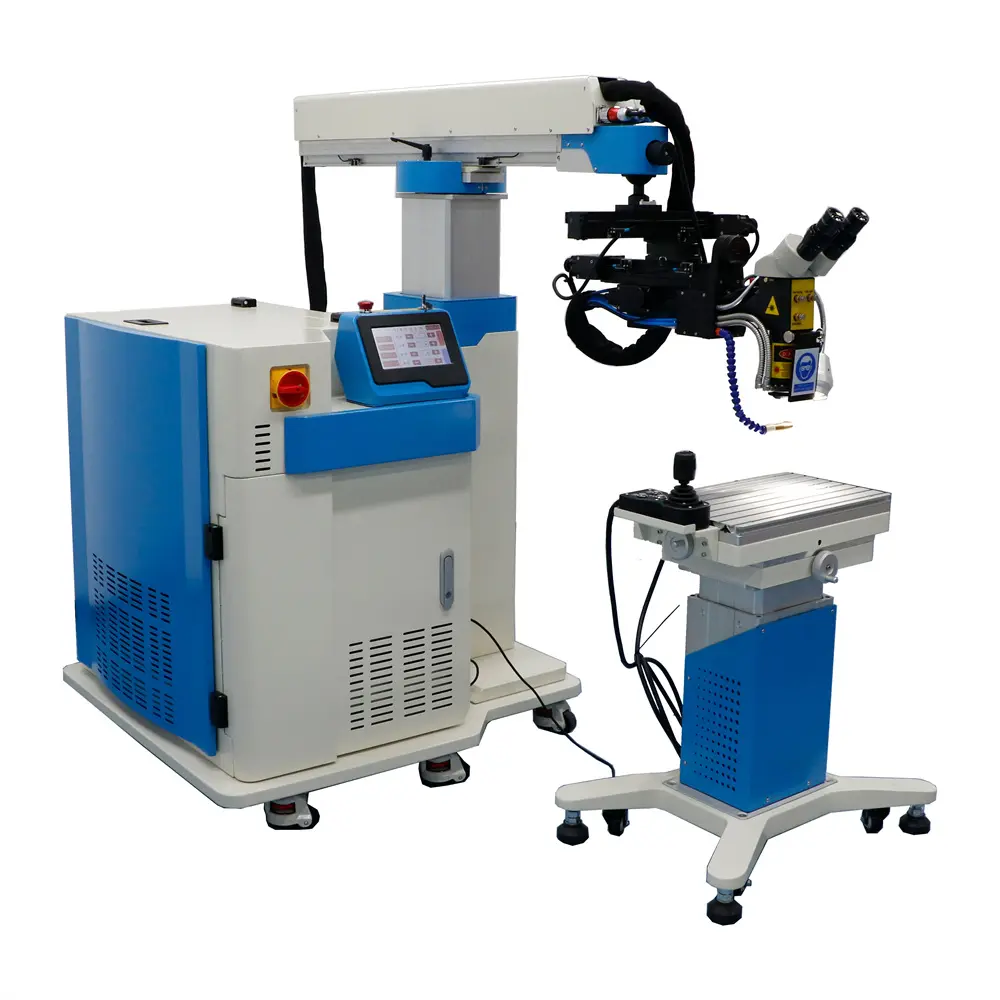

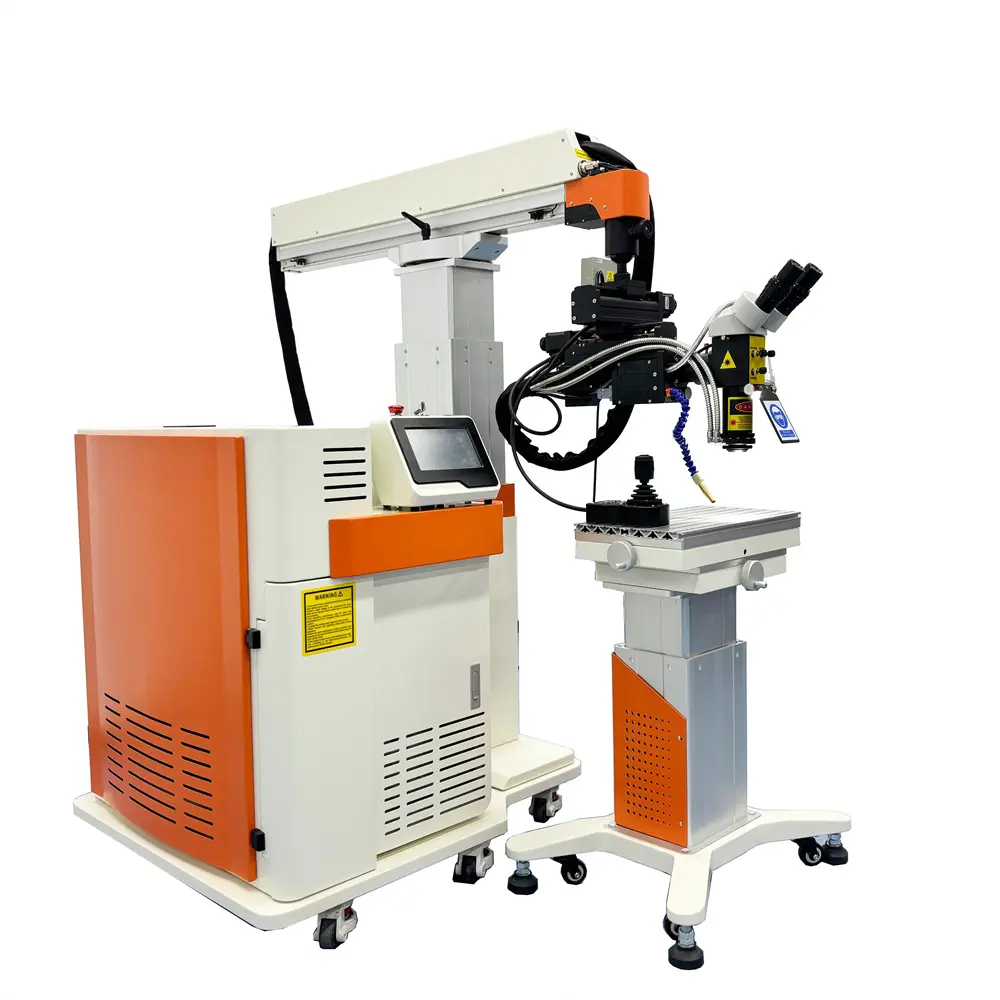

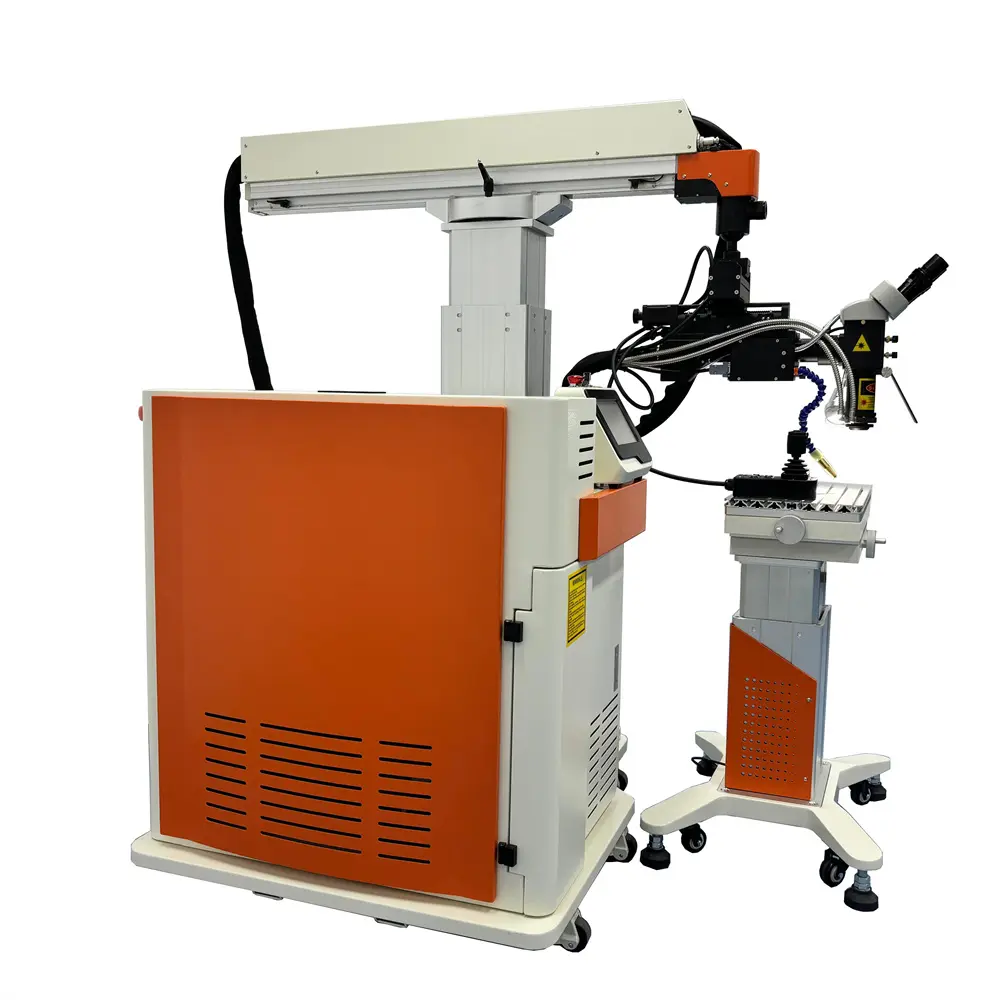

Custom Integrated Boom Mold Welding Machine Manufacturer, Quotes

1. Optional fiber laser, QCW laser, stable and reliable beam;

2. Equipped with a dedicated chiller, it can meet long-term welding and has better stability during welding;

3. Equipped with three-dimensional load-bearing table base, electric lifting, the table moves using precision ball screws and high-precision linear guide rails, light and flexible, precise positioning, and can bear up to 50 kg;

4. Equipped with a gas protection system, it effectively protects the product from argon gas during the welding process, maintains the original color of the product and ensures the welding quality.

5.We have updated with t hree-axis joystick and A set of quick parameter screen set.

6.The laser head can move forward and backward eletrically, the stroke is 500mm, it can also can move up and down 90° and rotate left and right 360°and the electric lift stroke is 600mm, Motorized XY axis Stroke is 160X160mm

7.Movable laser control screen so that you can set the parameter easily.

Send Inquiry

Product Description

Cantilever Laser Welding Machine

Configuration List
1. A set of laser source
2. A set of optical systems
3. LCD display system
4. A set of refrigeration and water flow and temperature detection system
5. A microscope (CCD optional)
6. A set of workbench
7. One built-in chiller
8. One set of host cabinet

About Product

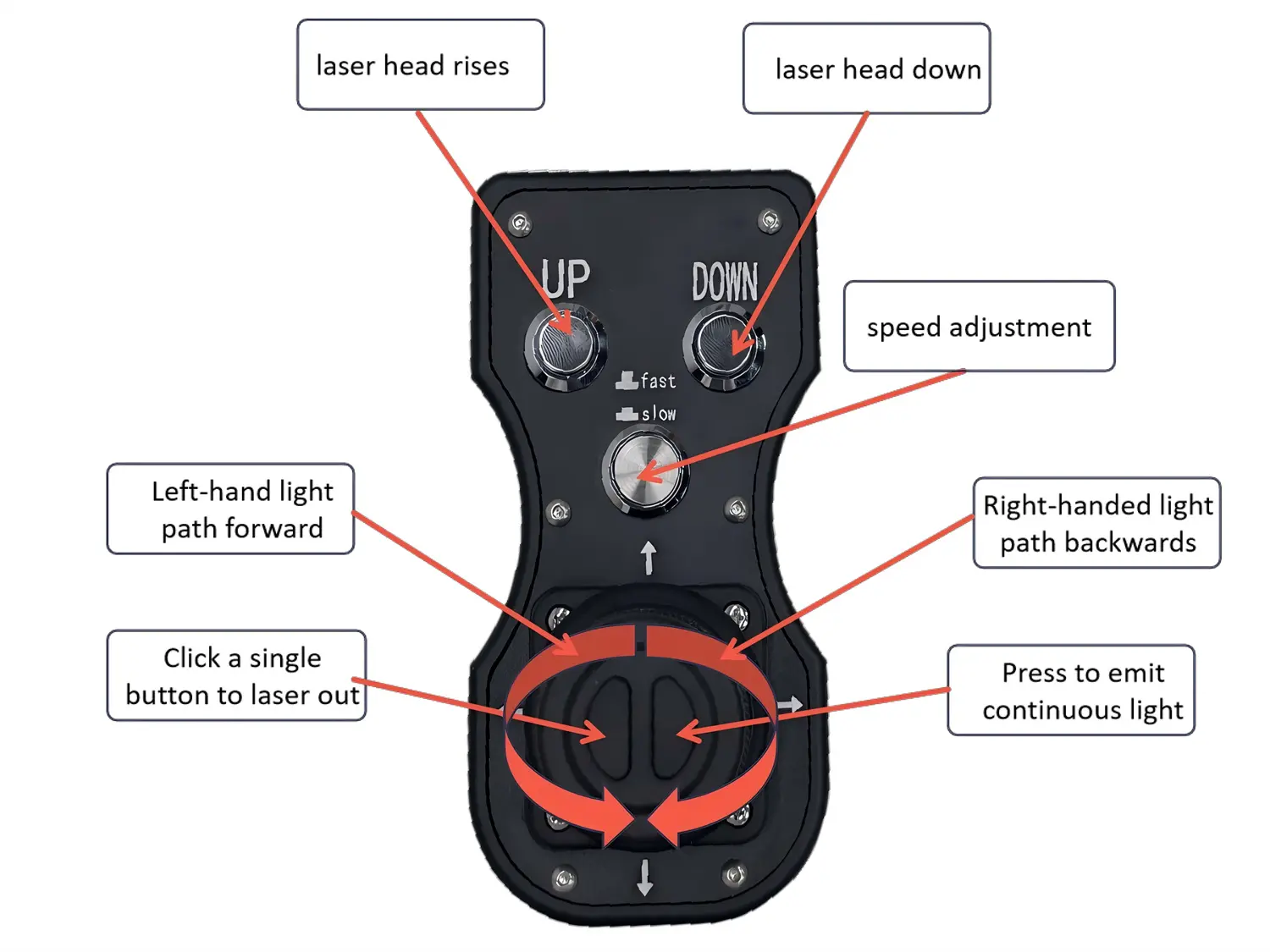

Three-axis joystick

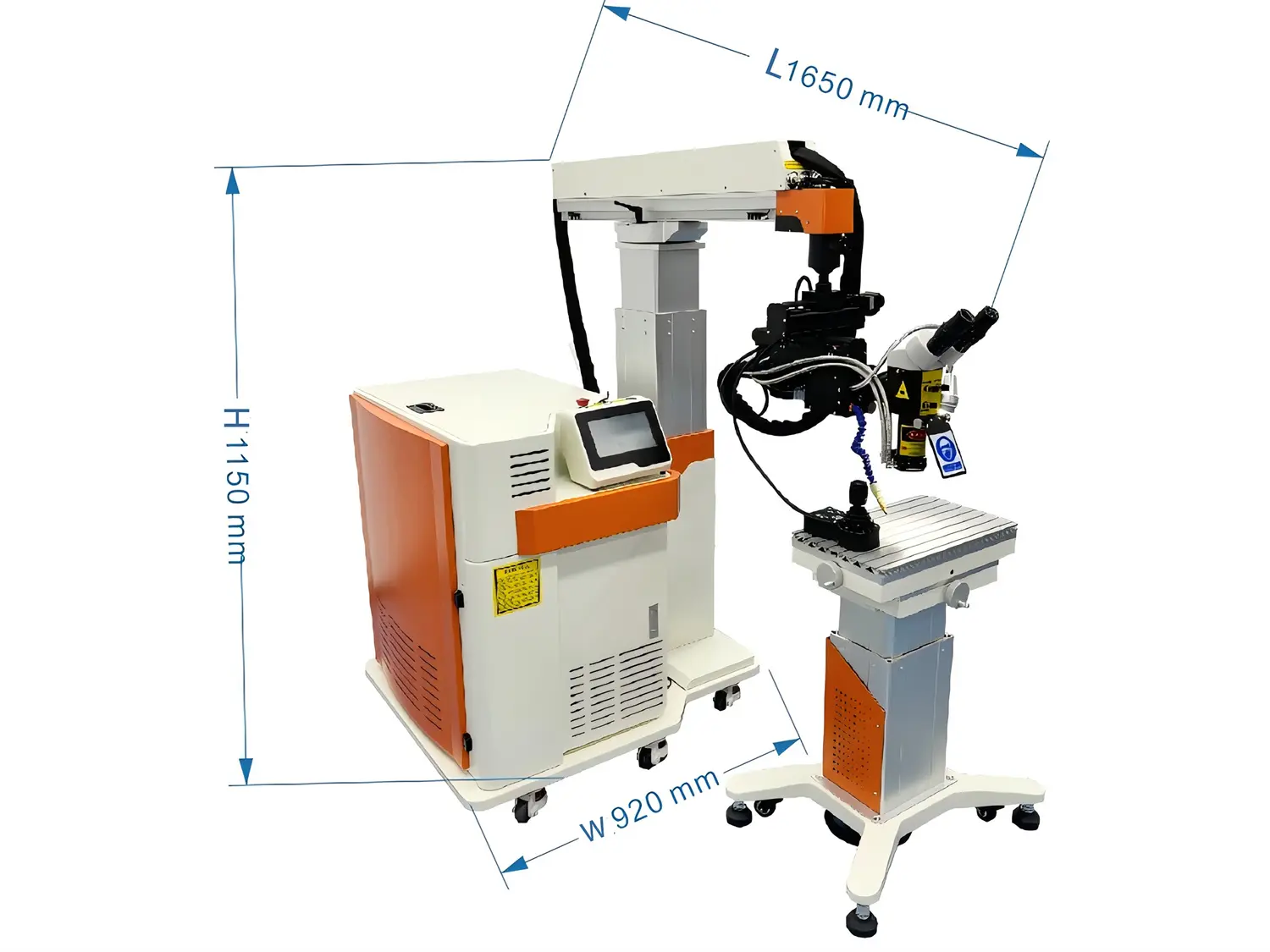

Machine size

Detailed Parameters

Item	QCW-150W-DB	QCW-300W-DB	LX-1500W-DB
Max power	150W	300W	1500W
Laser wavelength	1080±10nm
Laser fiber length	10M
Laser frequency	1-30Hz	1-30Hz	1-25Hz
Pulse width	1-20Ms	1-20Ms	1-60MS
Light spot adjustment range	0.2-3mm	0.2-5mm	0.2-5mm
Aiming and positioning	Microscope (optional camera system)
Chiller cooling power	0.6P	0.6P	CW1500
Rated power	2.5KW	3KW	7KW
Power demand	220V±5V 50Hz/60A
Three-dimensional load-bearing workbench	50kg
Overall dimensions/net weight	Host size: 16509201150mm
Overall dimensions/net weight	Workbench size: 600450600mm

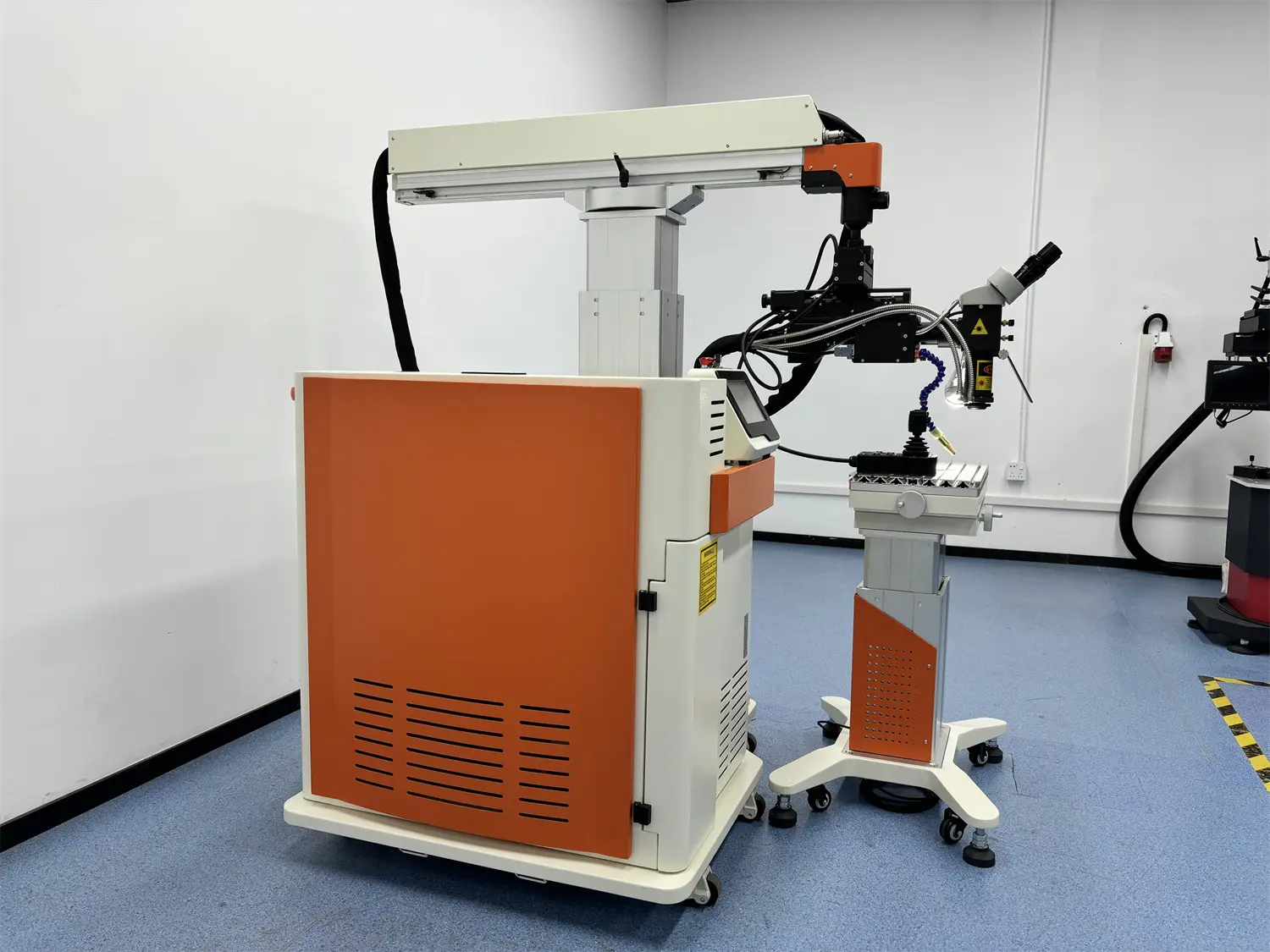

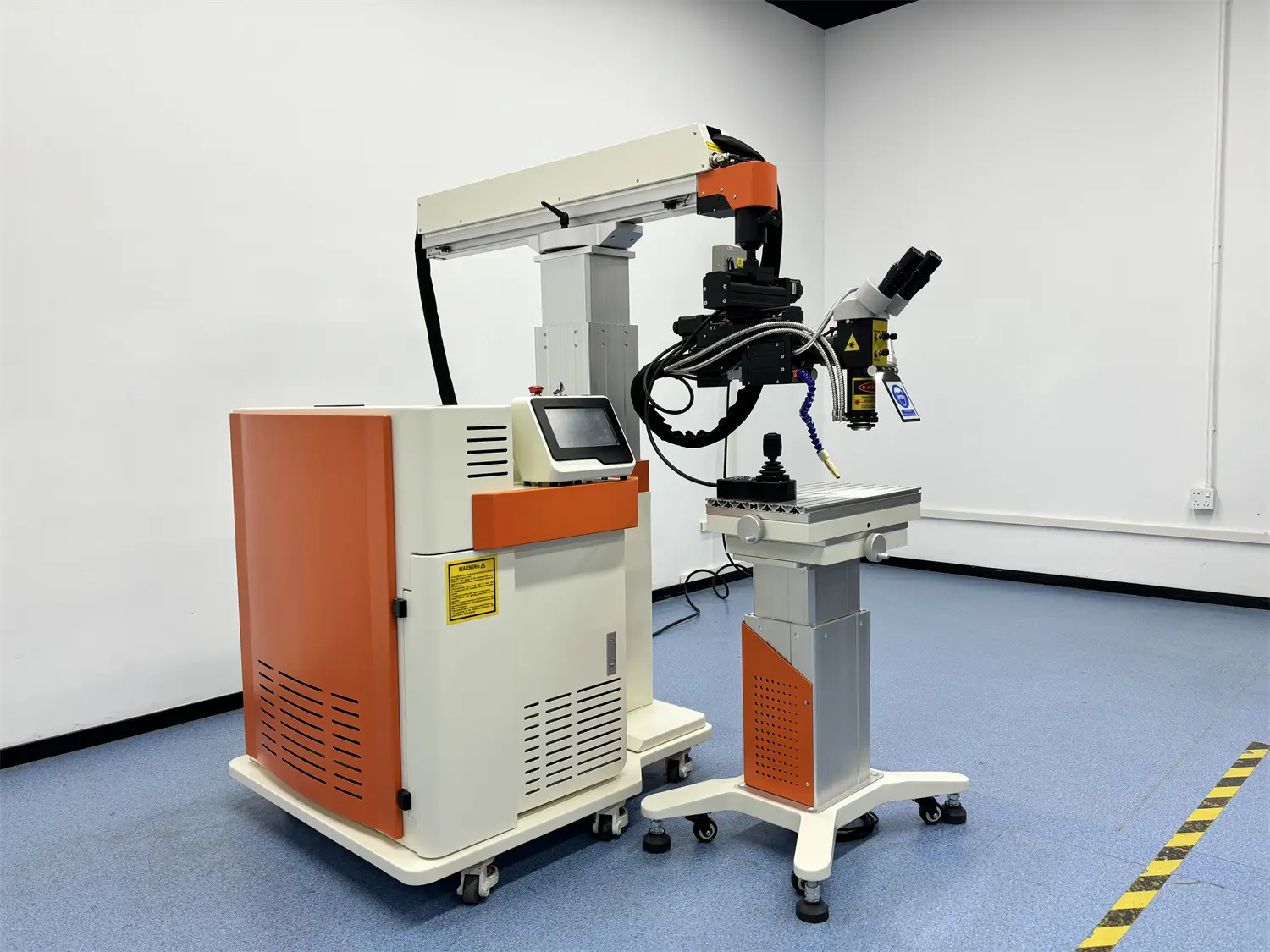

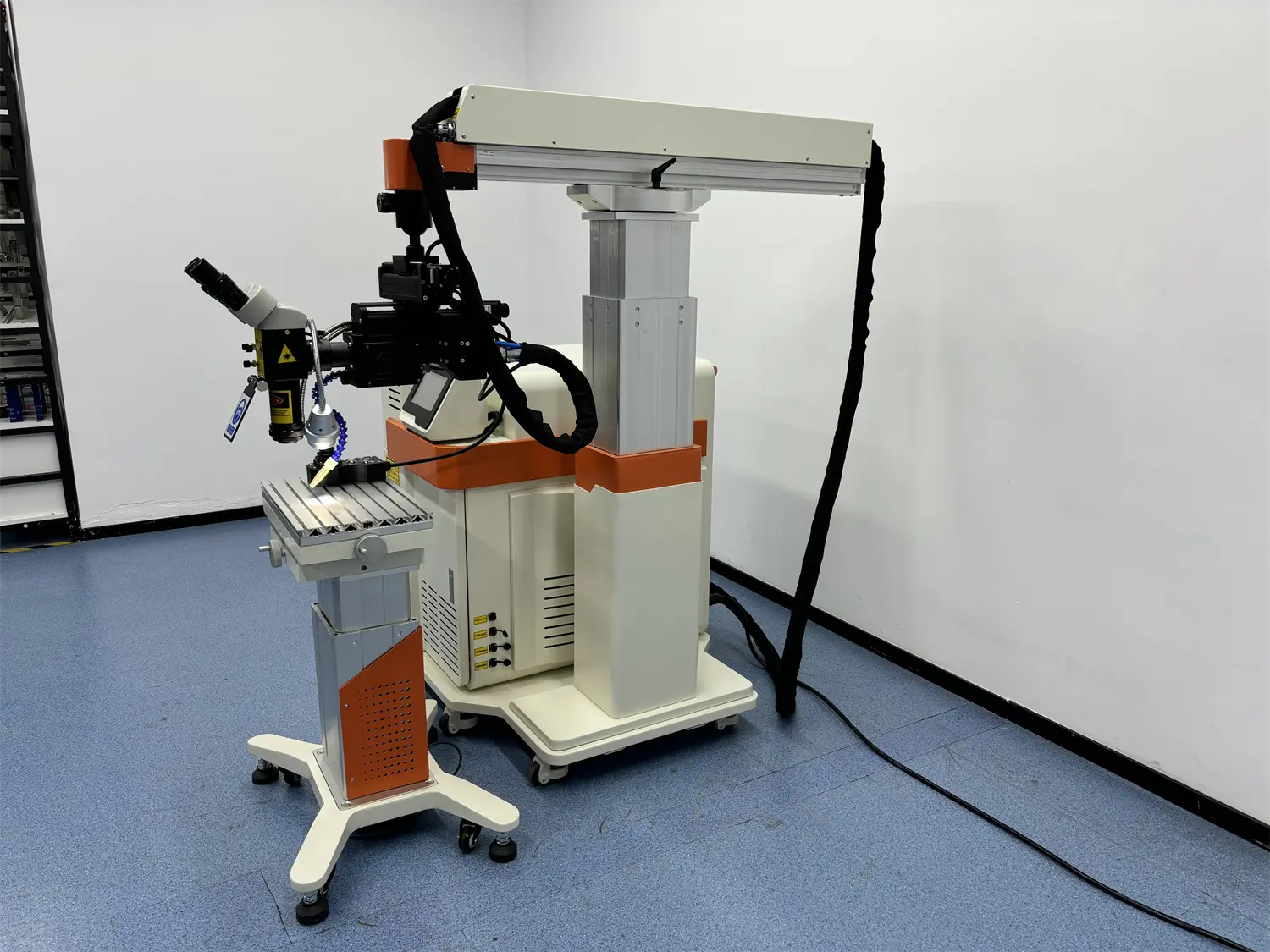

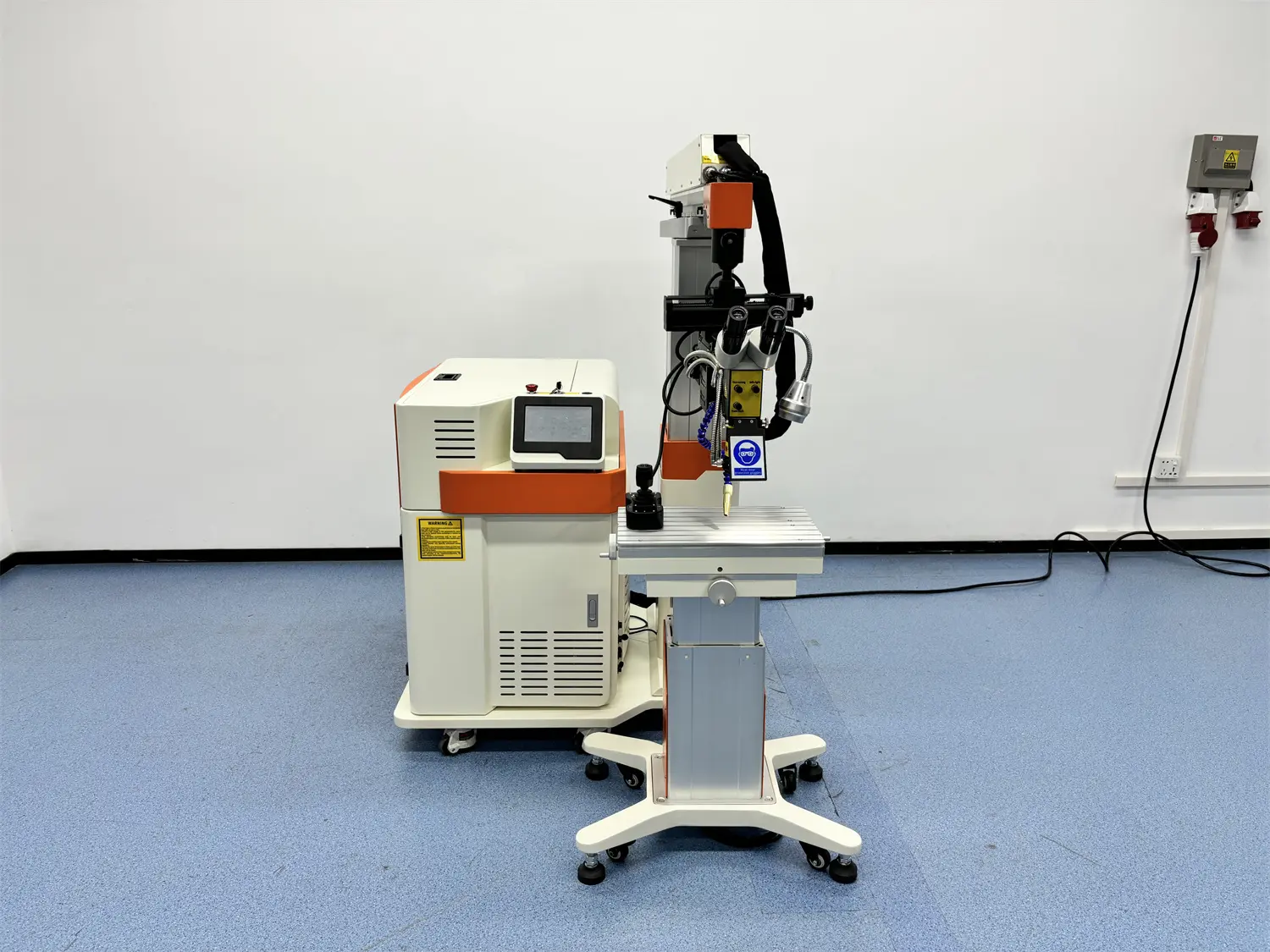

Machine Picture

Application Scope

Suitable for large mold repair welding, mobile phone communications, jewelry crafts, electronic components, clocks, sensors, precision machinery, hardware, gas and vehicle parts, etc., various metals and alloys.

Some sample display

Frequently Asked Questions

What types of applications and materials can this cantilever laser welding machine process?

The machine is designed for repairing large molds, precision hardware, sensors, mobile phone communication parts, jewelry crafts, clocks, automotive components, and various other metal and alloy fabrications.

What power options are available for this series?

The series offers three power configurations: the QCW-150W-DB (150W), QCW-300W-DB (300W), and LX-1500W-DB (1500W), accommodating diverse welding depth and speed requirements.

What positioning and observation system does the equipment provide?

The standard setup includes a precision observation microscope, and an optional CCD high-definition camera monitoring system is available for streamlined visual alignment.

What is the load capacity of the three-dimensional workbench?

The heavy-duty 3D workbench is engineered to support a maximum workload of up to 50kg, ensuring stability during precision component alignment and repair.

Does the unit include an integrated cooling system?

Yes, each system comes with a built-in industrial chiller (0.6P for 150W/300W models and CW1500 for the 1500W model), complete with real-time water flow and temperature detection.

How does the three-axis joystick facilitate operation?

The integrated three-axis joystick allows operators to flexibly maneuver and position the cantilever boom along the X, Y, and Z axes, making large mold welding fast, flexible, and ergonomic.
