Custom Fiber Mold Laser Welding Machine Pricelist, Quotes

1 / 5

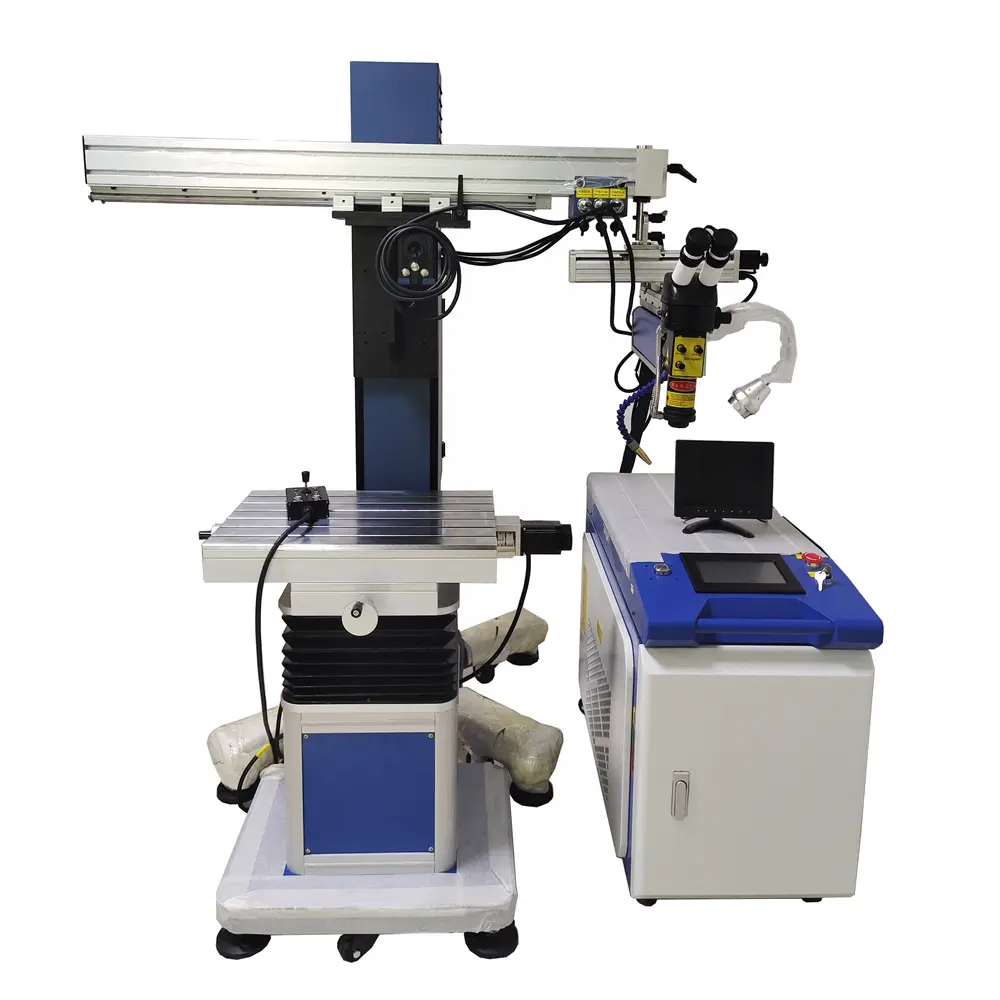

Custom Fiber Mold Laser Welding Machine Pricelist, Quotes

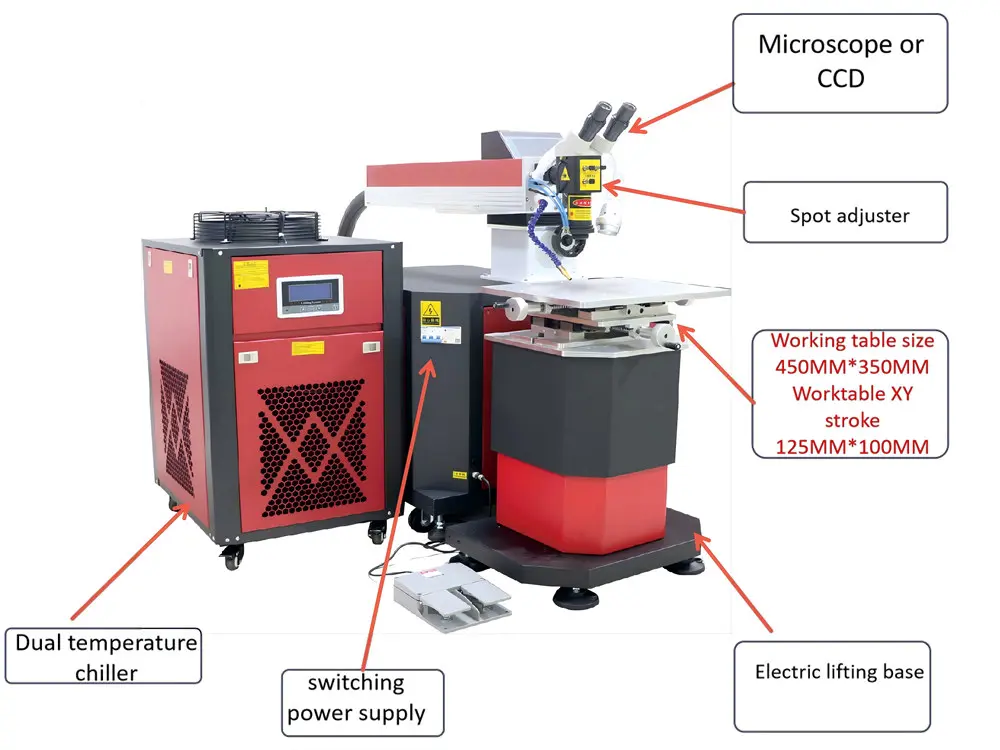

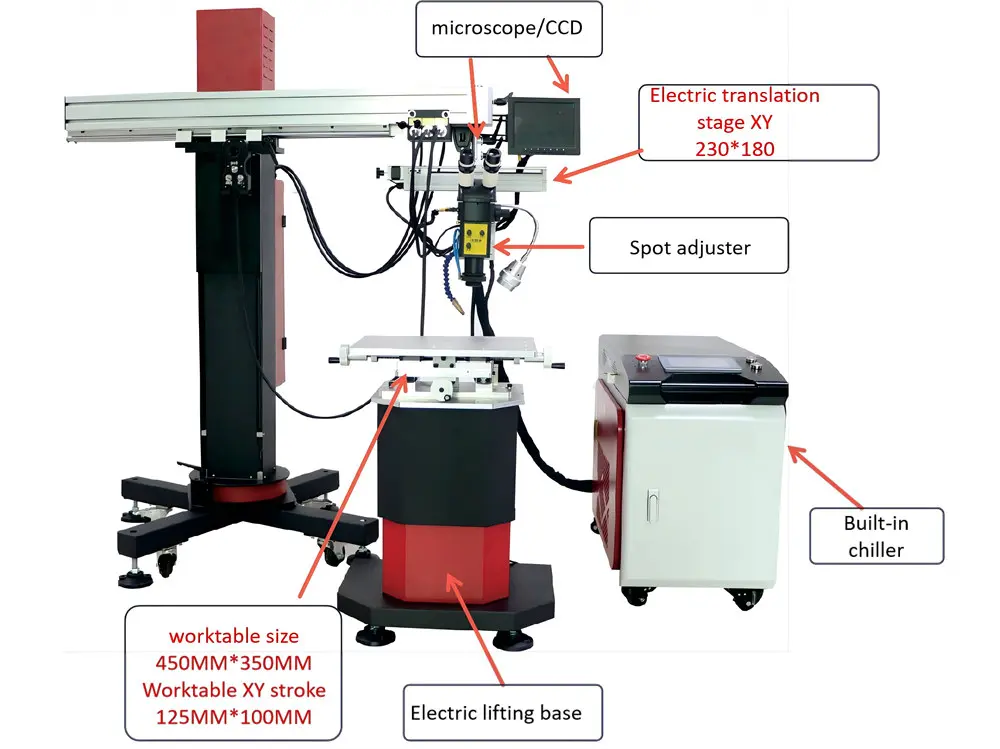

1. Equipped with a dedicated dual-temperature dual-control water chiller, which can meet the needs of long-term work and stable replacement during high-power welding;

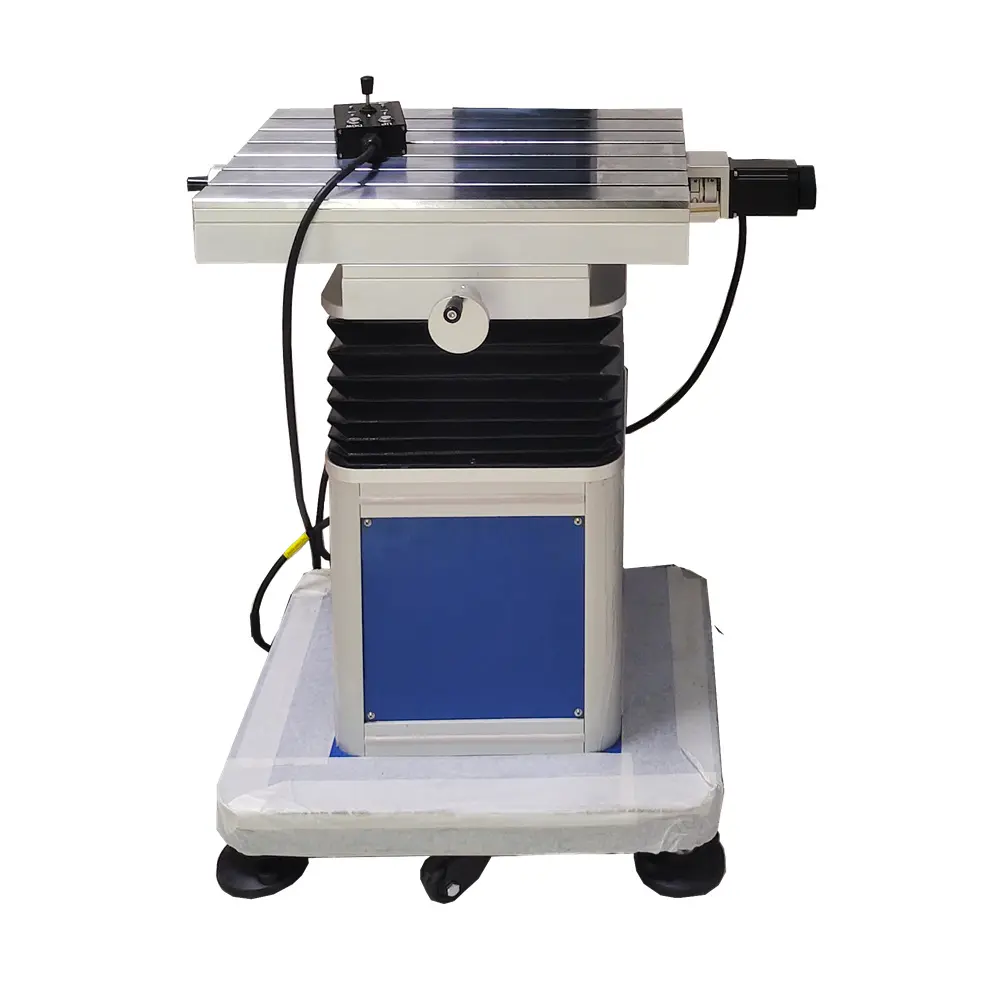

2. The base of the workbench lifts electrically, and the movement of the workbench uses precision ball screws and high-precision linear guide rails, which are light and flexible, have precise positioning, and can bear a load of up to 100 kg;

3. The laser head can slide forward and backward, and the objective lens is equipped with water cooling; the laser head can be easily rotated 90° to facilitate repair welding on any side;

4. The welding depth is large, the welding is stronger, the welding part can be fully melted without pores and trachoma, and the repair marks are neat and beautiful;

5. Equipped with a gas protection system to effectively protect the product from argon gas during the welding process, maintaining the true color of the product and ensuring welding quality;

Send Inquiry

Product Description

1500W Device Configuration

Configuration list
1. A set of Max laser source
2. A set of optical systems
3. A set of liftable and movable optical benches
4. A set of LCD display system
5. A set of refrigeration and water flow temperature detection system
6. A set of microscope/CCD camera system
7. A set of workbench
8. One built-in chiller
9. A set of host cabinet

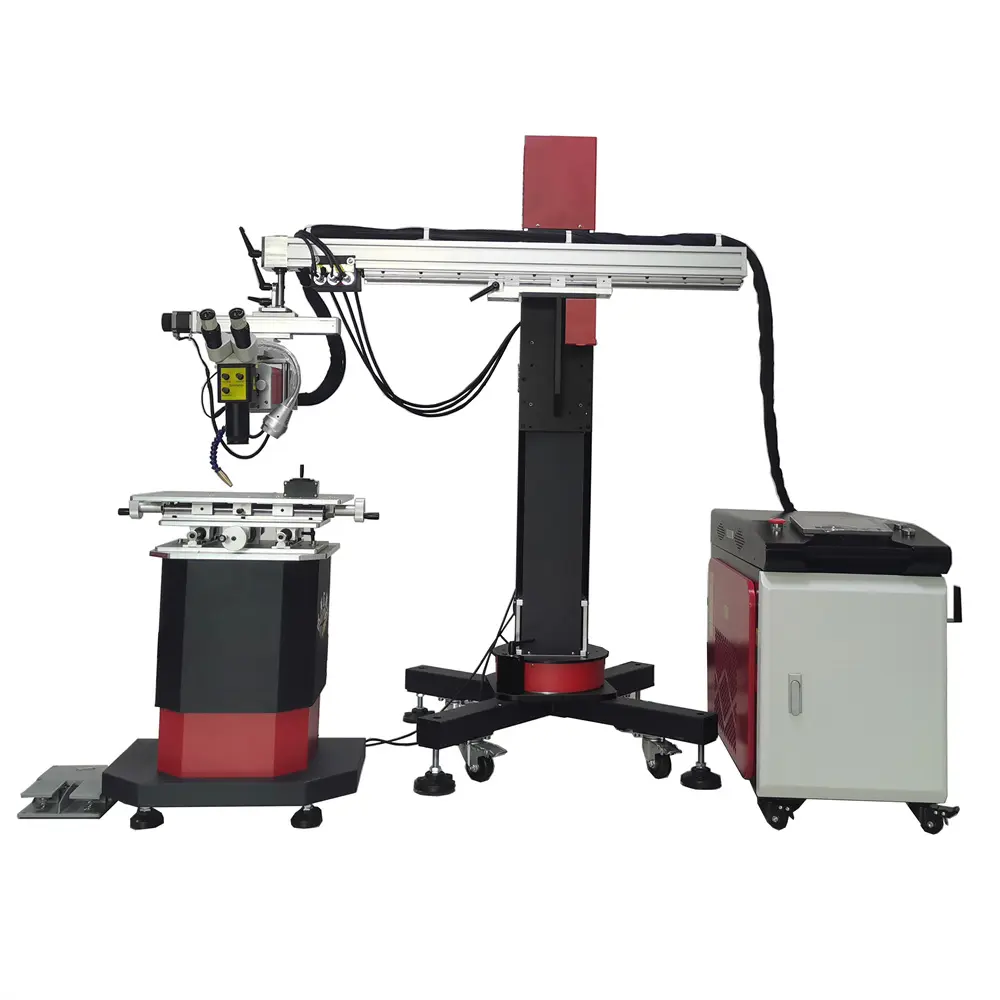

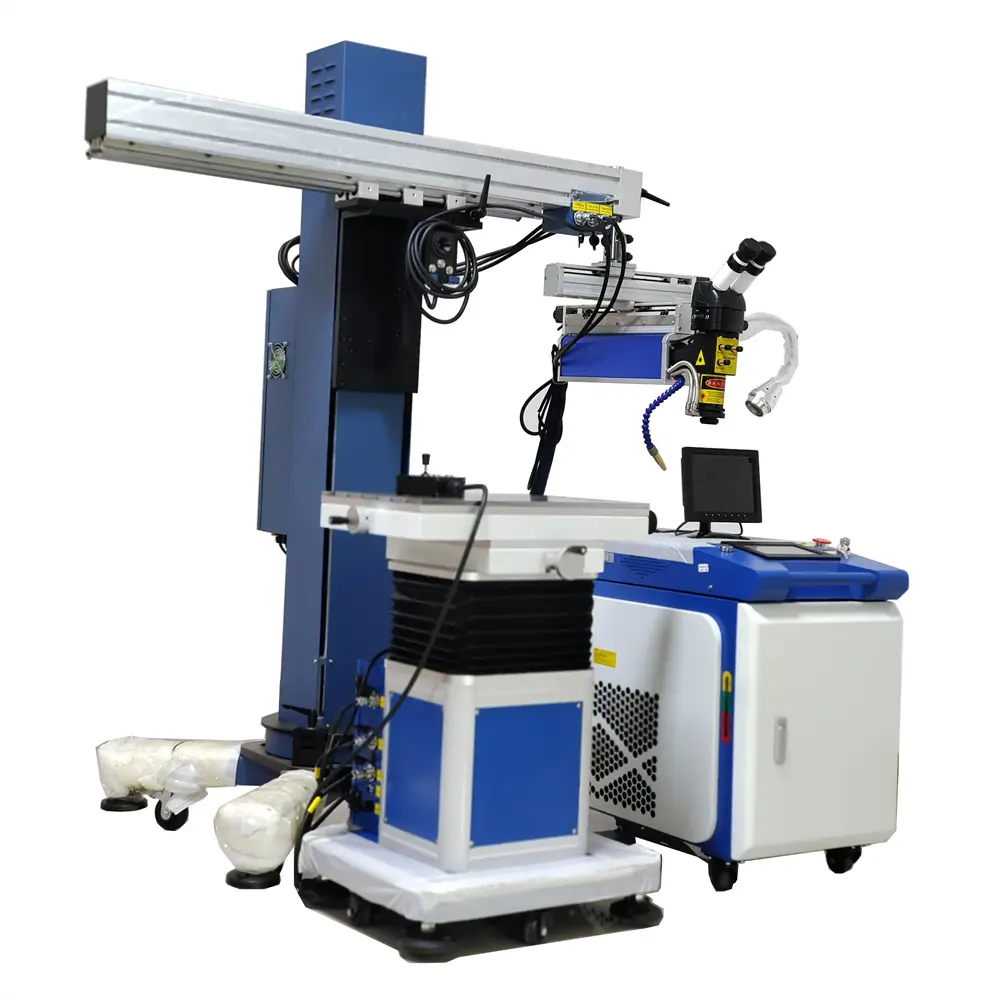

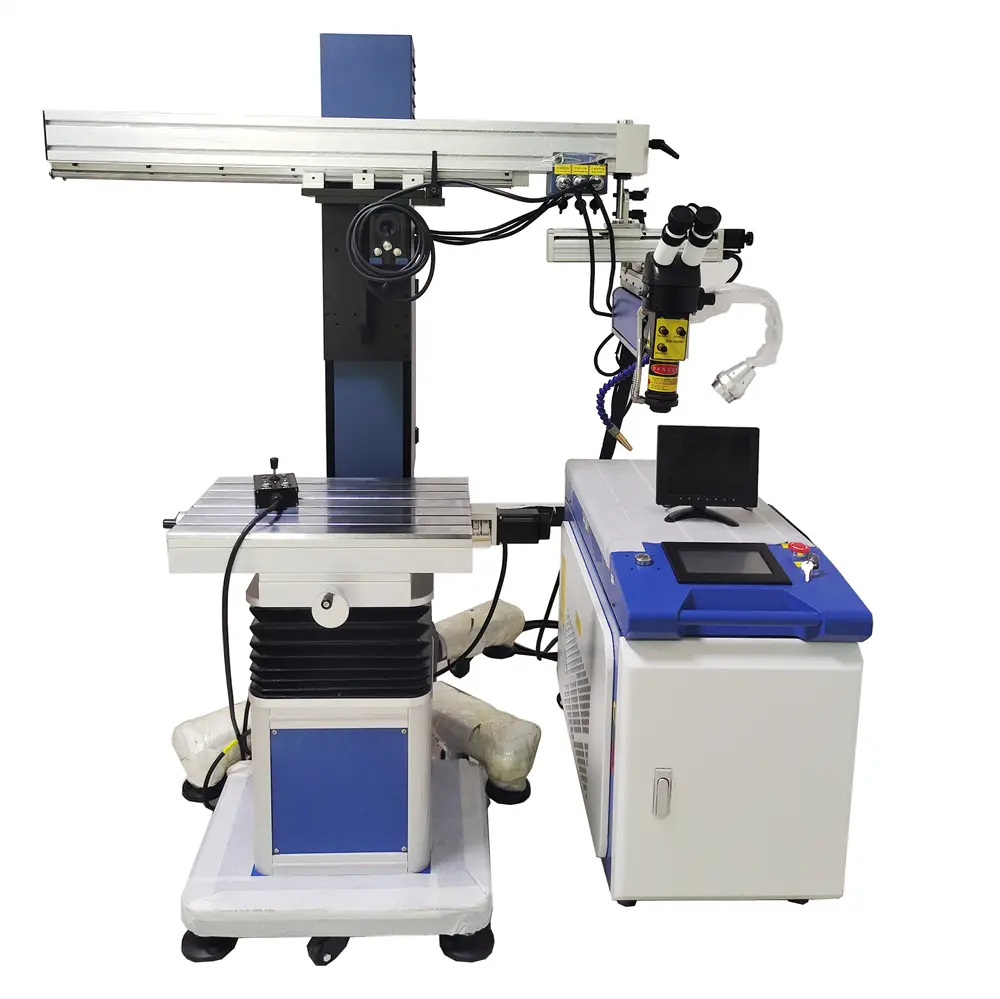

10. One electric boom
11. Galvanometer swing function (optional) page 7

Configuration list
1. A set of Max laser source
2. A set of optical systems
3. A set of liftable and movable optical benches
4. A set of LCD display system
5. A set of refrigeration and water flow temperature detection system
6. A set of microscope/CDD camera system (optional)
7. A set of workbench
8. One dual-temperature chiller
9. A set of host cabinet
10. Galvanometer swing function (optional) page 7

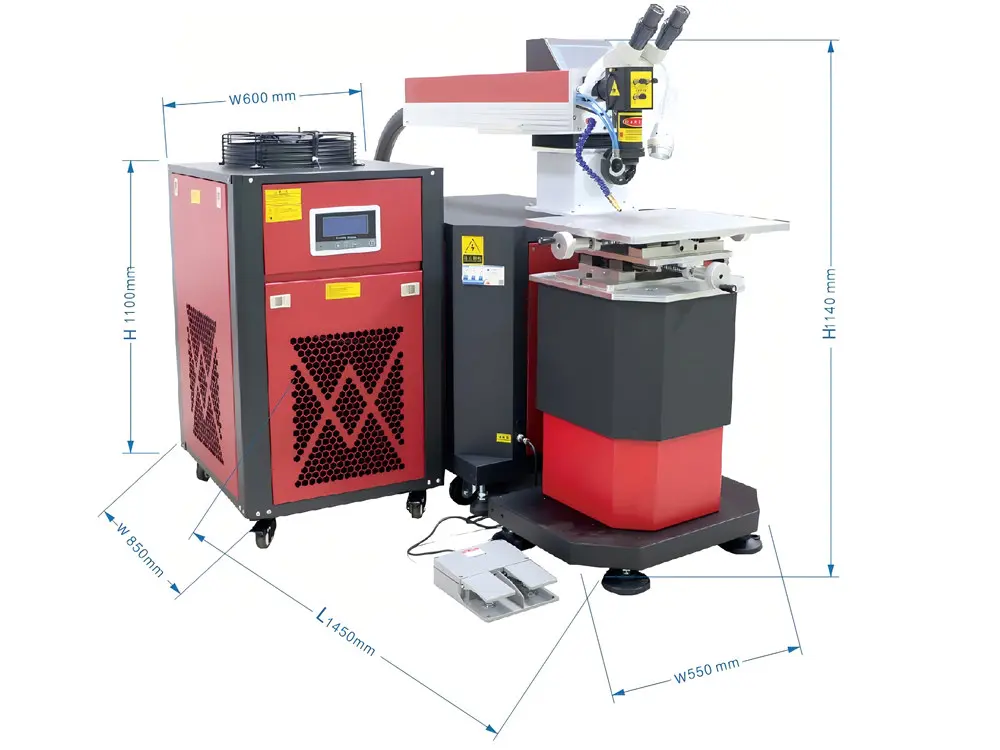

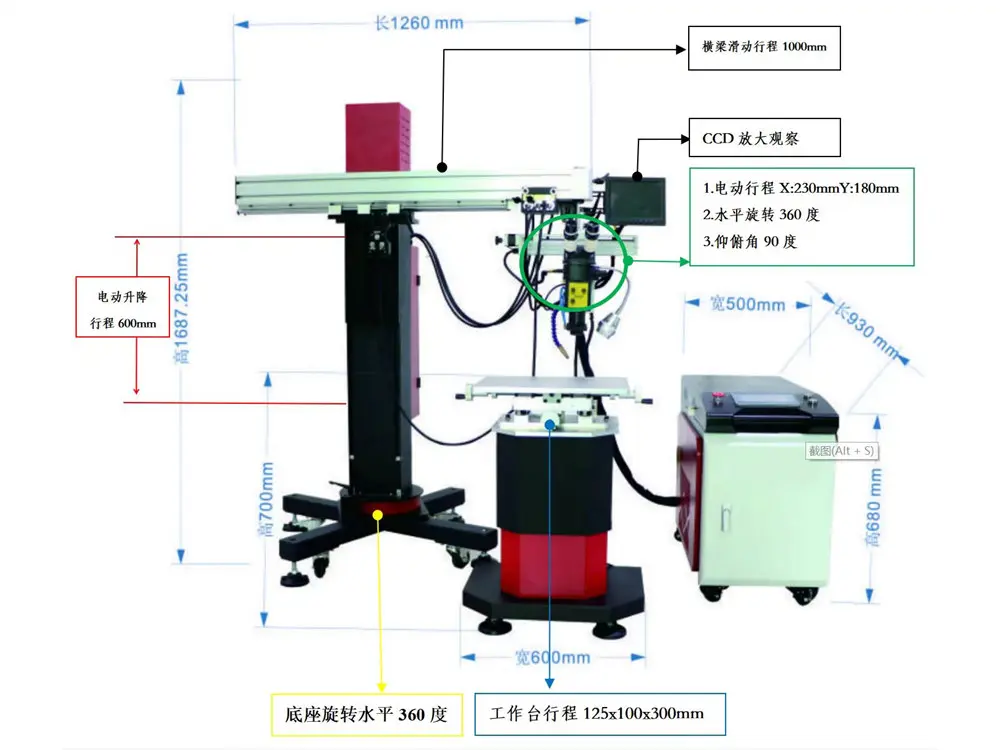

Product Size

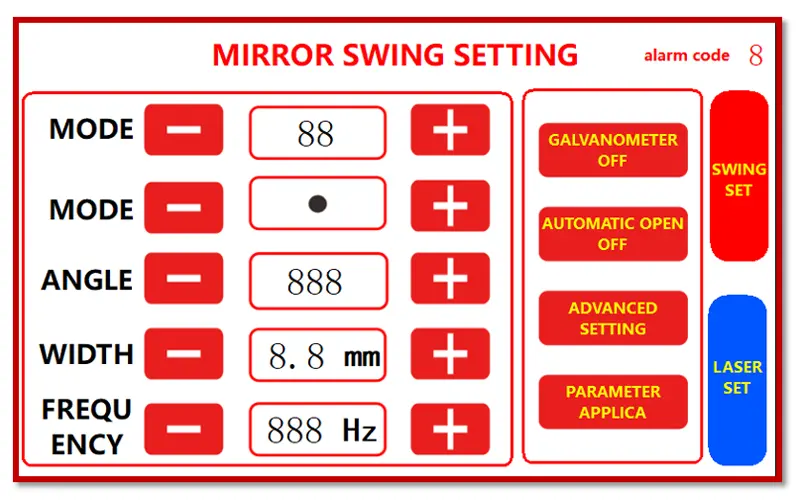

Galvanometer swing function (optional)

1. It can save 20 sets of galvanometer swing settings

2. Swing shapes (points, circles, straight lines, triangles, squares)

3. Light spot adjustment width 1-5mm

Specification

Item Number	YMR-1500W-III	YMR-1500W-DB
Maximum laser power	1500W	1500W
Laser wavelength	1080±10nm
Power percentage	10-100%
Laser frequency	1-25Hz	1-25HZ
Pulse Width	1-60Ms	1-60Ms
Aiming and positioning	Microscope (optional camera system)
Chiller cooling power	CW1500	CW1500
Rated power	7KW	8KW
Electricity demand	220V±5V 50Hz/60A	220V±5V 50Hz/60A
Three-dimensional load-bearing workbench travel	Three-dimensional load-bearing workbench travel
Three-dimensional load-bearing workbench load-bearing	100kg
Overall dimensions/net weight	Host: 1450×550×1140mm	Host: 1000×500×700mm
	Water chiller: 850×600×1100mm	Boom: 850×850×1700mm
	working table size: 450X350mm	Stroke: 125X100mm
	Three-dimensional load-bearing size: 550×400×700mm	Three-dimensional load-bearing size: 550×400×700mm

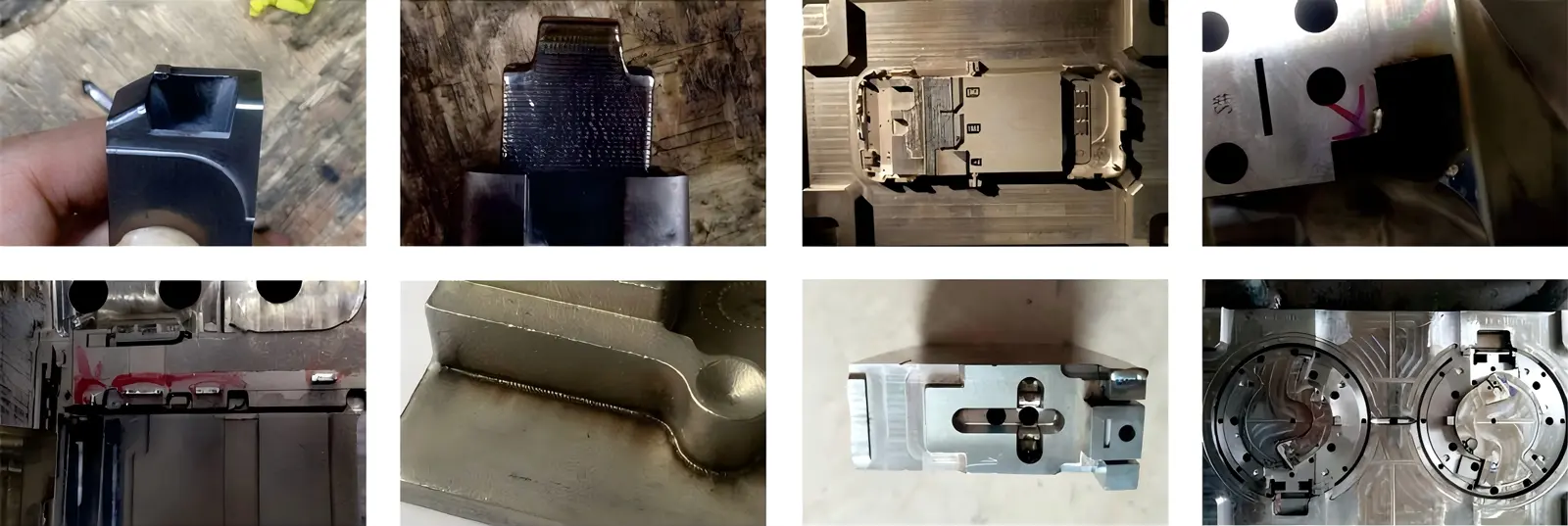

Application scope

Suitable for repair and welding of large molds, mobile phone communications, jewelry and crafts, electronic components, watches, sensors and instruments, precision machinery, hardware, pneumatic vehicle parts, etc., and various metals and alloys.

Frequently Asked Questions (FAQ)

What materials can this mold laser welding machine work with?

It is suitable for welding and repairing various metals and alloys, including mold steels, stainless steel, titanium, nickel, aluminum, and precious metals used in industries like mold manufacturing, jewelry, hardware, and automotive parts.

What is the difference between the YMR-1500W-III and YMR-1500W-DB models?

Both models offer 1500W of laser output, but they feature different dimensions, host layouts, and power handling configurations. The DB model is equipped with an extended electric boom system and a dual-temperature cooling unit designed for more flexible reach.

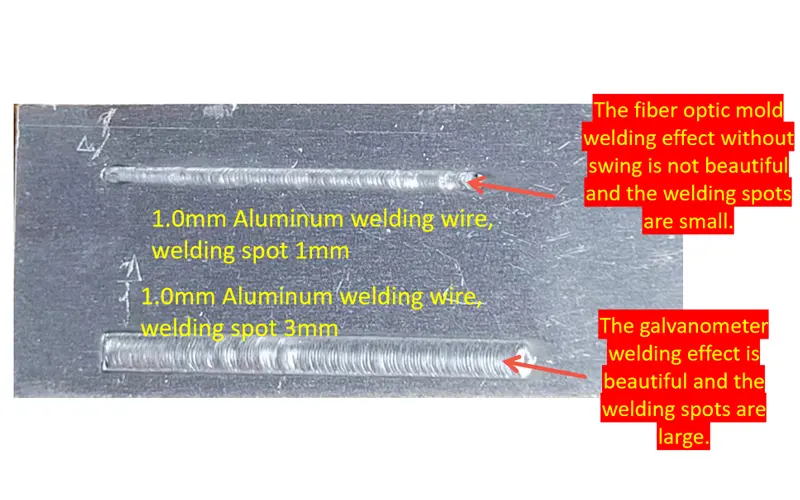

How does the galvanometer swing function benefit the welding process?

The optional galvanometer swing function enables dynamic spot shapes (points, circles, lines, triangles, squares) and an adjustable light spot width between 1-5mm, significantly improving weld width control, heat dispersion, and joint strength.

What aiming and positioning options are provided for precise welding?

The machine comes standard with an optical microscope system for precision alignment and offers an optional CCD camera display system for enhanced operational view and real-time monitoring.

What are the electrical and cooling requirements for this 1500W welding machine?

The system requires a power supply of 220V±5V 50Hz/60A and operates with a rated power of 7KW-8KW. It includes an integrated industrial water chiller (CW1500) to ensure continuous, safe, and stable operational temperatures.
