Custom Galvanometer Continuous Laser Welding Machine Manufacturer, Factories

1 / 5

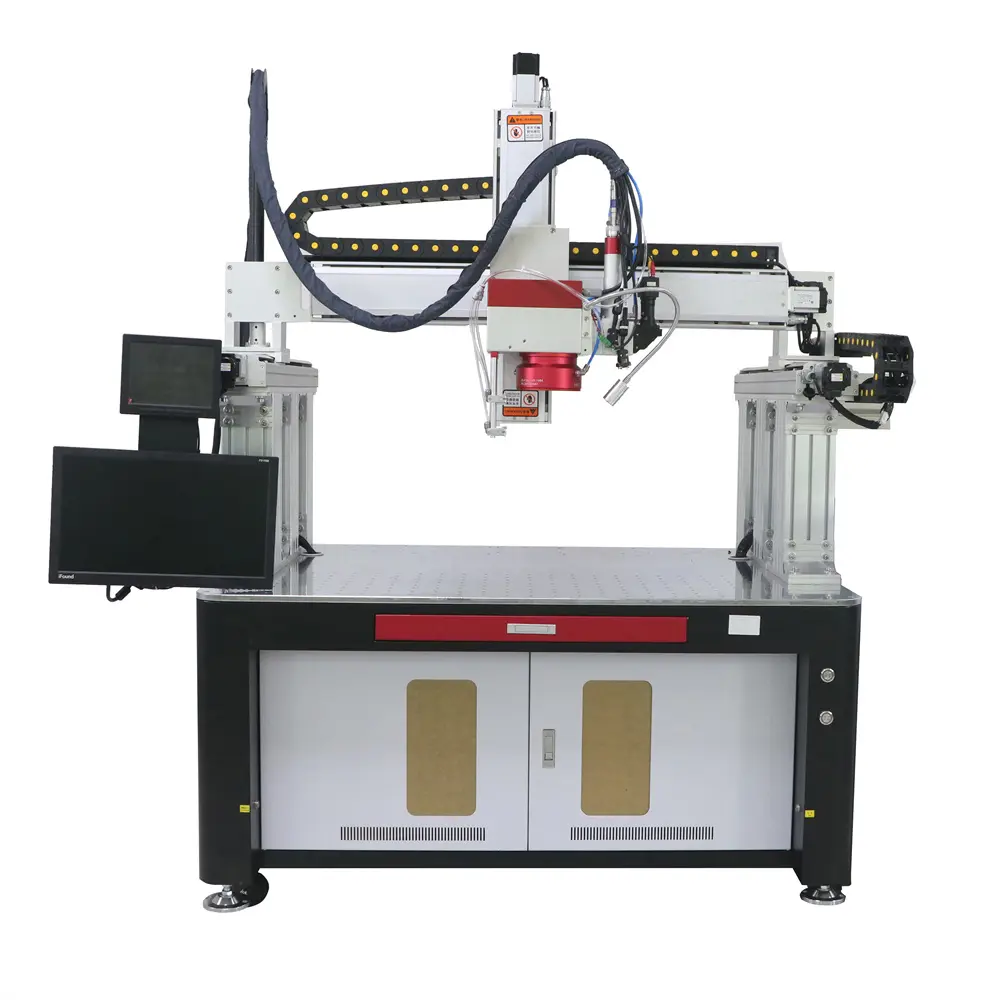

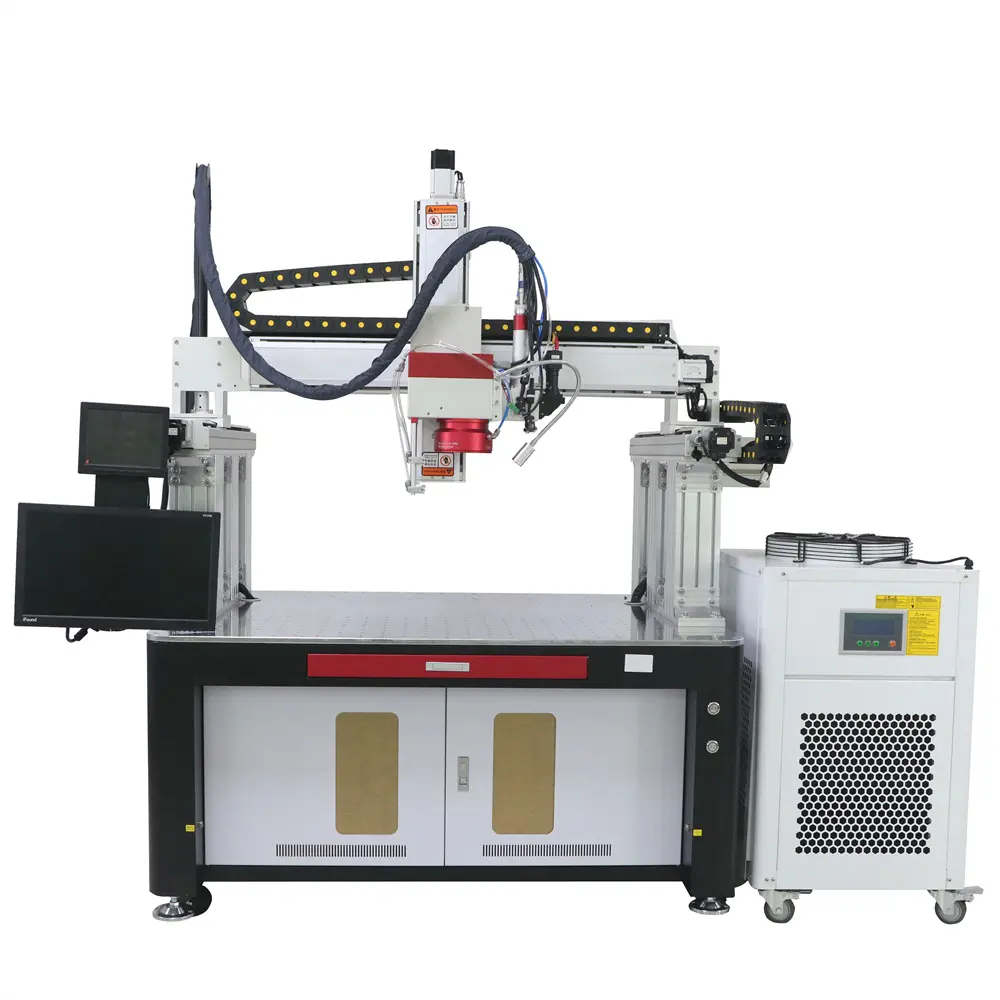

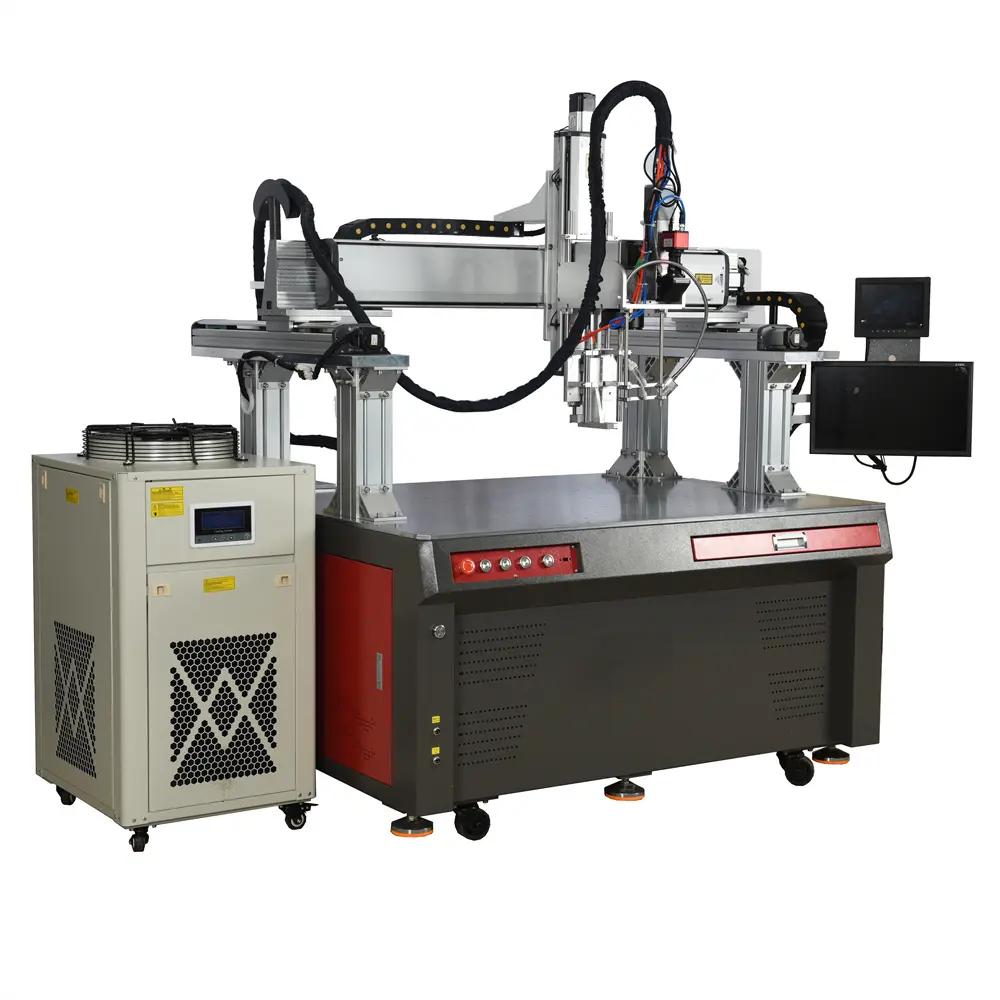

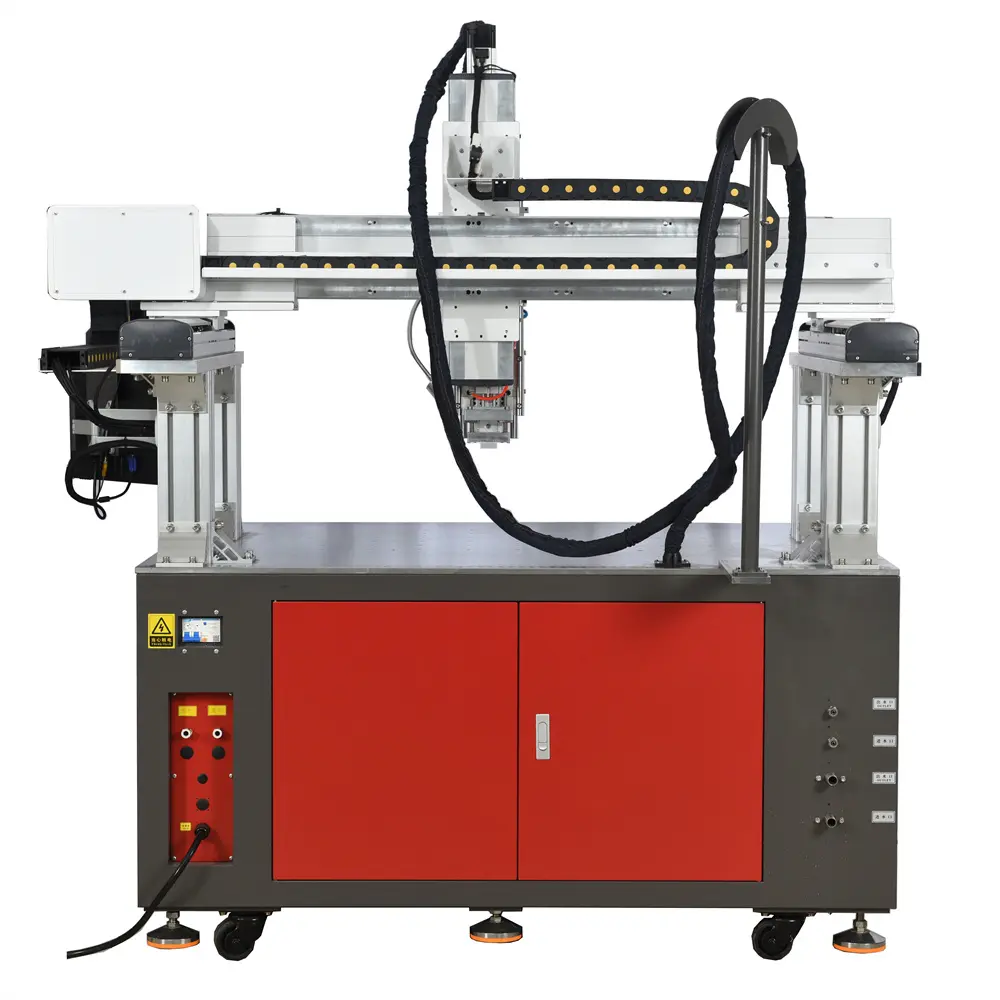

Custom Galvanometer Continuous Laser Welding Machine Manufacturer, Factories

1. Adopt well-known brand laser, with high reflectivity, strong energy, high temperature resistance, corrosion resistance and ultra-long service life;

2. Equipped with dual-temperature dual-control dedicated chiller, which can meet the requirements of long-term and high-power welding with better stability;

3. Fast speed, large depth, small deformation, beautiful weld, less consumables;

4. Dedicated welding control system, high stability, easy to understand and learn, can realize continuous spot welding, straight line, circle, arc, etc., arbitrary programming;

5. Adopt electric translation table, with high repeat positioning accuracy, fast welding speed and fast processing speed;

6. The use of high-speed scanning galvanometer for laser welding greatly improves production efficiency.

Application:

The galvanometer continuous laser welding machine, featuring high-speed scanning, continuous laser output, and precise welding performance, is widely applied in mass production scenarios requiring airtight, high-strength and low-deformation welds. Its application scope covers multiple core manufacturing industries, mainly including the following fields: Electronic and Electrical Industry, Automotive Parts Industry, Hardware Products Industry, Medical Device Industry,Photovoltaic Industry etc.

Send Inquiry

Product Description

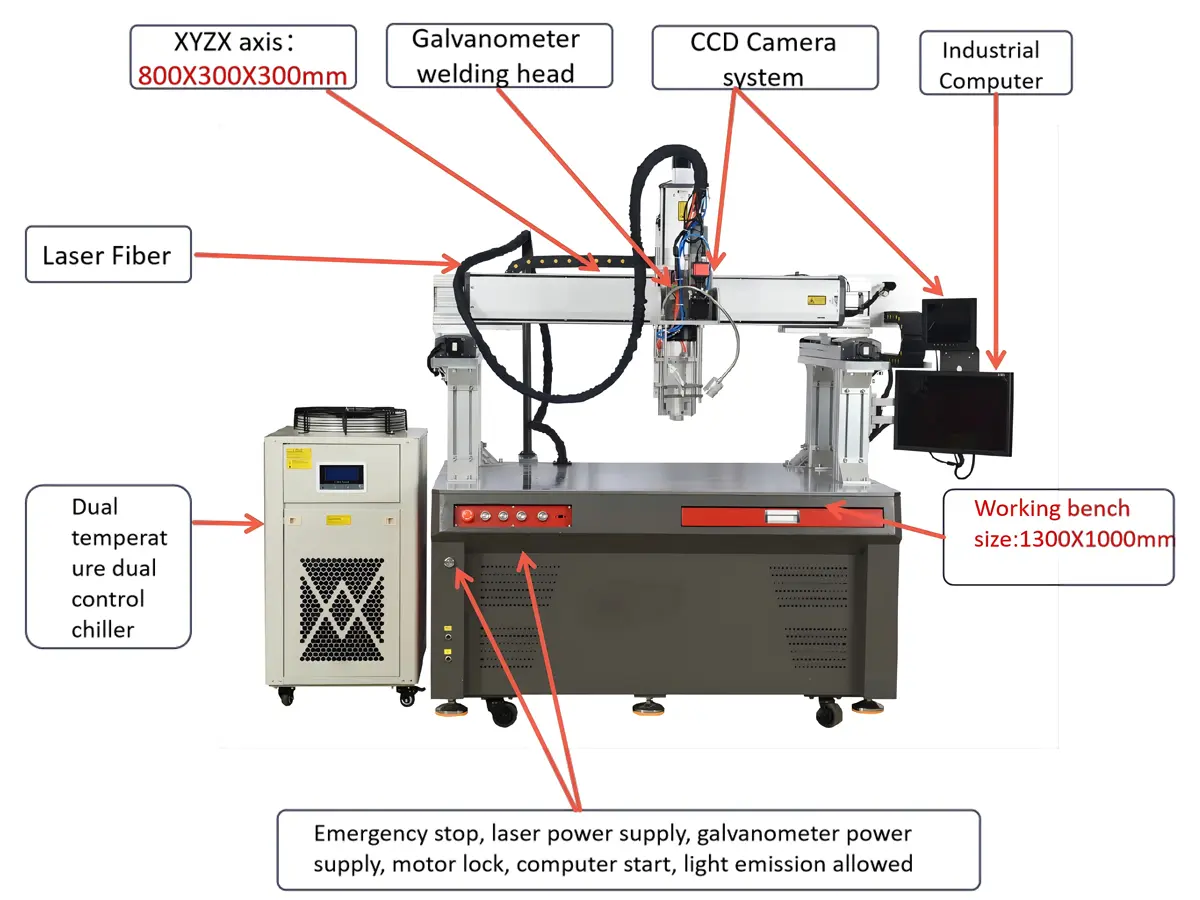

1500W Device Configuration

Configuration List
1. A set of laser source
2. Optical system
3. XYZ Electric translation stage
4. One dual temperature dual control chiller
5. A set of refrigeration and water flow and temperature detection system
6. Galvanometer welding head set
7. Servo motor set
8. An industrial computer
9. One set of host cabinet

YMR-1500W	YMR-2000W	YMR-3000W
Host: 130010001950mm
Water chiller: 8006501170mm
Desktop size: 1300*1000mm
Axis: 800300300mm

Detailed Parameters

Item	YME-1500W-ZJ	YME-2000W-ZJ	YME-3000W-ZJ
Max laser power	1500W	2000W	3000W
Laser wavelength	1080nm
Laser fiber length	10M
Rated Power	7KW	8KW	10KW
Power Configuration	220V/50Hz	220V/50Hz	380V/50Hz
Light spot adjustment range	0.1-5mm	0.1-5mm	0.1-5mm
Laser frequency	1-10000Hz	1-10000Hz	1-10000Hz
Cooling system	Cw1500	Cw2000	Cw3000
Aiming and positioning	CCD and red light
Workbench Parameters
XYZ axis	800×300×300mm
Position accuracy	0.05mm
Repeatability	0.05mm
Maximum movement speed	300mm/s
Optional components	Servo/stepper motor, automatic wire feeding, rotating axis, extended stroke

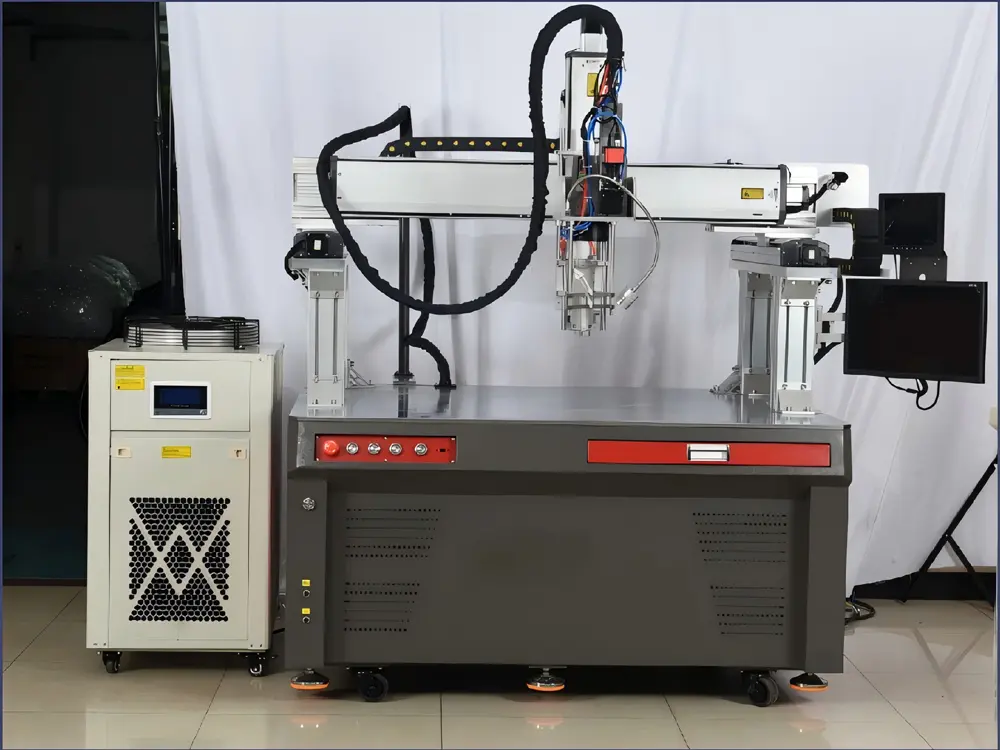

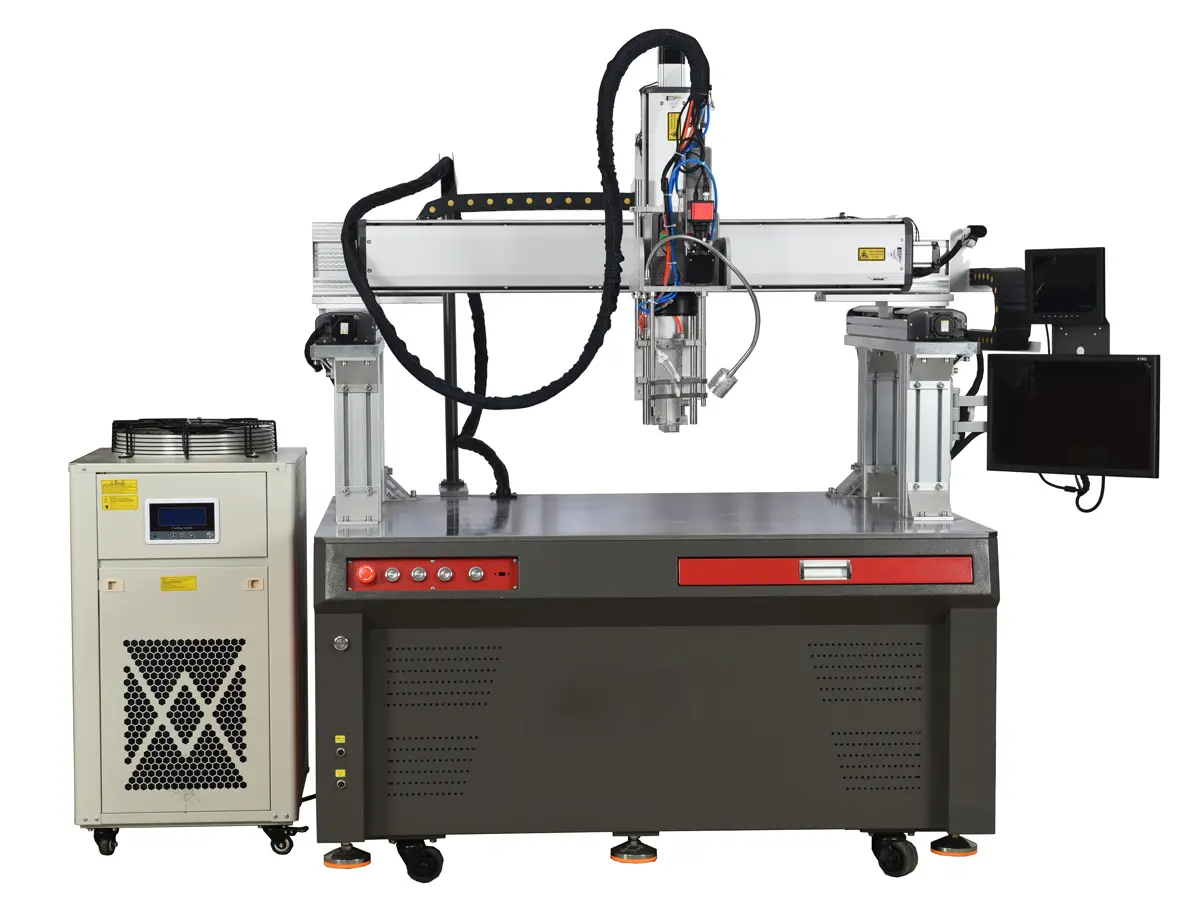

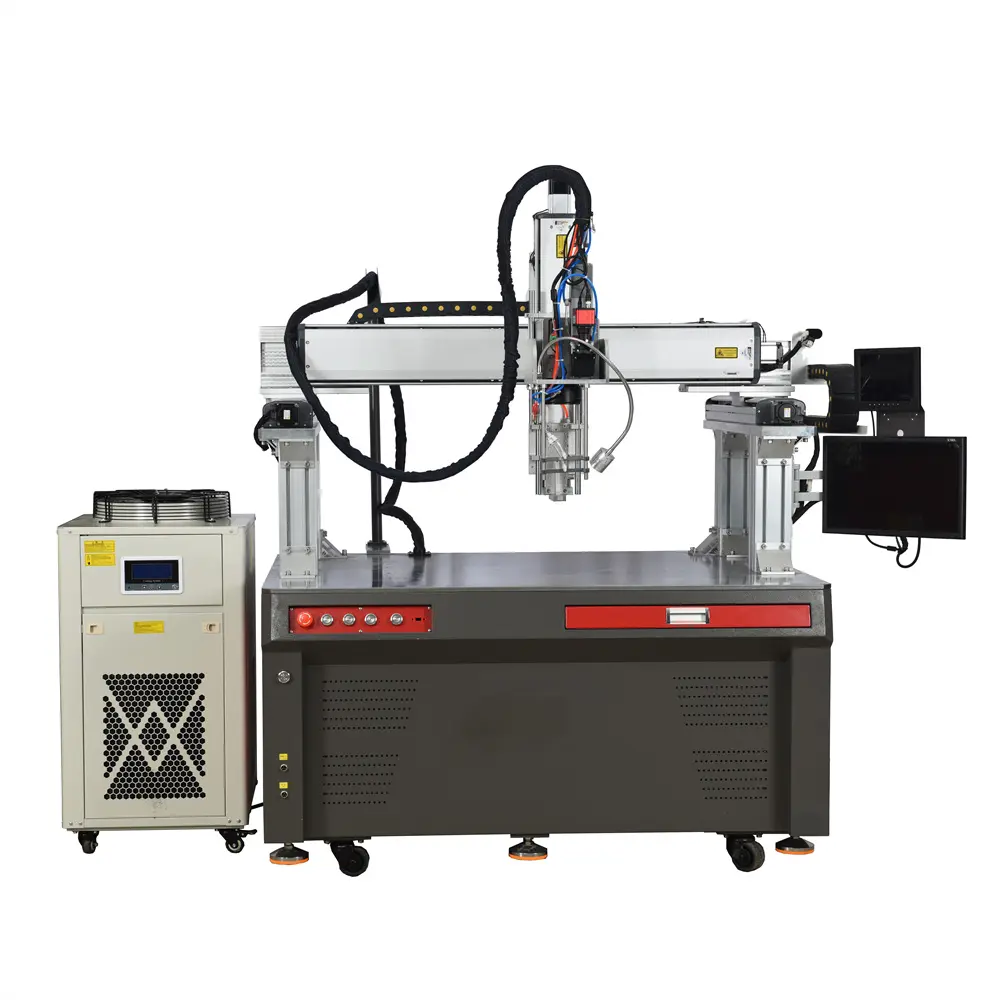

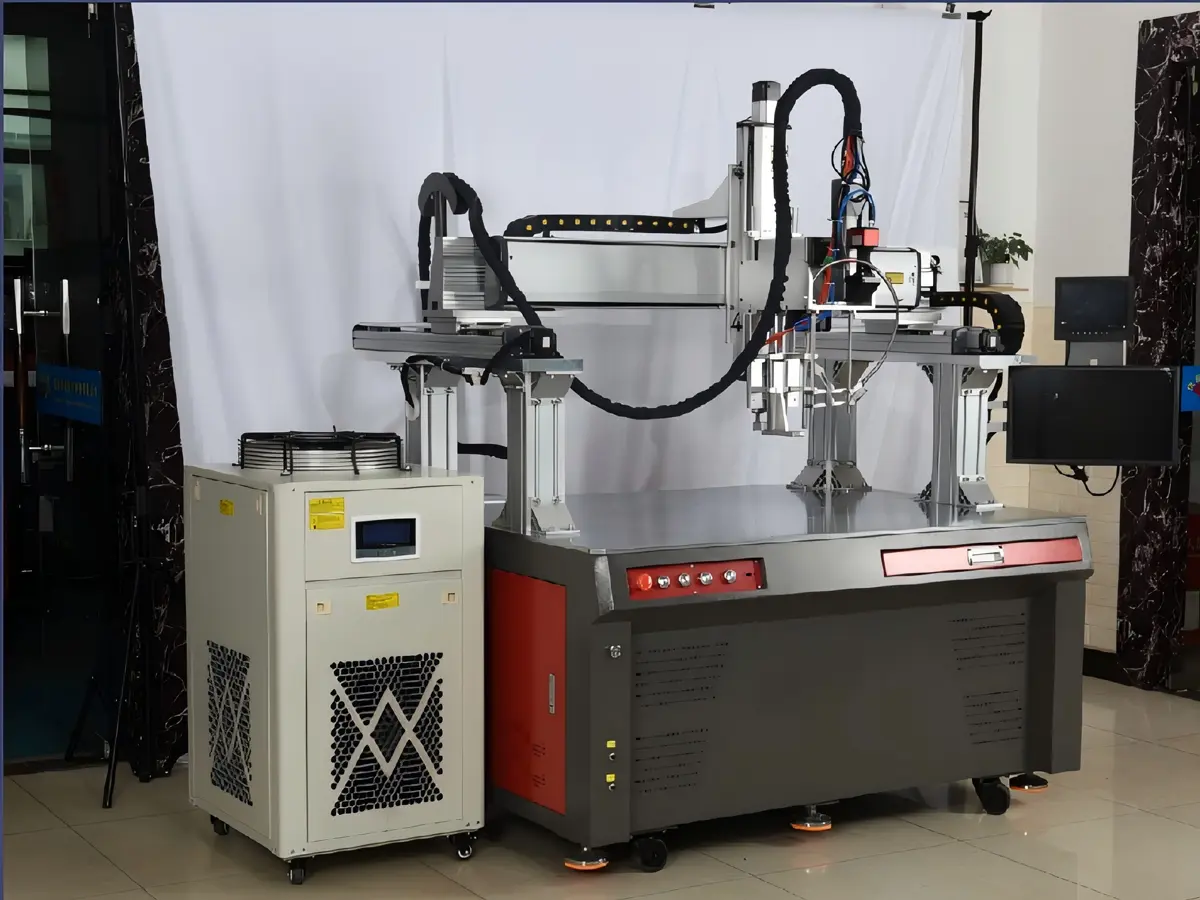

Machine Pictures

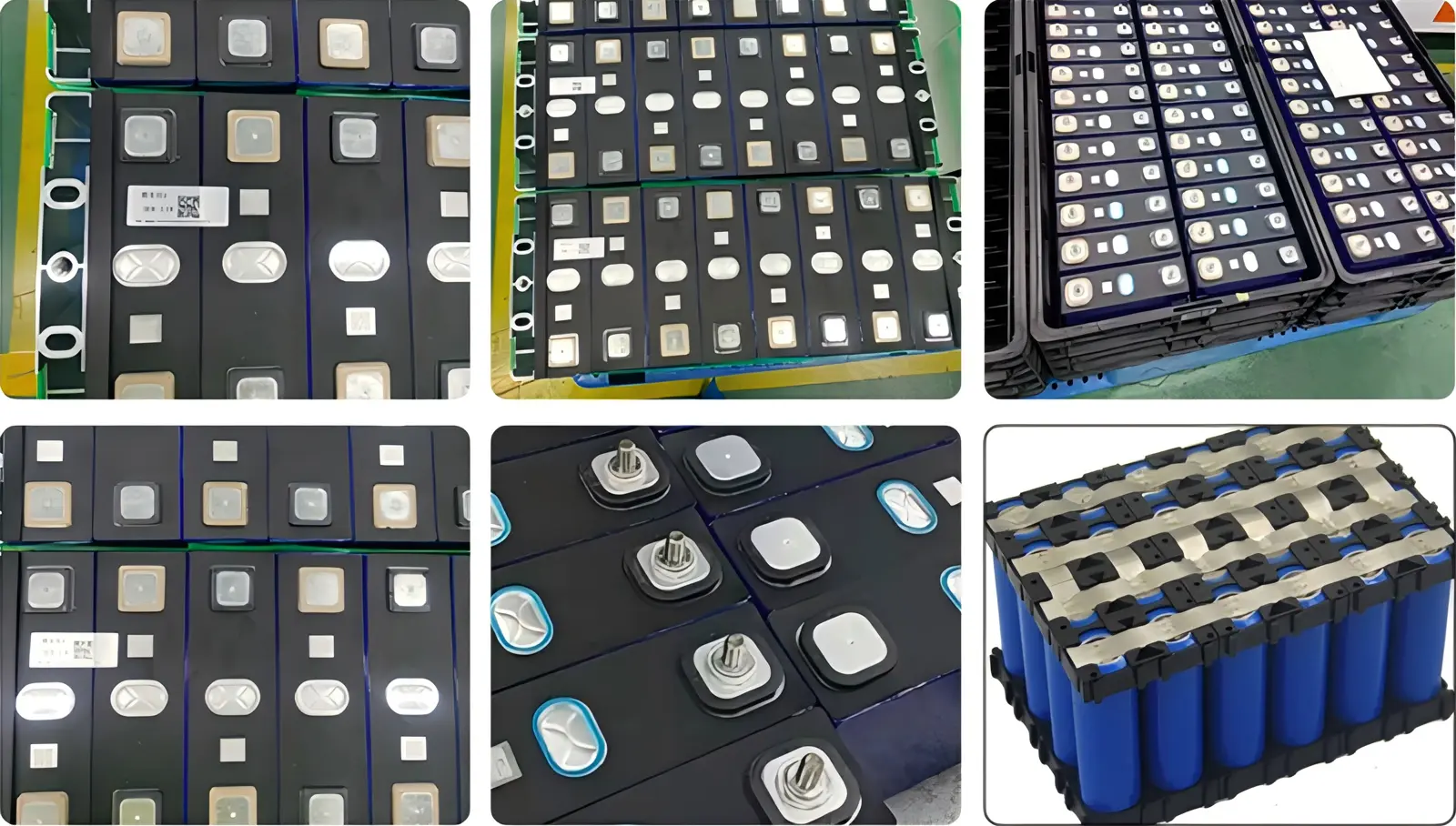

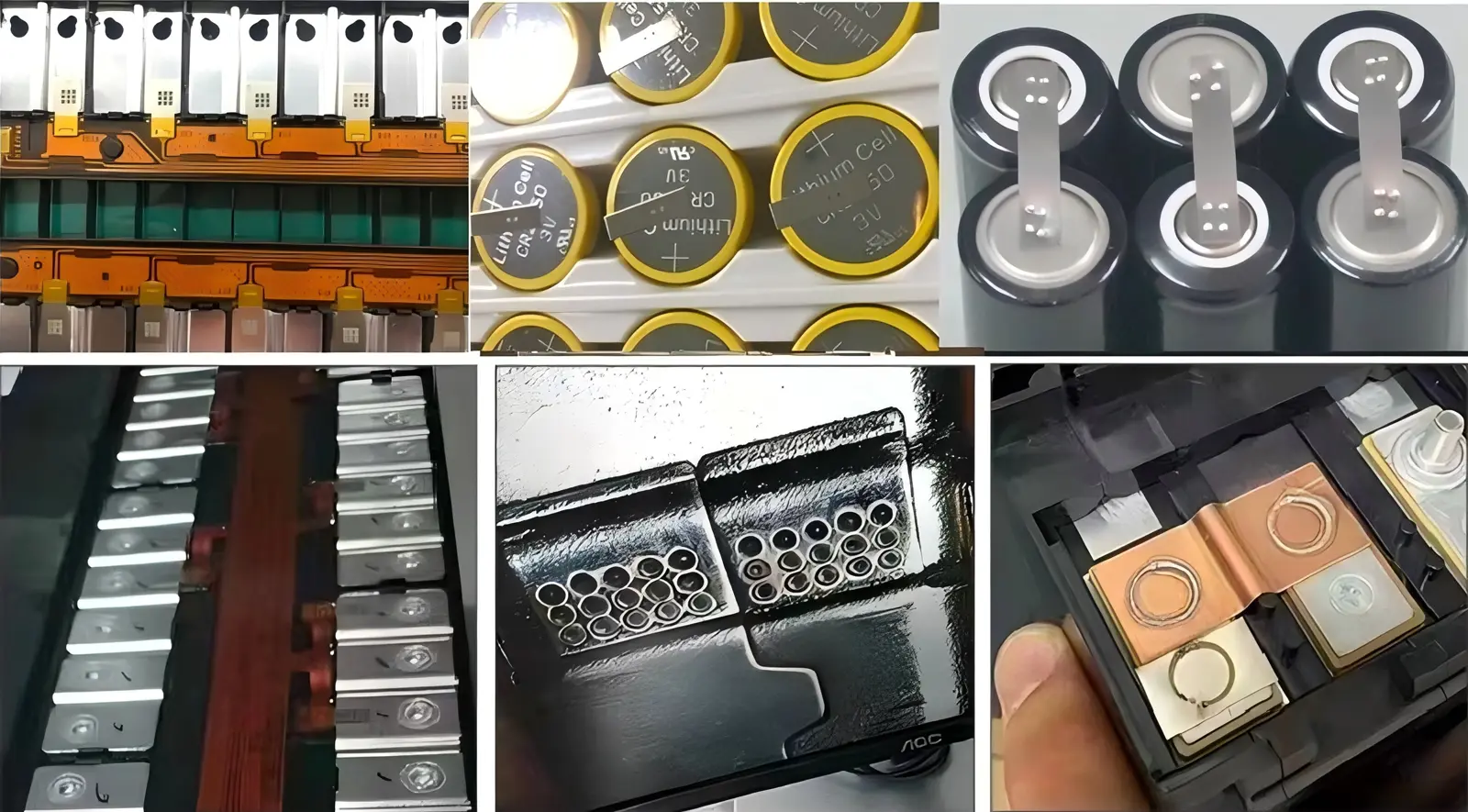

Application Scope

Suitable for fine electronic components, new energy batteries, electronic components, vacuum cups, stainless steel products, sensors, tungsten wires, aluminum alloys, laptop casings, electrical accessories, etc.

Some sample display

Frequently Asked Questions (FAQ)

Q What materials can this laser welding system process?

This system is engineered for precision welding across a diverse range of metals including stainless steel products, aluminum alloys, tungsten wires, new energy battery components, vacuum cups, laptop casings, sensors, and delicate electronic components.

Q What are the power options and operating requirements?

The series offers 1500W, 2000W, and 3000W laser power configurations. The 1500W and 2000W models operate on standard 220V/50Hz power supplies with 7KW and 8KW rated power, while the 3000W model runs on 380V/50Hz with 10KW rated power.

Q How is precision alignment achieved during welding?

Accurate welding positioning is achieved via a dual-alignment system combining red light targeting with high-definition CCD camera monitoring, ensuring high processing accuracy on fine workpieces.

Q What are the specifications of the electric workbench?

The standard XYZ axis movement stroke is 800×300×300mm with a desktop size of 1300*1000mm. It delivers a positioning accuracy of 0.05mm, repeatability of 0.05mm, and a maximum travel speed of up to 300mm/s.

Q What kind of cooling and environmental control is included?

The setup includes an industrial-grade dual-temperature, dual-control water chiller matched to the power level (Cw1500, Cw2000, or Cw3000), integrated with dedicated water flow and temperature detection systems for continuous, safe operation.

Q Can the machine be customized with additional automation accessories?

Yes, optional components such as servo or stepper motors, automated wire feeding units, multi-angle rotating axes, and customized extended axis strokes can be configured to match specific manufacturing requirements.
