High-Quality Fiber Transmission Laser Welding Machine Pricelist, Factories

1 / 5

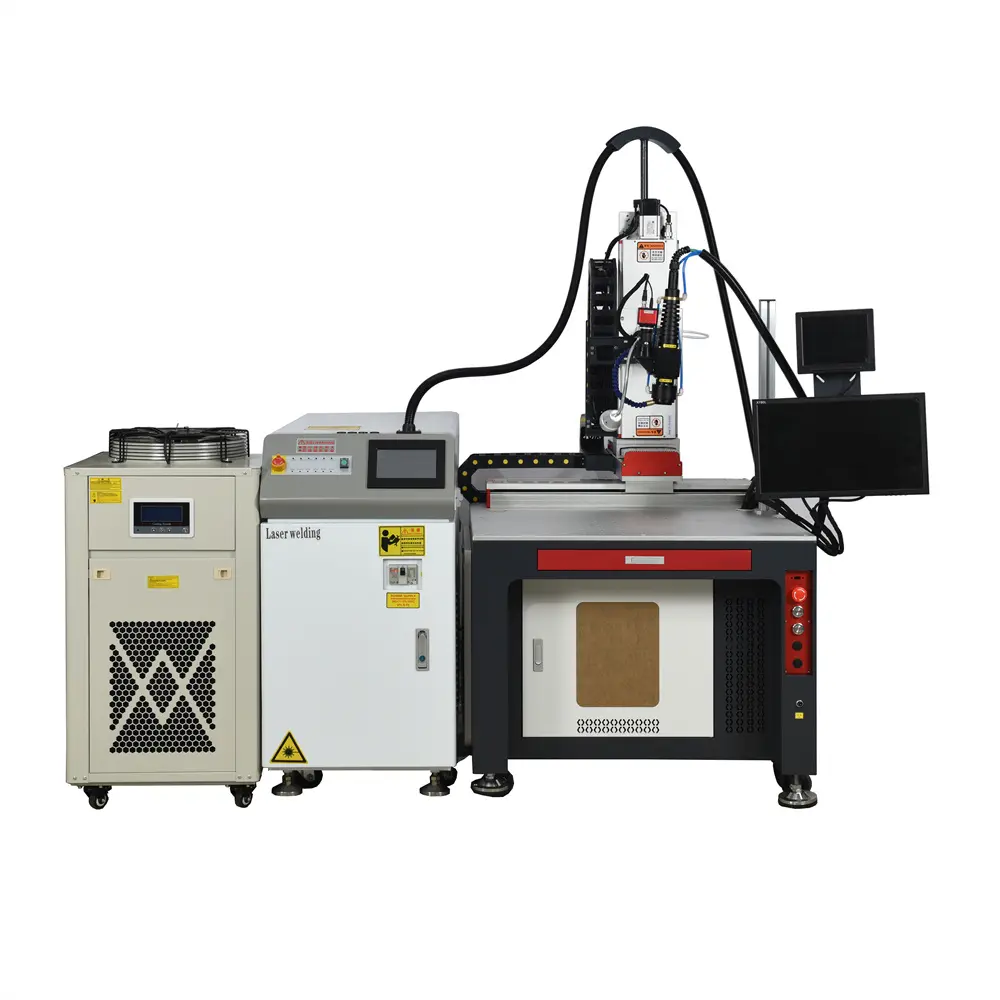

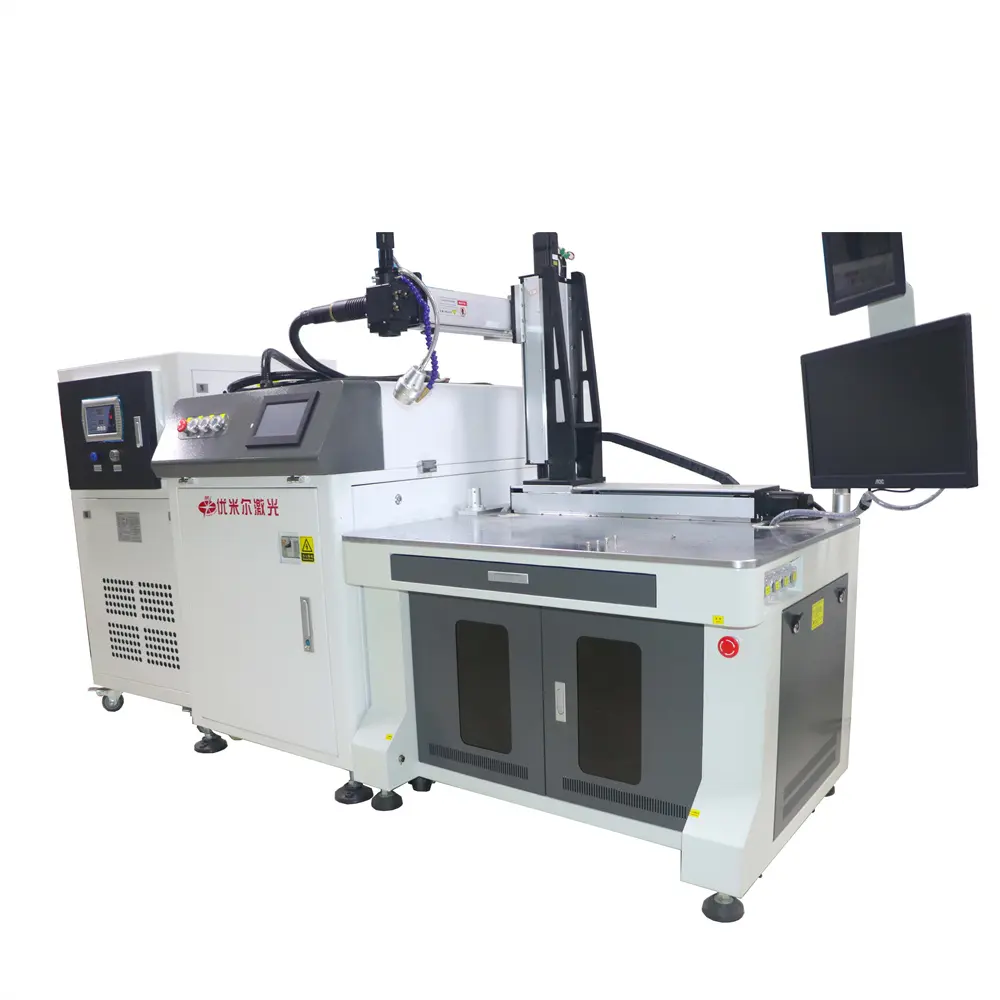

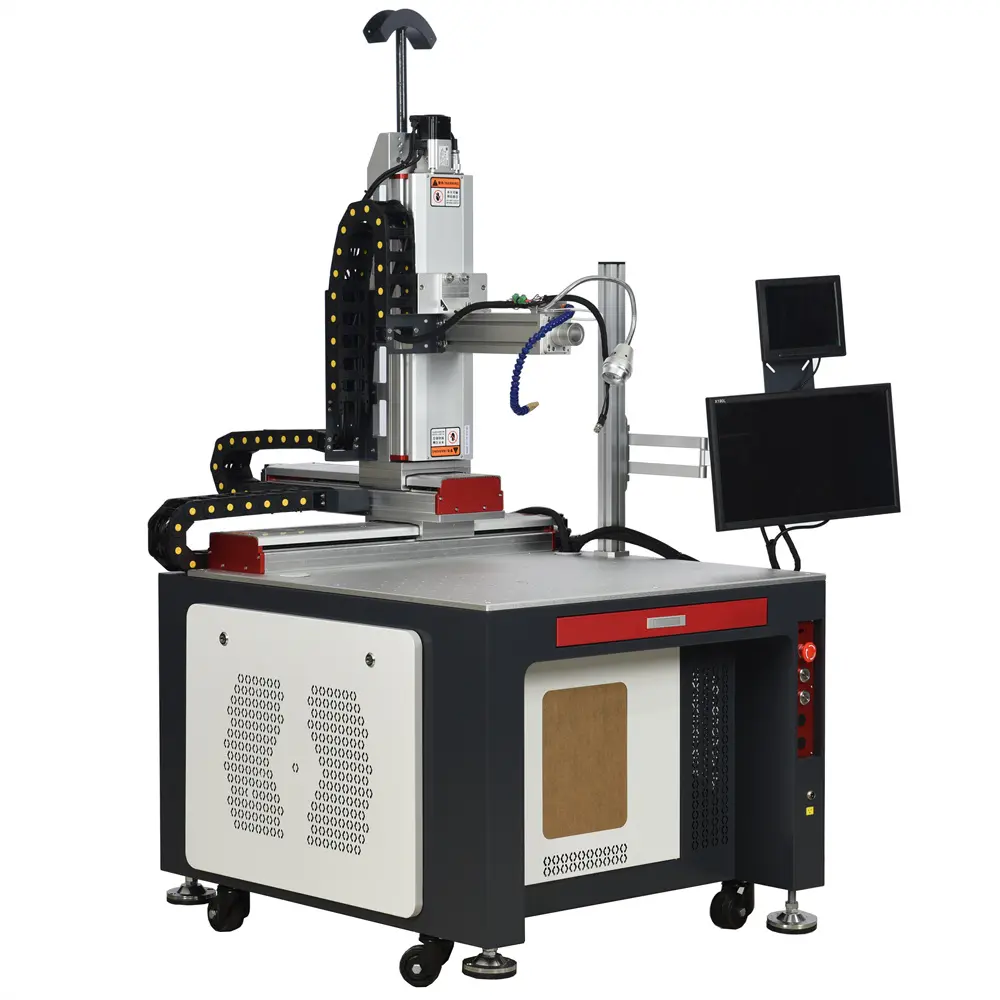

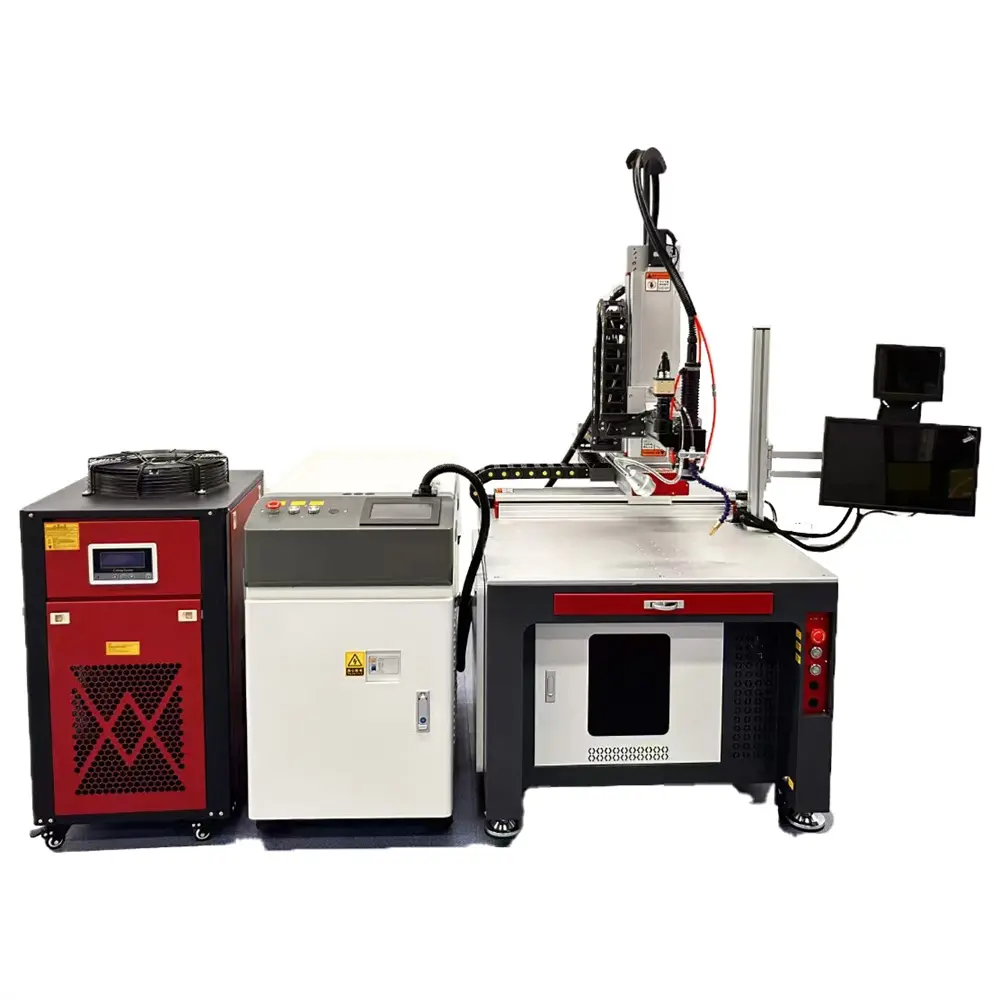

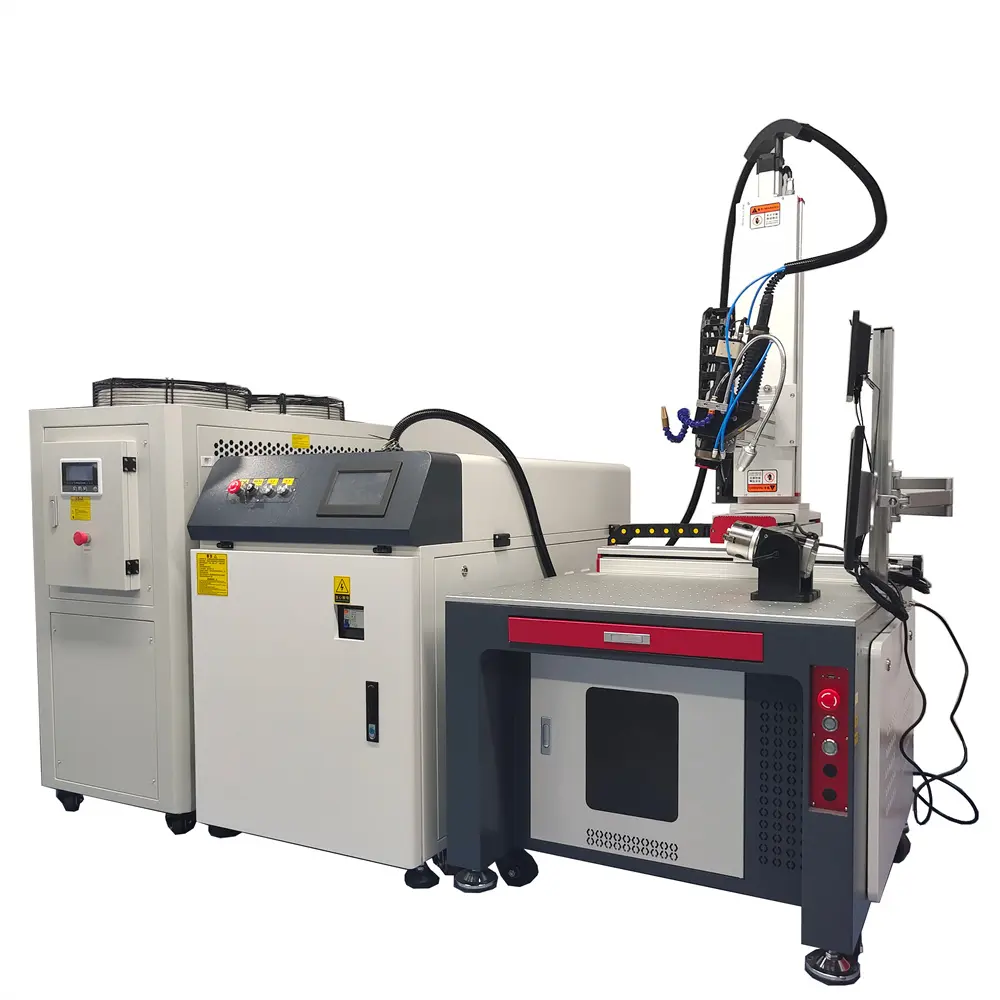

High-Quality Fiber Transmission Laser Welding Machine Pricelist, Factories

1. It is adopted imported gold-plated focusing cavity, which has high reflectivity, strong energy, high temperature resistance, corrosion resistance, super long service life, good beam quality, and more uniform welding;

2. It is equiped with 1.5P water chiller, can support long time working and Better stability during high-power welding; Noted: 400W is equiped with 3P water chiller. 600W is equiped with 5P water chiller

3. The dedicated welding control system has high stability, is easy to understand and learn, and can realize arbitrary programming of continuous spot welding, straight lines, circles, arcs, etc.;

4. Unique optical system design, stable optical performance;

5. Using electric translation stage, it has high repeatability positioning accuracy, fast welding speed and fast processing speed.

Send Inquiry

Product Description

Configuration List

Fiber Transmission Laser Welding Machine 200W Configuration

Configuration List (200W)
1. A set of YAG lasers
2. A set of optical systems
3. One laser fiber cable
4. A set of XYZ electric translation stages
5. A set of LCD display system
6. A set of refrigeration and water flow temperature detection system
7. A set of CCD camera
8. A set of working table
9. A set of 1.5p water chiller
10. A set of main cabinet
11. A set of industrial computer
12. Y style laser welding head

Configuration List (200W)

1. A set of YAG lasers

2. A set of optical systems

3. One laser fiber cable

4. A set of XYZ electric translation stages

5. A set of LCD display system

6. A set of refrigeration and water flow temperature detection system

7. A set of CCD camera

8. A set of working table

9. A set of 1.5p water chiller

10. A set of main cabinet

11. A set of industrial computer

12. Y style laser welding head

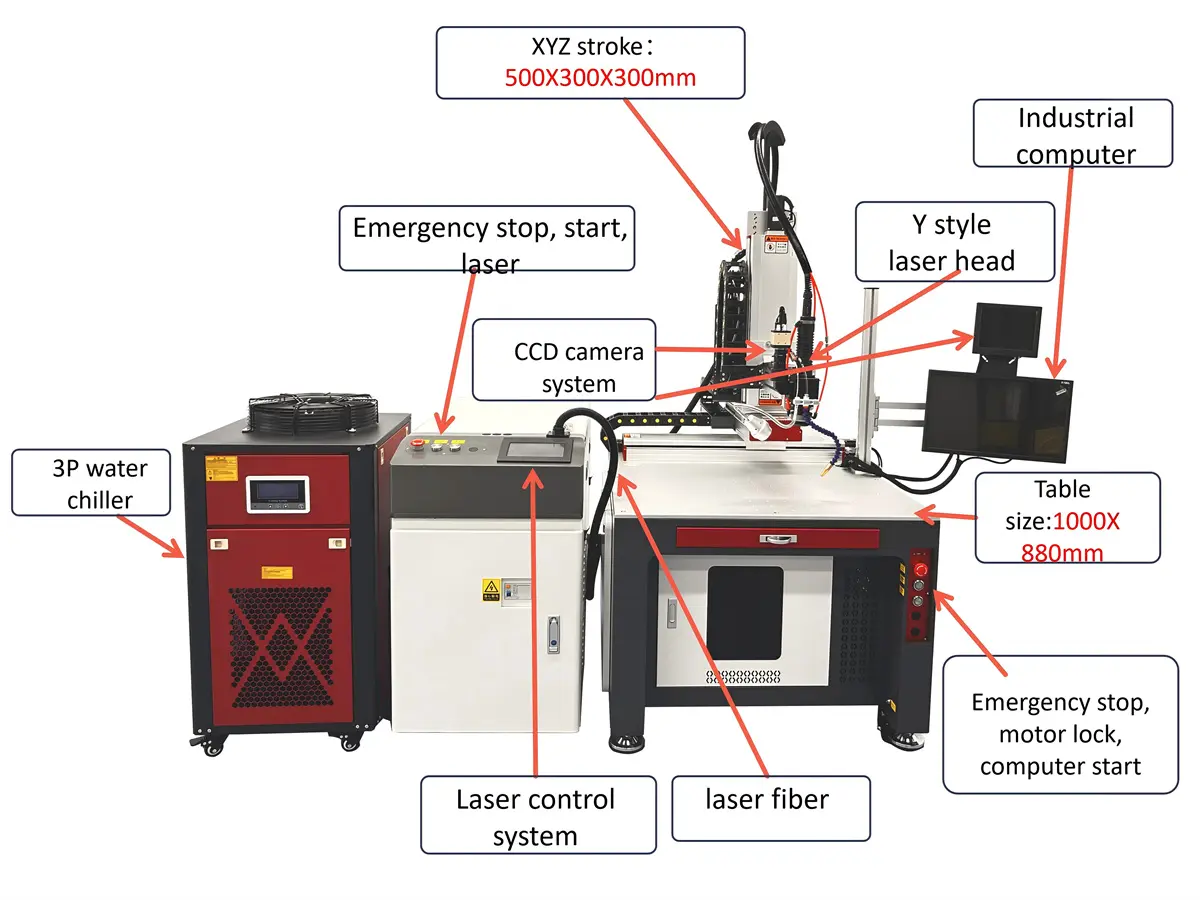

Fiber Transmission Laser Welding Machine 400W Configuration

Configuration List (400W)
1. A set of YAG lasers
2. A set of optical systems
3. One laser fiber cable
4. A set of XYZ electric translation stages
5. A set of LCD display system
6. A set of refrigeration and water flow temperature detection system
7. A set of CCD camera
8. A set of working table
9. A set of 3p water chiller
10. A set of main cabinet
11. A set of industrial computer
12. Y style laser welding head

Configuration List (400W)

1. A set of YAG lasers

2. A set of optical systems

3. One laser fiber cable

4. A set of XYZ electric translation stages

5. A set of LCD display system

6. A set of refrigeration and water flow temperature detection system

7. A set of CCD camera

8. A set of working table

9. A set of 3p water chiller

10. A set of main cabinet

11. A set of industrial computer

12. Y style laser welding head

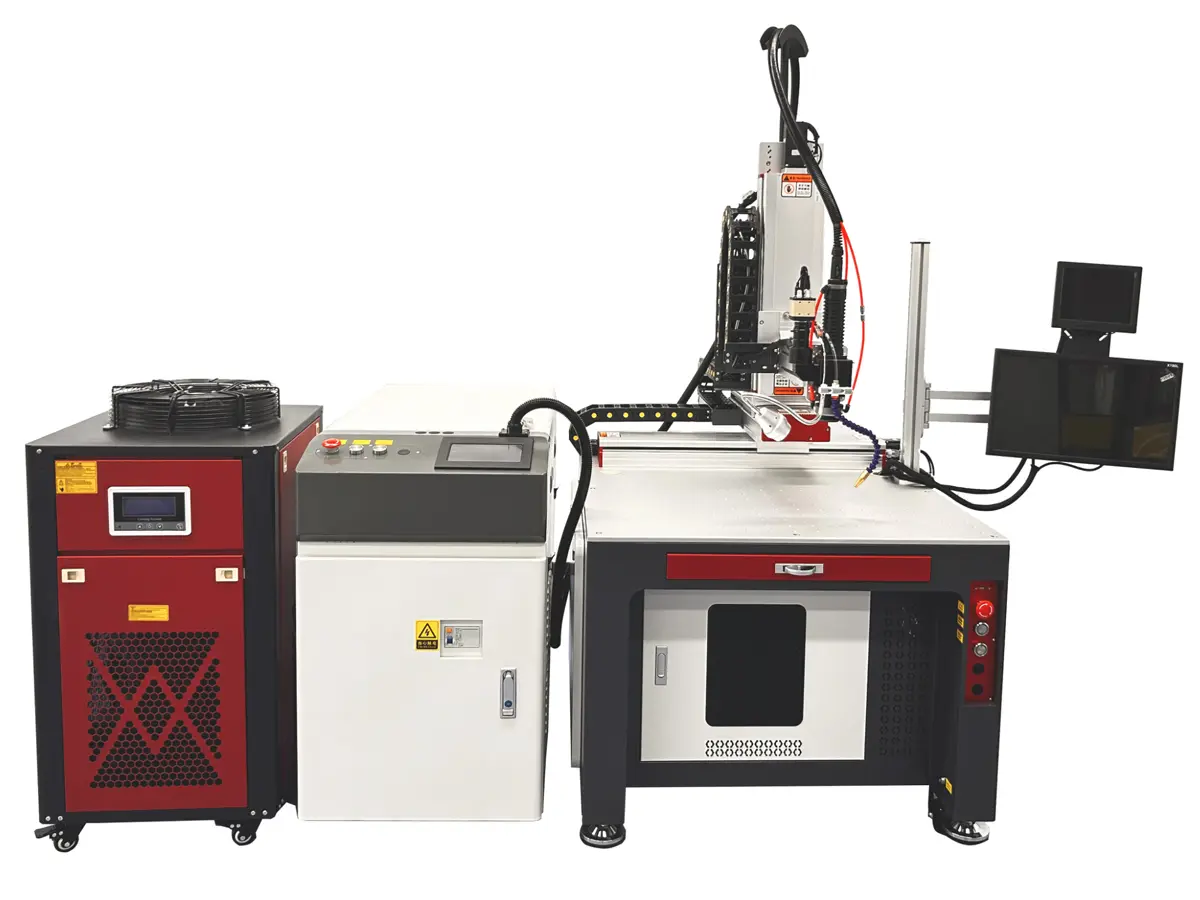

Machine Size

Dimension Item	YME-200W	YME-400W
Host	1060×550×1000mm	1060×550×1000mm
Water Chiller	600×500×970mm	850×600×1100mm
Working Table	1000×880×1640mm	1000×880×1640mm
Stroke	500×300×300mm	500×300×300mm

Detailed Parameters

Item Number	YME-200W-CS	YME-400W-CS	YME-600W-CS
Mx Laser Power	200W	400W	600W
Laser Wavelength	1064nm
Condenser Cavity Reflector	Ceramic focusing cavity	Double lamp spotlight cavity	Double lamp spotlight cavity
Current Adjustment Range	60-150A		—
Laser Frequency	1-20Hz	1-30Hz	1-30Hz
Pulse Width	0.1-10Ms	0.1-10Ms	0.1-10Ms
Spot Adjustment Range	0.2-2mm	0.3-3mm	0.3-3.5mm
Aiming and Positioning	CCD and red light		—
Chiller Cooling Power	1.5P	3P	5P
Rated Power	8KW	12KW	16KW
Electricity Demand	380V±5V 50Hz/40A 220V±5V 50Hz/60A	380V±5V 50Hz/40A	380V±5V 50Hz/40A
XYZ Stroke	500×300×300mm
Position Accuracy	0.05mm
Repeat Accuracy	0.05mm
Maximum Movement Speed	150mm/s
Working Desk Size	1000×800mm
Optional Components	Servo/stepper, rotary axis

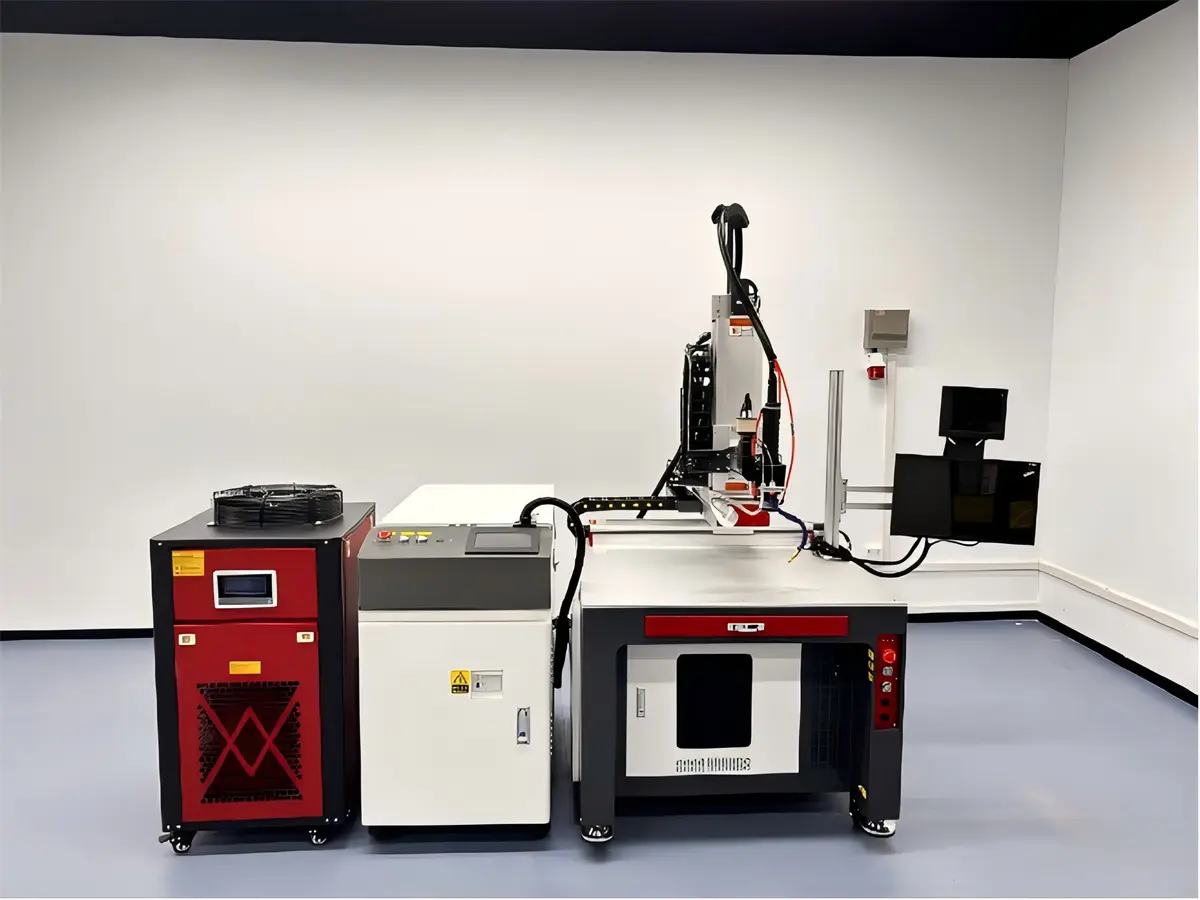

Machine Picture

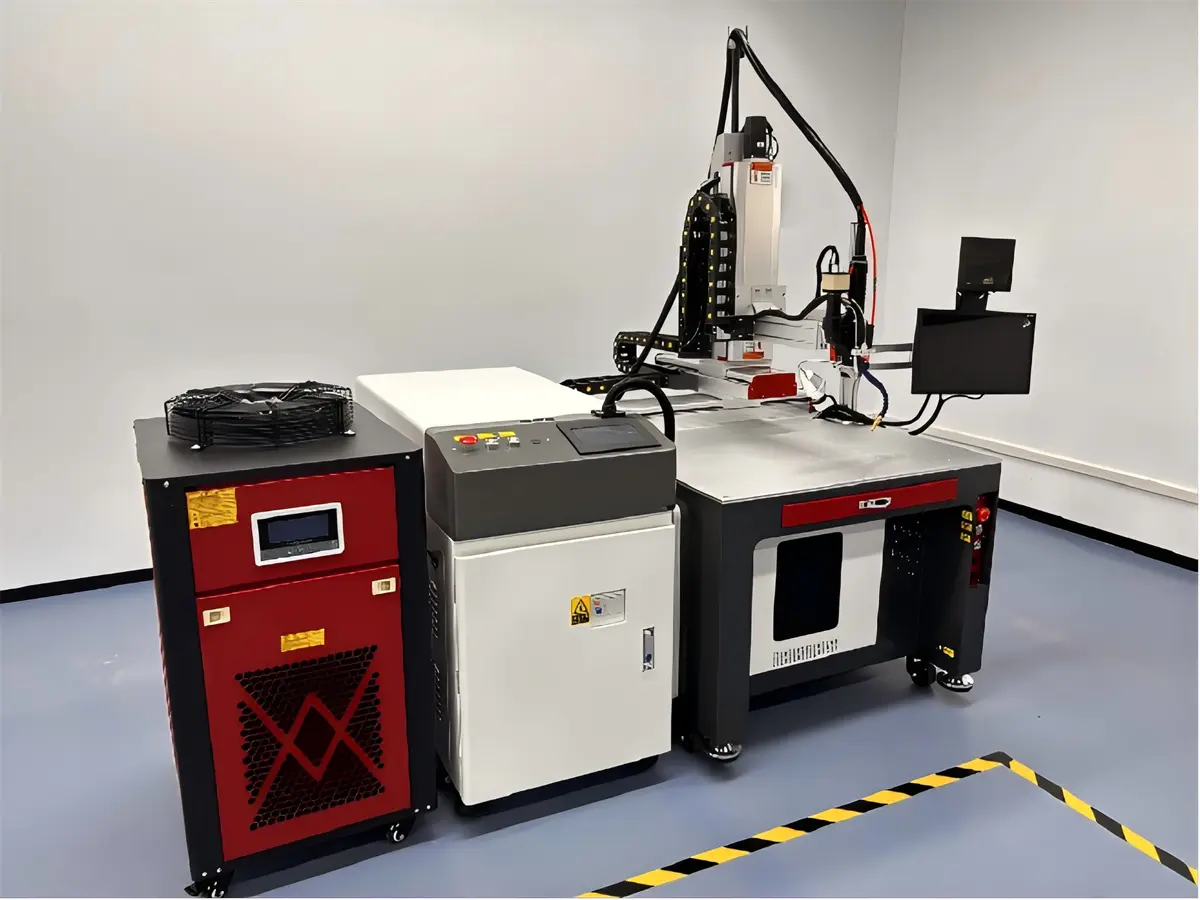

Fiber Transmission Machine Internal System

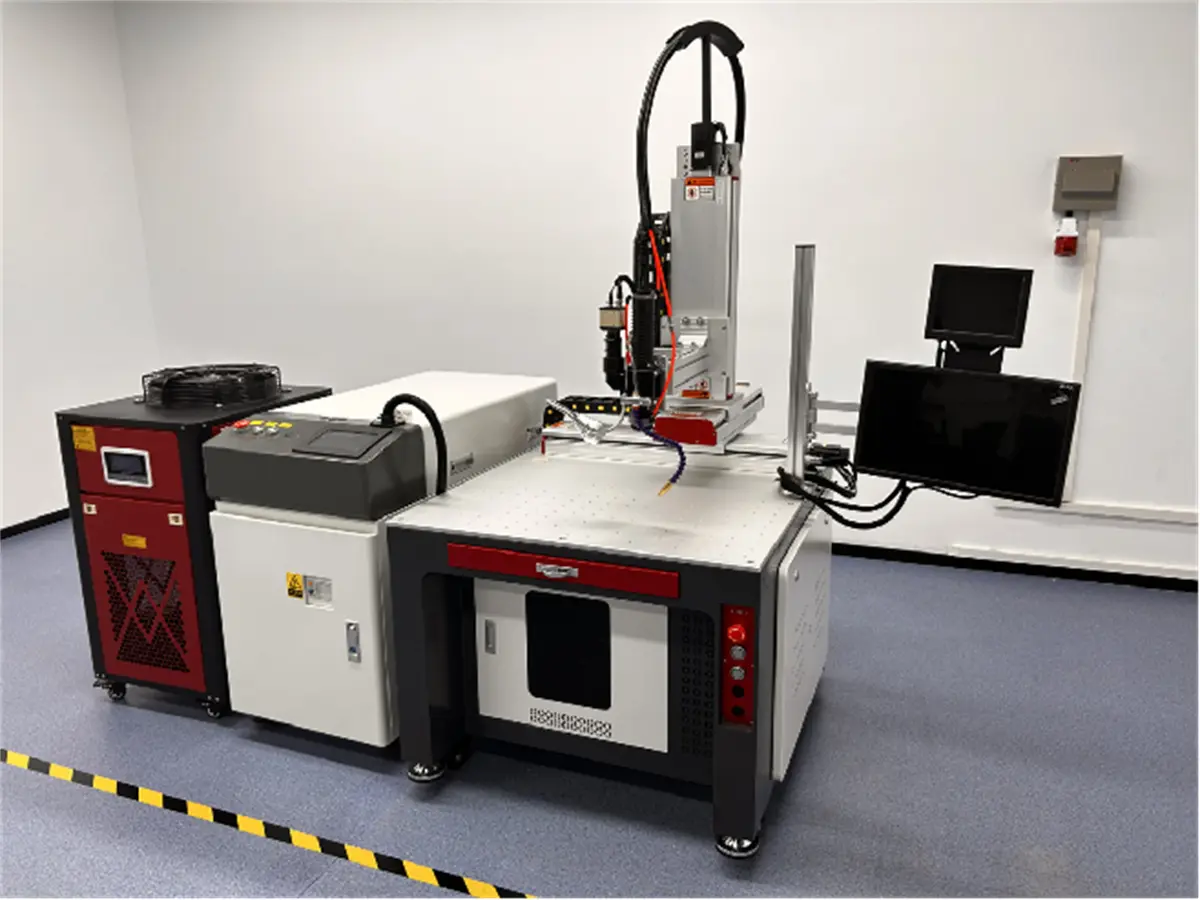

Fiber Transmission Machine Side Structure

Application Scope

It is suitable for welding between the same materials of titanium, nickel, tin, zinc, copper, aluminum, chromium, gold, silver and other metals and their alloys, steel, Kovar alloy and other alloys. It can also be used for copper-nickel, Welding of various dissimilar metals such as nickel-titanium, copper-titanium, brass-copper, mild steel-copper, etc.

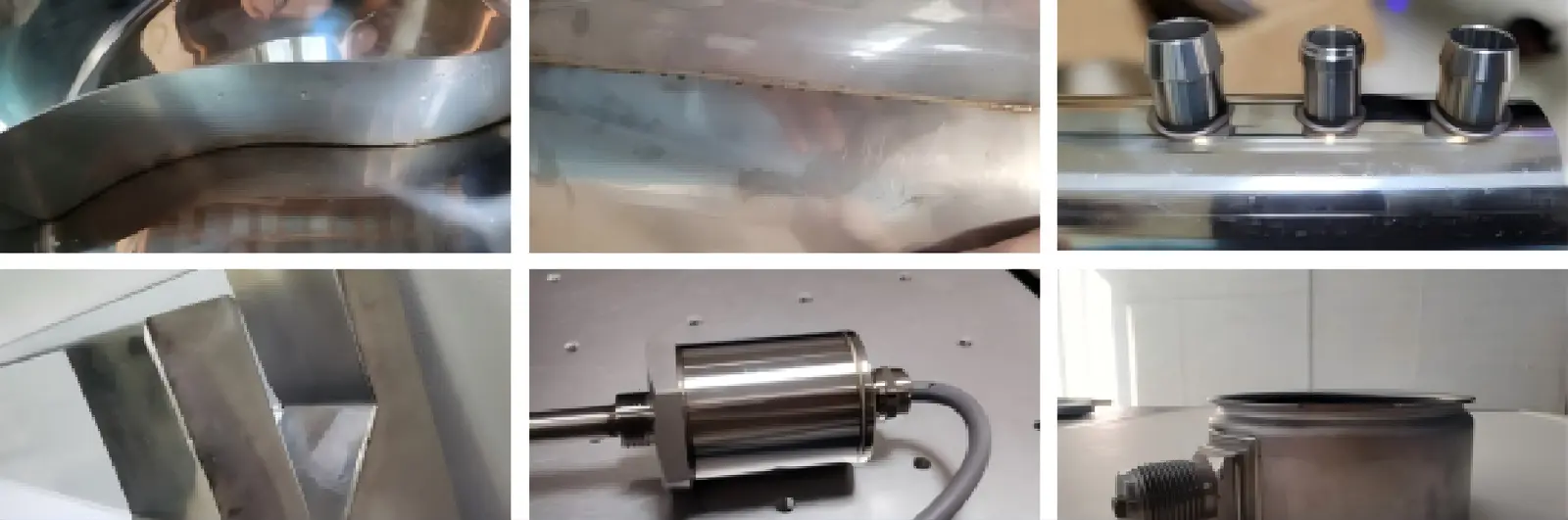

Fiber Transmission Laser Welding Sample Display

Some sample display

Frequently Asked Questions (FAQ)

Q What materials can this fiber transmission laser welding machine process?

It can weld a wide range of identical metals including titanium, nickel, tin, zinc, copper, aluminum, chromium, gold, silver, steel, and Kovar alloys. It is also highly effective for dissimilar metal joining such as copper-nickel, nickel-titanium, copper-titanium, brass-copper, and mild steel-copper.

Q What laser power capacities are available in this series?

This series is available in three primary power specifications: 200W (YME-200W-CS), 400W (YME-400W-CS), and 600W (YME-600W-CS), catering to different material thicknesses and production volume demands.

Q How does the aiming and positioning system ensure welding accuracy?

The machine integrates a combined CCD camera vision system and red light aiming pointer, ensuring exact seam targeting with a positioning accuracy and repeat accuracy of 0.05mm.

Q What type of cooling system is bundled with the machine?

An industrial water chiller with integrated refrigeration and water flow temperature detection is included. Standard sizing is 1.5P for the 200W model, 3P for the 400W model, and 5P for the 600W model.

Q What are the working stroke limits and motion table dimensions?

The working table surface measures 1000×800mm with an electric XYZ translation stroke of 500×300×300mm and a maximum movement speed of 150mm/s.

Q Can the machine be customized with rotary attachments or upgraded motors?

Yes, optional modular components such as servo motors, stepper motors, and rotary axes can be added to facilitate circular welding and advanced automated workpieces.
