Custom Galvanometer Laser Welding Machine Manufacturers, Factories

1 / 5

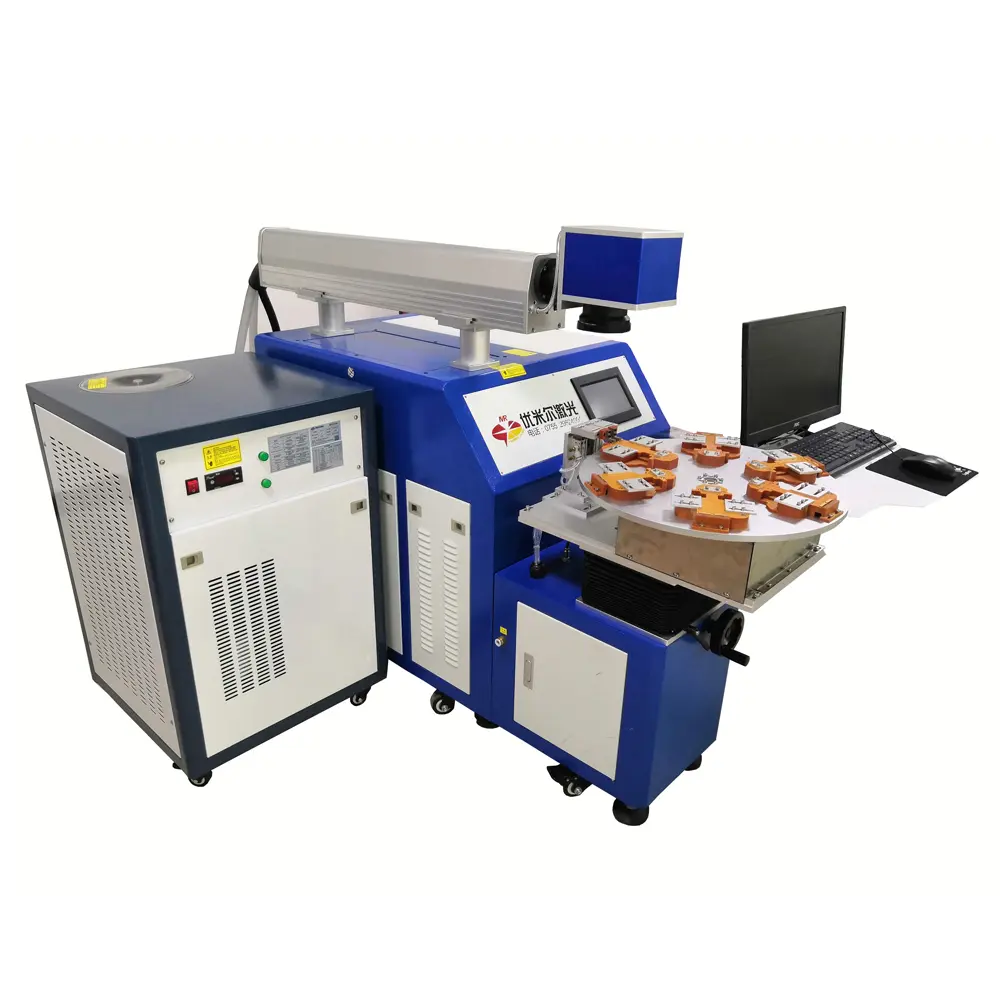

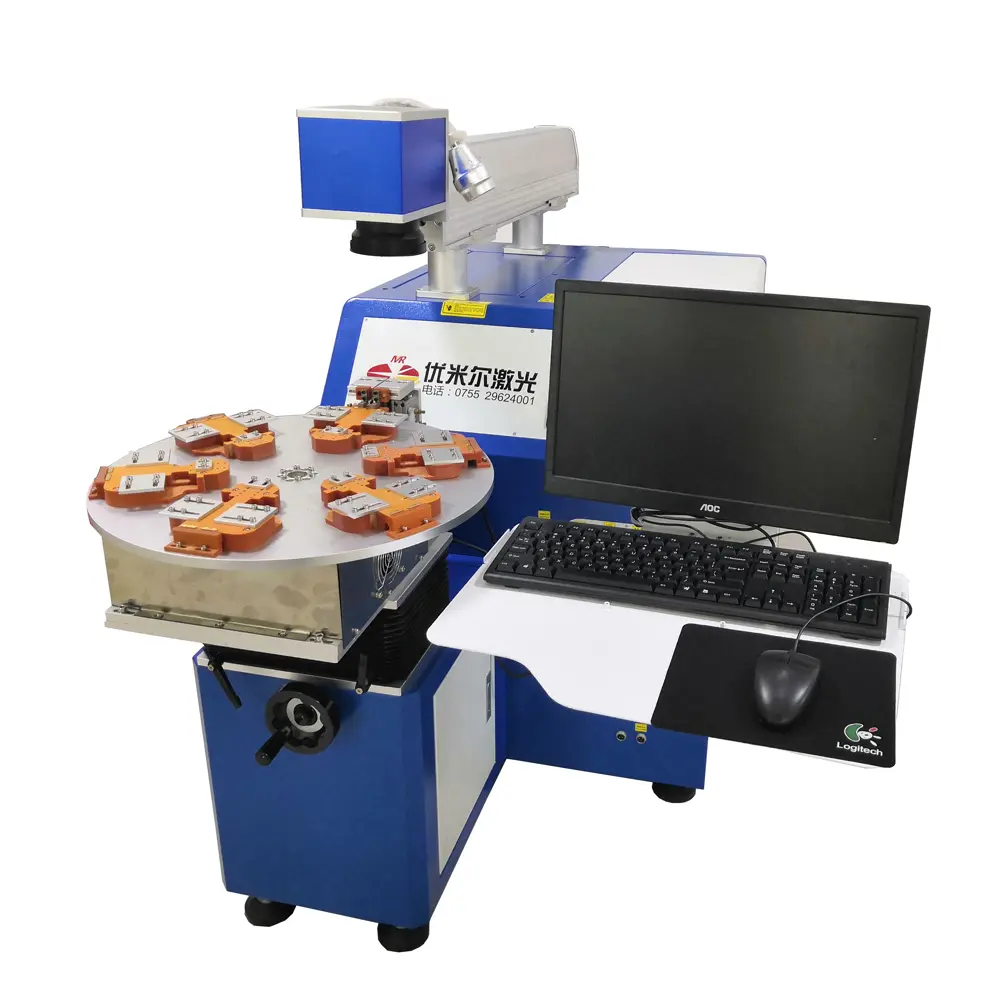

Custom Galvanometer Laser Welding Machine Manufacturers, Factories

1. Imported ceramic focusing cavity is used, which is corrosion-resistant, high-temperature resistant and has a long service life;

2. Humanized design, ergonomic, no fatigue when working for a long time, large work surface, can move up and down, surrounding baffle design, convenient for processing;

3. Using high-speed scanning galvanometer for laser welding greatly improves production efficiency;

4. Digital galvanometer interface, strong anti-interference ability and better stability.

5.It is stable and highly interfarence-resistant, more accurate positioning, the welding is more perfect.

6.Different power will be equiped with different wate chiller, 200w is 1.5p and 400w is 3P, so that the machine can support long time working.

Send Inquiry

Product Description

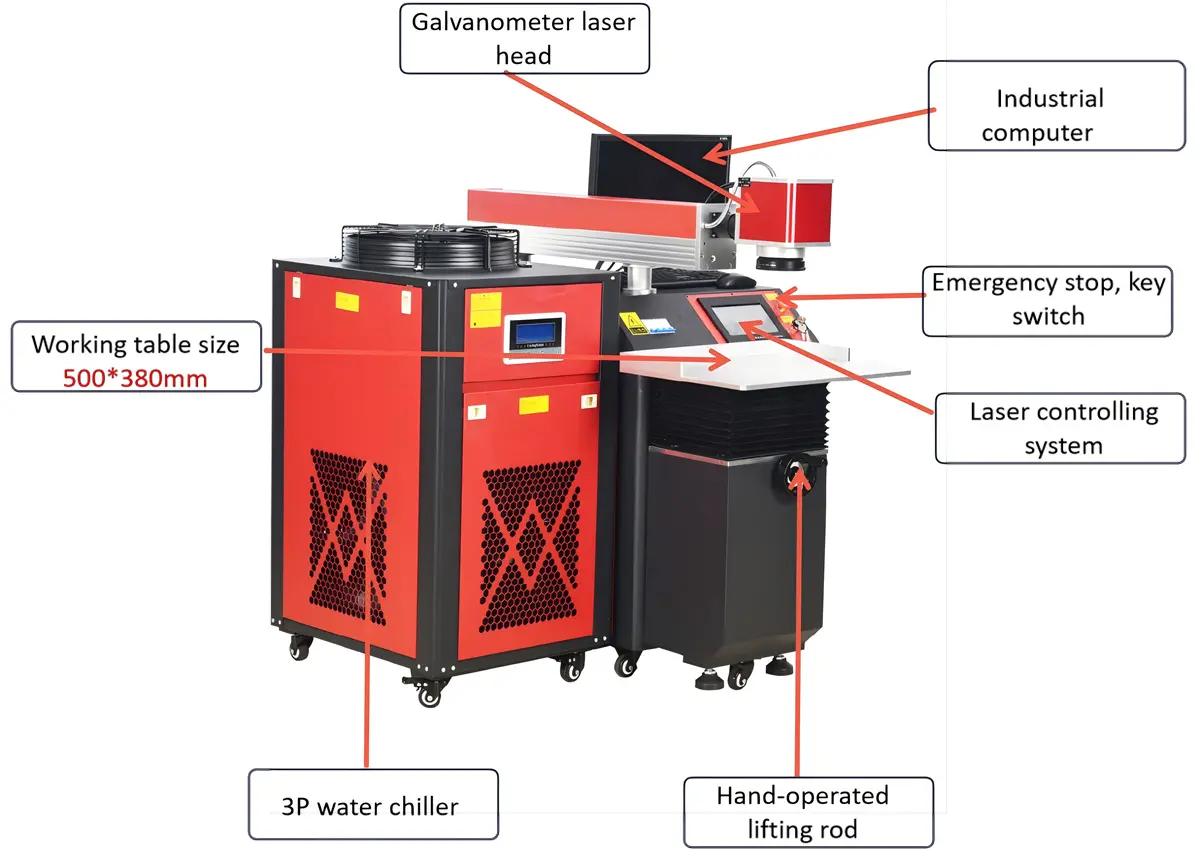

Device Configuration

Configuration list(200W)
1. A set of YAG laser source
2. A set of Laser power supply
3. A set of optical systems
4. A set of liftable and movable optical benches
5. A set of LCD display system
6. A set of computer welding system
7. A set of galvanometer welding joints
8. A set of 1P water chiller
9. A set of host cabinet.

Configuration list(400W)
1. A set of YAG laser source
2. A set of Laser power supply
3. A set of optical systems
4. A set of liftable and movable optical benches
5. A set of LCD display system
6. A set of computer welding system
7. A set of galvanometer welding joints
8. A set of 3P water chiller
9. A set of host cabinet.

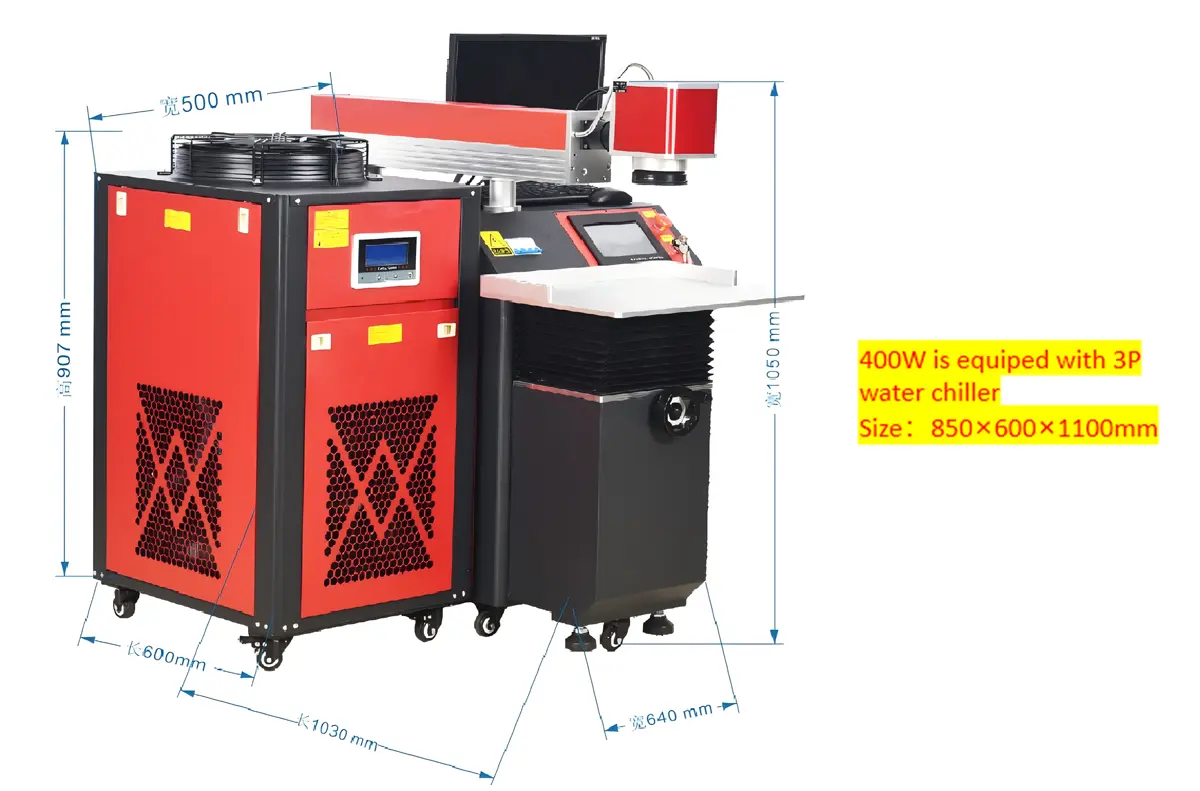

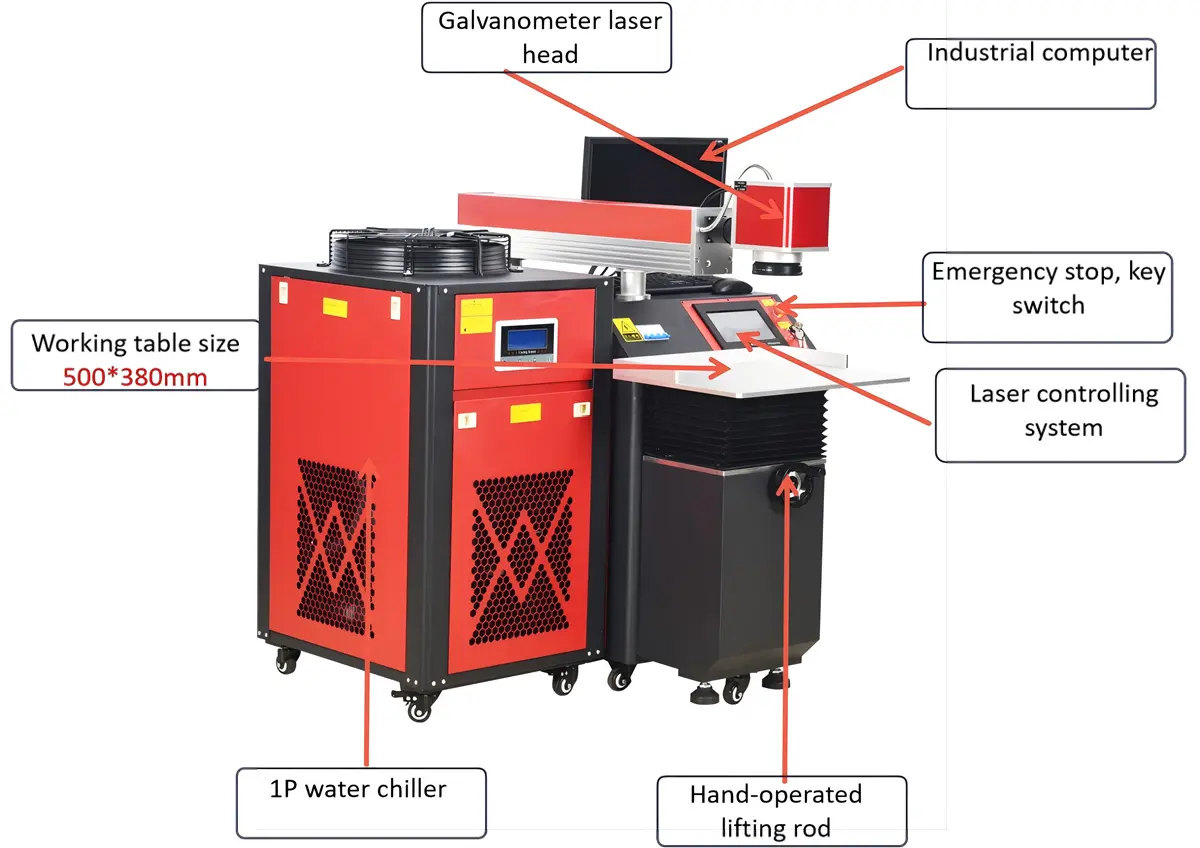

Product size

Detailed parameters

Item	YME-200W-ZJ	YME-400W-ZJ
Maximum laser power	200W	400W
Laser wavelength	1064nm
condenser cavity reflector	Ceramic Concentrating Cavity	Dual-lamp focusing cavity
Current adjustment range	60-150A
Galvanometer range	50*50mm
laser frequency	1-20Hz	1-30HZ
Pulse Width	0.3-10Ms	0.3-10Ms
Spot adjustment range	0.2-2mm	0.3-3mm
Aiming and positioning	red light
Chiller cooling power	1P	3P
rated power	8KW	12KW
electricity demand	380V±5V 50Hz/40A 220V±5V 50Hz/60A	380V±5V 50Hz/40A
Overall dimensions/net weight	Host: 1030×640×1050mm	Host: 1030×640×1050mm
Overall dimensions/net weight	Water chiller: 600×500×907mm	Water chiller: 850×600×1100mm

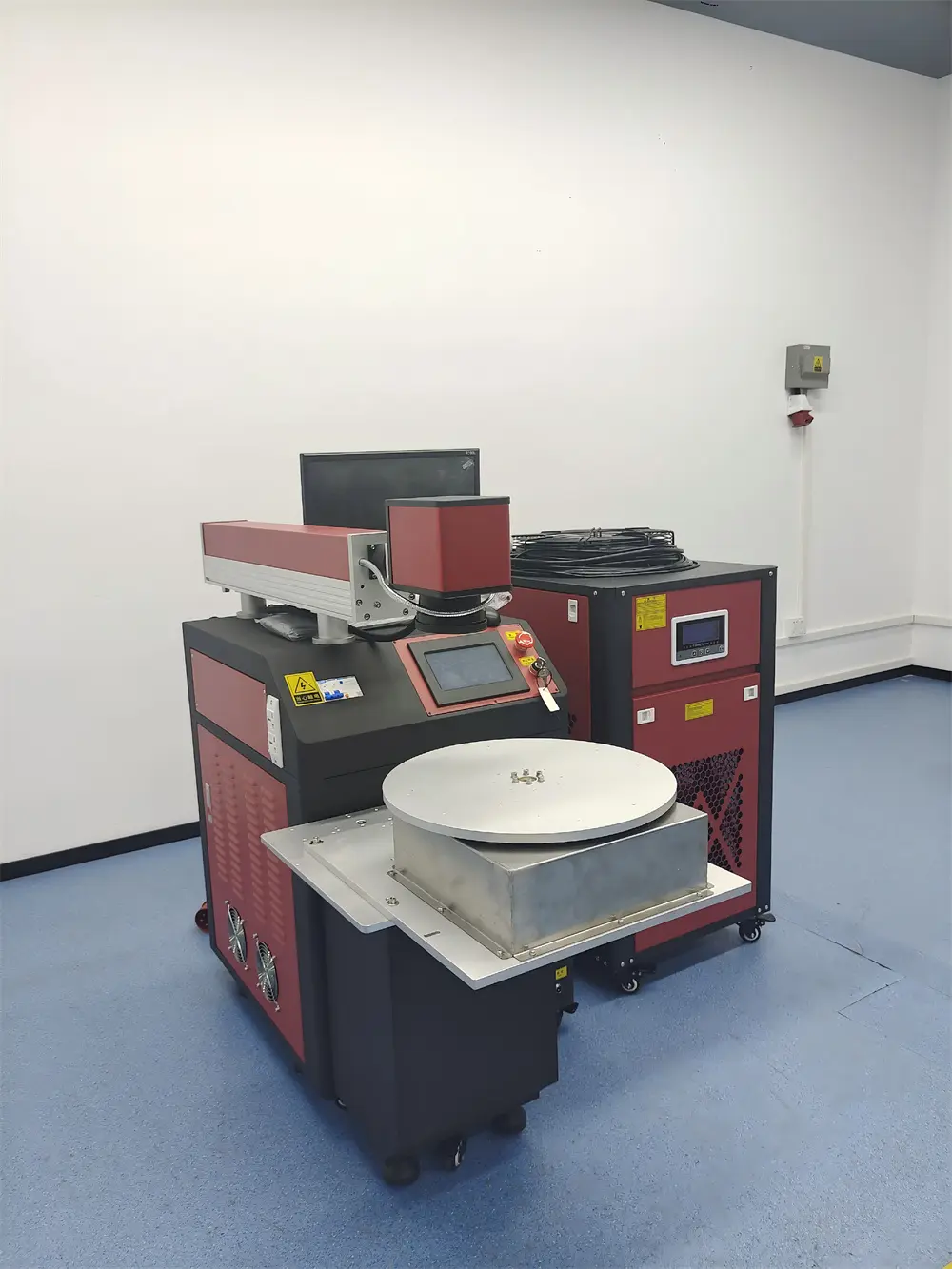

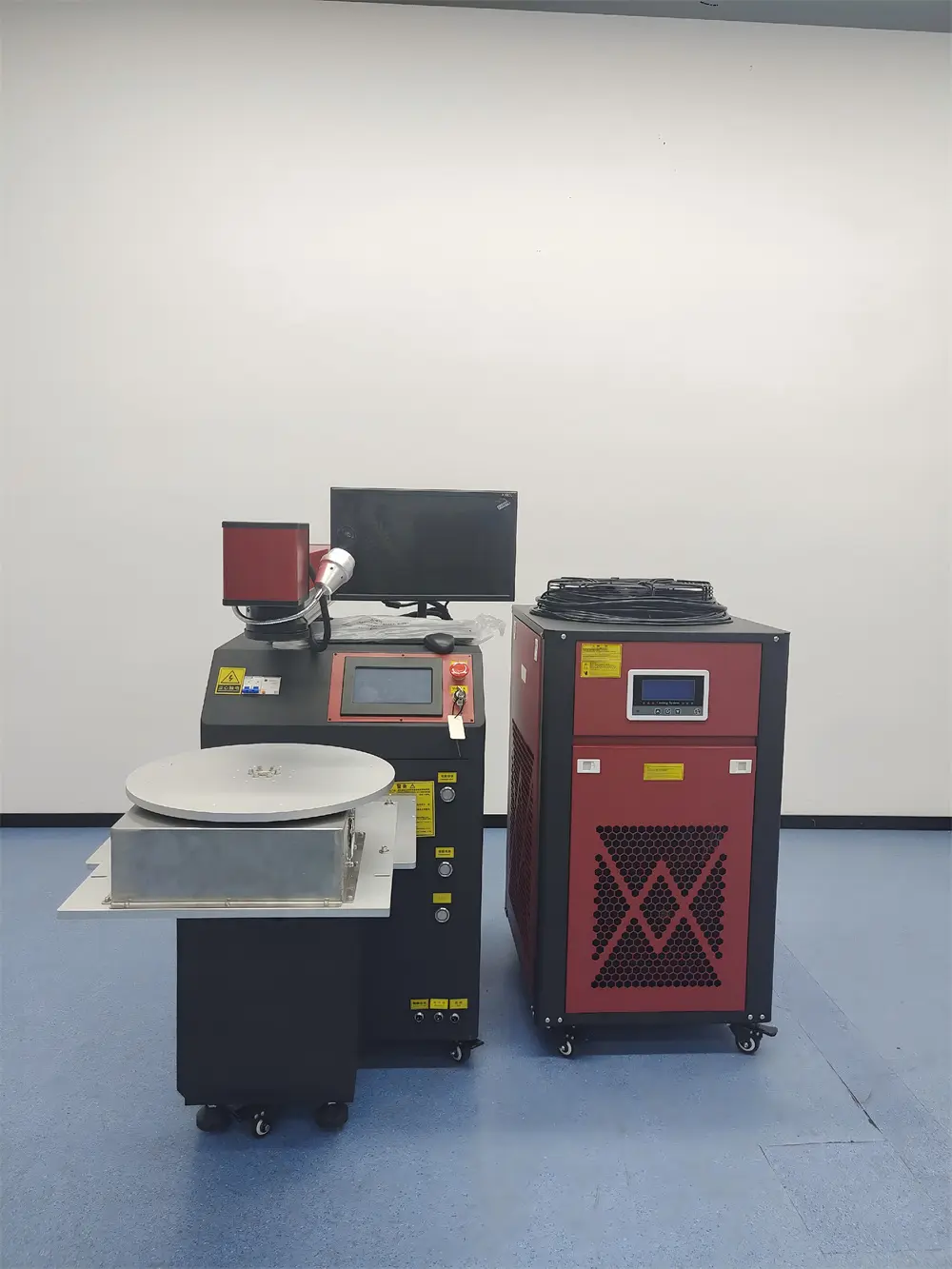

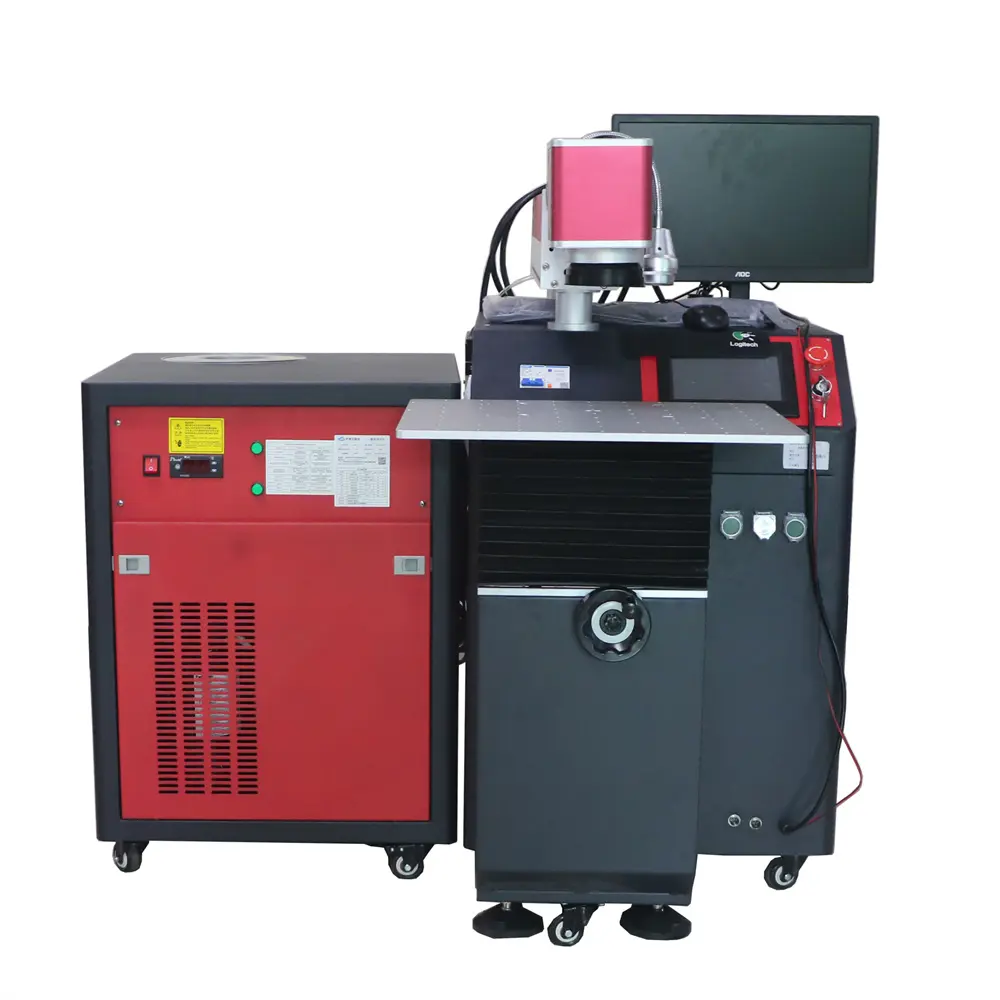

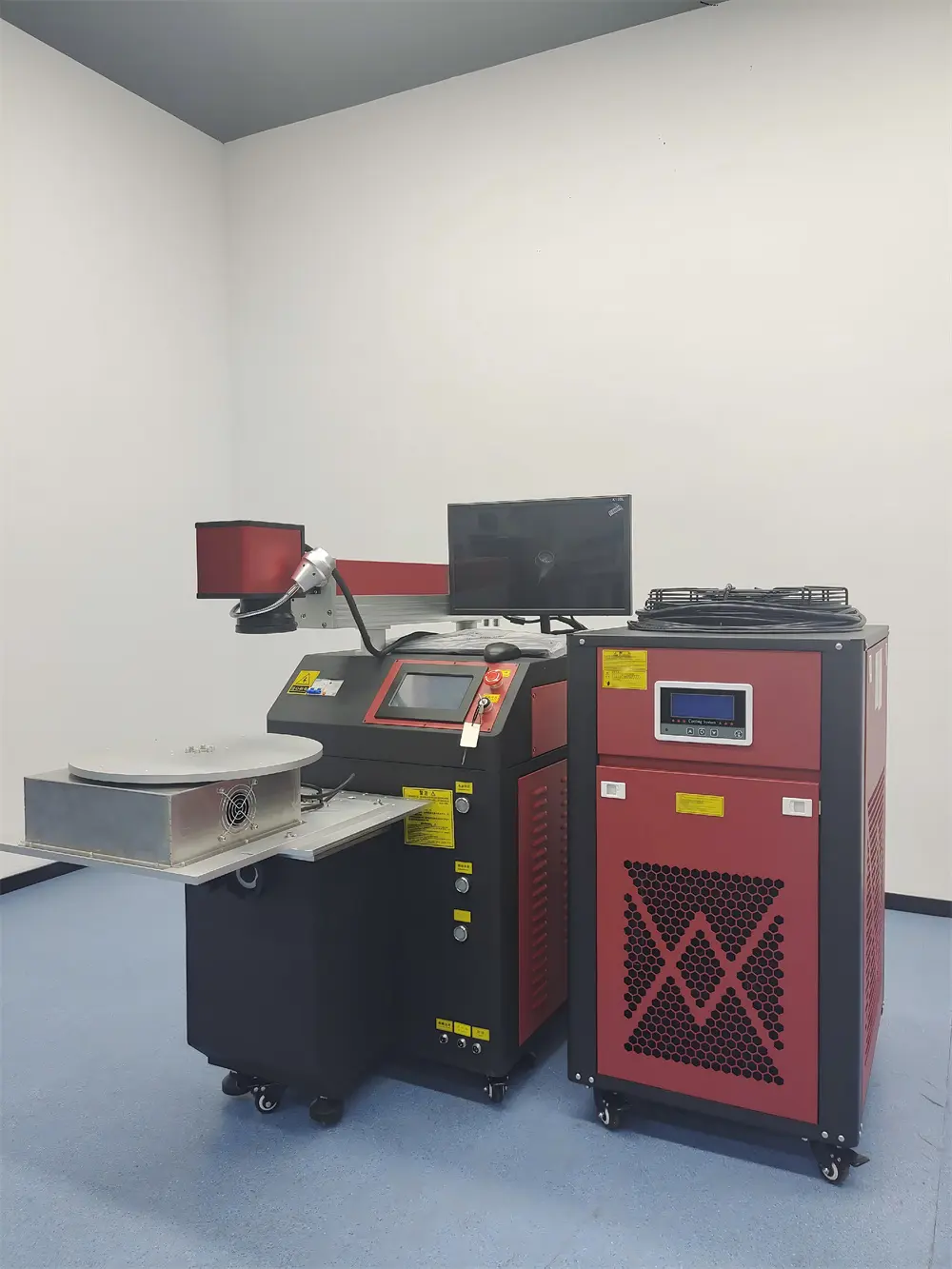

Machine picture

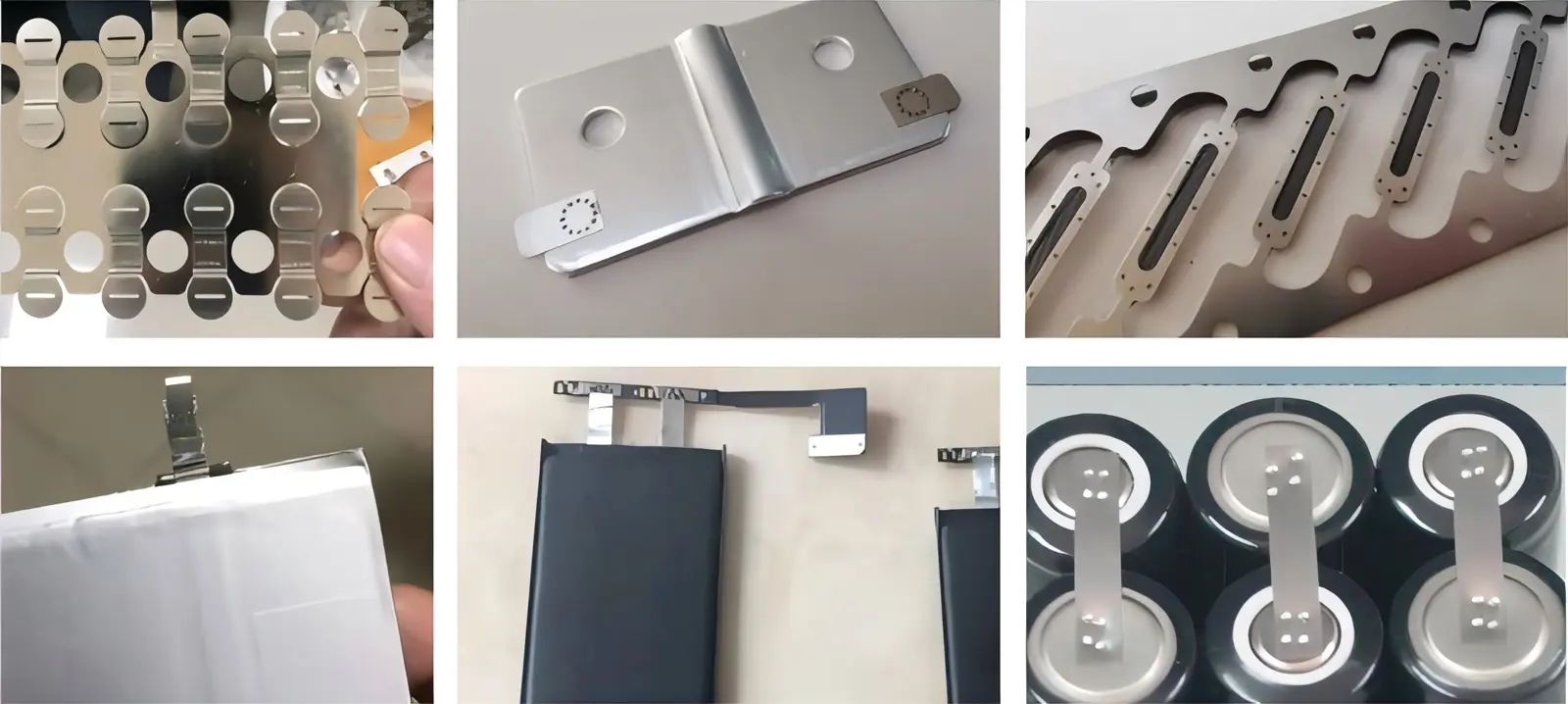

Application scope

Suitable for fine electronic components, 3C batteries, mobile phone cases, electronic components, vacuum cups, stainless steel products, sensors, tungsten wires, aluminum alloys, laptop casings, electrical accessories, etc.

Some sample display

Frequently Asked Questions

What are the primary differences between the YME-200W-ZJ and YME-400W-ZJ models?

The YME-200W-ZJ features 200W laser power, a ceramic concentrating cavity, 1-20Hz laser frequency, a 0.2-2mm spot range, and includes a 1P water chiller with 8KW rated power. The YME-400W-ZJ offers 400W laser power, a dual-lamp focusing cavity, 1-30Hz frequency, a 0.3-3mm spot range, and comes with a 3P water chiller with 12KW rated power.

What products and materials can be processed with this laser welding machine?

The system is designed for fine electronic components, 3C batteries, mobile phone cases, vacuum cups, stainless steel products, sensors, tungsten wires, aluminum alloys, laptop casings, and electrical accessories.

What electrical power supply is required for each model?

The 200W unit supports either 380V±5V 50Hz/40A or 220V±5V 50Hz/60A. The 400W unit operates on 380V±5V 50Hz/40A.

What are the galvanometer range and optical positioning specifications?

Both configurations provide a 50×50mm galvanometer working area and integrate a red light aiming system for precise positioning.

What units are included in the complete device package?

Each system includes a YAG laser source, laser power supply, optical systems, liftable and movable optical bench, LCD display system, computer welding system, galvanometer welding joints, host cabinet, and a matching dedicated water chiller.

What are the laser pulse width and wavelength parameters?

Both models operate at a 1064nm wavelength with an adjustable pulse width spanning from 0.3ms to 10ms.
