What types of laser machines does Youmir Laser manufacture?

We manufacture handheld and CNC fiber laser welding machines, YAG laser welders, pulsed and continuous laser cleaning machines, fiber laser cutting machines, mold repair laser welders, jewelry laser welders, and matching parts and consumables.

Can I test my own parts before choosing a machine?

Yes. You can send samples to our factory. Our engineers run welding or cleaning experiments and return a test report, process videos and a recommended parameter window, so you can confirm results before selecting a configuration.

Which handheld laser welder power should I choose?

As a general reference, 1000 W suits thin sheet up to about 3 mm stainless steel, 1500 W is the most common choice for mixed fabrication up to about 4 mm, and 2000 W to 3000 W are used for thicker steel and aluminum. Actual capability depends on joint fit-up, shielding gas and filler wire, so we verify it on your samples.

What is the difference between pulsed and continuous laser cleaning machines?

Pulsed laser cleaners deliver short high-peak pulses with low heat input, ideal for molds, precision parts and thin coatings without damaging the substrate. Continuous laser cleaners offer higher throughput at lower cost for heavy rust and paint on steel structures where some heat input is acceptable.

Do you support OEM and ODM orders for distributors and brand owners?

Yes. We support appearance and branding customization, function and software customization, automation system development and production line integration for brand owners, factories and distributors.

What after-sales support do overseas buyers receive?

We provide 24/7 online technical consultation, remote video guidance, fault diagnosis and software updates, and we support overseas agency services and on-site installation training.

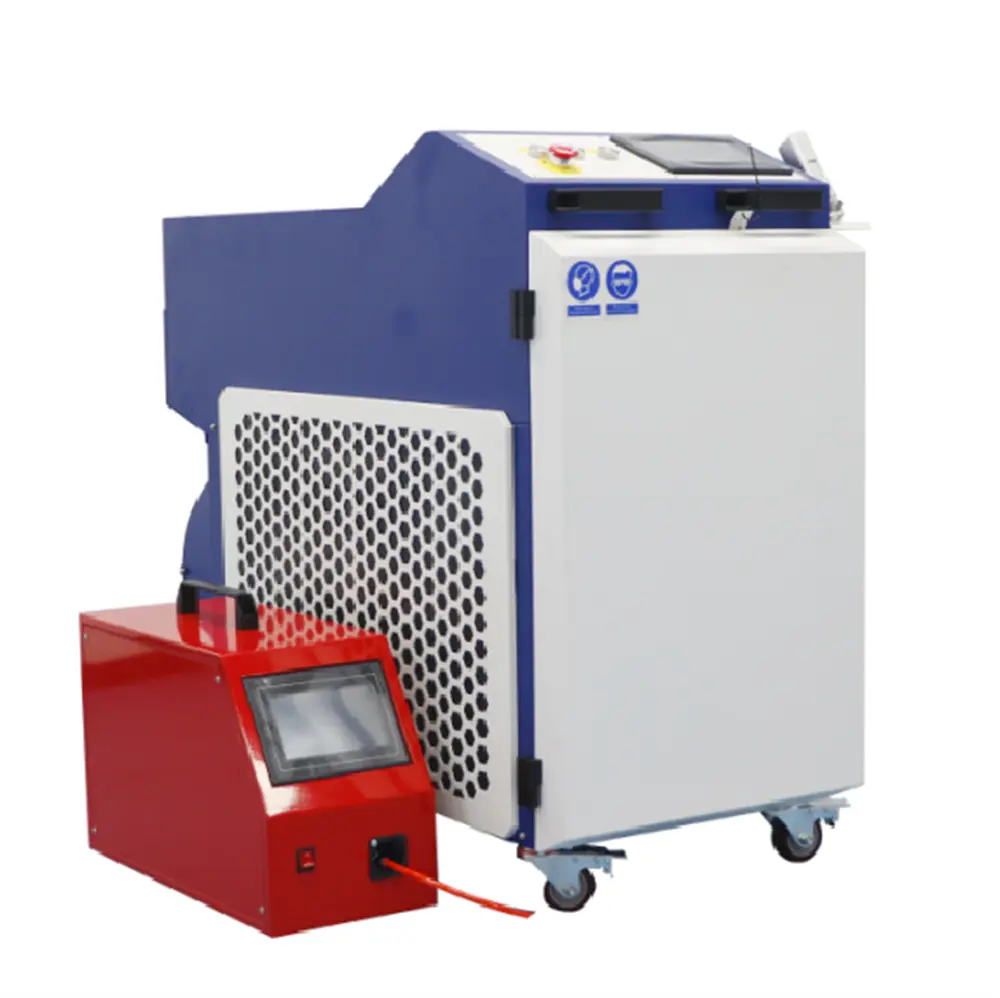

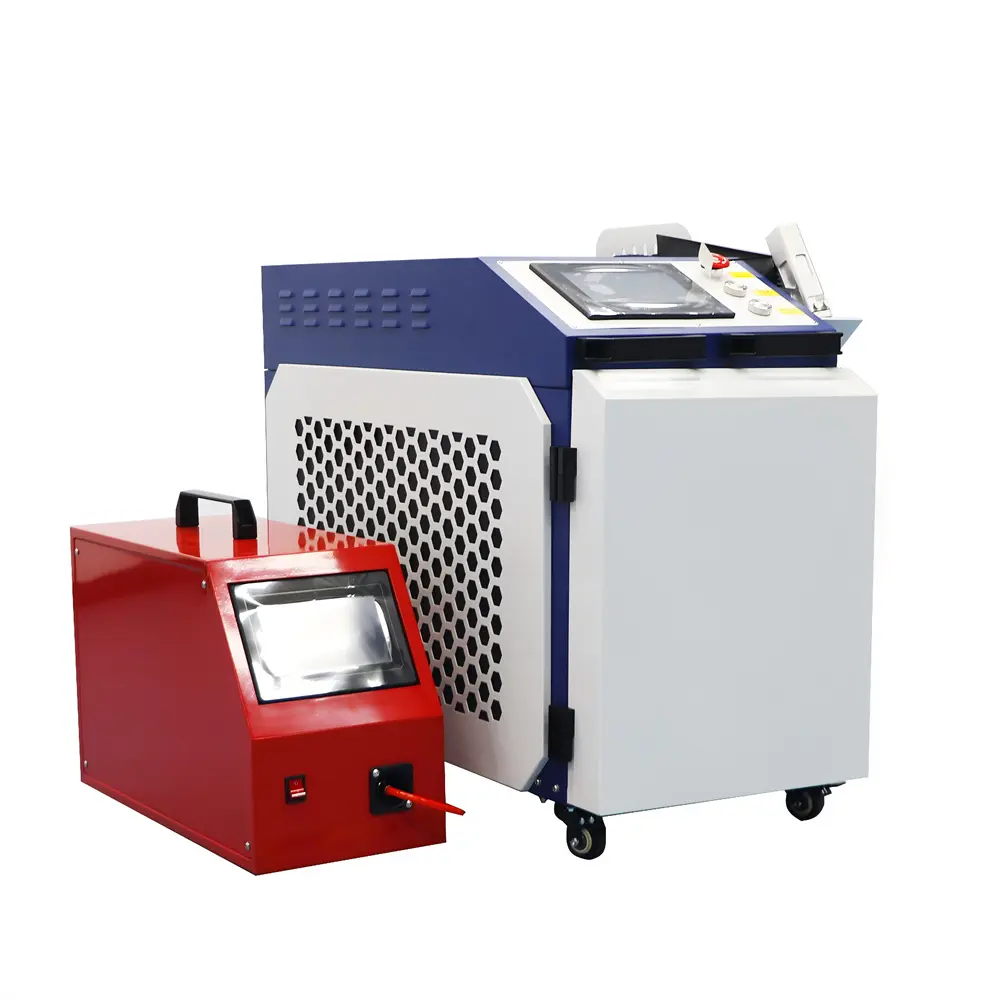

High-Quality Handheld Laser Welding Machine Manufacturer, Pricelist

1 / 5

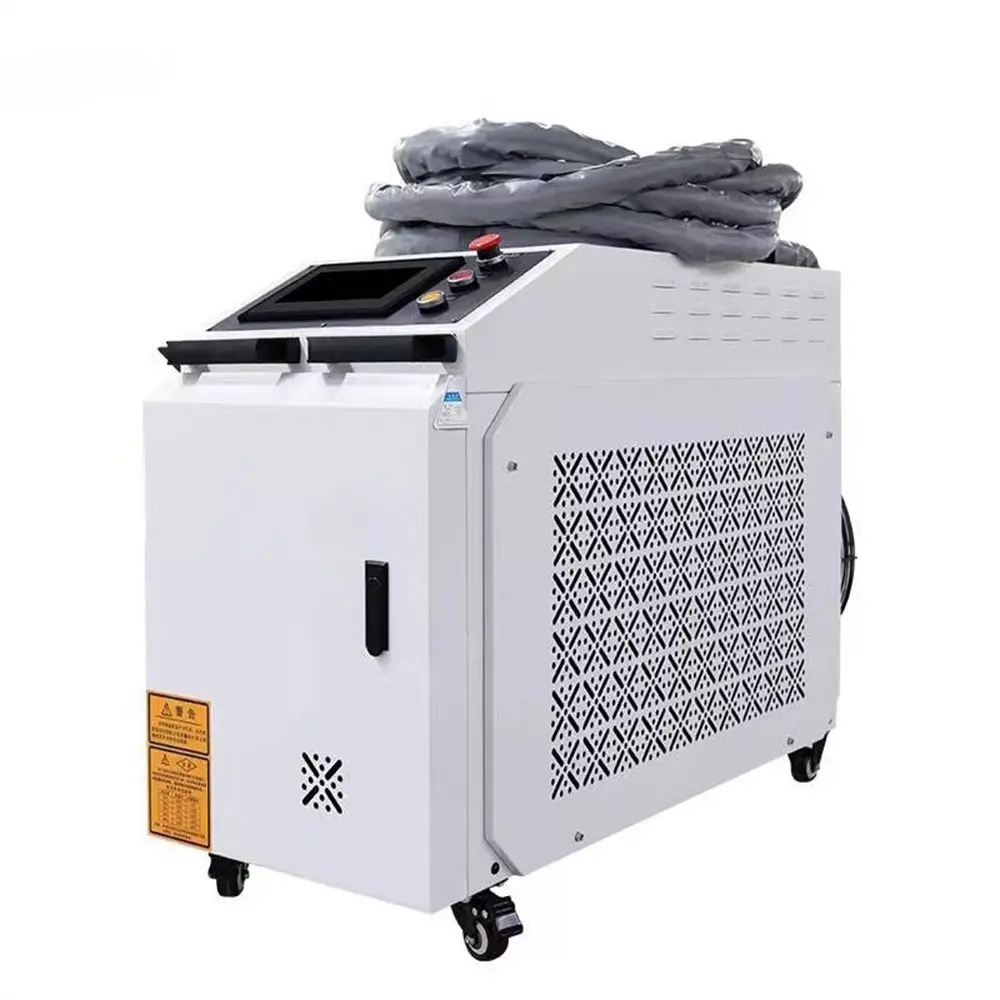

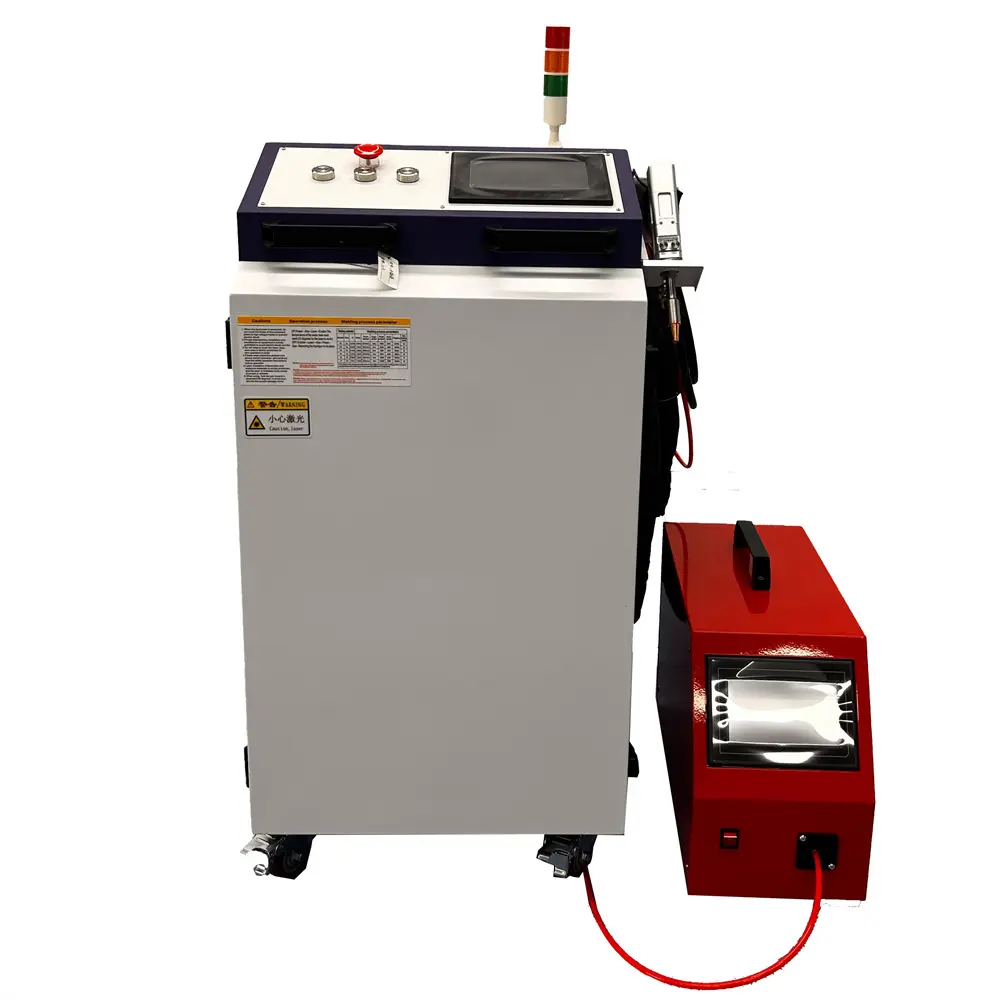

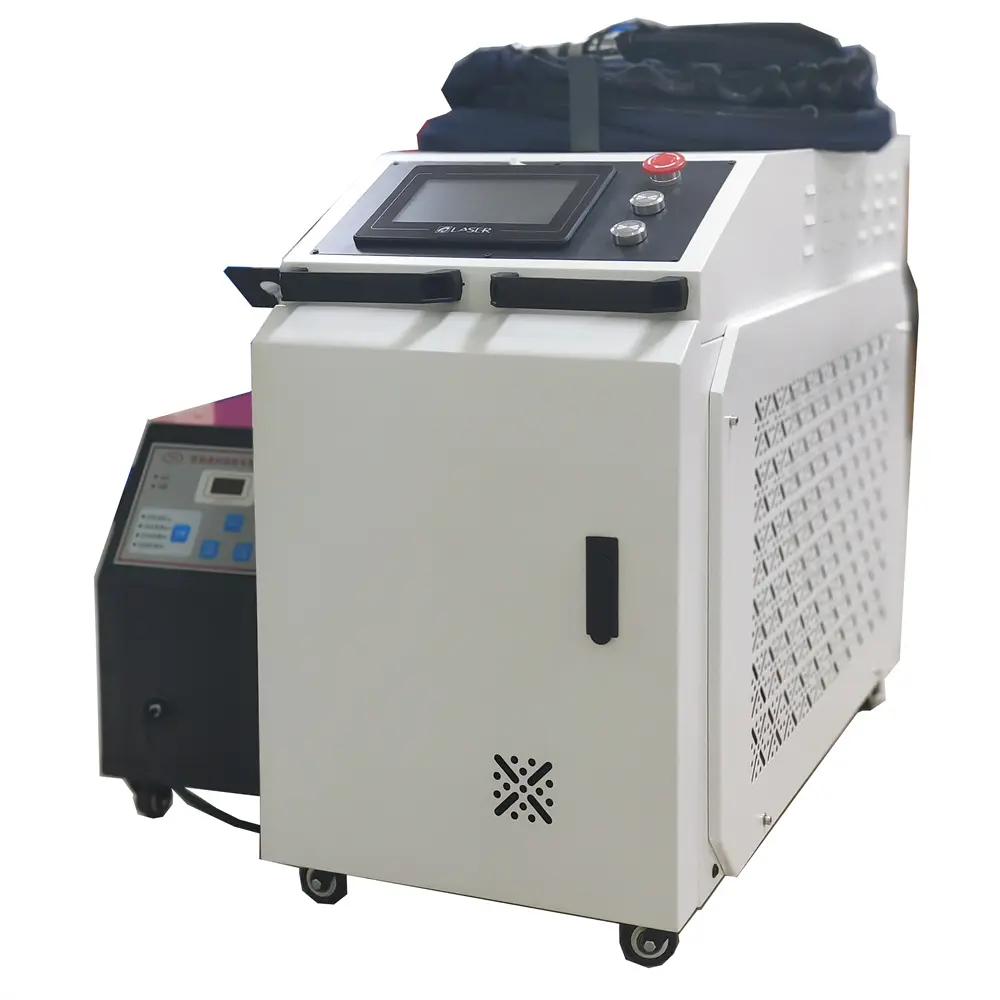

High-Quality Handheld Laser Welding Machine Manufacturer, Pricelist

1. The handheld welding gun replaces the previous fixed light path, which is more flexible and convenient, enables long-distance laser welding, and overcomes the limitations of the workbench travel space;

2. Red light positioning is used to calibrate the position of the welding head; the welding position is more accurate;

3. The laser welding depth is large and the welding is firm;

4. It is not easy to deform and is easy to grind and polish, which solves the problems of welding penetration, welding nodule and welding quality that occur when using argon arc welding;

5. Used for various complex welds and spot welding of various devices.

Send Inquiry

Product Description

Device Configuration

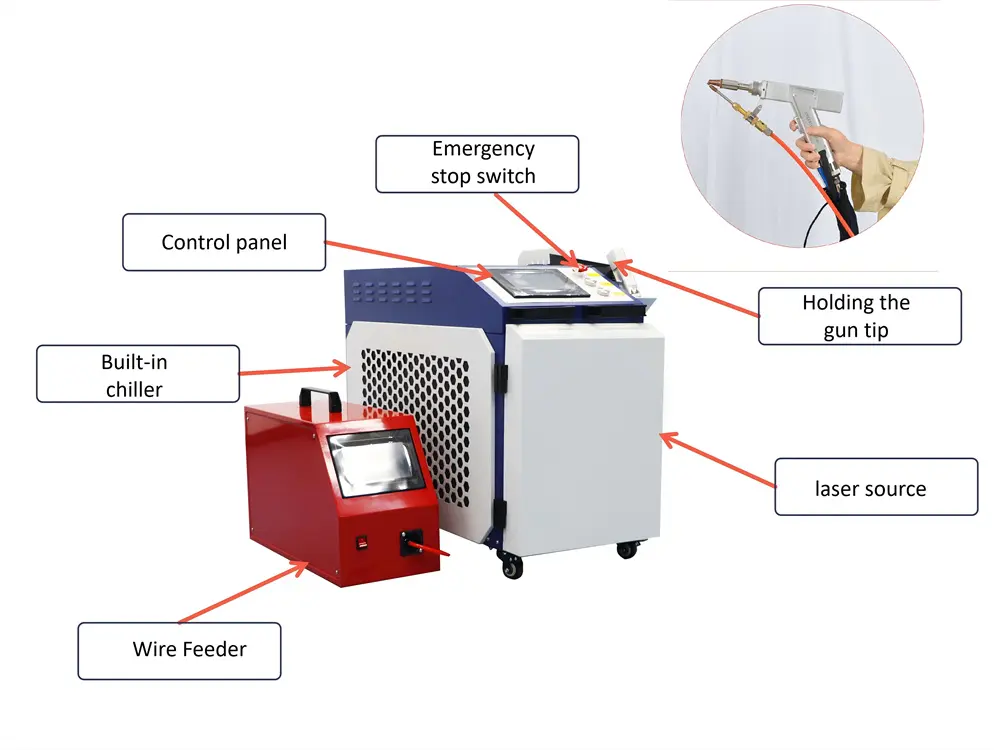

Handheld Laser Welding Machine 1500W 2000W Configuration

Configuration list (1500W/2000W)

1. 1500W/2000W laser source (Max/JPT/Raycus)

2. A set of laser fiber

3. A set of handheld welding head + wire feeding system (super/Qilin/Ruifa optional)

4. Hanli built-in dual water heater set

5. A set of host cabinet

Handheld Laser Welding Machine 3000W Configuration

Configuration list (3000W)

1. 3000 W laser source (Max/JPT/Raycus)

2. A set of laser fiber

3. A set of handheld welding head + wire feeding system (super/Qilin/Ruifa optional)

4. Hanli built-in dual water heater set

5. A set of host cabinet

Product Size

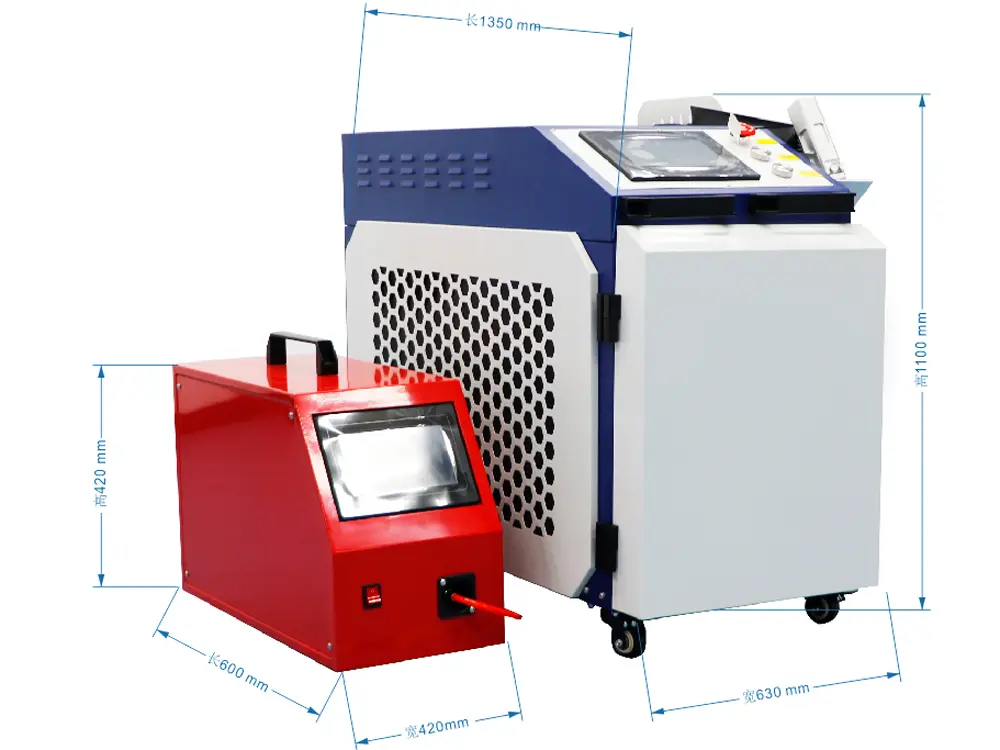

YMR-1500W/2000W

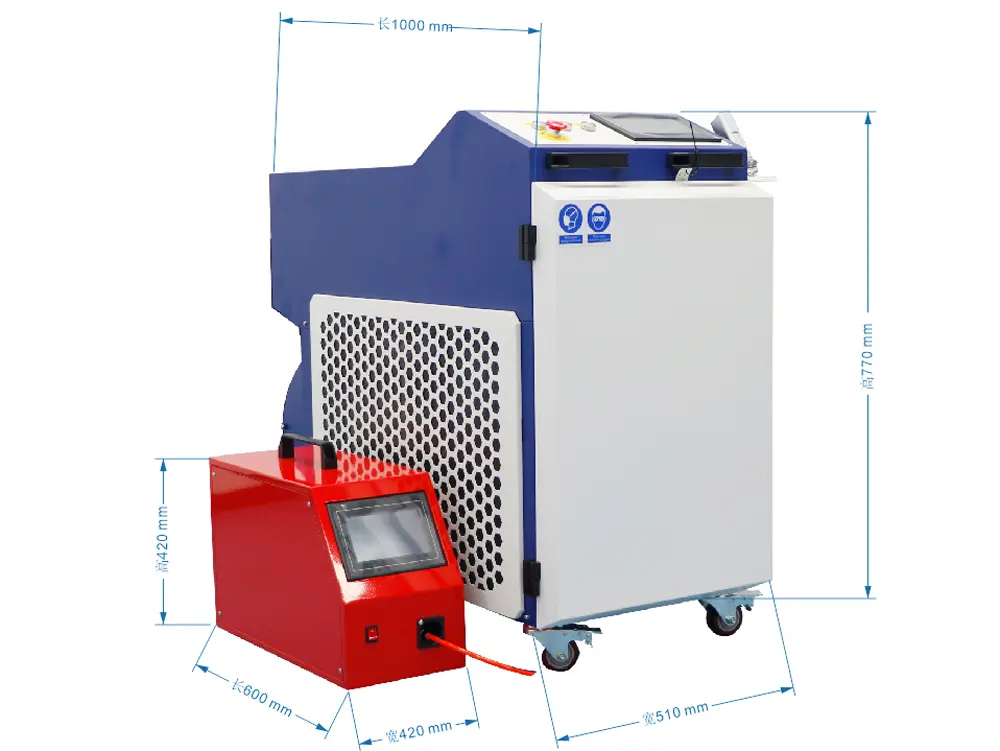

YMR-3000W

Detailed Parameters

Item number	YMR-1500W	YMR-2000W	YMR-3000W
Maximum laser power	1500W	2000W	3000W
Laser wavelength	1080nm
Output fiber length	10M
Rated power	6KW	7KW	8KW
Power configuration	220V/50HZ	220V/50HZ	380V/50HZ
Spot adjustment range	0.1-5MM	0.1-5MM	0.1-5MM
Laser frequency	1-10000HZ	1-10000HZ	1-10000HZ
Cooling system	CW1500	CW2000	CW3000
Aiming and positioning	red light
Overall dimensions / net weight (1500W & 2000W)	1500W	Host: 1000×500×770mm \| Weight: 90KG Wire feeder: 600×260×420mm \| Weight: 15KG
Overall dimensions / net weight (1500W & 2000W)	2000W
Overall dimensions / net weight (3000W)	3000W	Host: 1120×630×1040mm \| Weight: 154KG Wire feeder: 560×250×430mm \| Weight: 15KG

Machine Pictures

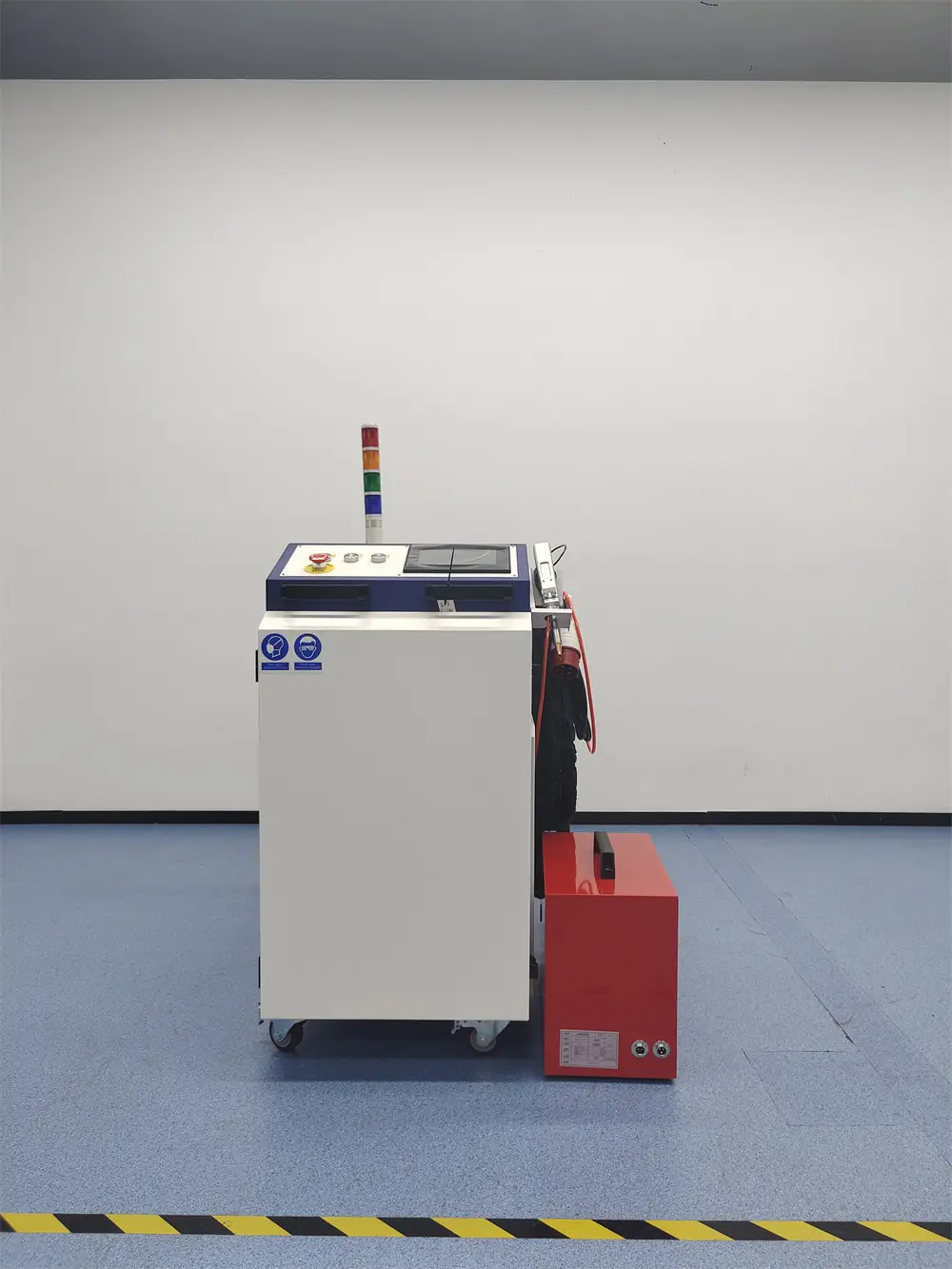

Handheld Fiber Laser Welding Machine View 1

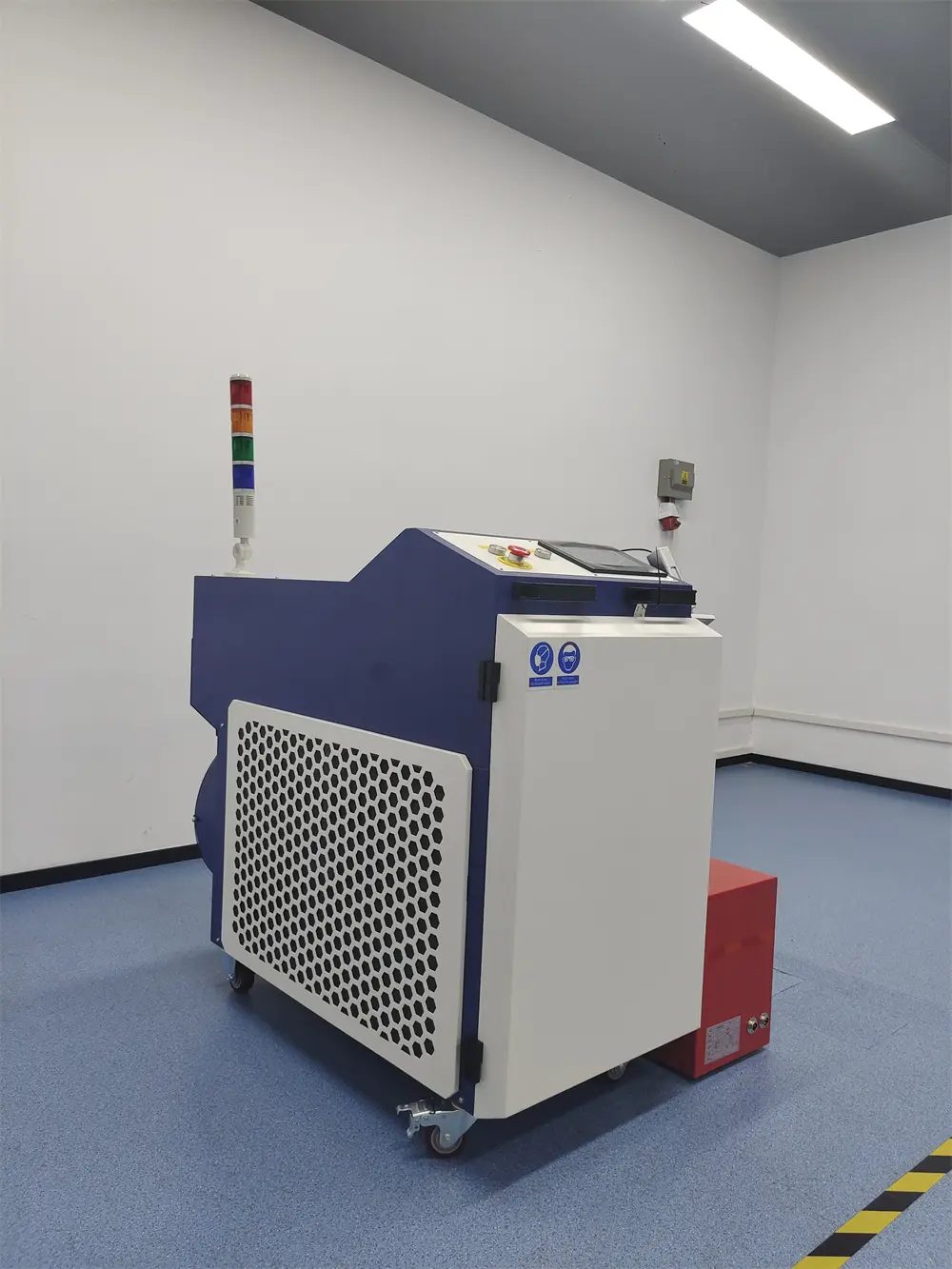

Handheld Fiber Laser Welding Machine View 2

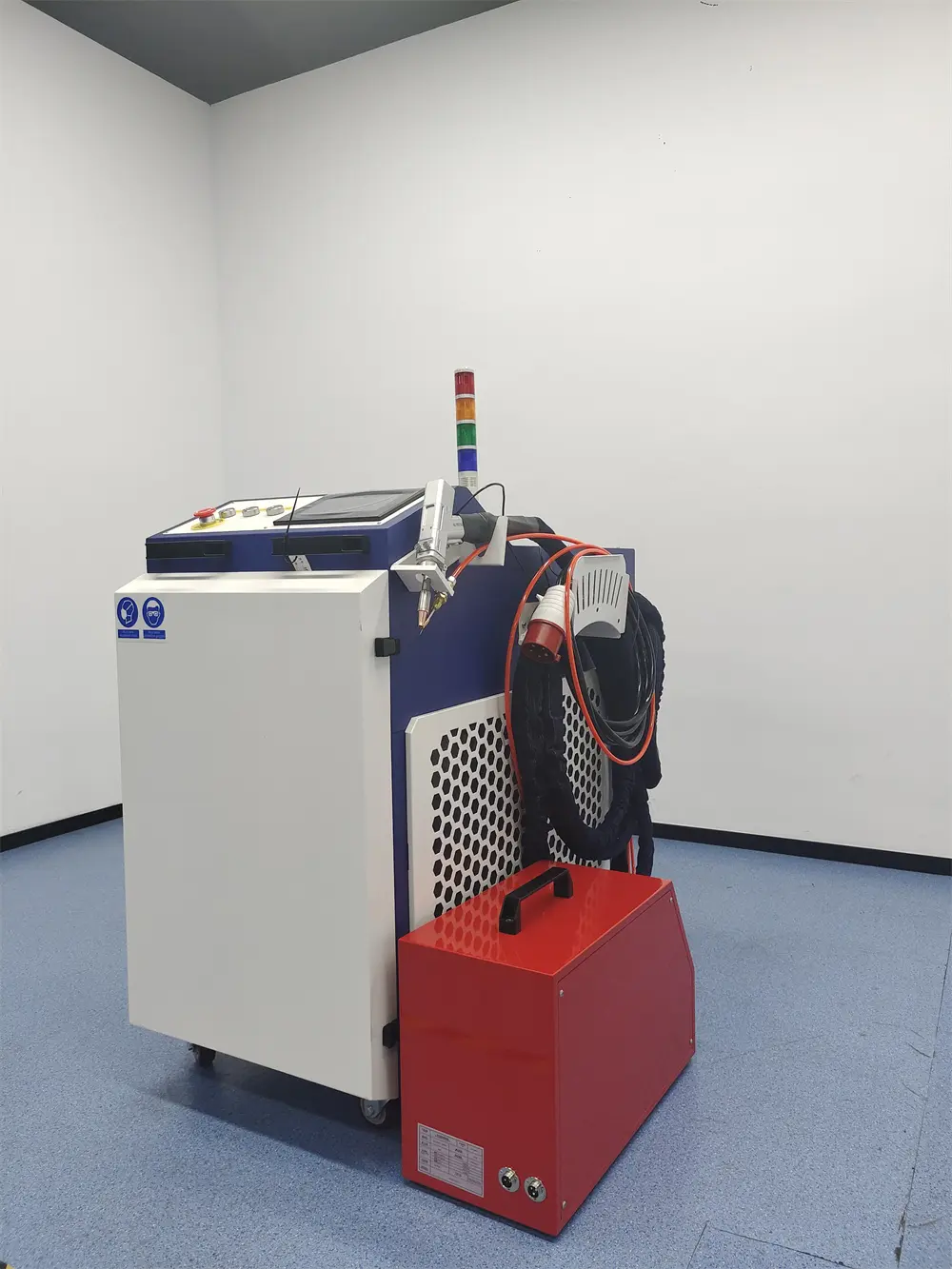

Handheld Fiber Laser Welding Machine View 3

Application Scope

It can be widely used in complex and irregular welding processes in cabinets, kitchens and bathrooms, stairs, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home furnishings and other industries.

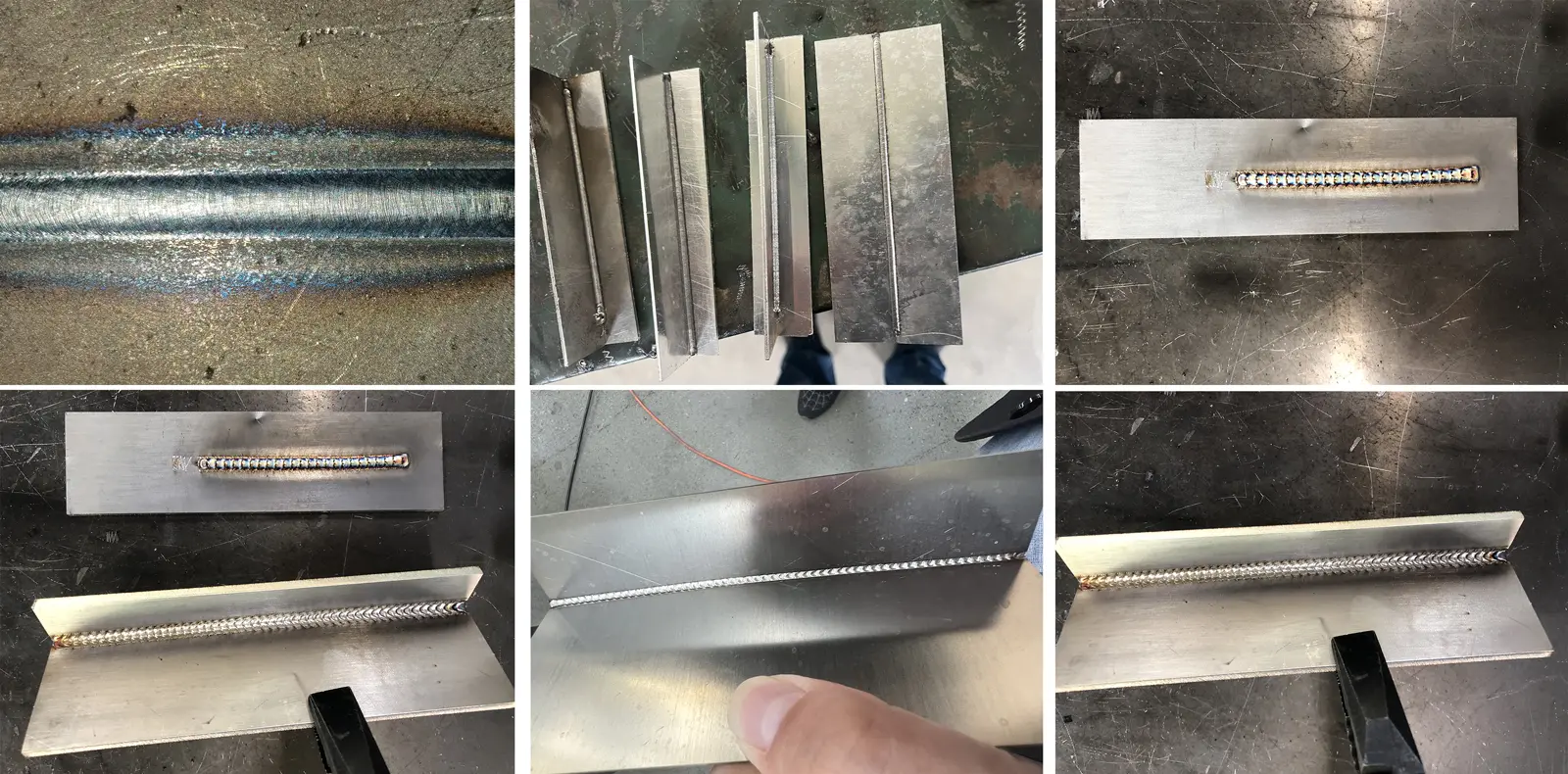

Some sample display

Frequently Asked Questions

Which laser source brands can be selected for these machines?

The system supports top industry-grade fiber laser sources, including Max, JPT, and Raycus, available across all 1500W, 2000W, and 3000W configurations based on customer processing needs.

What is the required electrical power setup for the 1500W, 2000W, and 3000W models?

The YMR-1500W and YMR-2000W models operate smoothly on standard single-phase 220V/50Hz power, whereas the heavy-duty YMR-3000W machine requires three-phase 380V/50Hz power.

What handheld welding heads and wire feed units are compatible?

Each machine is bundled with a lightweight ergonomic handheld welding head paired with an automatic wire feeding system, supporting Super, Qilin, or Ruifa brands based on user preference.

How far can the operator weld from the machine body?

Each unit includes a heavy-duty 10-meter optical fiber delivery line, granting operators broad movement flexibility to maneuver around large workpieces, enclosures, and structural fabrications.

What cooling mechanism is integrated for continuous heavy-duty welding?

All models are equipped with an authentic Hanli dual-temperature industrial water cooling system (CW1500, CW2000, or CW3000), ensuring sustained optical and head temperature control for prolonged continuous operation.
