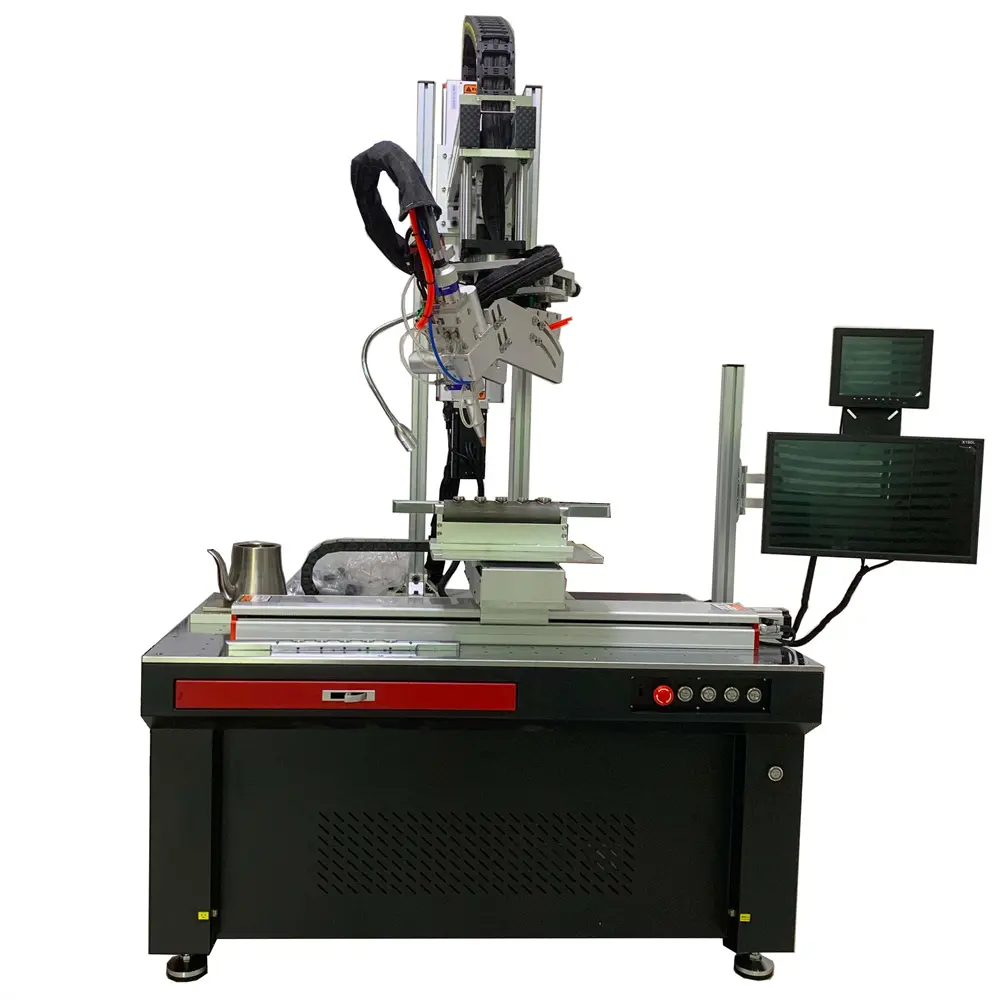

High-Quality Fiber Continuous Laser Welding Machine Manufacturers, Factories

1 / 5

High-Quality Fiber Continuous Laser Welding Machine Manufacturers, Factories

1. Adopt well-known brand laser, with high reflectivity, strong energy, high temperature resistance, corrosion resistance, and ultra-long service life;

2. Equipped with dual-temperature dual-control special chiller, which can meet long-term and high-power welding with better stability;

3. Fast speed, large depth, small deformation, beautiful weld, and less consumables;

4. Dedicated welding control system, high stability, easy to understand and learn, can realize continuous spot welding, straight line, circle, arc, etc., and arbitrary programming;

5. Adopt electric translation table, with high repetitive positioning accuracy, fast welding speed, and fast processing speed.

Send Inquiry

Product Description

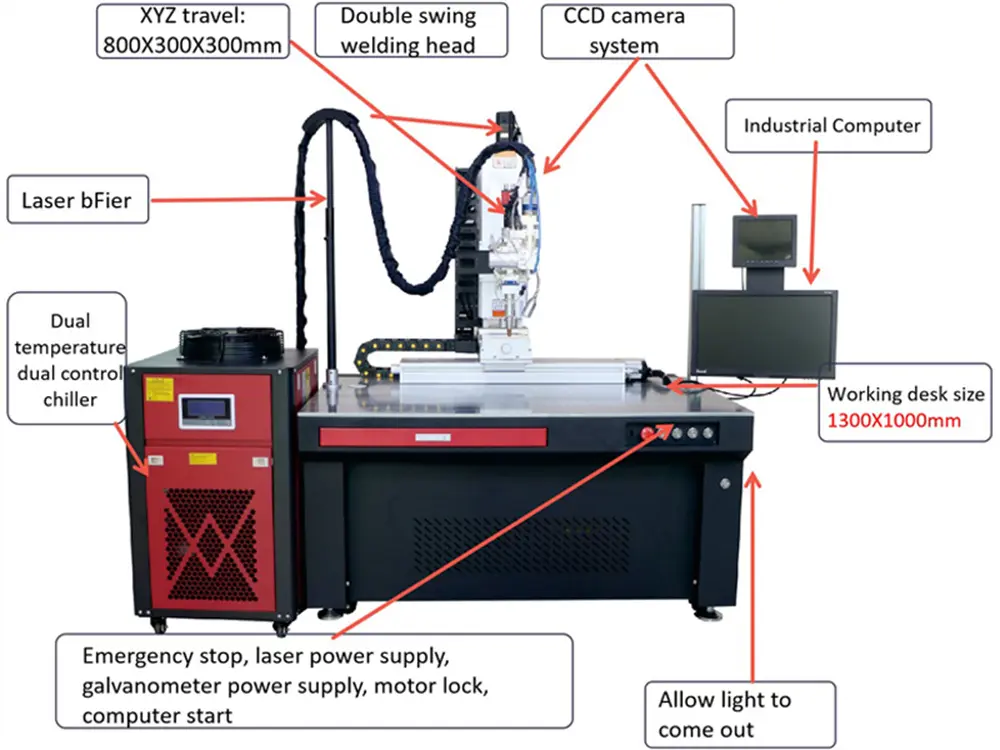

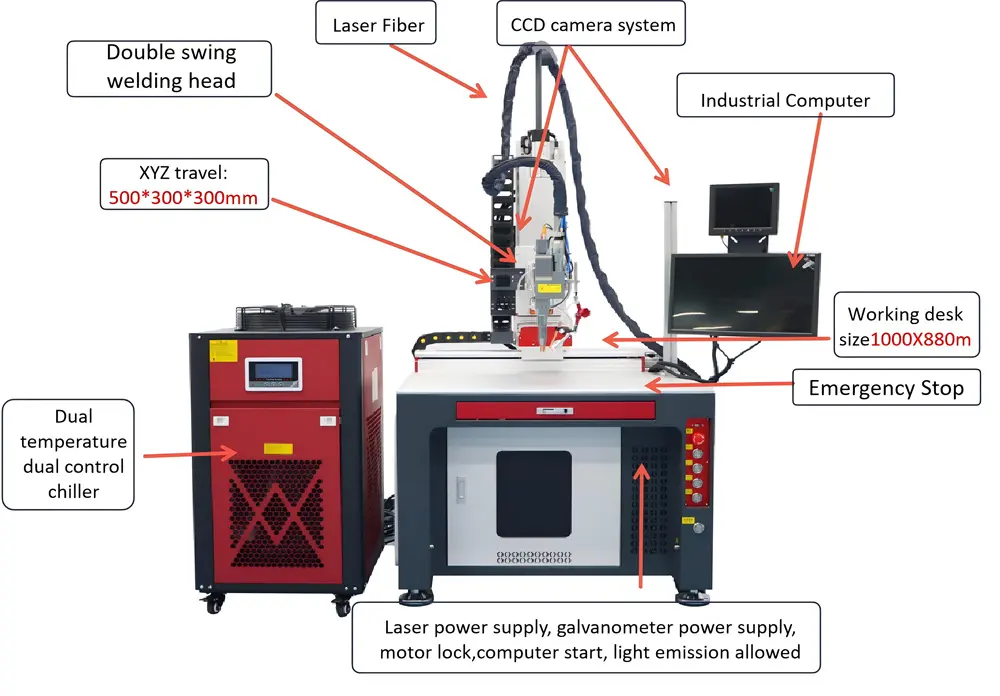

1500W Device Configuration

Configuration List
1. A set of laser source
2. One set of optical system
3. One set of XYZ electric translation stage
4. One dual-temperature dual-control chiller
5. A set of refrigeration and water flow and temperature detection system
6. One set of double swing welding heads
7. A set of servo motor
8. One industrial computer
9. One set of host cabinet.

Configuration List
1. A set of laser source
2. One set of optical system
3. One set of XYZ electric translation stage
4. One dual-temperature dual-control chiller
5. A set of refrigeration and water flow and temperature detection system
6. One set of double swing welding heads
7. A set of servo motor
8. One industrial computer
9. One set of host cabinet.

Product Data

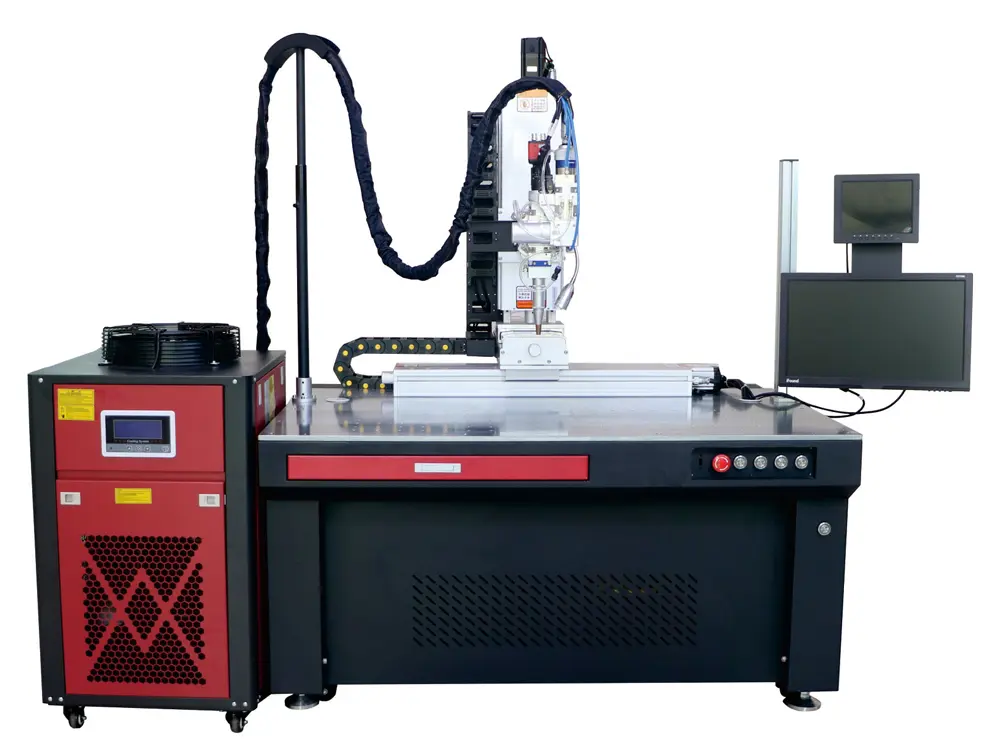

YMR-1500W	YMR-2000W	YMR-3000W
Host: 13001000700mm
Chiller: 6405801100mm
Table size: 1300*1000mm
Stroke: 800300300mm

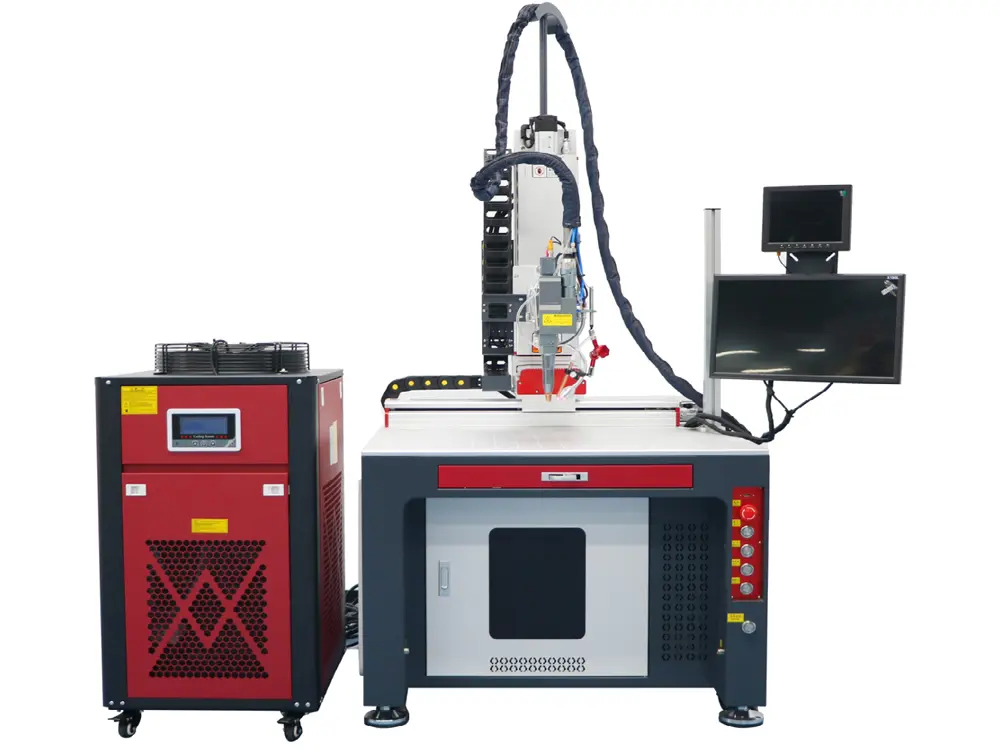

YMR-1500W	YMR-2000W
Host: 1000880700mm
Chiller: 600500970mm
Table size: 1000*880mm
Stroke: 500300300mm

Detailed Parameters

Model	YME-1500W-LX	YME-2000W-LX	YME-3000W-LX
Maximum laser power	1500W	2000W	3000W
Laser wavelength	1080nm
Laser fiber length	10M
Rated power	7KW	8KW	10KW
Laser frequency	1-20Hz	1-30Hz	-
Power Configuration	220V/50Hz	220V/50Hz	380V/50Hz
Light spot adjustment range	0.1-5mm	0.1-5mm	0.1-5mm
Laser frequency	1-10000Hz	1-10000Hz	1-10000Hz
Cooling system	Cw1500	Cw2000	Cw3000
Aiming and positioning	CCD and red light
Workbench Parameters
XYZ Travel	800×300×300mm / 500×300×300mm
Position accuracy	0.05mm
Repeatability	0.05mm
Maximum movement speed	200mm/s
Optional components	Servo/stepper motor, automatic wire feeding, rotating axis, machine head swing, extended stroke

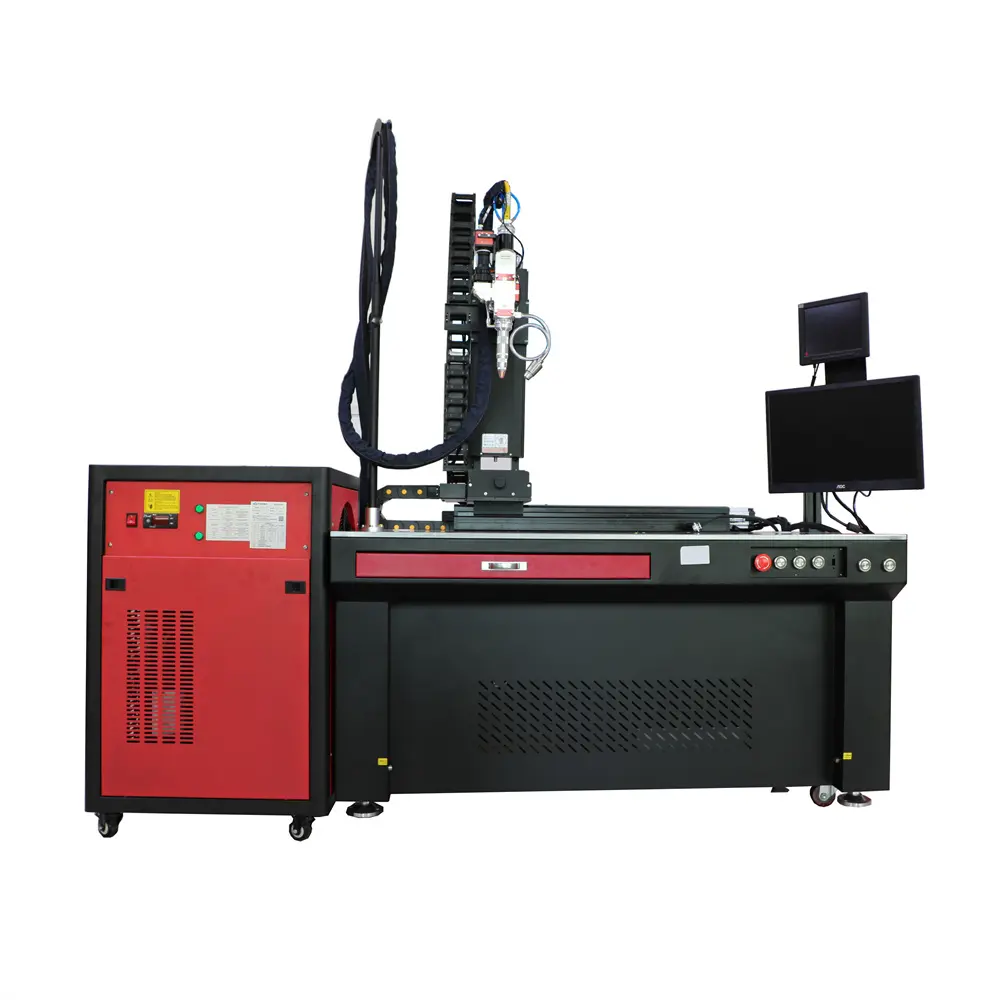

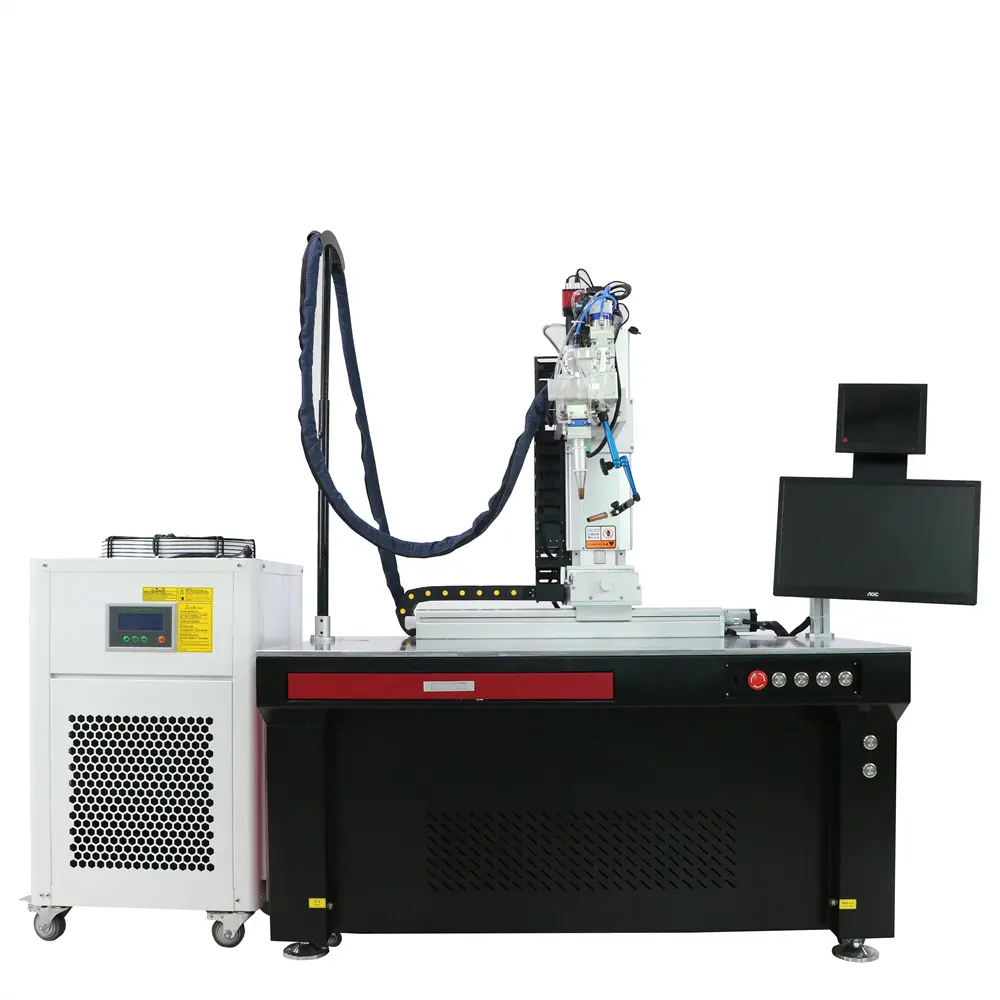

Real Photos Taken

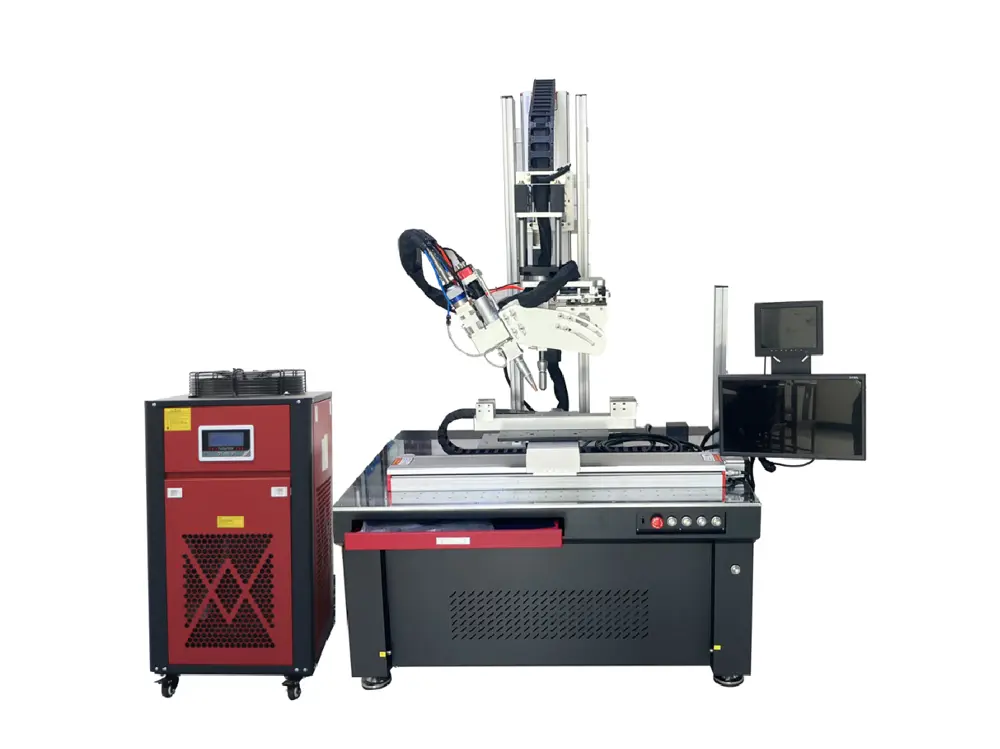

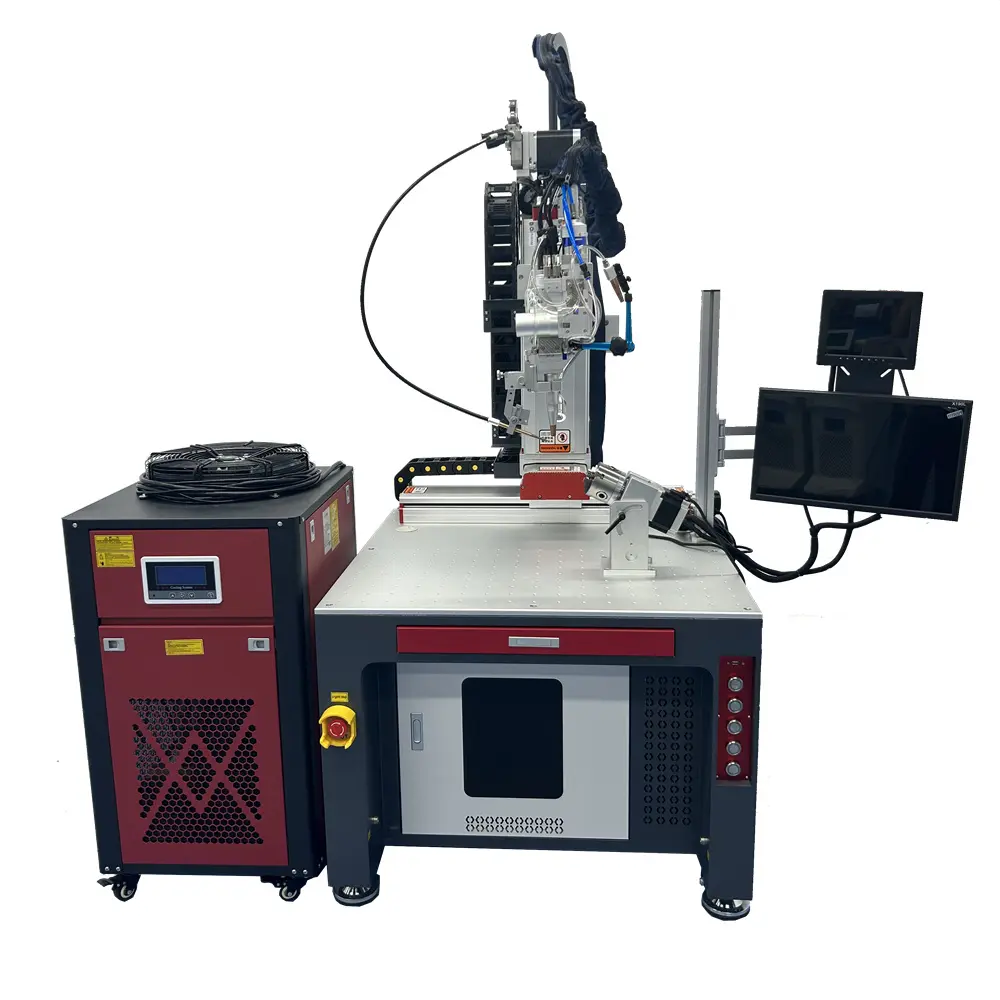

Head rotating type

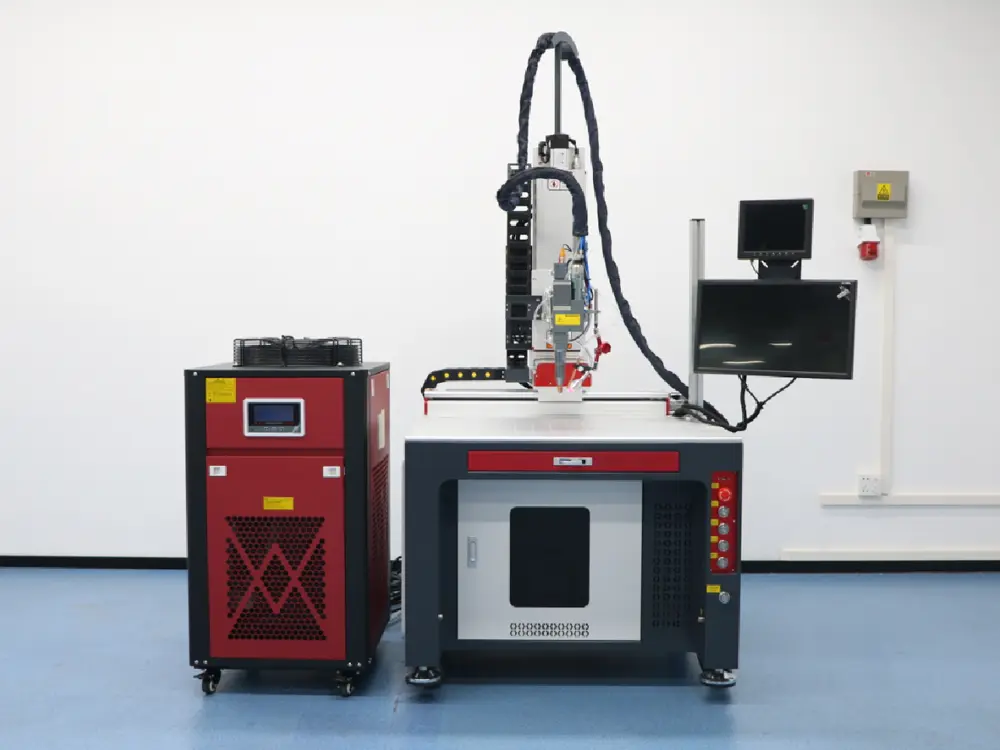

Standard

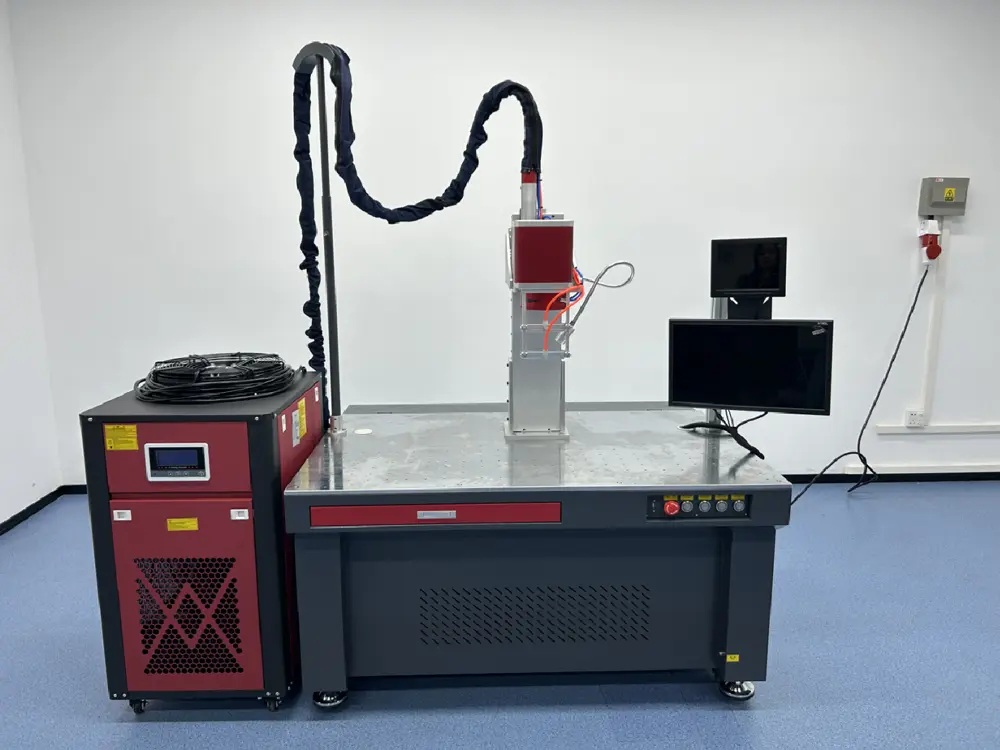

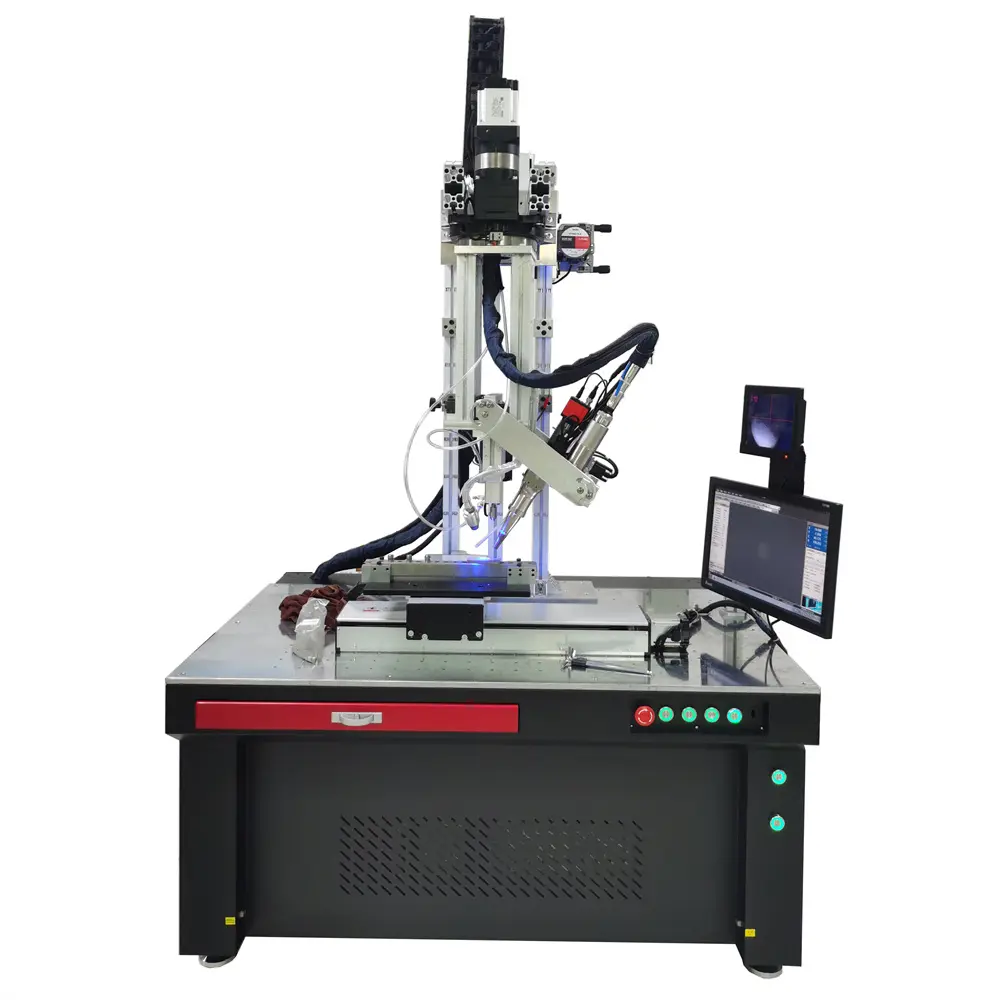

Galvanometer

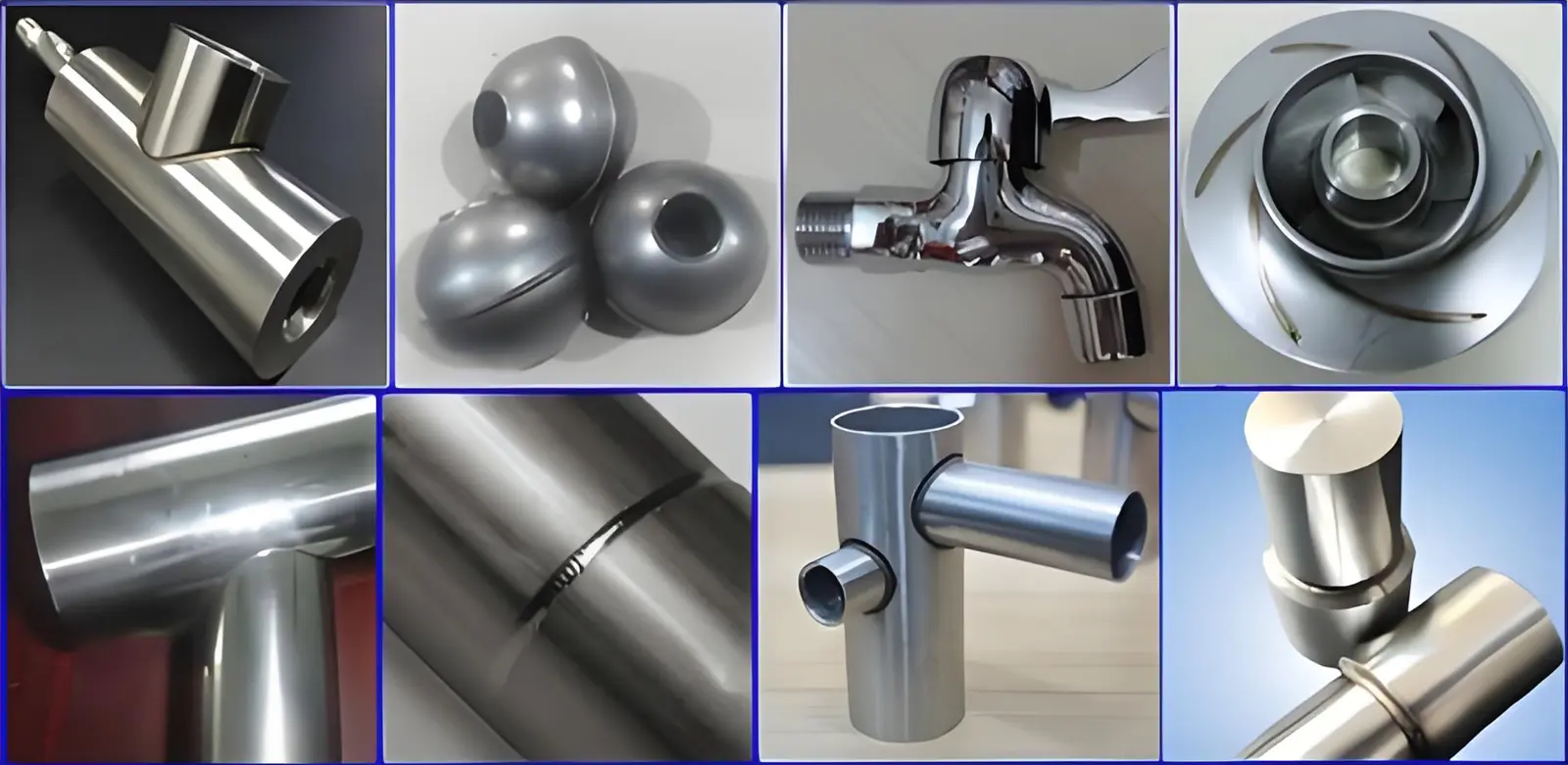

Application Scope

It is suitable for welding stainless steel, titanium steel, aluminum alloy, copper, galvanized sheet and other materials, and is used in electronic appliances, confidential accessories, automobiles, household appliances, tool processing, metal processing and other industries.

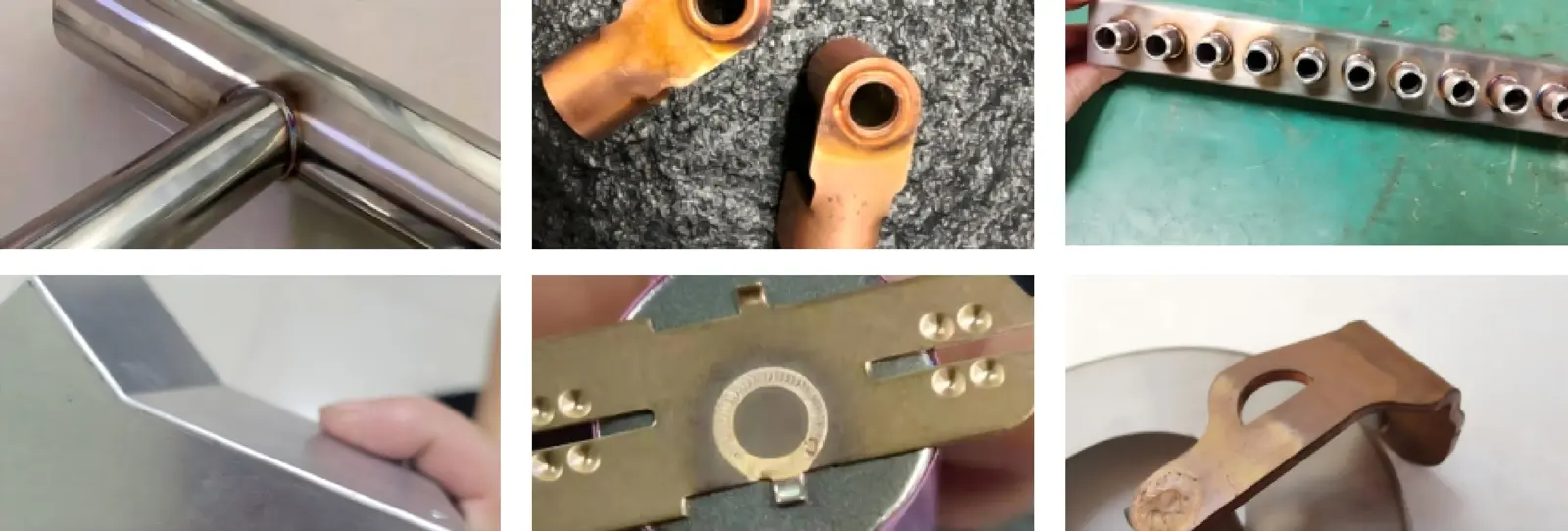

Some sample display

Frequently Asked Questions

What materials can this laser welding machine process?

The machine is capable of welding a variety of metal materials including stainless steel, titanium steel, aluminum alloy, copper, and galvanized sheets with high precision and strength.

What is the positioning accuracy and repeatability of the workbench?

The XYZ electric translation stage provides a high positioning accuracy of 0.05mm and a repeatability of 0.05mm, ensuring consistent and precise welding operations.

What power options are available for this series?

This series offers three primary power configurations: 1500W (YME-1500W-LX), 2000W (YME-2000W-LX), and 3000W (YME-3000W-LX), catering to varying welding depth and speed requirements.

How is precise welding alignment achieved?

Precise alignment and positioning are facilitated by an integrated dual-targeting system featuring a high-definition CCD camera and red light positioning.

What optional accessories and configurations can be added?

Optional configurations include servo or stepper motors, an automatic wire feeding system, a rotating axis for cylindrical components, a machine head swing mechanism, and extended axis strokes.
