High-Quality Automatic Laser Welding Machine Pricelist, Factories

1 / 5

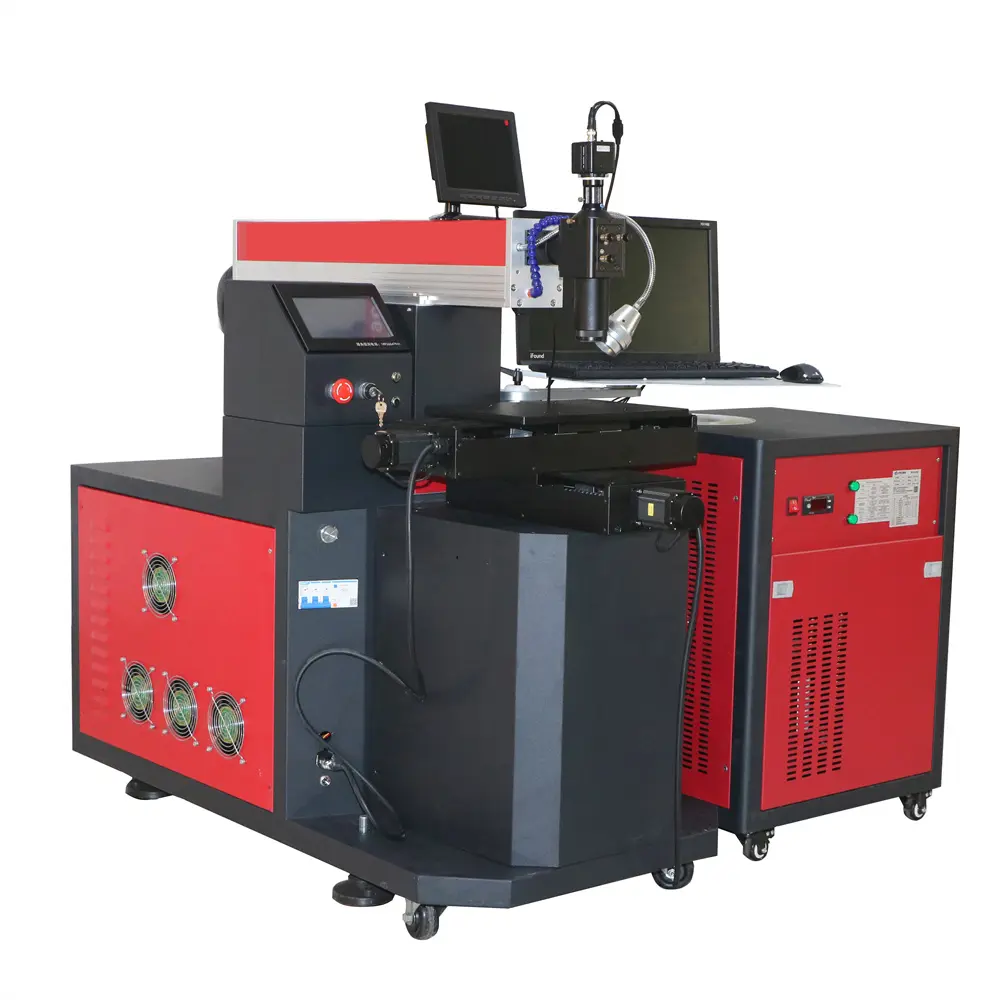

High-Quality Automatic Laser Welding Machine Pricelist, Factories

1. Imported ceramic focusing cavity with high reflectivity, strong energy and long service life;

2. Specialized welding control system with extremely high stability, with full Chinese programming, LCD touch screen super control, easy to understand and learn, can achieve continuous welding points, straight lines, circles, arcs, etc.;

3. Small light spot design has higher precision;

4. Strong scalability, can be combined with assembly lines, photoelectric detectors, starting fixtures and other devices for fully automatic unattended processing;

5. The electric translation table has long service life, high precision and fast processing speed.

Send Inquiry

Product Description

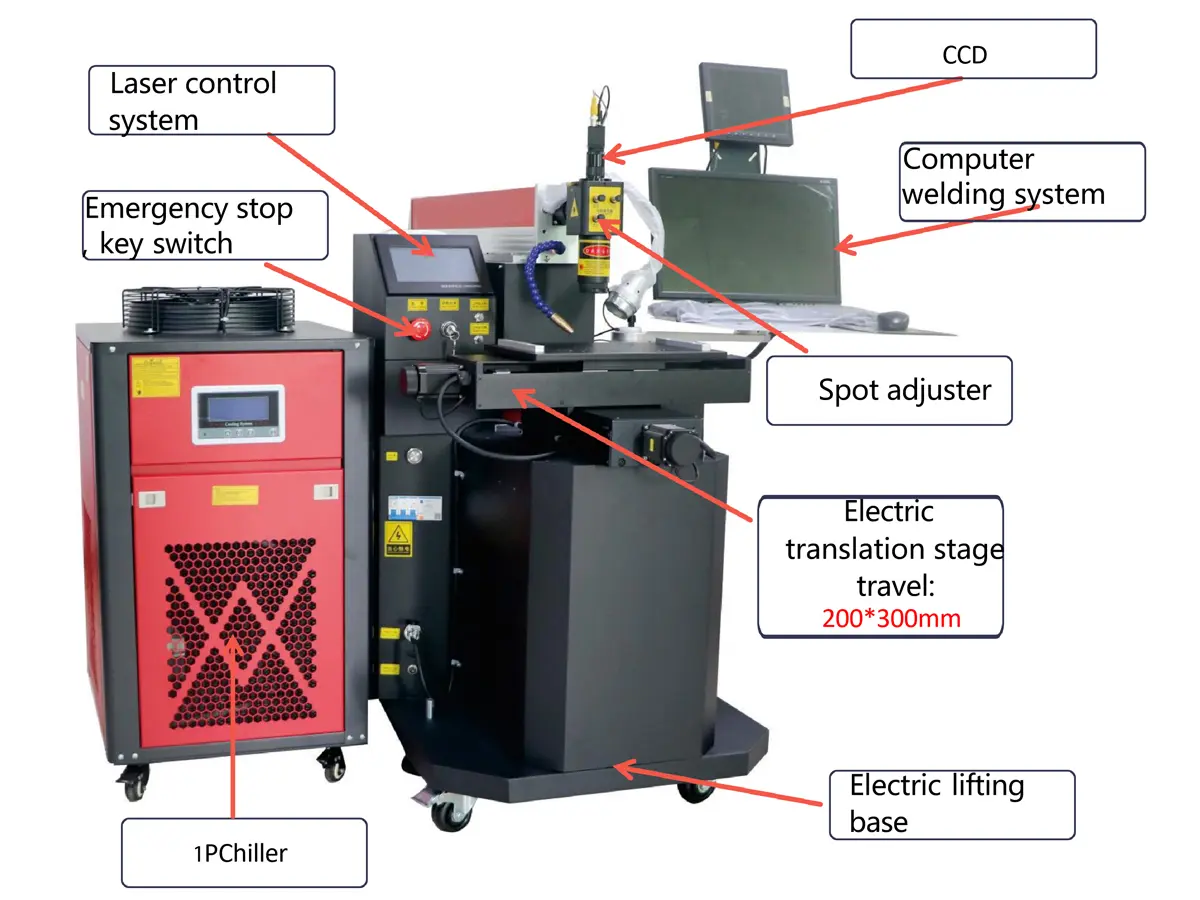

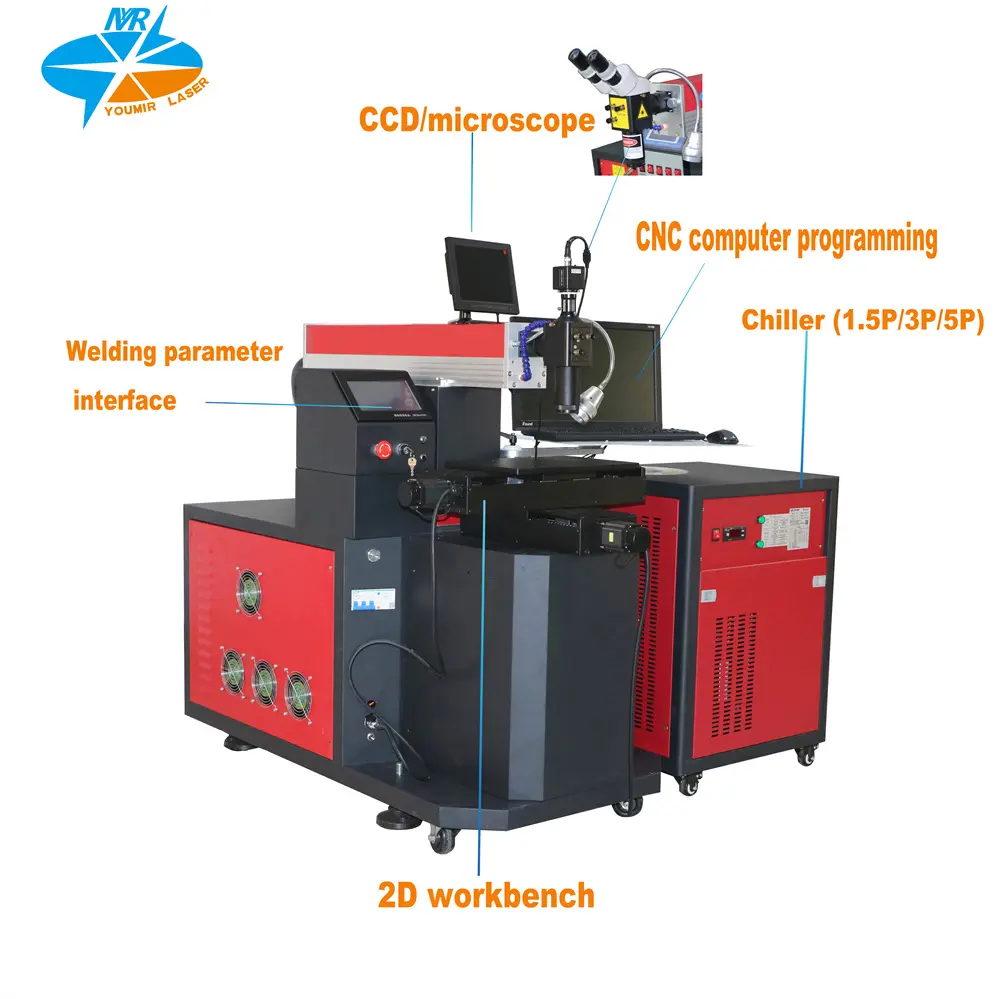

Device Configuration

Configuration list (200W)
1. A set of YAG laser
2. A set of laser power supply
3. One set of optical system
4. A set of lifting and moving optical fixtures
5. A set of computer welding system
6. One set of CCD
7. One set of 200*300 electric translation table
8. One 1P chiller
9. One set of host cabinet.

Configuration list (400W)
1. A set of YAG laser
2. A set of laser power supply
3. One set of optical system
4. A set of lifting and moving optical fixtures
5. A set of computer welding system
6. One set of CCD
7. One set of 200*300 electric translation table
8. One 3P chiller
9. One set of host cabinet.

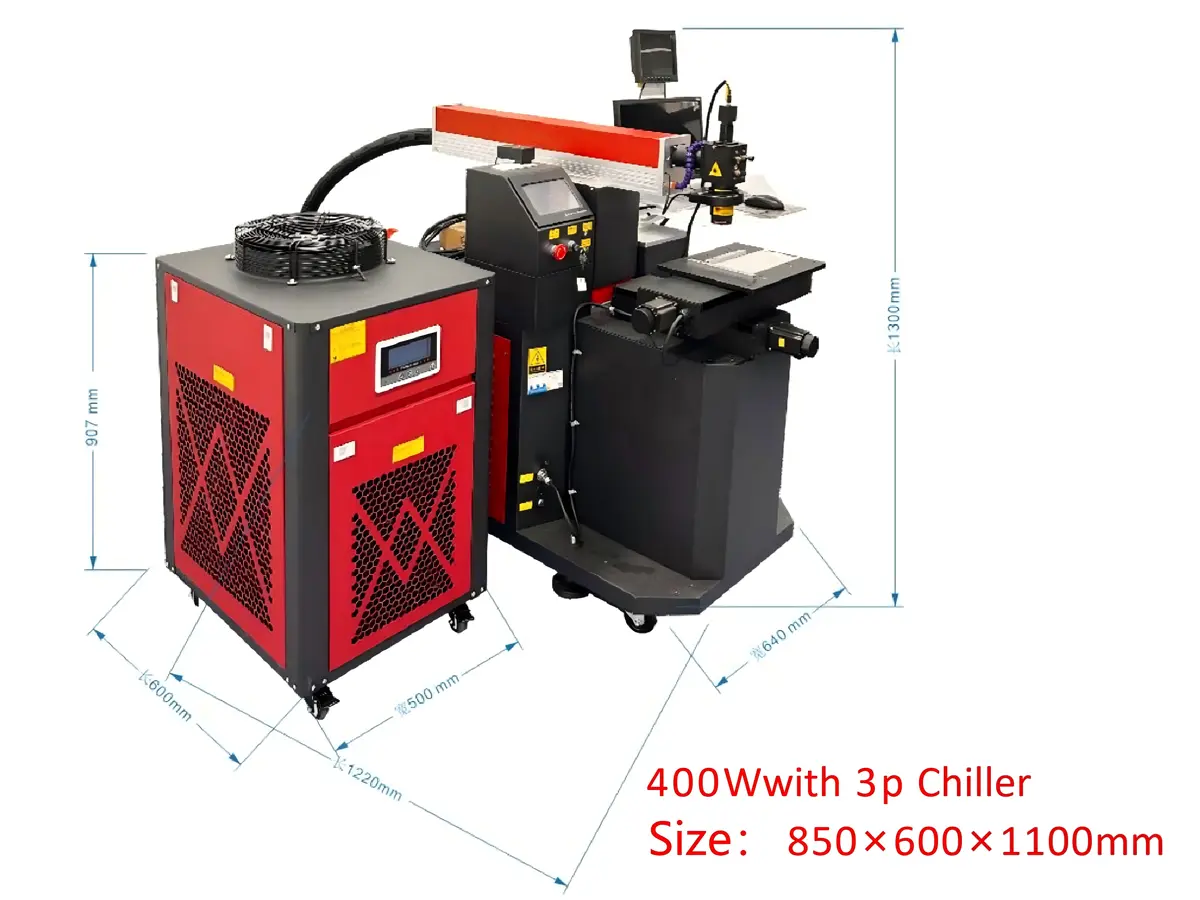

Product Size

Detailed Parameters

Model	YME-200W-V	YME-400W-V
Maximum laser power	200W	400W
Laser wavelength	1064nm
Focusing cavity reflector	Ceramic focusing cavity / Dual lamp spotlight cavity
Current adjustment range	60-150A
Laser frequency	1-20Hz	1-30Hz
Pulse Width	0.3-10Ms	0.3-10Ms
Light spot adjustment range	0.2-2mm	0.3-3mm
Aiming and positioning	CCD / Microscope (optional camera system)
Chiller cooling power	1P	3P
Rated power	8KW	12KW
Electricity demand	380V±5V 50Hz/40A 220V±5V 50Hz/60A	380V±5V 50Hz/40A
Workbench travel	200×300mm
Overall dimensions / net weight	Host: 1220×640×1300mm	Host: 1220×640×1300mm
Overall dimensions / net weight	Chiller: 600×500×930mm	Chiller: 600×500×930mm

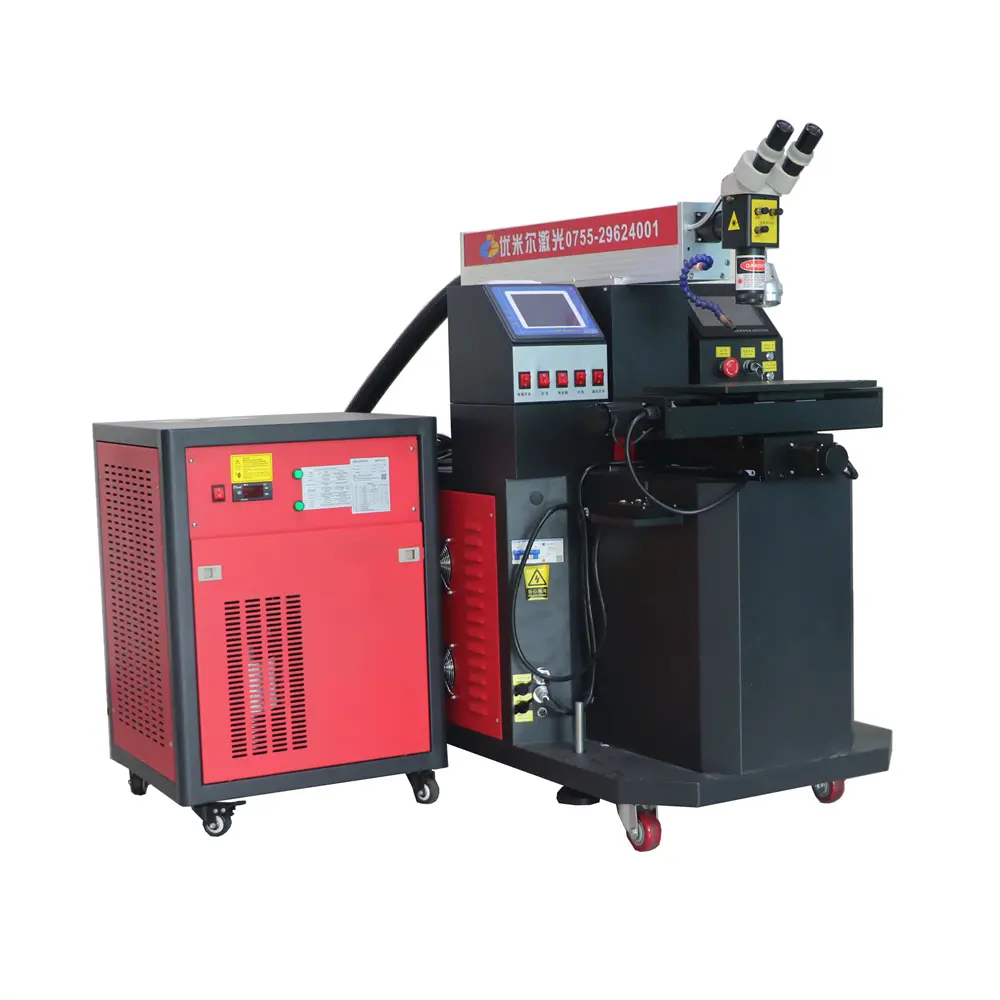

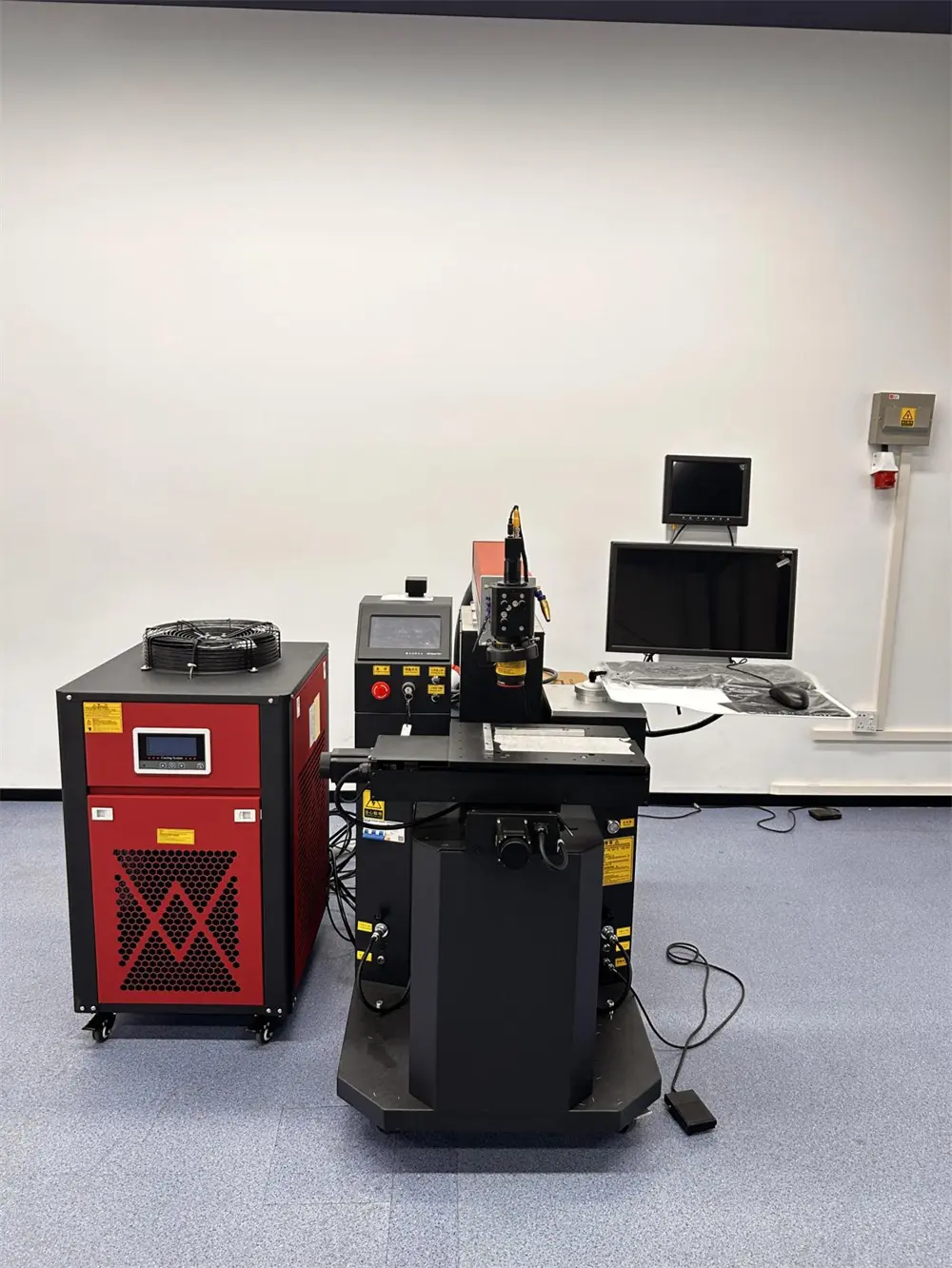

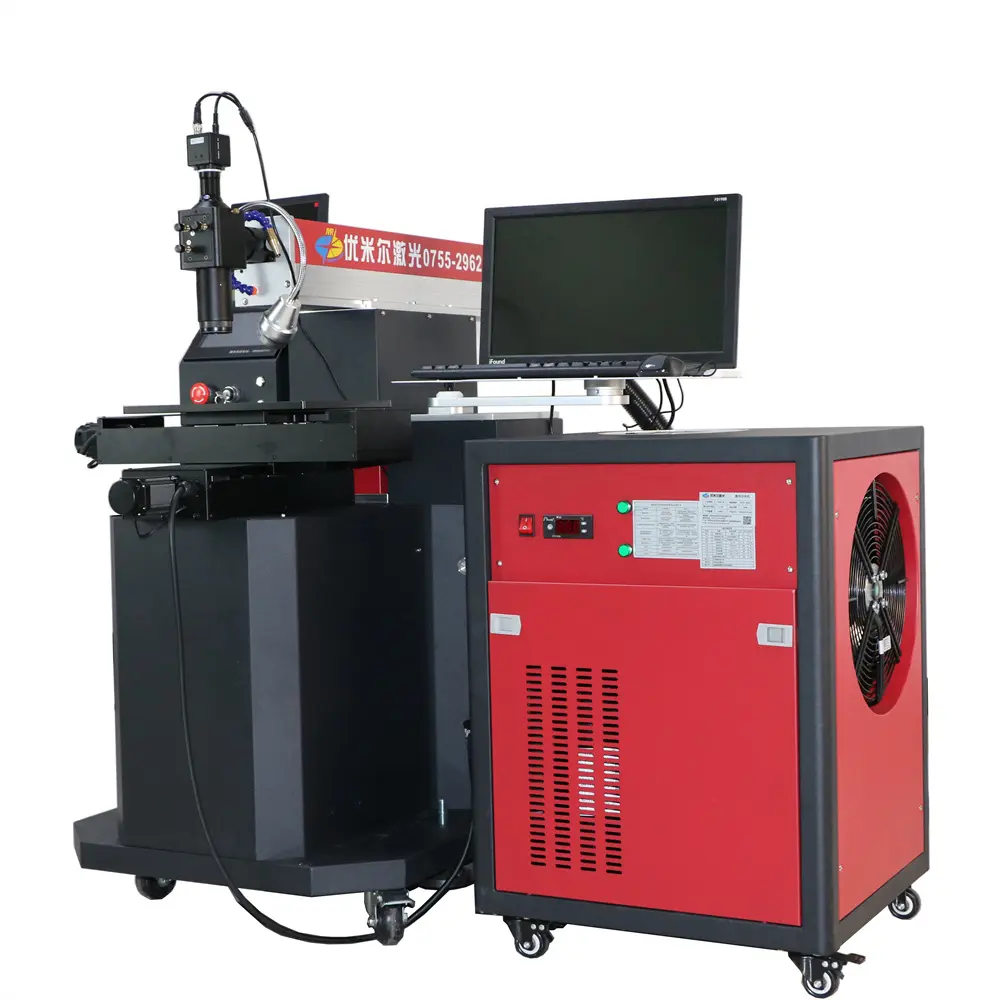

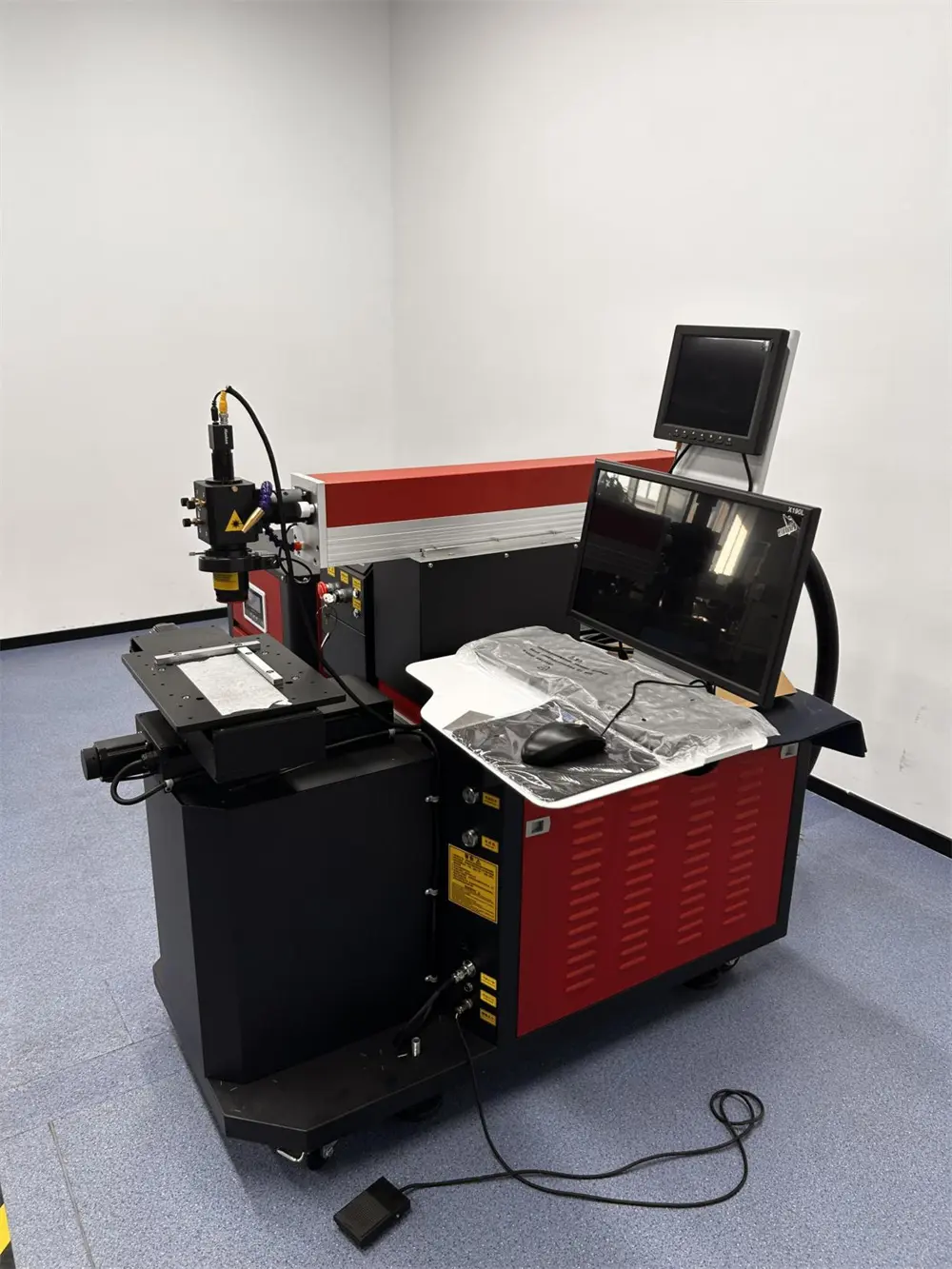

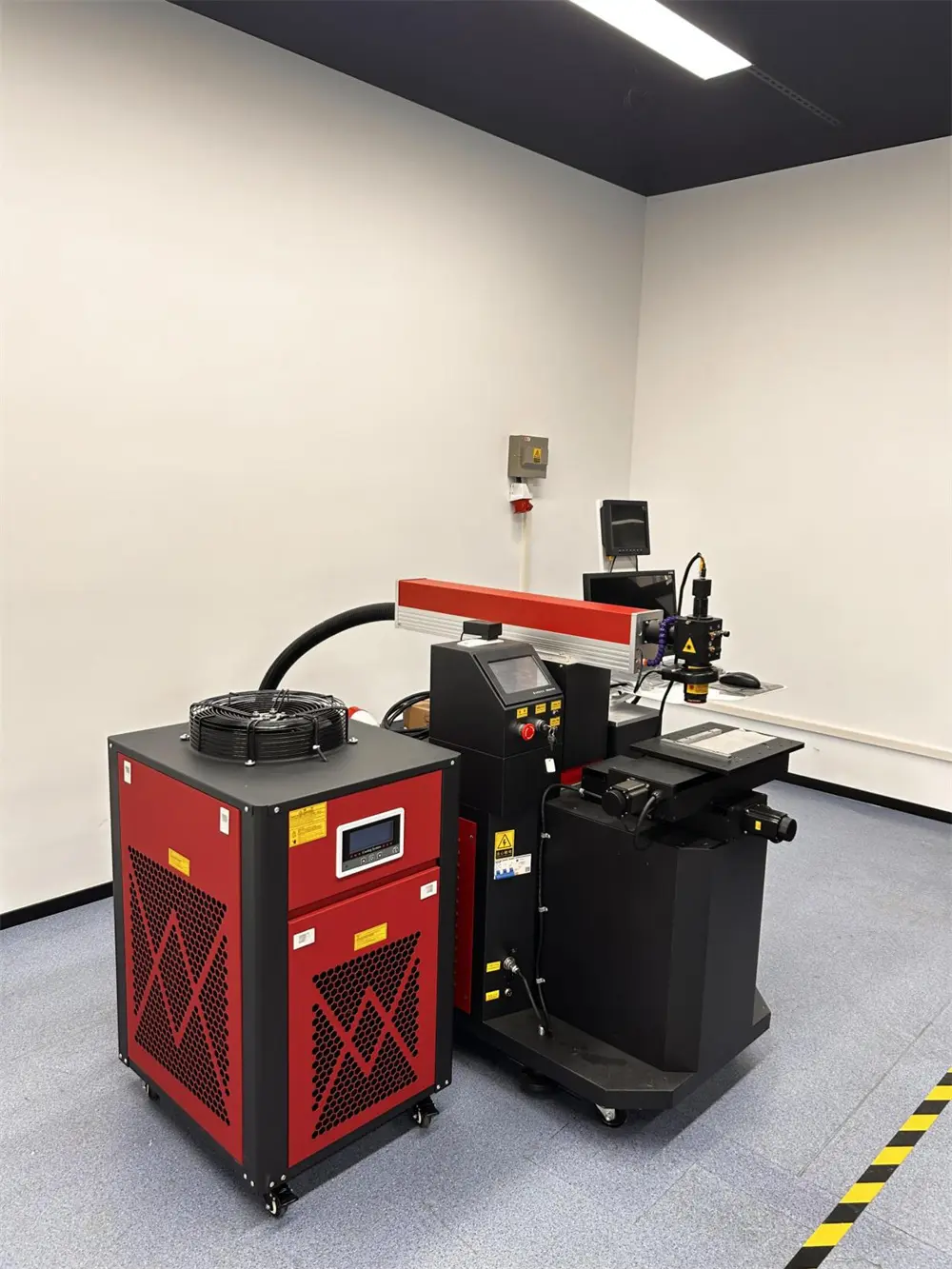

Machine Picture

Application Scope

It is suitable for welding microelectronic components, integrated circuit leads and other parts, high-power diodes, mobile phone batteries, mobile phone cases, electronic components, vacuum cups, stainless steel products, handicrafts, etc.

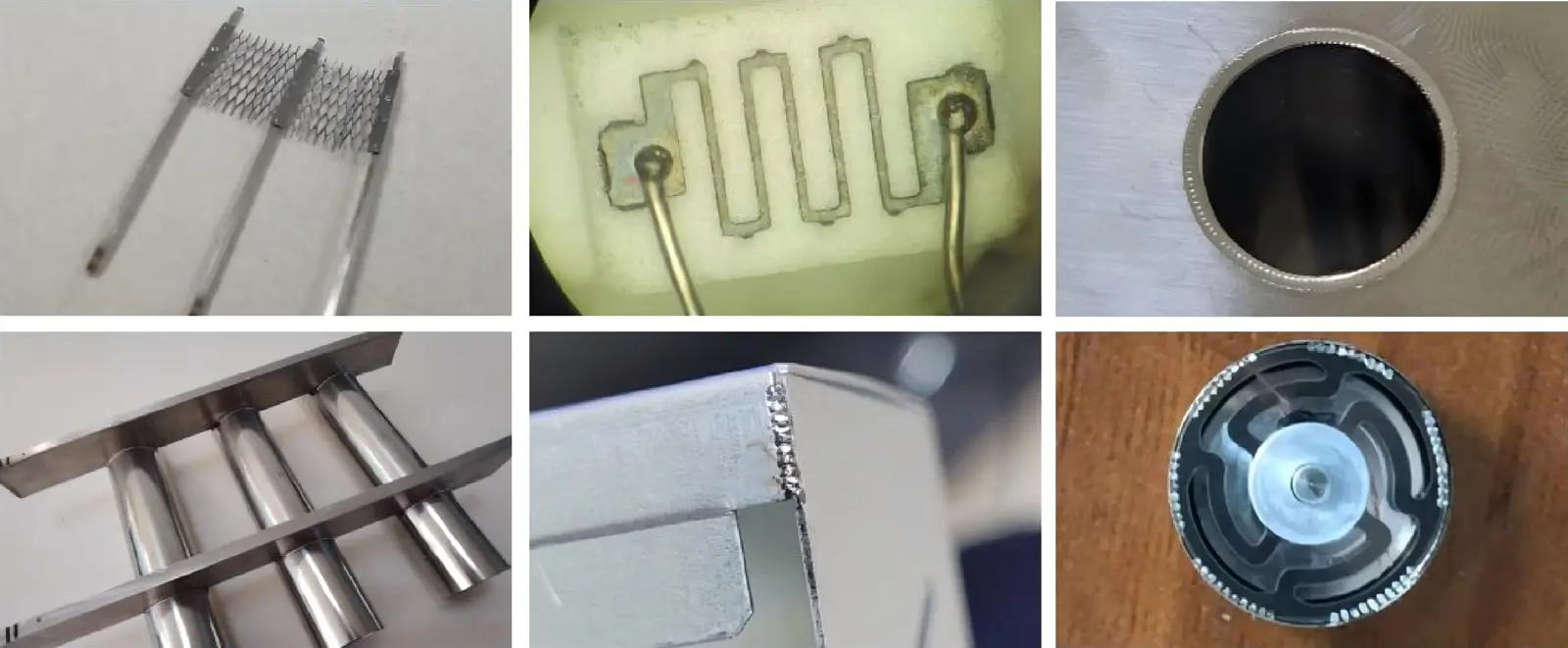

Some sample display

Frequently Asked Questions (FAQ)

QWhat is the main difference between the 200W and 400W laser welding models?

The 400W model provides higher laser output power, a larger frequency range (up to 30Hz), an expanded light spot adjustment range (0.3-3mm), and utilizes a 3P chiller for heavy-duty industrial tasks, while the 200W model uses a 1P chiller with a 0.2-2mm spot size suitable for finer micro-welding.

QWhat types of materials can this YAG laser welding machine process?

This system is ideal for high-precision welding on stainless steel, titanium, nickel, aluminum alloys, copper, gold, silver, and other metal components used in electronics, batteries, and medical devices.

QHow does the CCD and microscope system assist in precision welding?

The integrated CCD monitor and optical microscope provide real-time magnified positioning and visual inspection, ensuring micro-level alignment and defect-free welding for miniature electronics and delicate joints.

QWhat are the power and electrical supply requirements?

The 200W model supports both 380V±5V 50Hz/40A and 220V±5V 50Hz/60A power options, whereas the 400W model operates on 380V±5V 50Hz/40A industrial electrical supply with an 8KW to 12KW rated power draw.

QWhat cooling system is included with the machine?

Each machine includes a dedicated high-efficiency water chiller—a 1P chiller for the YME-200W-V and a 3P chiller for the YME-400W-V—to ensure continuous temperature stabilization and optimal laser output during prolonged operation.
