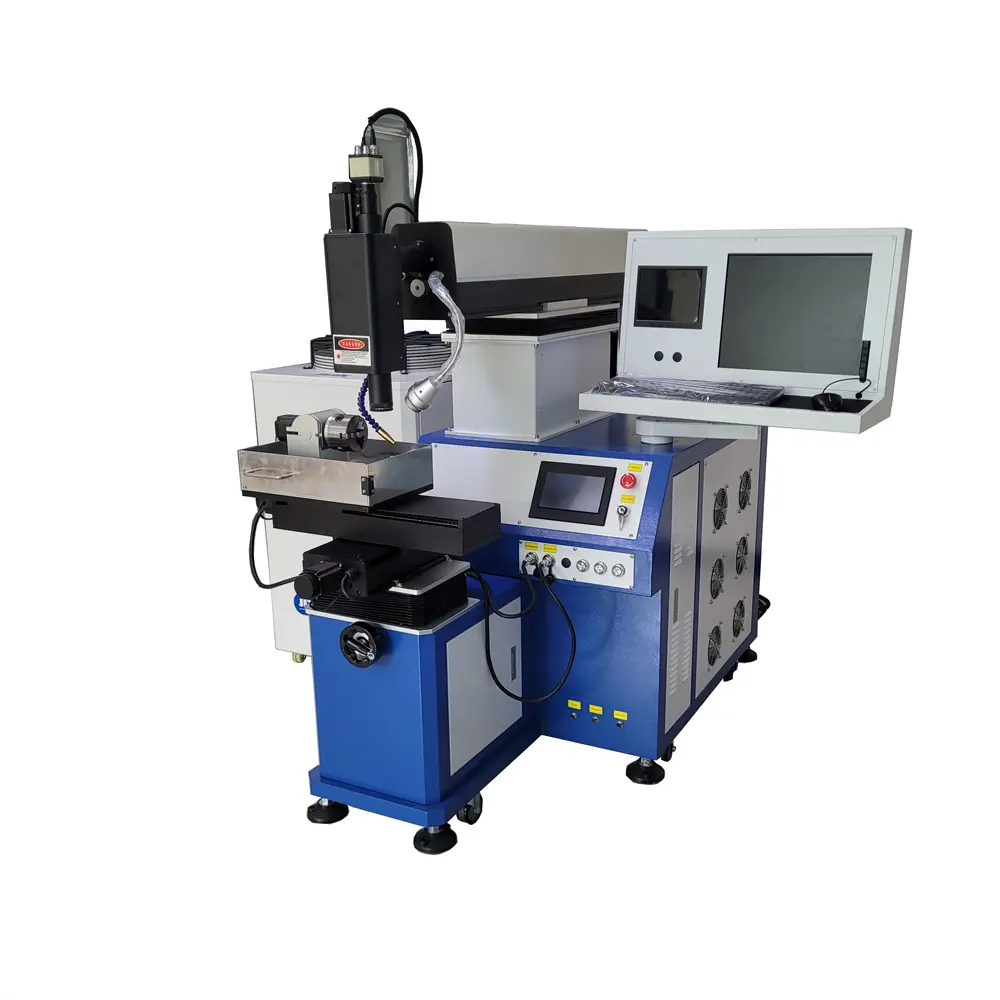

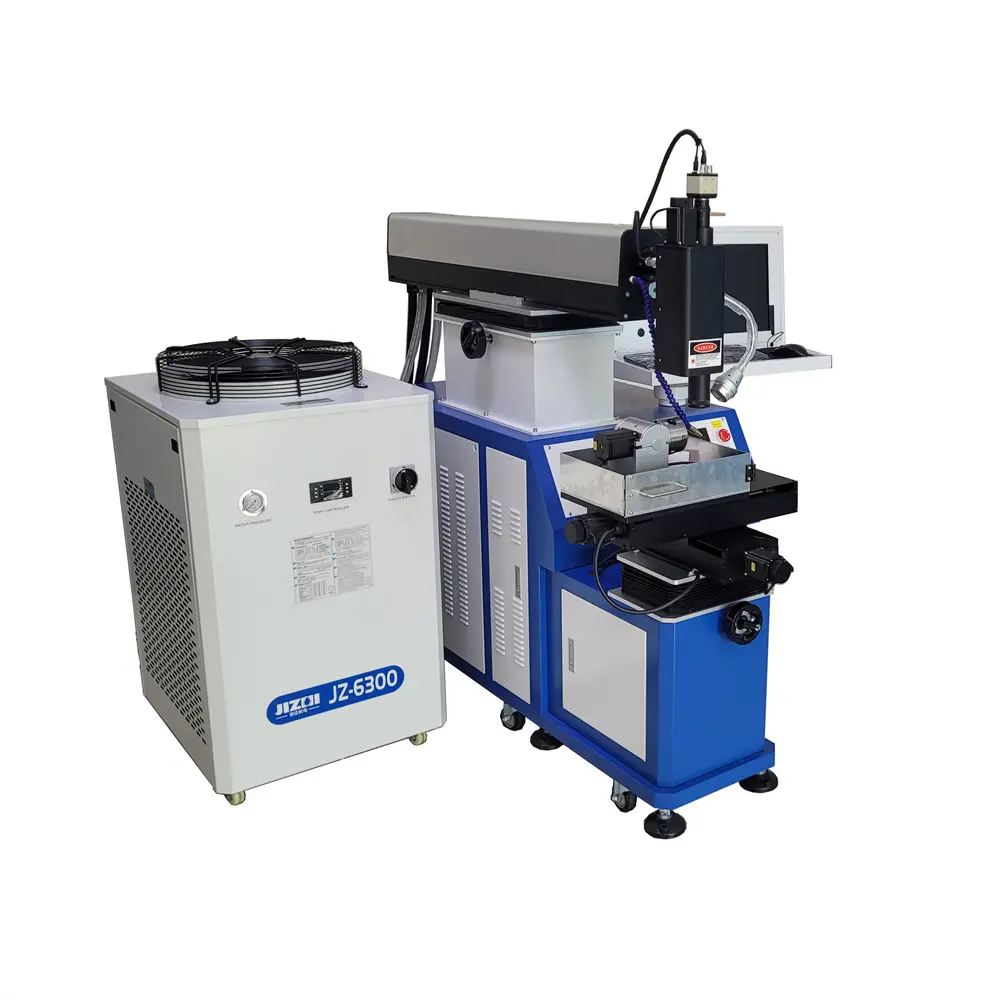

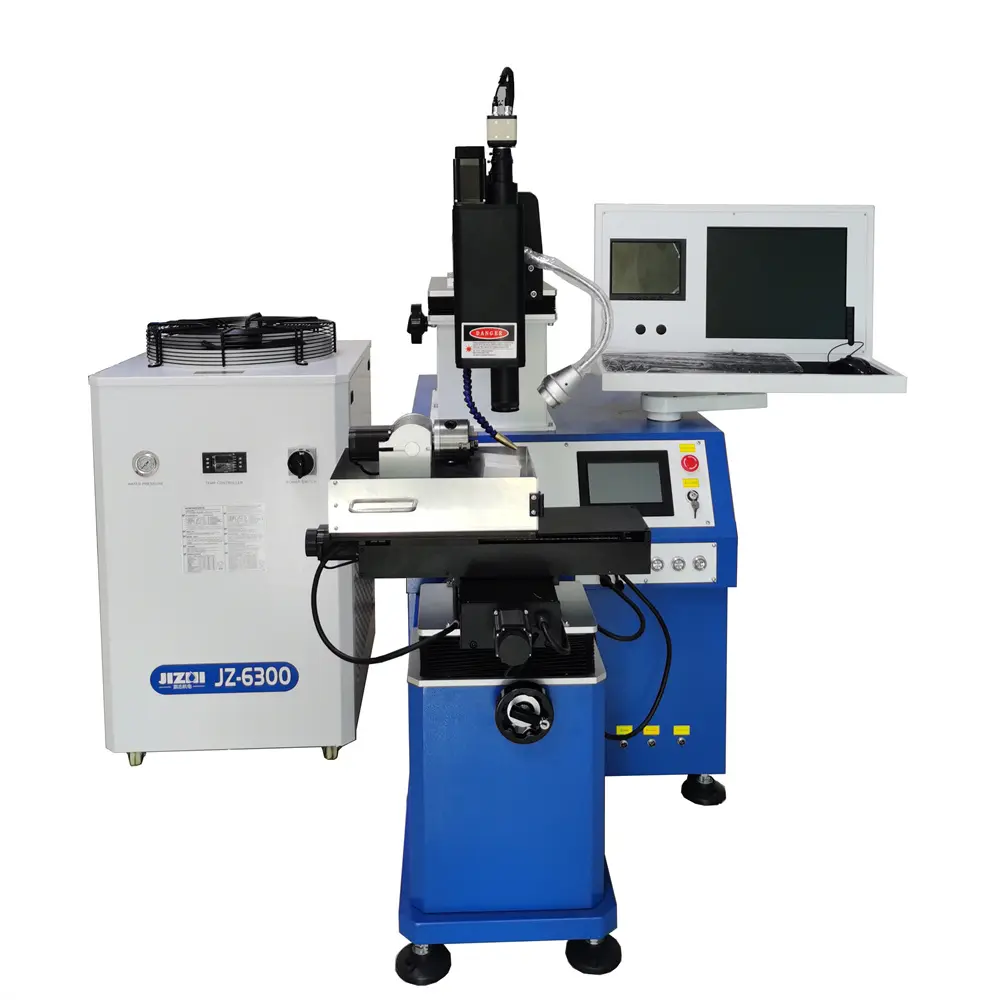

High-Quality 3 Axis Automatic Welding Machine Pricelist, Factory

1 / 3

High-Quality 3 Axis Automatic Welding Machine Pricelist, Factory

1. High-power laser power supply, segmented current waveform controllable, LCD screen interface, intuitive and convenient parameter setting.

2. Imported laser cavity, achieving large melting depth, high-frequency welding, scientific cooling distribution, efficient photoelectric conversion efficiency, and ultra-long service life.

3. Professional motion control software can complete automatic or semi-automatic spot welding, butt welding, stack welding, sealing welding, single point straight line, arc and other welding trajectories in the plane.

4. It can be used with automation equipment to greatly improve the equipment utilization rate of the equipment.

5.It has special welding control system and is highly stable. It is equiped with a screed. It can realize continuous welding of dots, lines, circles and arcs.

6.Small light dot design makes welding more precise

Send Inquiry

Product Description

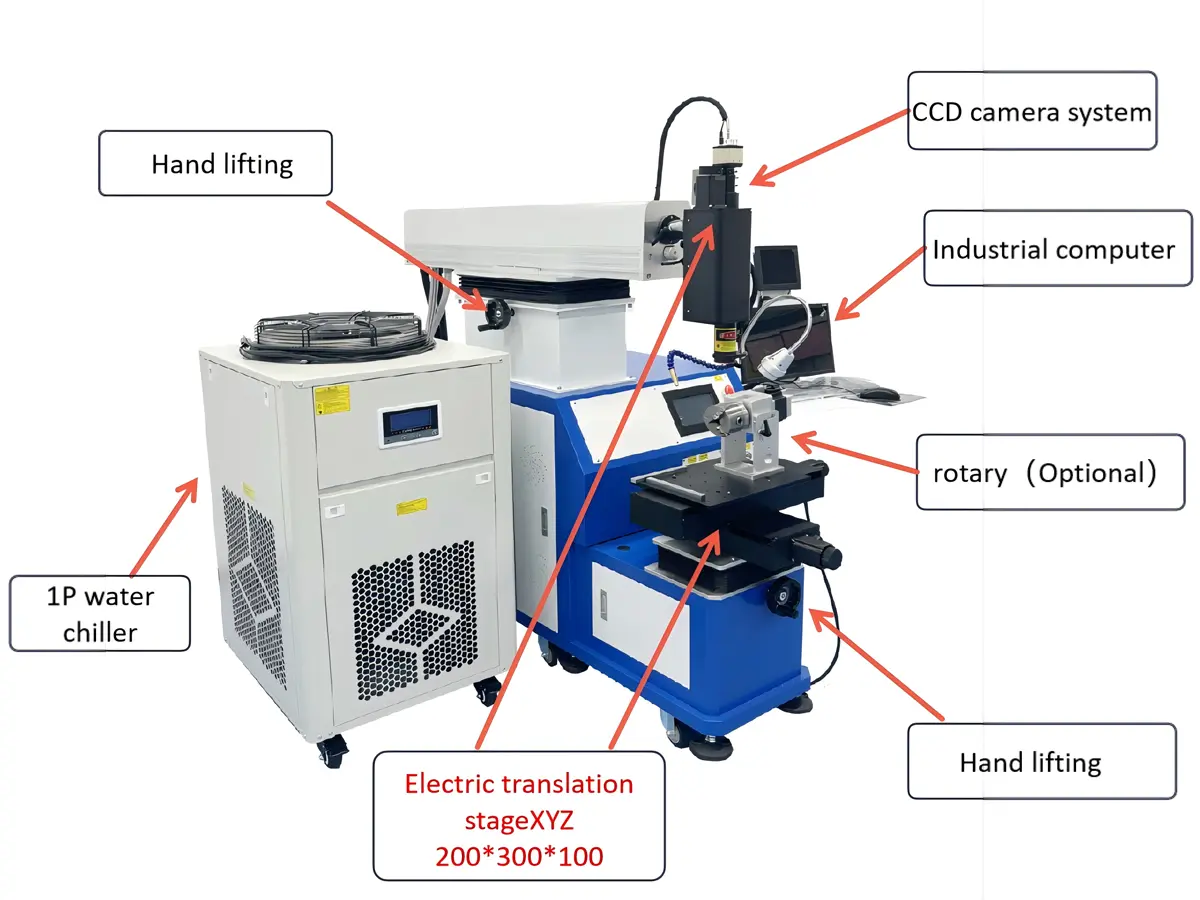

200W Configuration List

1. A set of YAG laser
2. A set of optical systems
3. A set of Laser power supply
4. A set of liftable and movable optical benches
5. A set of LCD display system
6. A set of refrigeration and water flow temperature detection system
7. A set of CCD camera system
8. A set of electric translation stages (200*300*100)
9. 1P water chiller
10. A set of 3600 control systems3600
11. A set of host cabinet

Detailed Parameters

Item	YMR-200W	YMR-400W
Maximum laser power	200W	400W
Laser wavelength	1064nm
condenser cavity reflector	Imported ceramic focusing cavity	Imported ceramic focusing cavity
Current adjustment range	60-150A
laser frequency	1-20Hz	1-30HZ
Pulse Width	0.3-10Ms	0.3-10Ms
Spot adjustment range	0.2-2mm	0.3-3mm
Aiming and positioning	Microscope (optional camera system)
Chiller cooling power	1P	3P
Rated power	8KW	12KW
Electricity demand	220V±5V 50Hz/60A	380V±5V 50Hz/60A
Three-dimensional load-bearing workbench travel	Three-dimensional load-bearing workbench travel
Three-dimensional load-bearing workbench load-bearing	100kg
Overall dimensions/net weight	host: 1850×950×1650mm	host: 1850×950×1650mm
	Water chiller: 750×500×1000mm	water chiller: 8506501100mm
	Table size: 450X350mm	Stroke: 200*300mm
	working bench: 550×400×700mm	working bench: 550×400×700mm

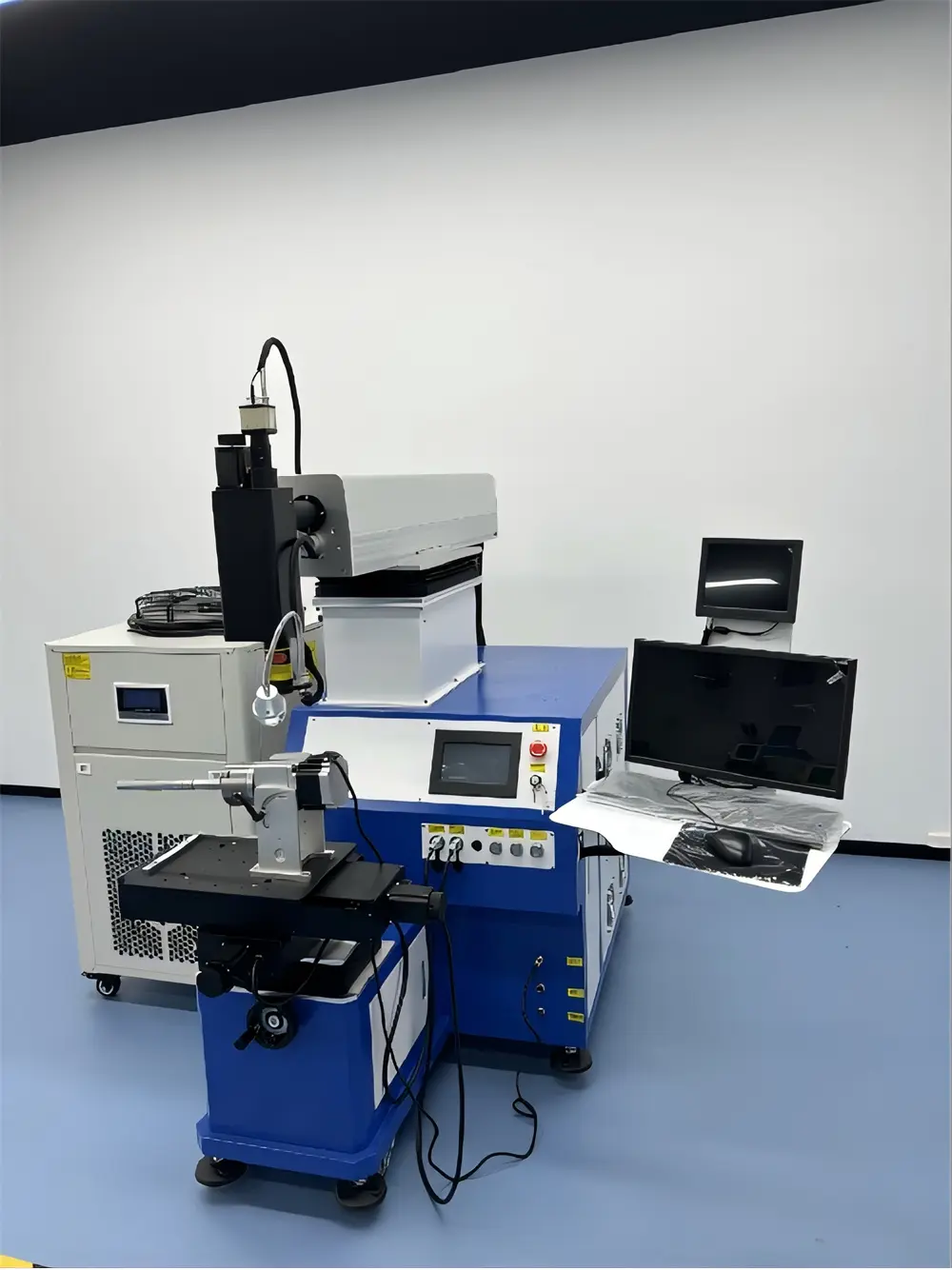

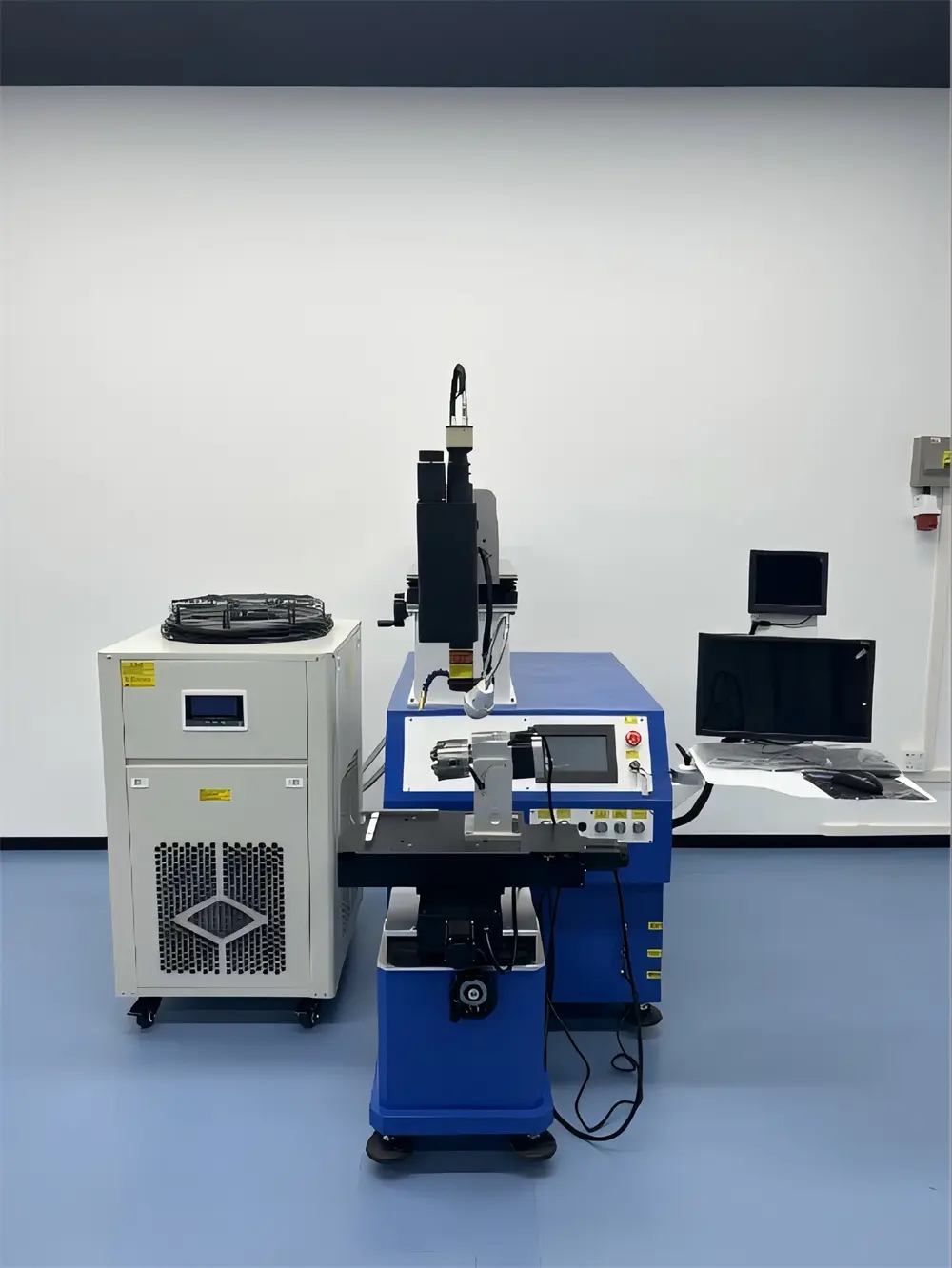

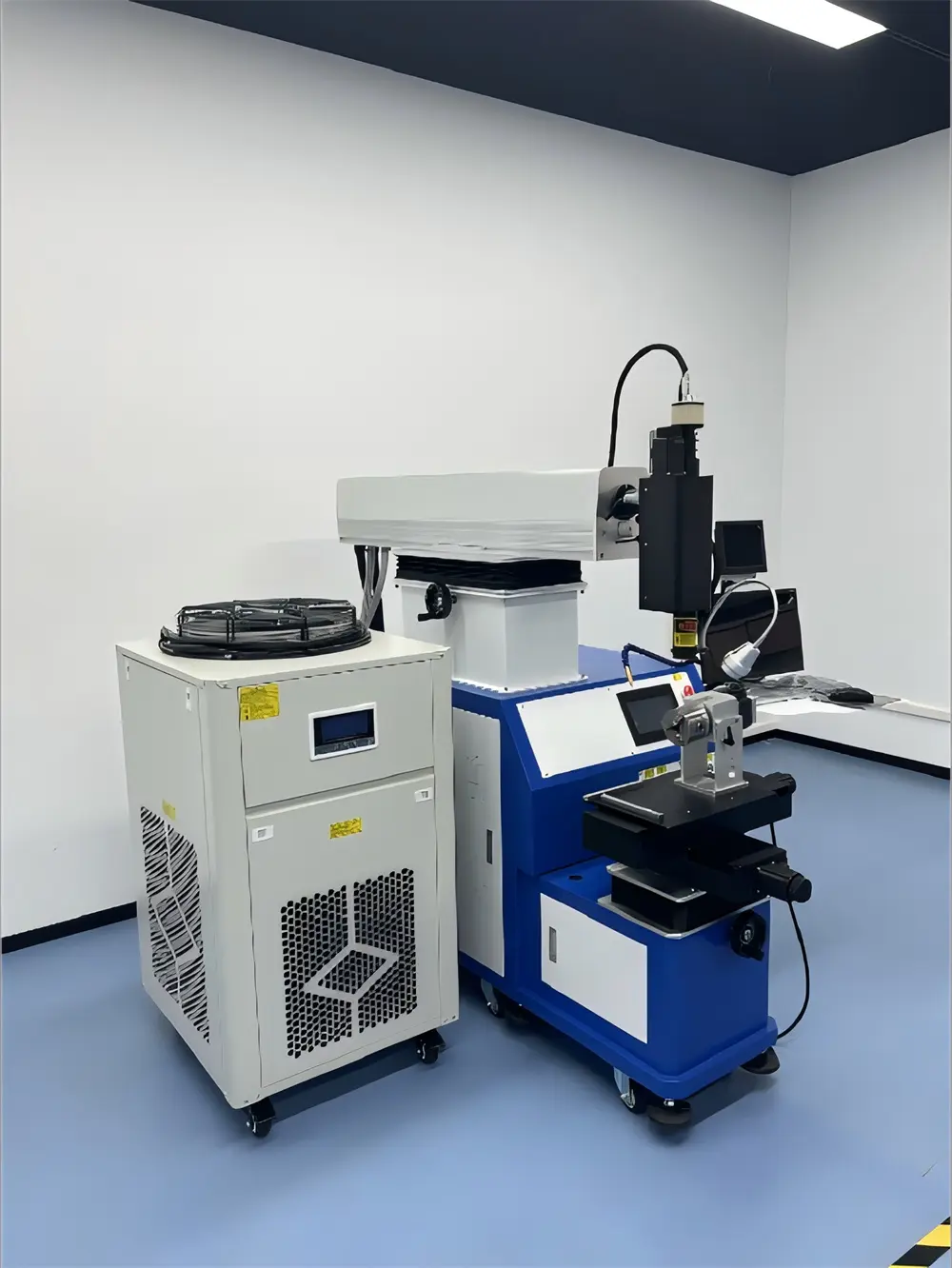

Machine Picture

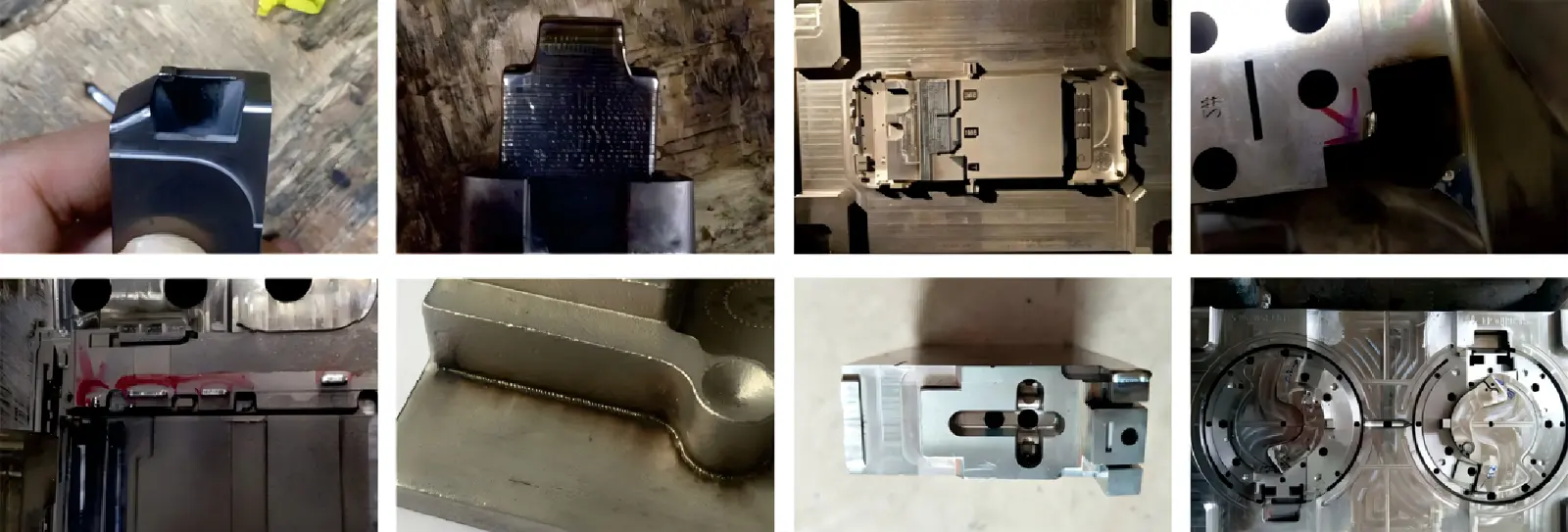

Application Scope

Suitable for repair and welding of large molds, mobile phone communications, jewelry and crafts, electronic components, watches, sensors and instruments, precision machinery, hardware, pneumatic vehicle parts, etc., and various metals and alloys.

Some sample display

Frequently Asked Questions (FAQ)

QWhat materials are suitable for this laser welding machine?

The system is capable of processing and welding a wide range of metals and alloys, including mold steels, stainless steel, gold, silver, titanium, copper, and precision hardware alloys.

QWhat is the main difference between the 200W and 400W models?

The 200W model operates on a single-phase 220V power supply with a 1P chiller, suitable for delicate repairs and small to medium components. The 400W version provides higher penetration, faster frequency up to 30Hz, and uses 380V power with a 3P chiller for continuous high-load work.

QHow does the machine ensure precision during spot welding?

Positioning is achieved through high-magnification stereomicroscopes or the optional CCD camera monitoring system, supporting a laser spot adjustment range down to 0.2mm for micro-precision operations.

QWhat is the load-bearing capacity of the three-dimensional working bench?

The heavy-duty 3D workbench is designed to support parts and large industrial molds weighing up to 100 kg, ensuring stable operations without structural deflection.

QHow does the cooling system protect the optical and laser components?

The included industrial water chiller continuously controls water temperature and flow. Built-in sensors provide automated monitoring to prevent overheating and maintain consistent laser pulse stability.

QIs special training required to operate this welding system?

The machine features an intuitive 3600 control panel and LCD interface. Operators with basic industrial tool knowledge can typically master routine parameter adjustments and mold repair procedures rapidly.
