High-Quality Integrated Boom Laser Welding Machine Factory, Quotes

1 / 5

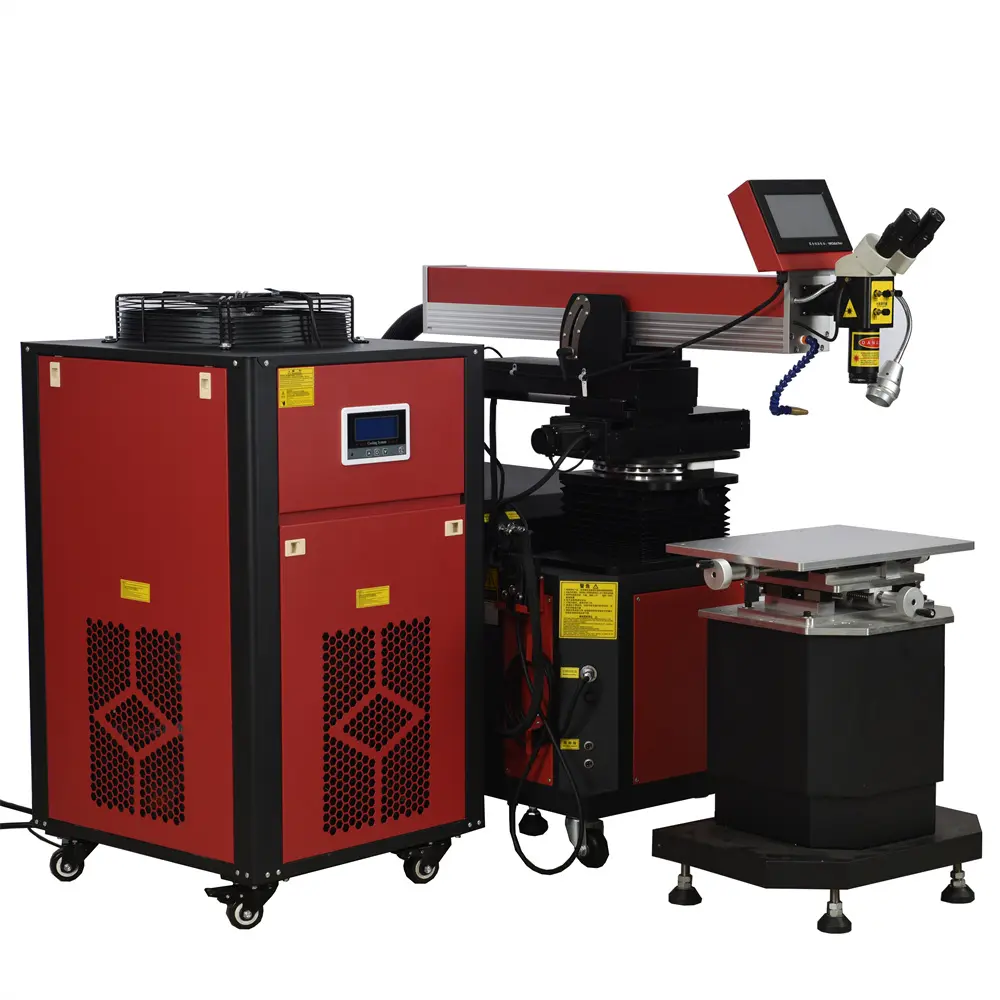

High-Quality Integrated Boom Laser Welding Machine Factory, Quotes

1. The core part adopts imported ceramic focusing cavity, which is corrosion- resistant, high-temperature-resistant and has a long service life;

2. The world's most advanced automatic shading system is adopted to eliminate eye irritation during work;

3. The laser head can rotate 360°, the super-large work surface is suitable for mold placement, and the electric workbench is raised and lowered;

4. The touch screen interface is simple and convenient to operate;

5. Equipped with a gas protection system, it effectively protects the product from argon protection during the welding process, maintains the original color of the product and ensures the welding quality;

6. The welding energy is high, and it can melt thicker welding wires than general welding machines, and the welding performance is stable.

Send Inquiry

Product Description

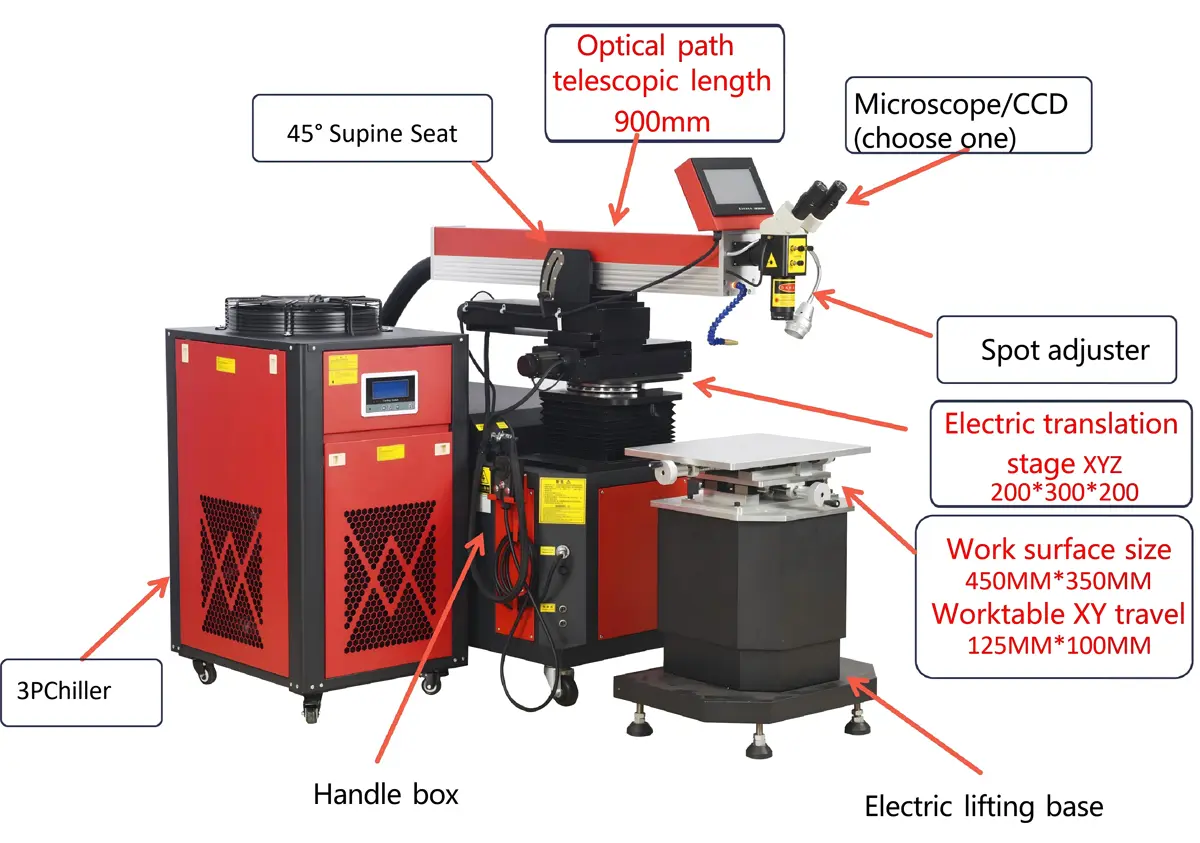

Device Configuration

Configuration list (200W)

1. A set of YAG laser source

2. One set of optical system

3. A set of lifting and moving optical fixtures

4. One set of LCD display system

5. A set of refrigeration and water flow and temperature detection system

6. A microscope/CCD camera system

7. A set of workbench

8. One 1.5P chiller

9. One set of host cabinet

Configuration list (400W)

1. A set of YAG laser source

2. One set of optical system

3. A set of lifting and moving optical fixtures

4. One set of LCD display system

5. A set of refrigeration and water flow and temperature detection system

6. A microscope/CCD camera system

7. A set of workbench

8. One 3P chiller

9. One set of host cabinet

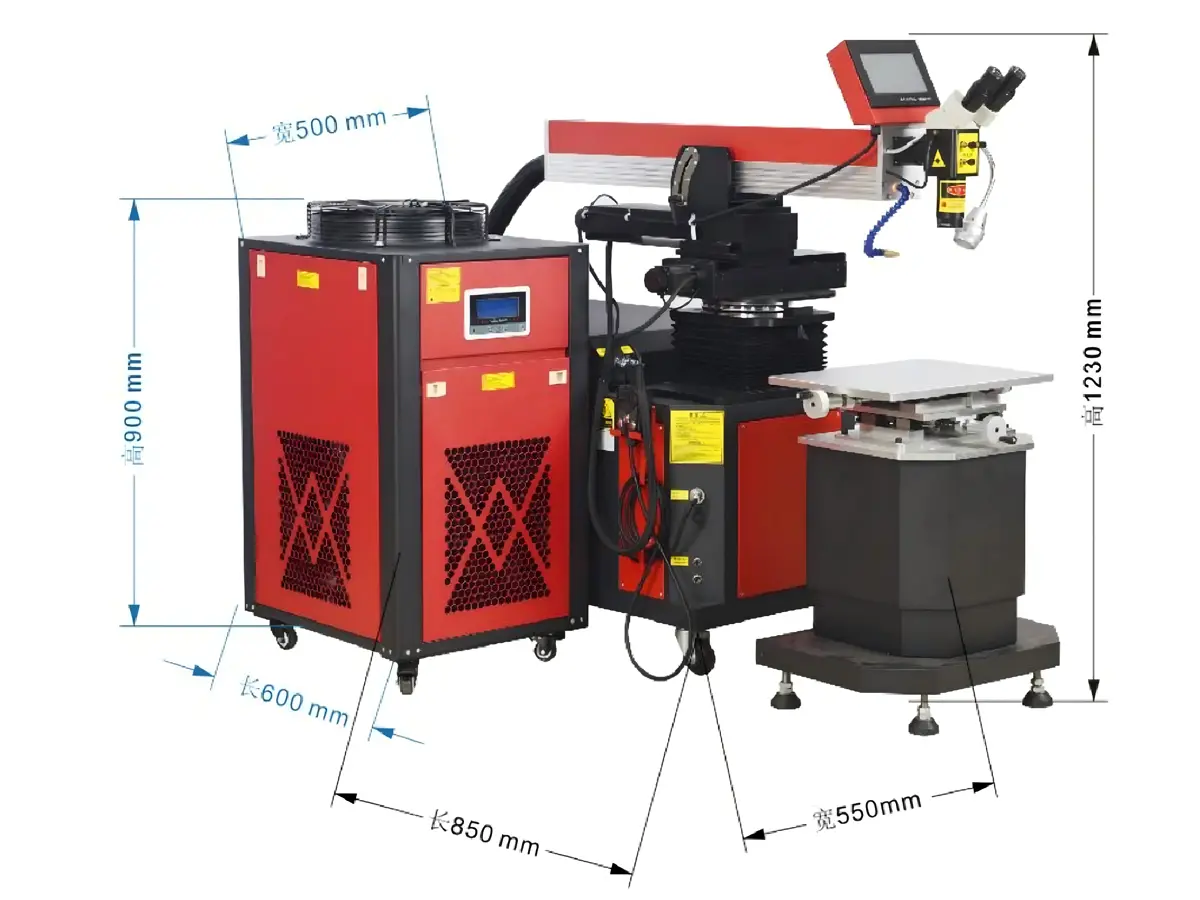

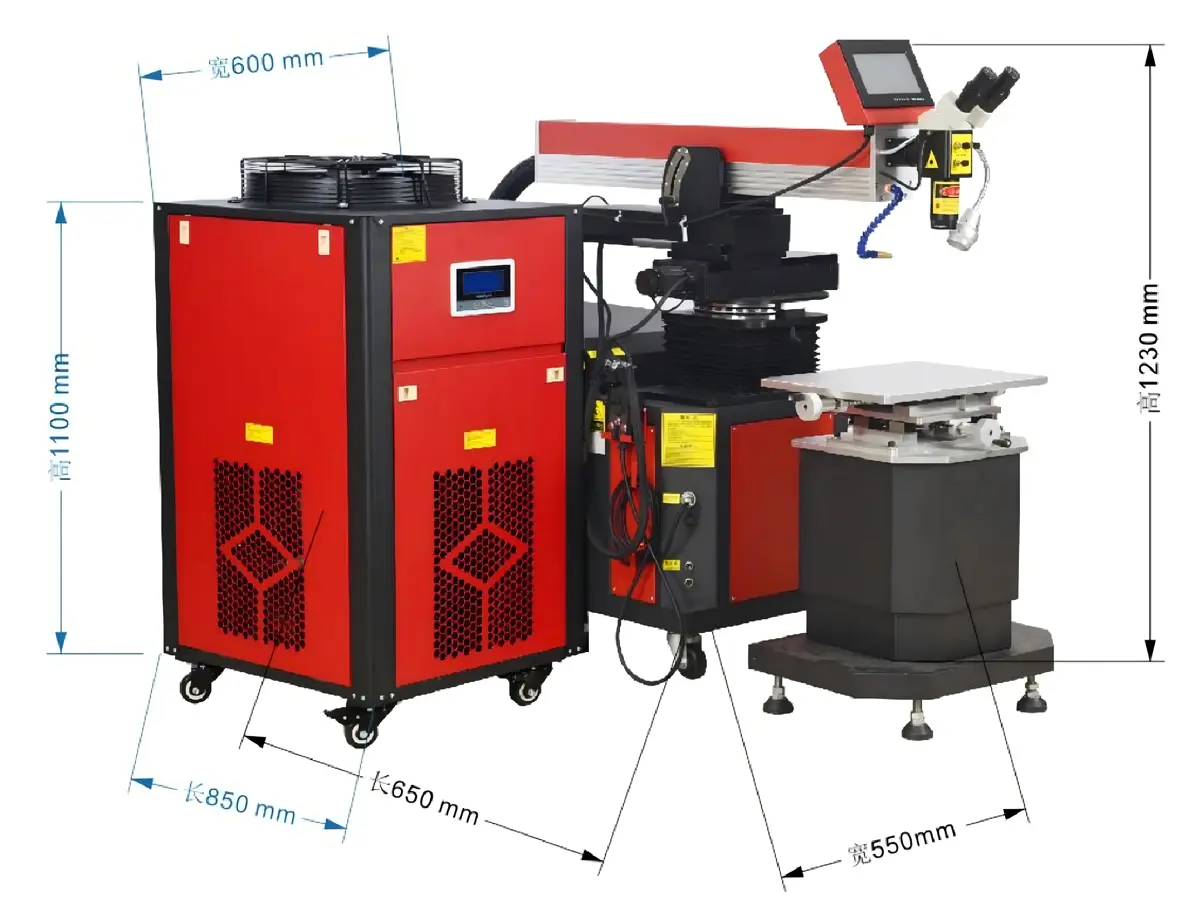

Product size

Detailed parameters

Modle	YME-200W-260	YME-400W-260
Maximum laser power	200W	400W
Laser wavelength	1064nm
Focusing cavity reflector	Imported ceramic focusing cavity
Current adjustment range	60-150A
Laser frequency	1-20Hz	1-30HZ
Pulse width	0.3-10Ms	0.3-10Ms
Light spot adjustment range	0.2-2mm	0.2-3mm
Aiming and positioning	Microscope (optional camera system)
Chiller cooling power	1.5P	3P
Rated power	8KW	12KW
electricity demand	380V±5V 50Hz/40A 220V±5V 50Hz/60A	380V±5V 50Hz/40A
Three-dimensional load-bearing worktable travel	Three-dimensional load-bearing worktable travel
Three-dimensional load-bearing workbench travel load	100kg
Overall dimensions/ net weight	Host: 1650×550×1230mm	Host: 1650×550×1230mm
	Chiller: 750×500×900mm	Chiller: 850×600×1100mm
	Table size: 450X300mm	Table size: 125X100mm
	Three-dimensional load-bearing workbench: 550×400×700mm	Three-dimensional load-bearing workbench: 550×400×700mm

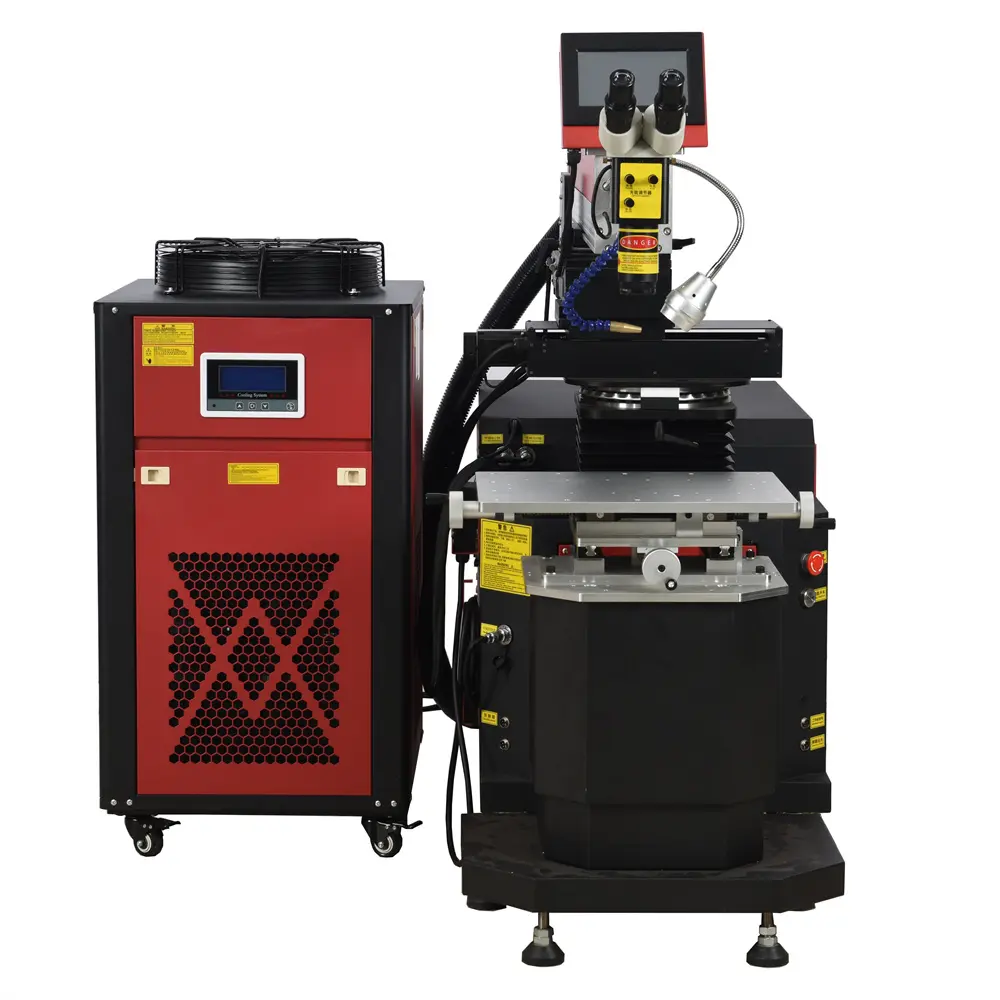

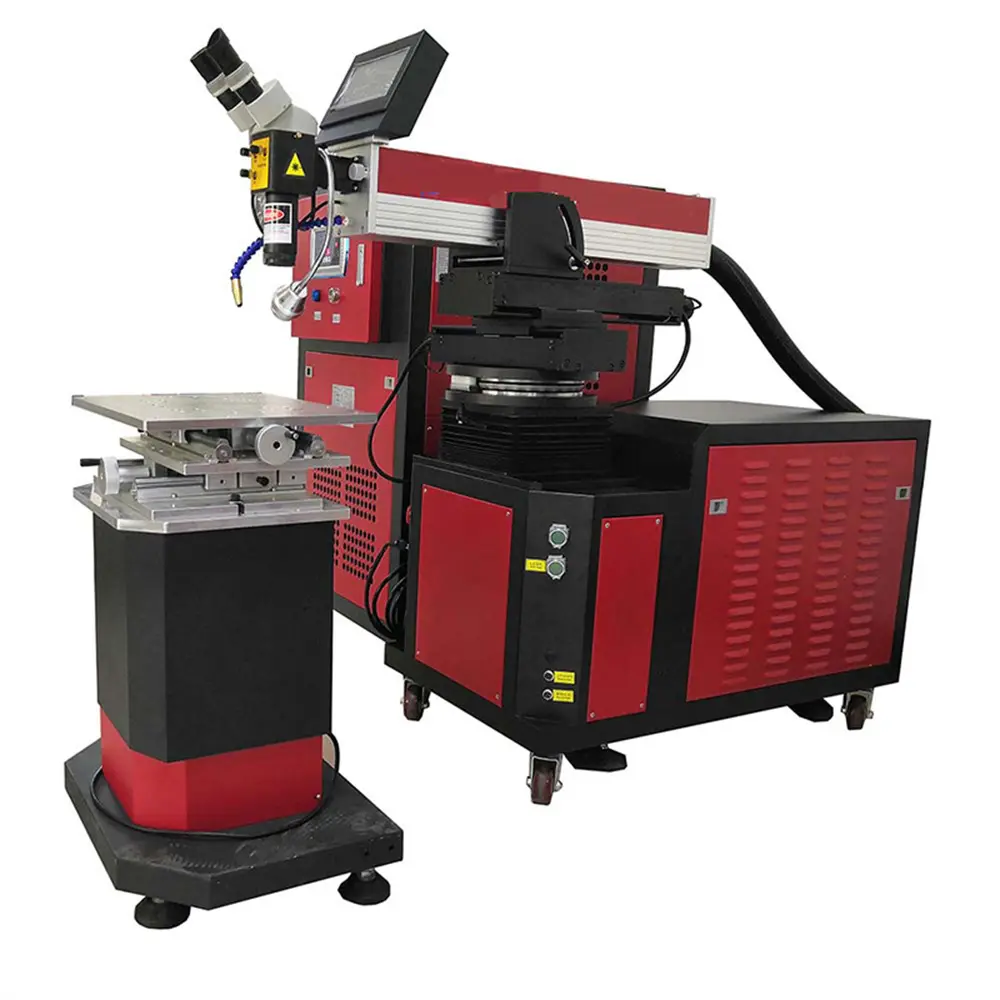

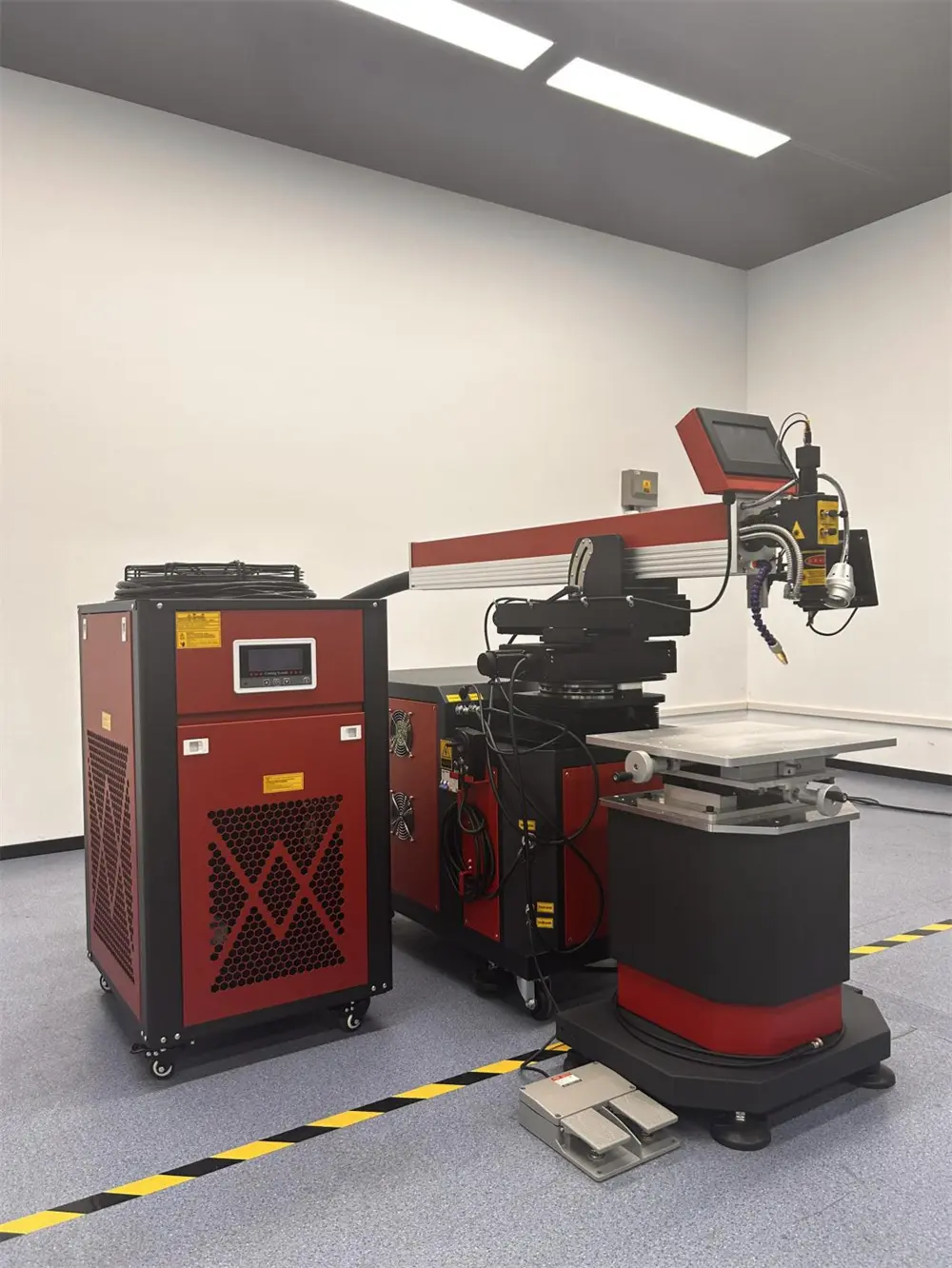

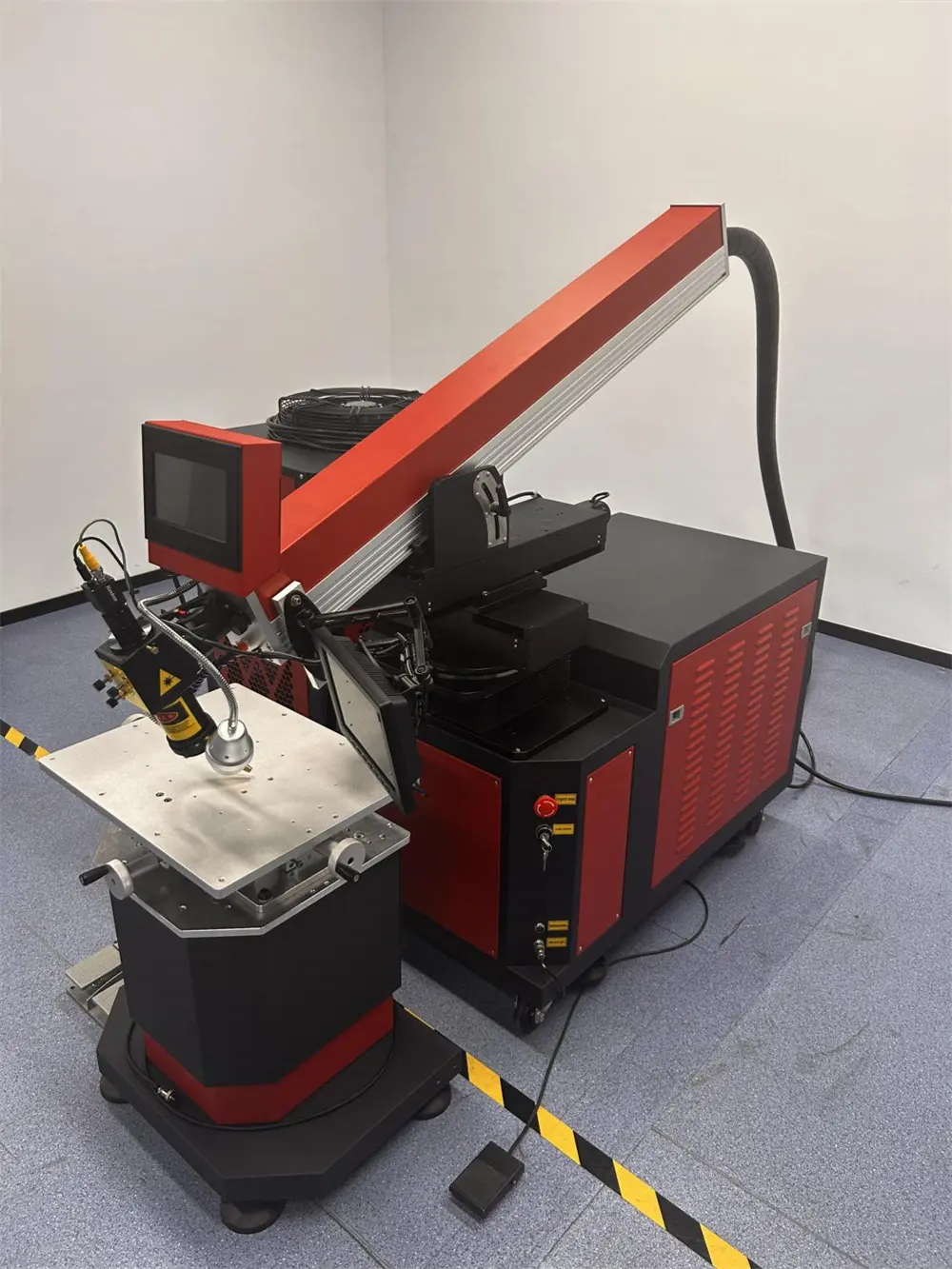

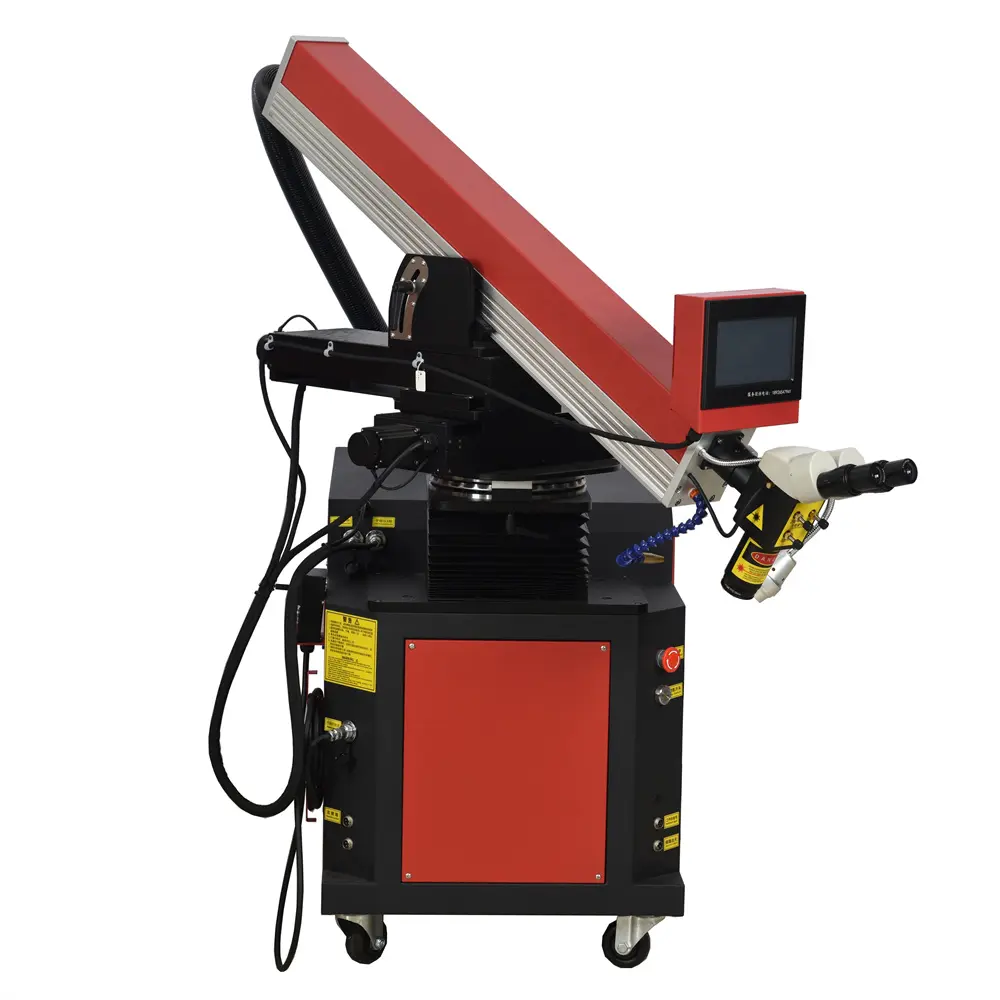

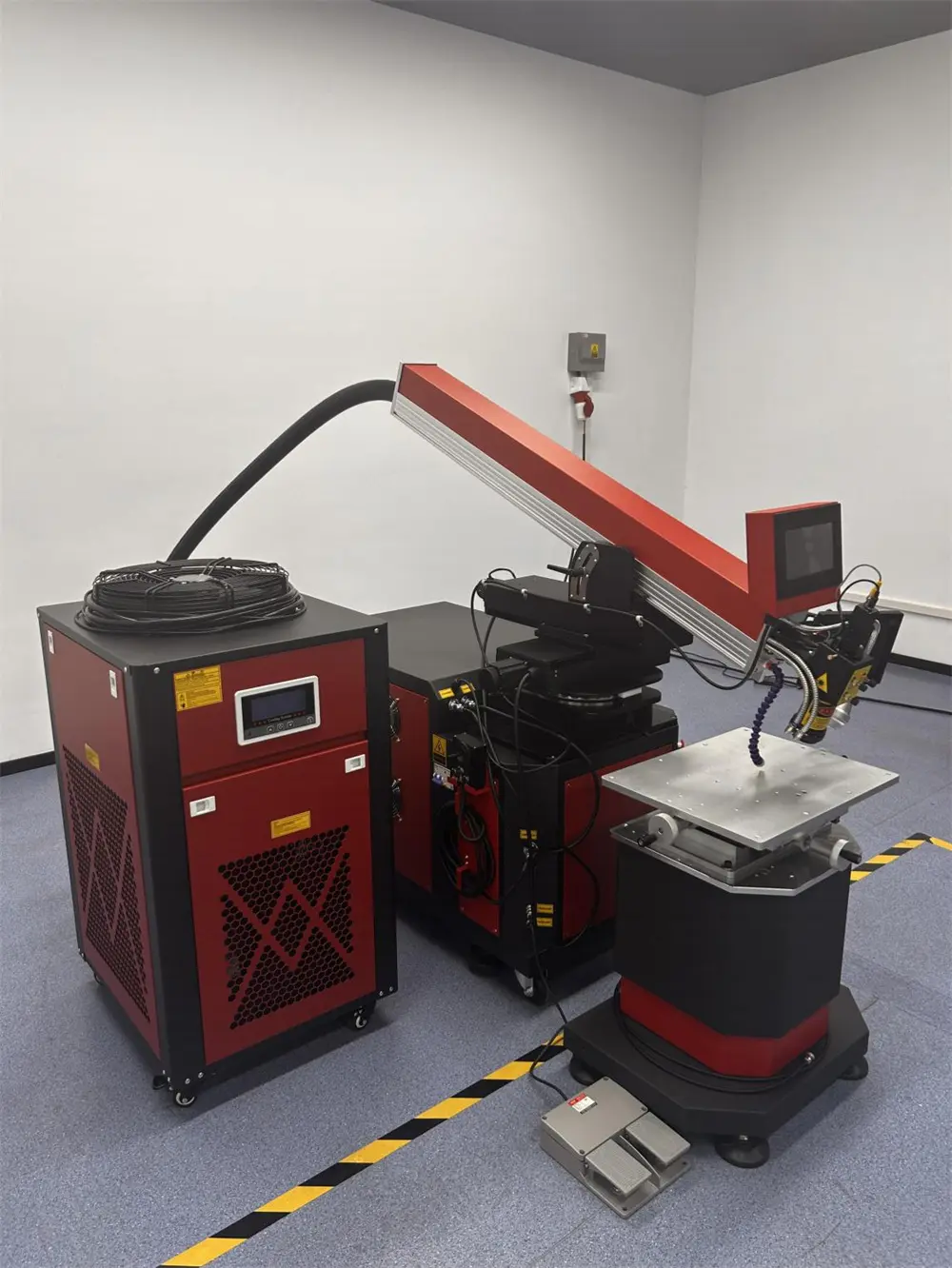

Machine picture

Application scope

Suitable for large mold repair welding, mobile phone communications, jewelry crafts, electronic components, clocks, sensors, precision machinery, hardware, gas and vehicle parts, etc., various metals and alloys.

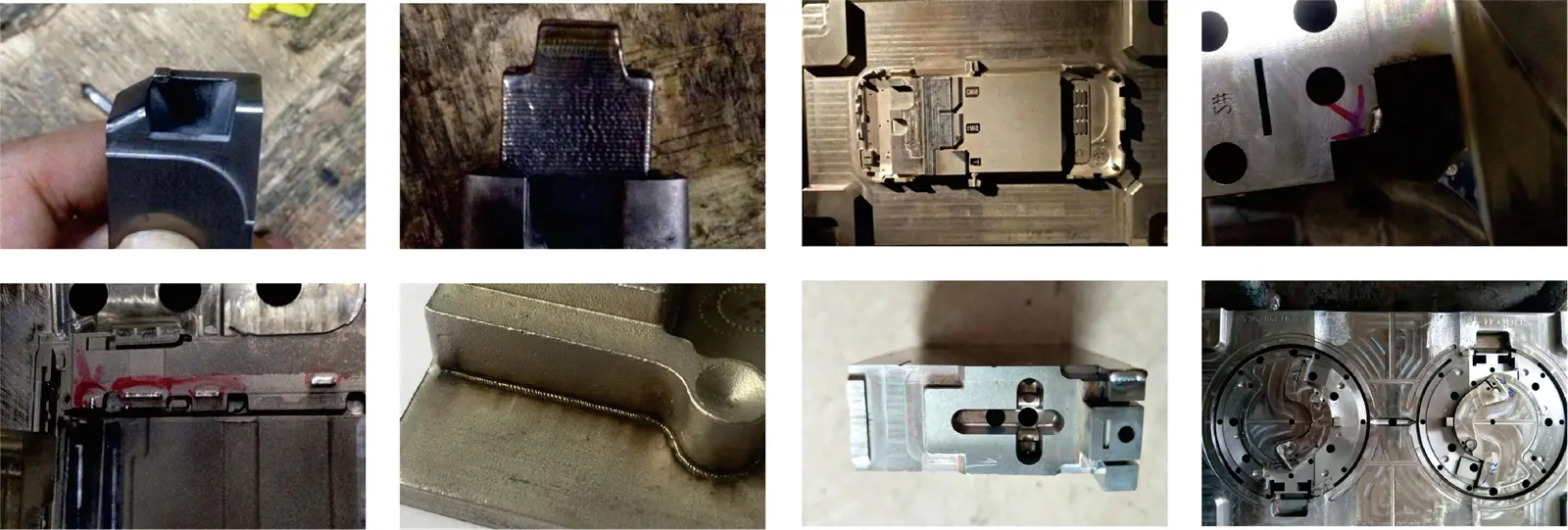

Some sample display

Frequently Asked Questions

What materials can this laser welding machine process?

It is engineered for processing and repairing various metals and alloys across industries such as mold repair, hardware, automotive parts, jewelry, precision instruments, and electronics.

What is the difference between the 200W and 400W models?

The 200W model (YME-200W-260) features an 8KW rated power, a 1-20Hz laser frequency, a 0.2-2mm light spot range, and a 1.5P chiller. The 400W model (YME-400W-260) provides up to 12KW rated power, a wider 1-30Hz frequency range, a larger 0.2-3mm light spot, and a high-capacity 3P chiller for heavier repair tasks.

What aiming and observation methods are available?

The machine standardly comes equipped with a high-definition microscope for precision alignment, with an optional CCD camera display system available for ergonomic digital monitoring.

What are the electrical power supply requirements?

The 200W model supports both 380V±5V 50Hz/40A and 220V±5V 50Hz/60A. The 400W model requires a 380V±5V 50Hz/40A power connection.

What is the maximum weight capacity of the 3D worktable?

The integrated three-dimensional load-bearing workbench can support workpieces and molds weighing up to 100 kg.

What type of laser source and cavity reflector does the system use?

The system utilizes a stable 1064nm YAG laser source paired with an imported ceramic focusing cavity to deliver optimal beam quality, efficiency, and durability.
