High-Quality Open Laser Welding Machine Pricelist, Factories

1 / 4

High-Quality Open Laser Welding Machine Pricelist, Factories

1. Using imported ceramic focusing cavity, it has high reflectivity, strong energy and long service life;

2. It is used advanced automatic shading system is adopted to eliminate eye irritation during work;

3. Humanized design, ergonomic, no fatigue when working for a long time, large work surface. It can move up and down, and the surrounding baffle design facilitates processing.

4.The power can be 200w and 400w, High-power models are suitable for thick materials, while low-power models are suitable for fine repairs.

5.Easy cleaning and solder waste removal, and the LED ring light enhances visibility, making it suitable for prolonged, detailed work.

6.Water cooling system + optimized cooling design ensure stable operation for extended periods and prolong the lifespan of critical components.

Send Inquiry

Product Description

Device Configuration

Open Laser Welding Machine 200W Configuration

Configuration list (200W)
1. A set of YAG laser
2. Laser power supply set
3. A set of optical systems
4. A set of liftable and movable optical benches
5. A set of LCD display system
6. A set of microscopes
8. 1P water chiller
9. A set of host cabinet

Open Laser Welding Machine 400W Configuration

Configuration list (400W)
1. A set of YAG laser
2. Laser power supply set
3. A set of optical systems
4. A set of liftable and movable optical benches
5. A set of LCD display system
6. A set of microscopes
8. One 3P water chiller
9. A set of host cabinet

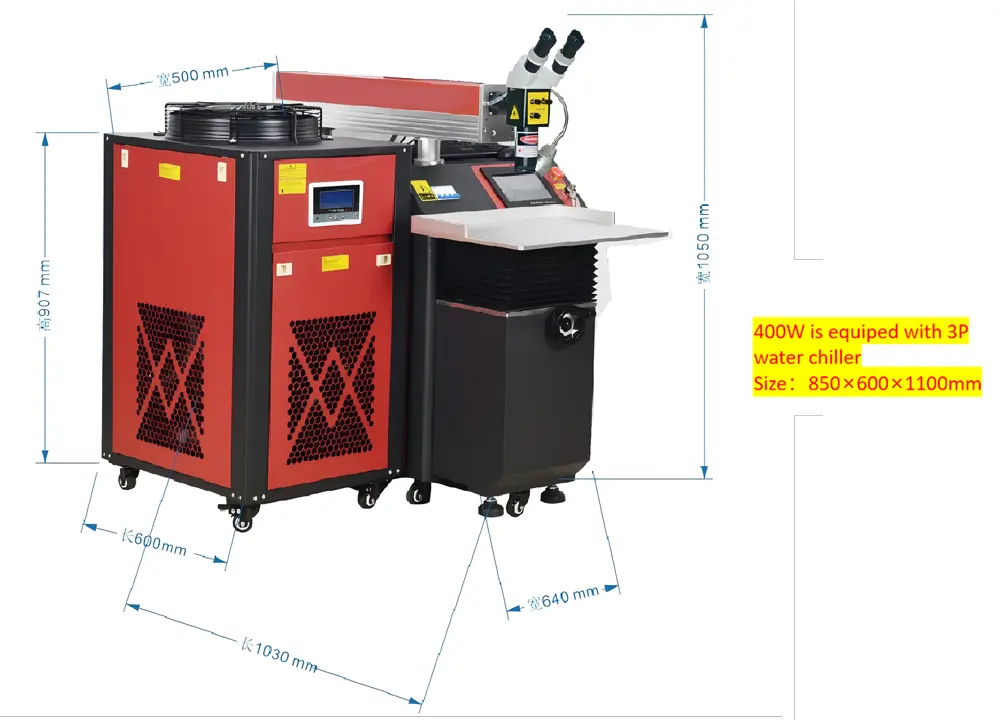

Product Size

YME-200W

Detailed Parameters

Item Number	YME-200W-VI	YME-400W-VI
Maximum laser power	200W	400W
Laser wavelength	1064nm
Condenser cavity reflector	Ceramic focusing cavity	Double lamp spotlight cavity
Current adjustment range	60-150A
Laser frequency	1-20Hz	1-30HZ
Pulse Width	0.3-10Ms	0.3-10Ms
Spot adjustment range	0.2-2mm	0.3-3mm
Aiming and positioning	CCD / microscope (optional camera system)
Chiller cooling power	1P	3P
Rated power	8KW	12KW
Electricity demand	380V±5V 50Hz/40A 220V±5V 50Hz/60A	380V±5V 50Hz/40A
Overall dimensions / net weight	Host: 1030×640×1050mm / 102KG	Host: 1030×640×1050mm / 115KG
Overall dimensions / net weight	Water chiller: 600×500×930mm / 65KG	Water chiller: 850×600×1100mm

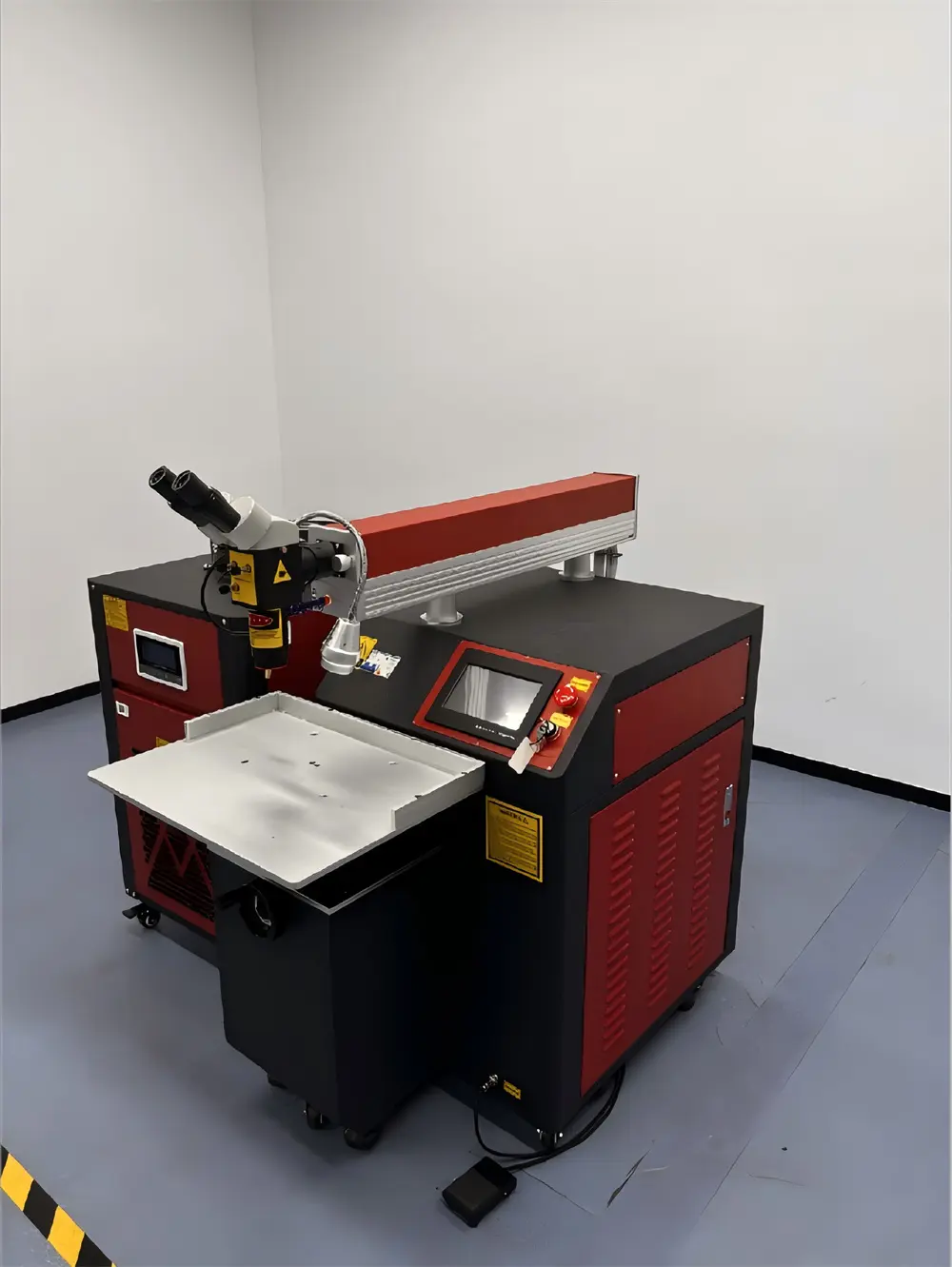

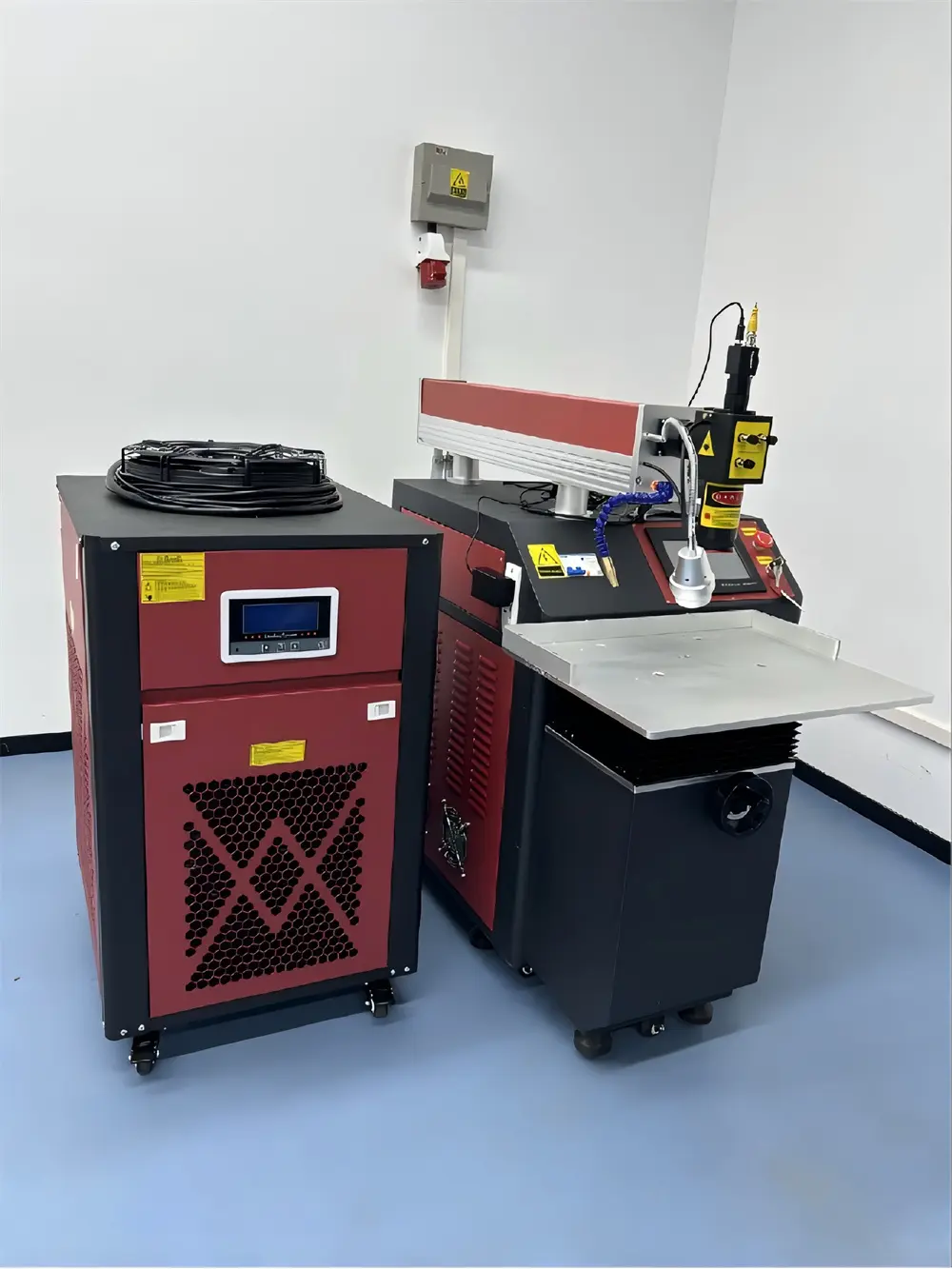

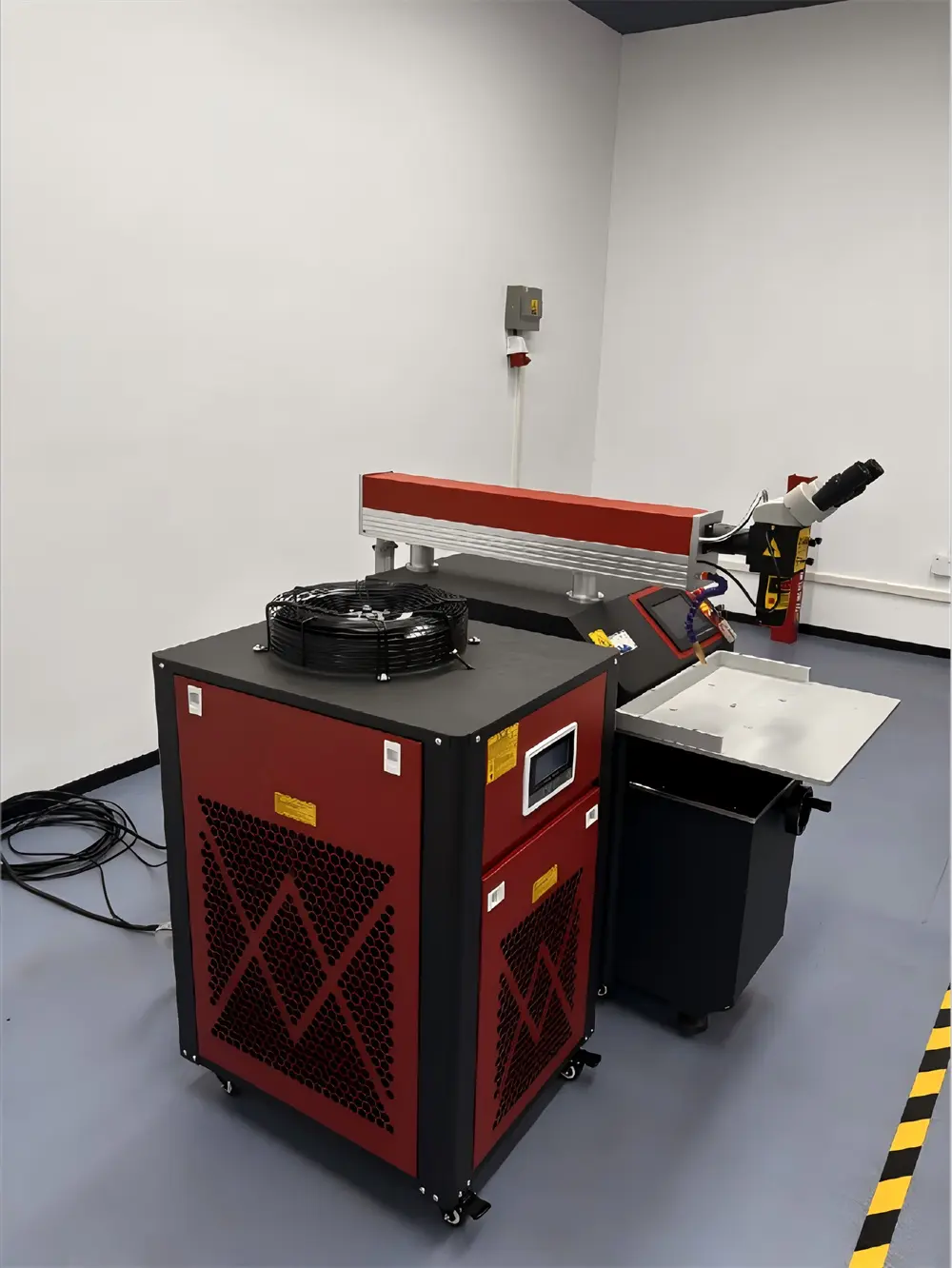

Machine Picture

Application Scope

It is suitable for welding, hole filling, spot welding of holes, inlaid parts and claw feet of gold and silver jewelry, stainless steel, titanium alloy and precision casting products.

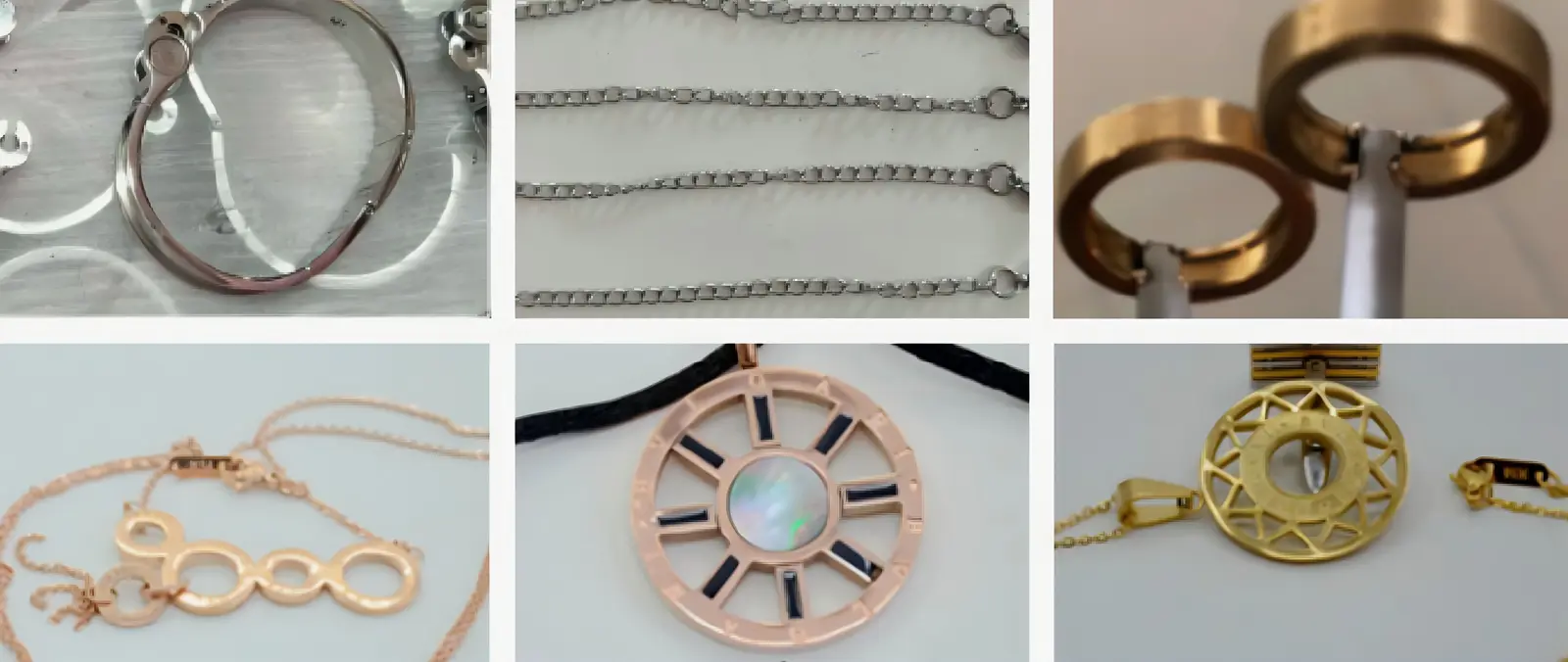

Some sample display

Frequently Asked Questions

QWhat materials can this laser welding machine process?

The machine is specially designed for gold, silver, stainless steel, titanium alloys, and precision casting parts, handling spot welding, hole repair, and claw-foot setting with high precision.

QWhat is the difference between the 200W and 400W models?

The 200W model uses a ceramic focusing cavity, 1-20Hz frequency, and a 1P water chiller, while the 400W model utilizes a double lamp spotlight cavity, 1-30Hz frequency, and a 3P chiller for heavier workloads.

QWhat observation systems are available for positioning?

The system includes an optical microscope standard, with options for high-definition CCD camera monitoring to ensure accurate spot alignment.

QWhat are the power supply requirements?

The 200W model supports both 220V±5V 50Hz/60A and 380V±5V 50Hz/40A, while the 400W model requires a 380V±5V 50Hz/40A industrial electrical connection.

QHow adjustable is the laser spot size?

The beam spot can be adjusted between 0.2mm and 2mm for the 200W model, and between 0.3mm and 3mm for the 400W model, matching various delicate precision welding tasks.
